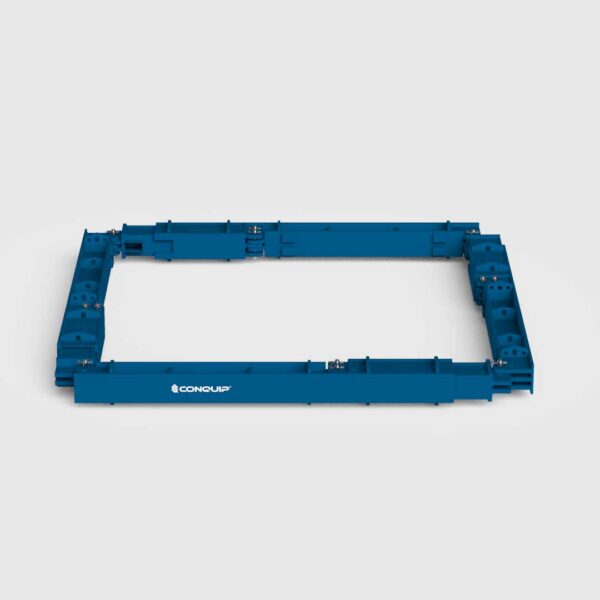

300 Brace, temporary excavation support, 2-15m clear span, hero image, blue render, white background

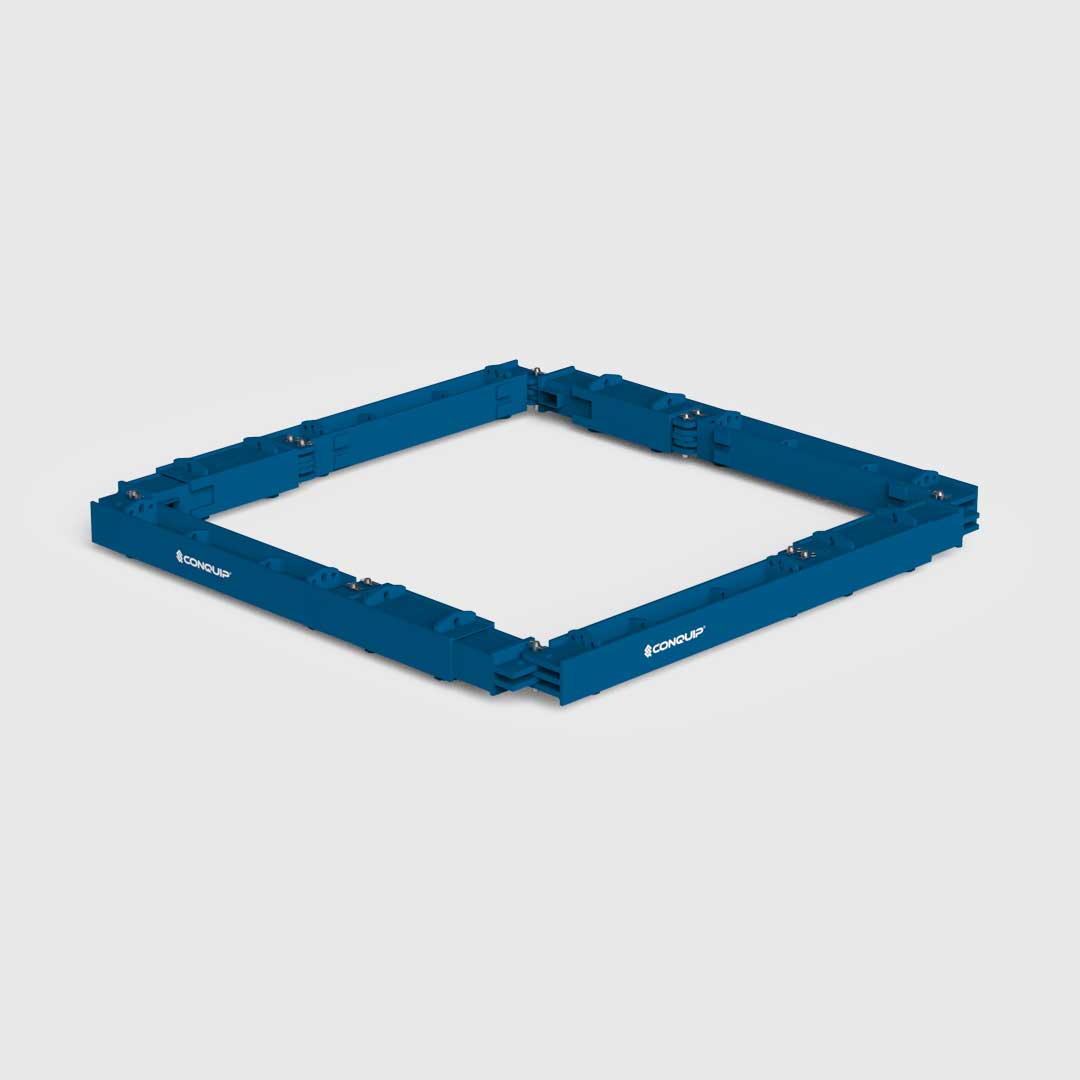

300-Brace-Square-Full-Assembly_LF

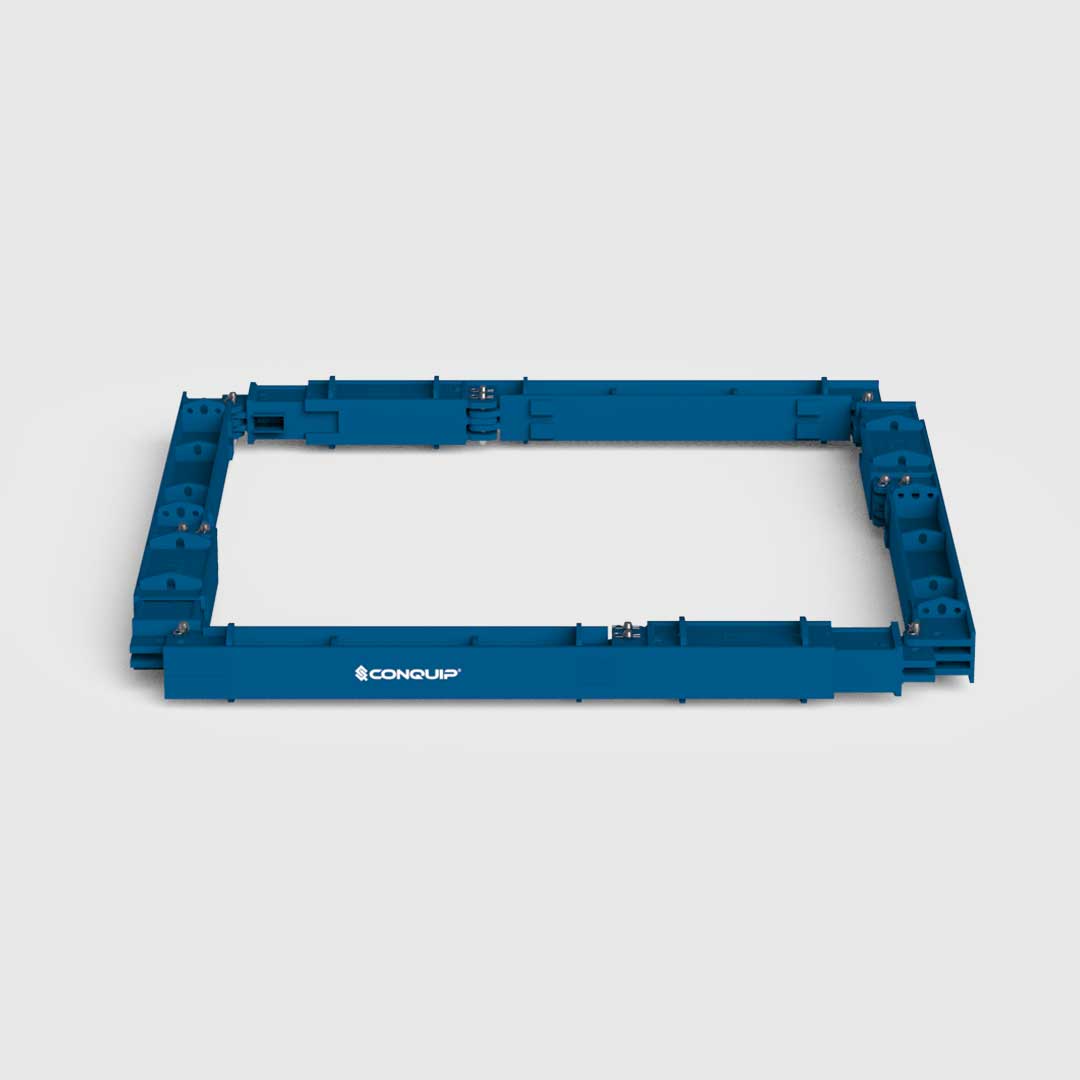

300-Brace-Square-Full-Assembly_Right

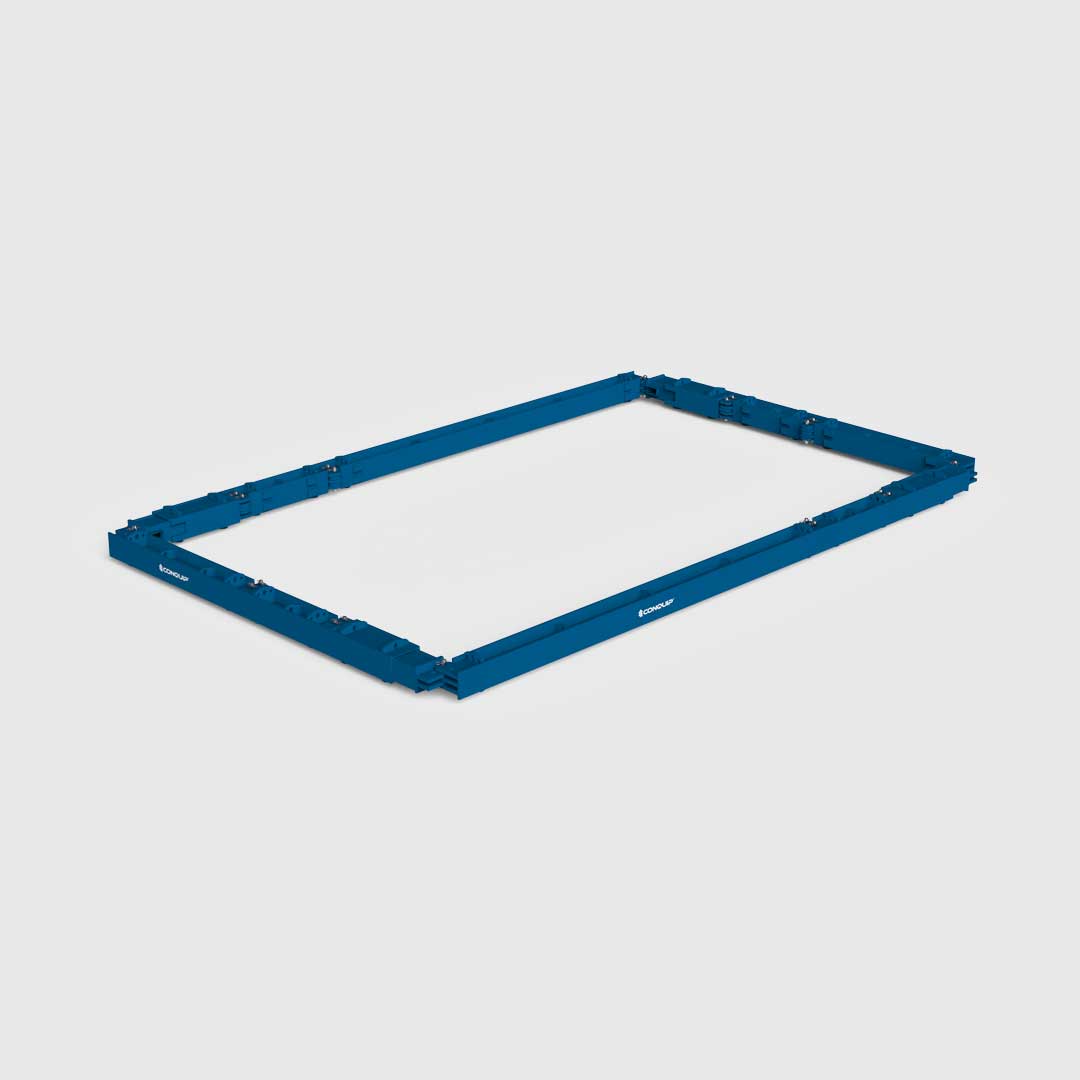

300-Brace-Large-Full-Assembly_RF

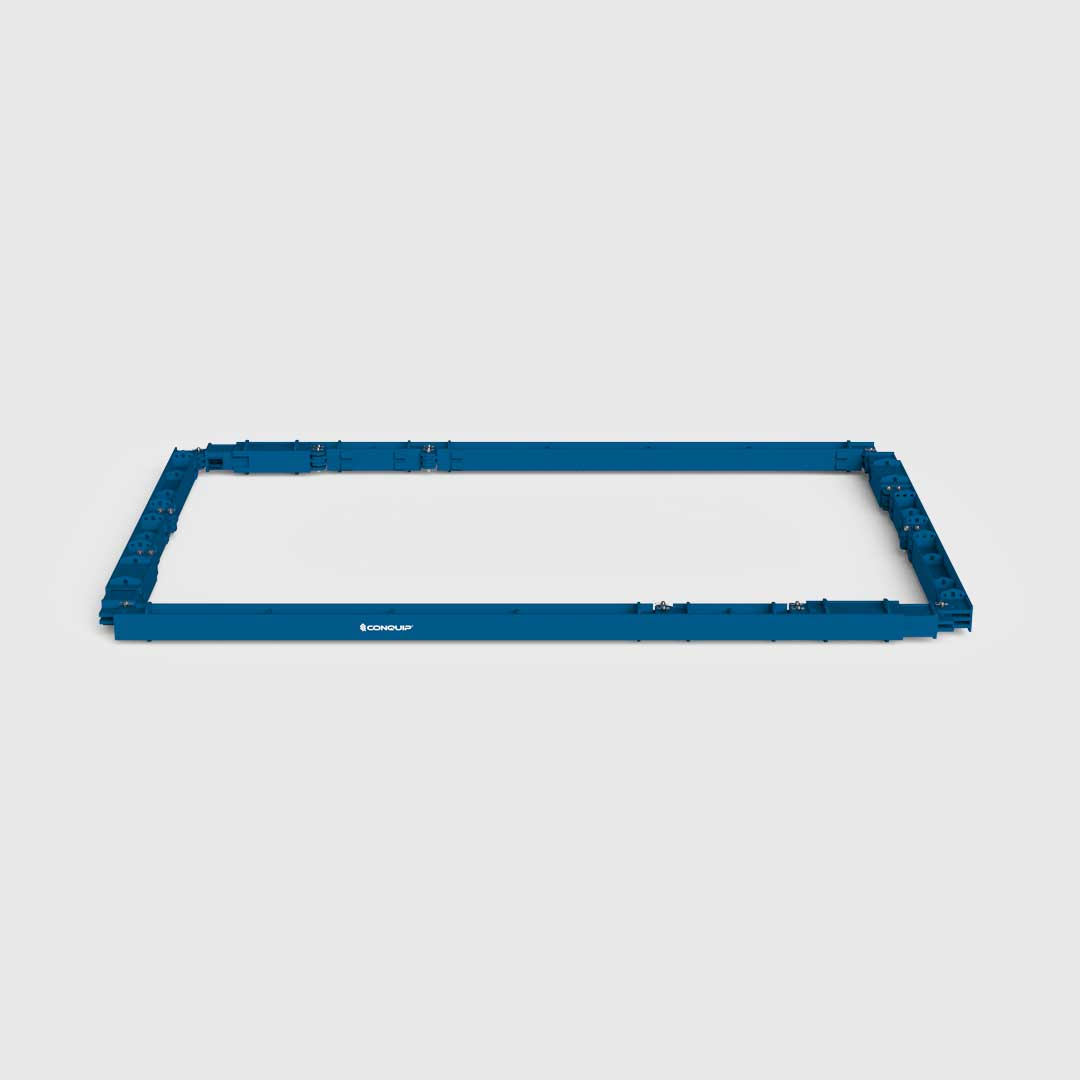

300-Brace-Large-Full-Assembly_Front

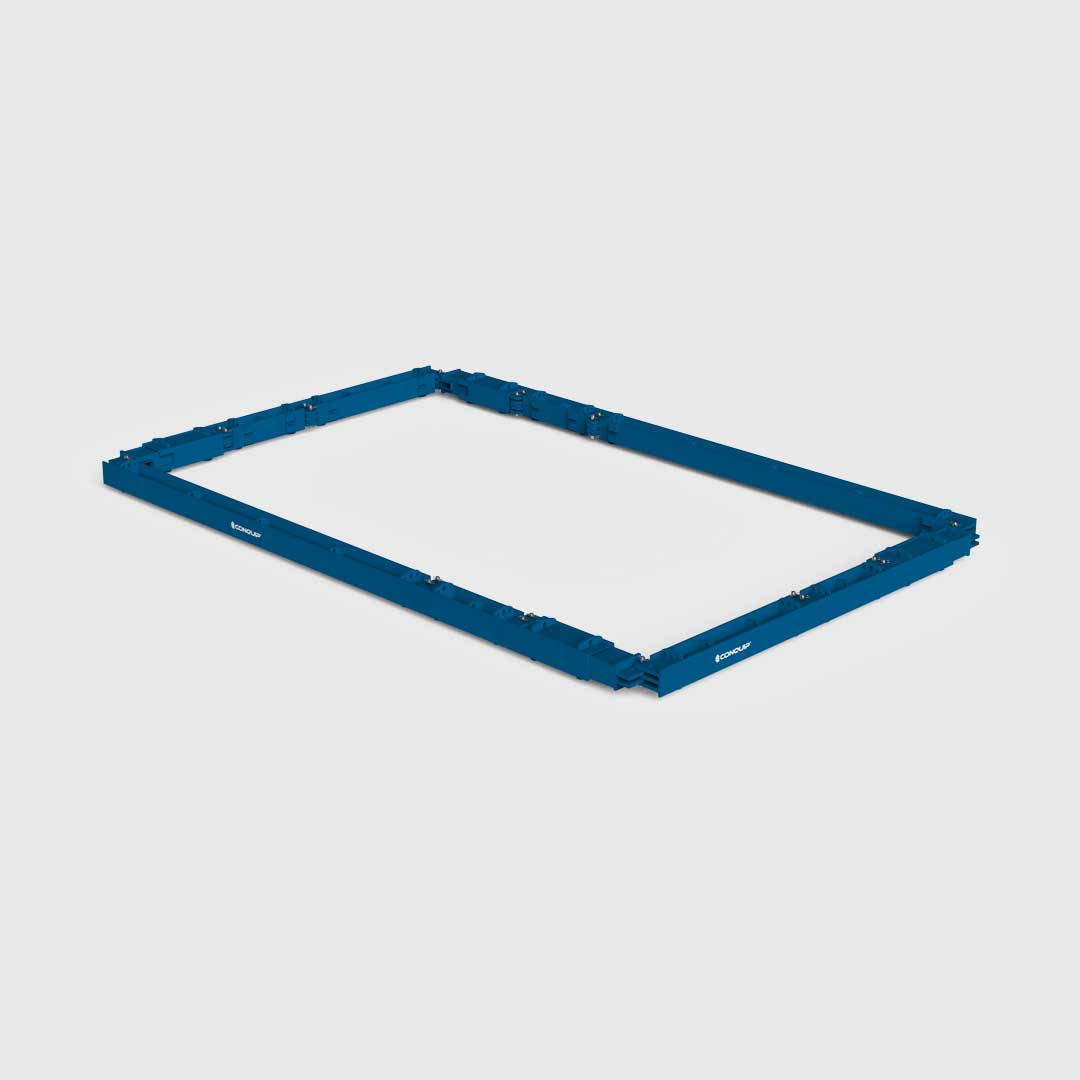

300-Brace-Large-Full-Assembly_LF
300 Brace, temporary excavation support, 2-15m clear span, hero image, blue render, white background
300-Brace-Square-Full-Assembly_LF
300-Brace-Square-Full-Assembly_Right
300-Brace-Large-Full-Assembly_RF
300-Brace-Large-Full-Assembly_Front
300-Brace-Large-Full-Assembly_LF

300 Brace

Our 300 Brace is a high load, four-sided hydraulic modular bracing system for use with trench sheets and sheet piles, and also in temporary excavations across a wide range of applications, including cofferdams and tank installations.

With clear spans from 2 to 15 metres, the 300 Brace offers a flexible solution for medium-sized excavation projects. For larger areas, additional cross strutting can be incorporated using our range of struts and attachments.

SKU: N/A Category:

Description

FEATURES

  • Adjustable hydraulic legs and extension lengths.
  • Double-acting hydraulic ram.
  • Robust build.

BENEFITS

  • Ideal for a range of medium-sized excavations with 2-metre to 15-metre clear spans.
  • Suitable for larger excavations by utilising Conquip’s wide range of cross strutting and supporting attachments. Head to our Technical Library for more information.
  • Compatible with a wide range of trench sheeting including Standard Lap, BVI 500, KKD/600 and HD2 Trench Sheets, as well as Sheet Piles.
  • Fully-adjustable legs that can be expanded and retracted using a motorised pump easing manual handling and labour intensity.
  • Highly durable design manufactured from quality steel enabling the assembly withstand the ground pressure from varying soil types and ground conditions.
  • A large selection of brace legs allow for multiple extension combinations to suit excavations of all types and ground pressures.

Specification

PRODUCT CODEPRODUCT TYPELENGTHWEIGHT
(kg)
MIN
(mm)		MAX
(mm)
300B-600HYDHydraulic Unit12901890625
300B-E05Extension Unit 550550245
300B-E10Extension Unit 10001000345
300B-E15Extension Unit 15001500450
300B-E25Extension Unit 25002500620
300B-E40Extension Unit 40004000900
300B-E60Extension Unit 600060001190
300B-600HYD, 300B-E05, 300B-E10, 300B-E15, 300B-E25, 300B-E40, 300B-E60

There are no optional extras for this product.

What is the Conquip 300 Brace used for?

The Conquip 300 Brace is used as a temporary waling system for supporting sheeted excavations during construction and groundwork projects.

What excavation sizes is the 300 Brace suitable for?

The 300 Brace is typically used in excavations with clear spans ranging from 2 to 15 metres.

Can the 300 Brace be used in larger excavations?

Yes. Additional cross strutting can be added using Conquip’s range and of struts and attachments to support larger areas.
