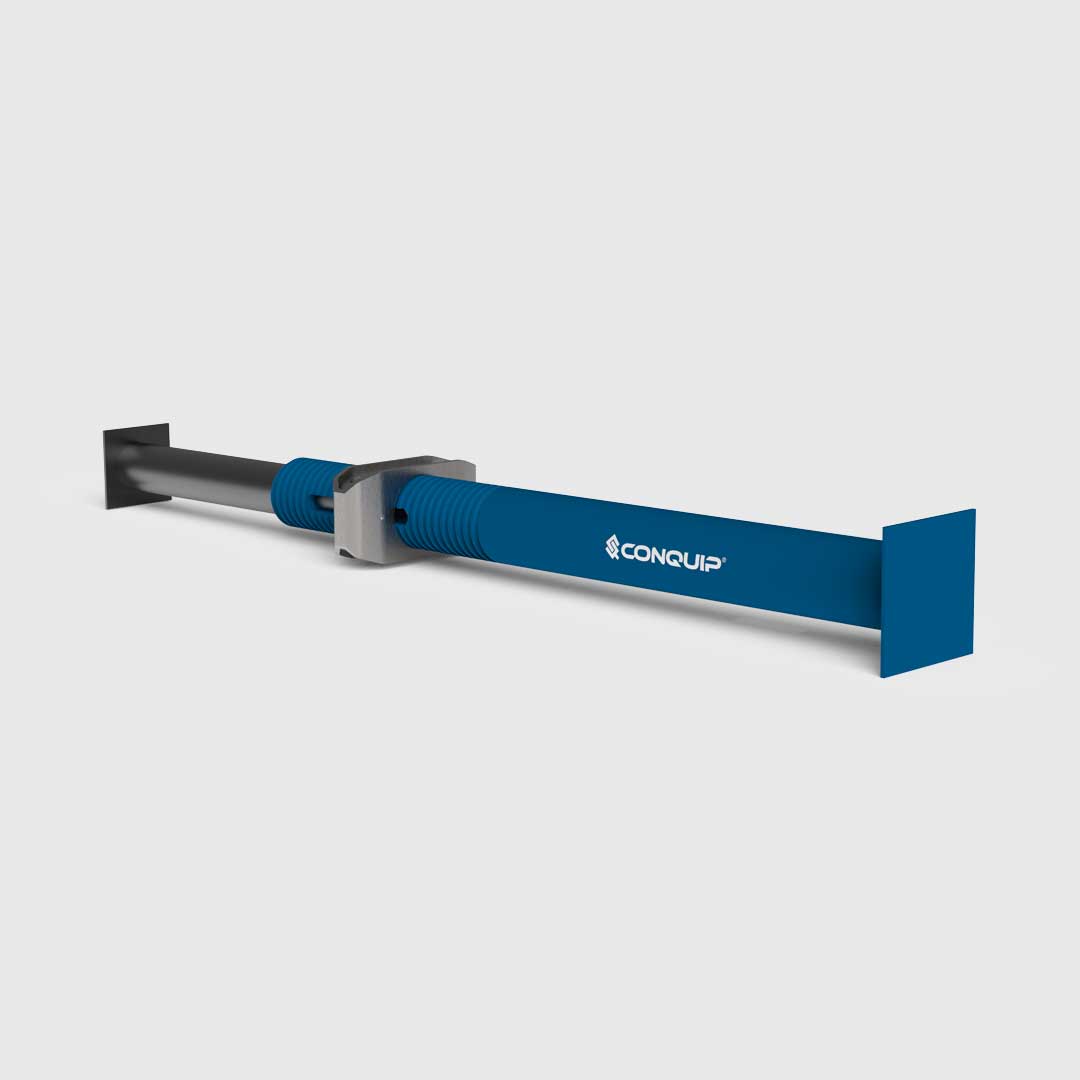

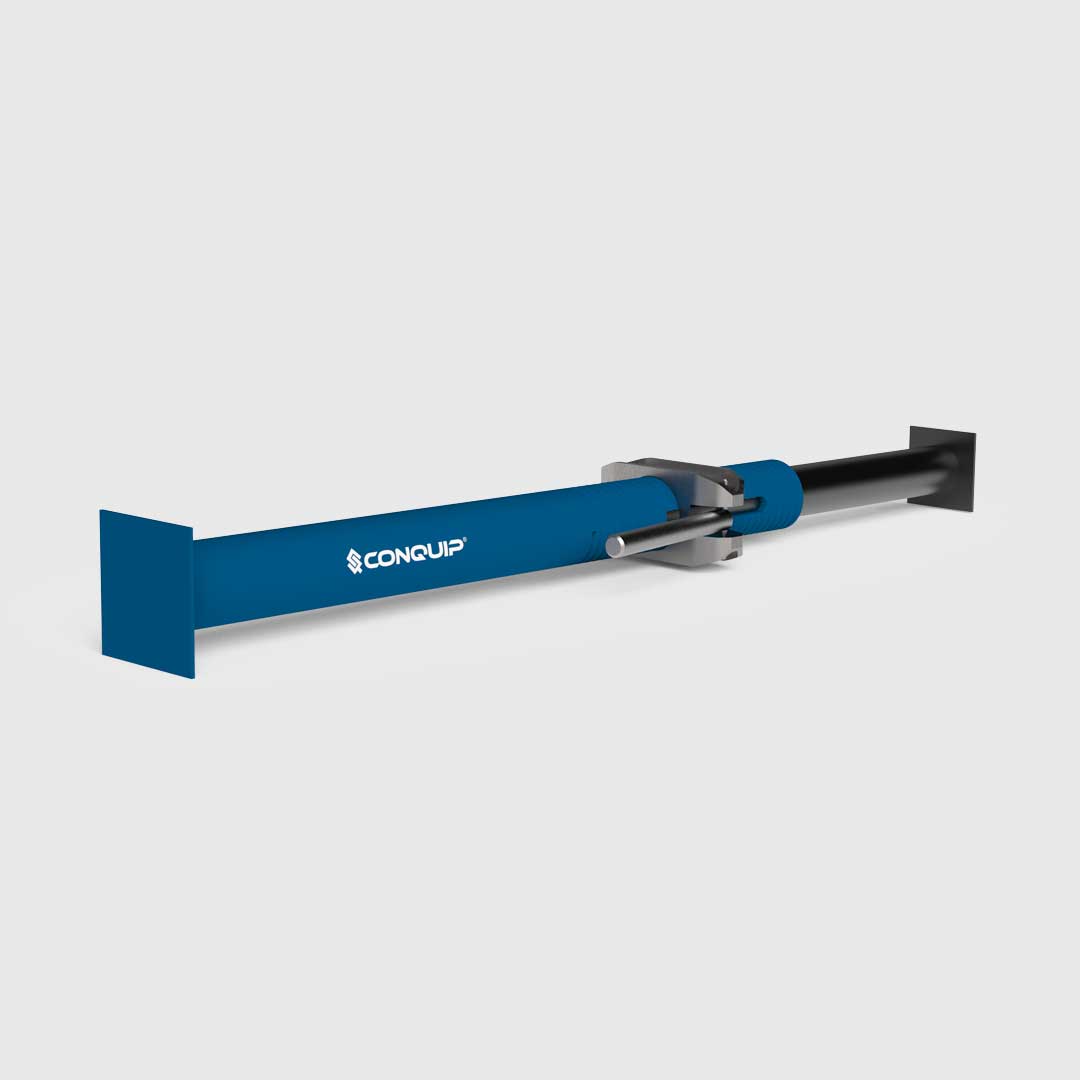

Trench Struts

Conquip Trench Struts are horizontal mechanical supports used to provide lateral restraint and prevent the collapse of trench walls.

They support and maintain the position of timber walings, steel trench sheets, and hydraulic shoring systems in excavations from shallow to medium depths.

Trench struts are commonly used in civil engineering applications including concrete pipe installation, utility maintenance and repair work and cable installation.

Type

Hire/Purchase

Clear

SKU: TL900 Category: Excavation Support

Description

FEATURES

Outer tube.
Inner tube.
Clawed base plate.
Adjustment pin and nut.

BENEFITS

Available in a range of sizes to suit varying trench and excavation widths.
Robust, heavy-duty design able to withstand high ground pressure and provide lateral support to trench lining systems.
Quick and easy to install and adjust.
Clawed base plates (75mm x75mm) provide excellent grip against timber frames and steel trench sheets.
Mechanically adjusted using the pin and nut to accommodate site-specific excavation dimensions and ground pressures.
Compatible with existing trench support arrangements, including timber walings, steel trench sheets and temporary shoring systems.
Manufactured to BS4074:2000 and tested to BS5507-3:1982.
