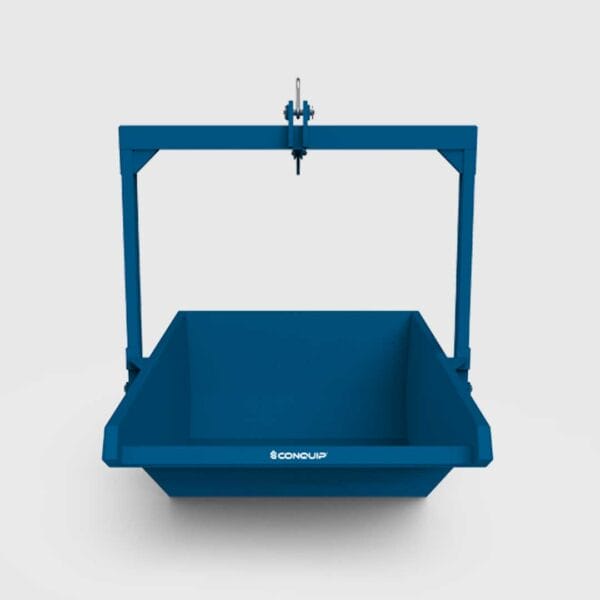

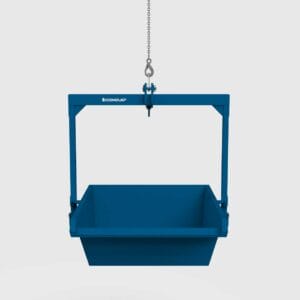

conquip boat skip lifted front view
boat skip 1000 litres

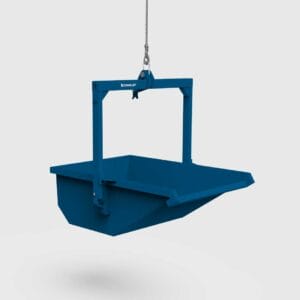

conquip boat skip lifted side view

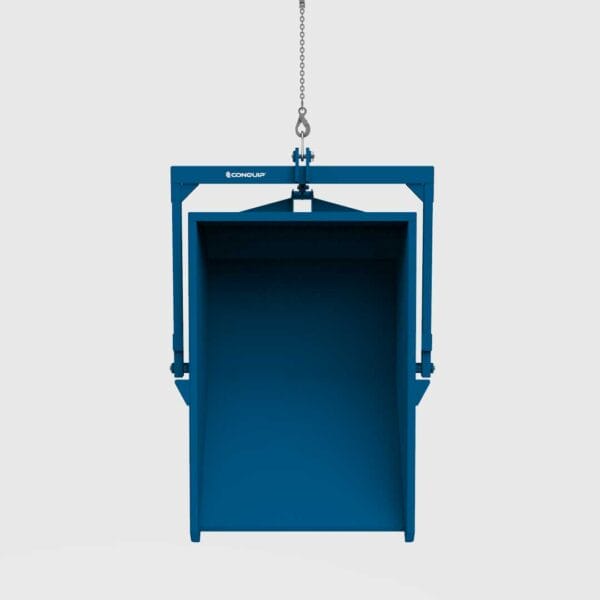

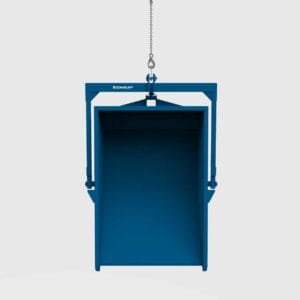

conquip boat skip lifted tipping front view

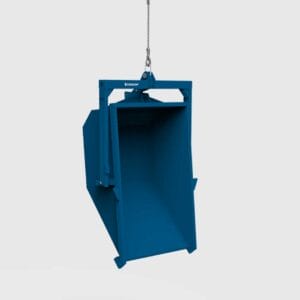

conquip boat skip lifted tipping side view
Boat Skip
Boat Skip
Boat Skip
Boat Skip
boat skip 4000 litres
boat skip 1000 litres

Boat Skip

Heavy-duty skip for general muck and waste removal, ideal for heavy loads.

The Conquip Boat Skip has a low loading height and drop-down bale making loading the skip very easy. It is designed with a slotted bale arm, lifting point and latch for automatic emptying of the skip by the crane operator, eliminating the need for an assistant to manually operate a release mechanism.

Quantity
SKU: N/A Category: Tags: , , , , , , , ,

Specification

PRODUCT TYPEPRODUCT CODELENGTHLENGTH (with bale arm)WIDTHHEIGHTHEIGHT (with bale arm)WEIGHTWLL*CAPACITY
SmallCA108-005001520mm1690mm1360mm530mm1410mm130kg1000kg500 litres
SmallCA108-007501595mm1780mm1710mm560mm1450mm235kg1500kg750 litres
SmallCA108-010001955mm2135mm1555mm640mm1720mm255kg2000kg1000 litres
SmallCA108-015002187mm2390mm1885mm665mm1815mm425kg3000kg1500 litres
SmallCA108-020002355mm2555mm1835mm880mm2180mm540kg4000kg2000 litres
LargeCA122-020002100mm2580mm1900mm900mm1676mm860kg4000kg2000 litres
LargeCA122-030002110mm3110mm1880mm1345mm2240mm980kg6000kg3000 litres
LargeCA122-040002550mm3450mm2265mm1310mm2250mm1360kg8000kg4000 litres
LargeCA138-060002830mm-2272mm1436mm2416mm1800kg12000kg6000 litres
