Excavator Pipe Laying Hook

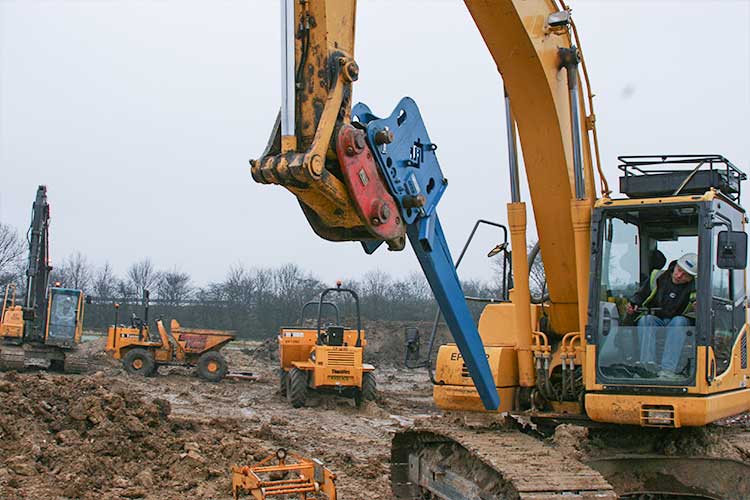

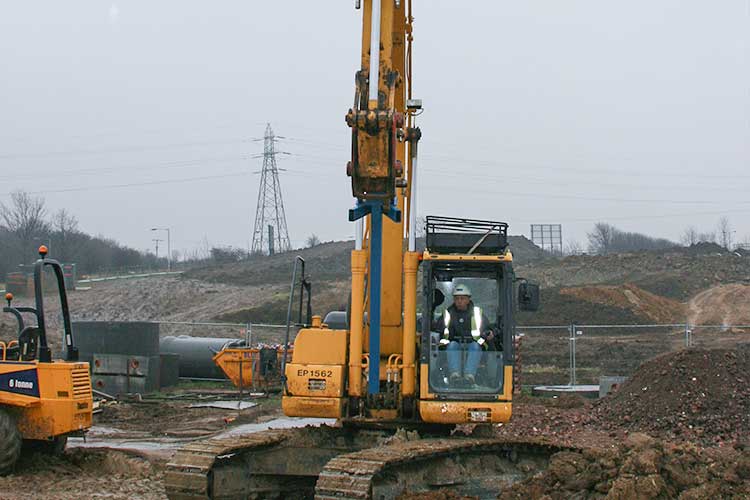

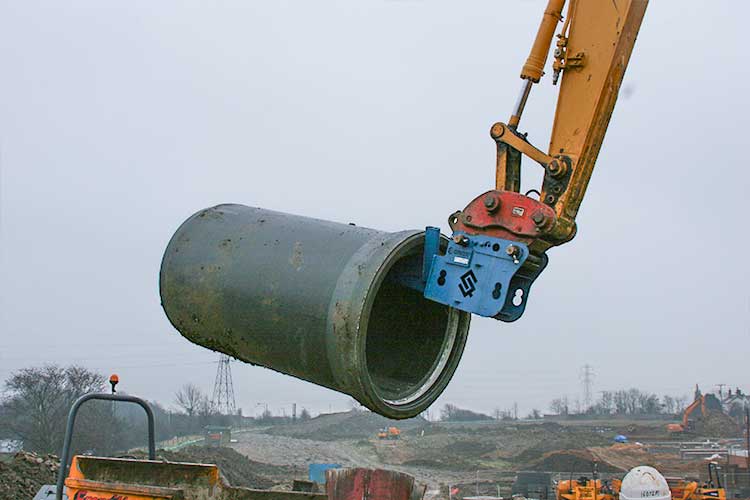

The Conquip Excavator Pipe Laying Hook is an excavator attachment used for the fast and safe handling of pipe sections. It is ideal for unloading concrete pipe sections from delivery vehicles, transporting them around site and placement in shallow trenches. Available in a range of sizes to site excavators from 13 to 50 tonnes.

Quantity
SKU: N/A Category: Tags: , , , , , , , ,

Description

Features

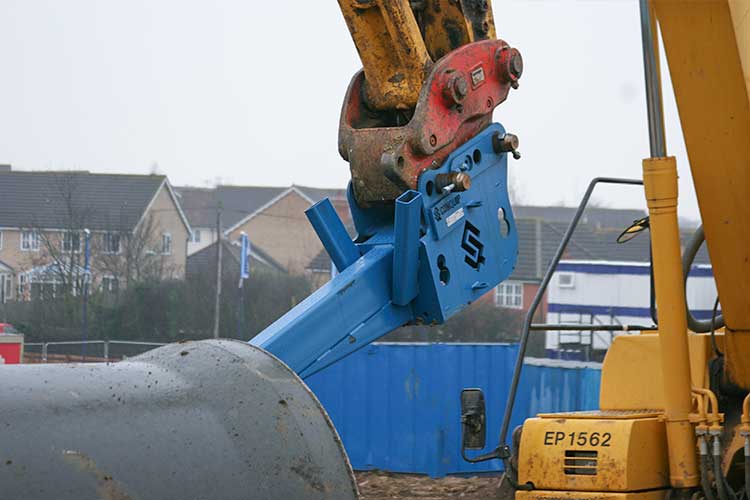

  • Rubber stops on the back plate act as a buffer to prevent pipes from breaking when sliding into the back plate.
  • Robust design to withstand regular use.
  • Adjustable hitch plate allows for varying pin centres and sizes.

Benefits

  • A safer alternative to traditional slinging methods for unloading trucks, removes operators from working at height or in crush zones.
  • The cylindrical design of the 4-tonne size means it can lift pipes with diameters from 300mm.
  • The 8.5-tonne size can lift pipes with diameters from 375mm and has a larger Working Load Limit making it ideal for bulkier pipe sections.
  • Supplied with 65mm and 80mm pins for 13-22 tonne excavators or 90, 100 and 110mm pins, for 30-50 tonne excavators.
  • Concrete pipe sections placed together in shallow trenches, reducing the need for operatives to enter the excavation, improving site safety.
Array
(
    [_edit_lock] => Array
        (
            [0] => 1745319569:29
        )

    [_edit_last] => Array
        (
            [0] => 29
        )

    [total_sales] => Array
        (
            [0] => 96
        )

    [_tax_status] => Array
        (
            [0] => taxable
        )

    [_tax_class] => Array
        (
            [0] =>
        )

    [_manage_stock] => Array
        (
            [0] => no
        )

    [_backorders] => Array
        (
            [0] => no
        )

    [_sold_individually] => Array
        (
            [0] => no
        )

    [_virtual] => Array
        (
            [0] => no
        )

    [_downloadable] => Array
        (
            [0] => no
        )

    [_download_limit] => Array
        (
            [0] => -1
        )

    [_download_expiry] => Array
        (
            [0] => -1
        )

    [_stock] => Array
        (
            [0] =>
        )

    [_stock_status] => Array
        (
            [0] => instock
        )

    [_wc_average_rating] => Array
        (
            [0] => 0
        )

    [_wc_review_count] => Array
        (
            [0] => 0
        )

    [_product_attributes] => Array
        (
            [0] => a:3:{s:13:"compatibility";a:6:{s:4:"name";s:13:"Compatibility";s:5:"value";s:49:"13 - 22 tonne excavator | 30 - 50 tonne excavator";s:8:"position";i:0;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:9:"pin-sizes";a:6:{s:4:"name";s:9:"Pin Sizes";s:5:"value";s:63:"45mm | 50mm | 60mm | 65mm | 80mm | 90mm | 100mm | 110mm | Other";s:8:"position";i:1;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:15:"hire-purchasing";a:6:{s:4:"name";s:15:"Hire/Purchasing";s:5:"value";s:52:"Hire Only | Purchase Only | Quote me on both options";s:8:"position";i:2;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}}
        )

    [_product_version] => Array
        (
            [0] => 8.5.2
        )

    [_thumbnail_id] => Array
        (
            [0] => 17212
        )

    [_product_image_gallery] => Array
        (
            [0] => 17211,17205,17207,17206,17208,17210,17209
        )

    [specification] => Array
        (
            [0] =>




PRODUCT CODE
LENGTH
WIDTH
HEIGHT
BOOM LENGTH
WEIGHT
WLL*
PIN SIZES
COMPATABILITY






EA012-04000**
2910mm
500mm
600mm
1800mm
290kg
4000kg
65mm / 80mm
13 - 22 tonne excavator




EA012-08500
3010mm
690mm
750mm
1870mm
400kg
8500kg
90mm / 100mm / 110mm
30 - 50 tonne excavator





*Working Load Limit

** Cylindrical design

Note: Please enquire an confirm your pin sizes are correct when placing your order.
        )
