Sheet Piles

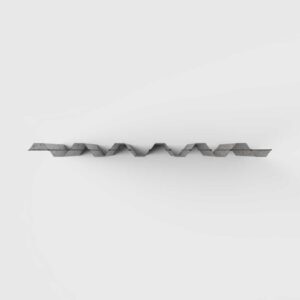

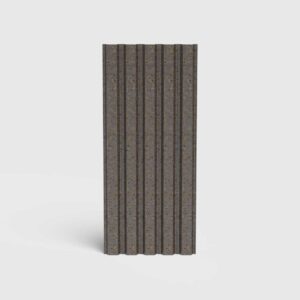

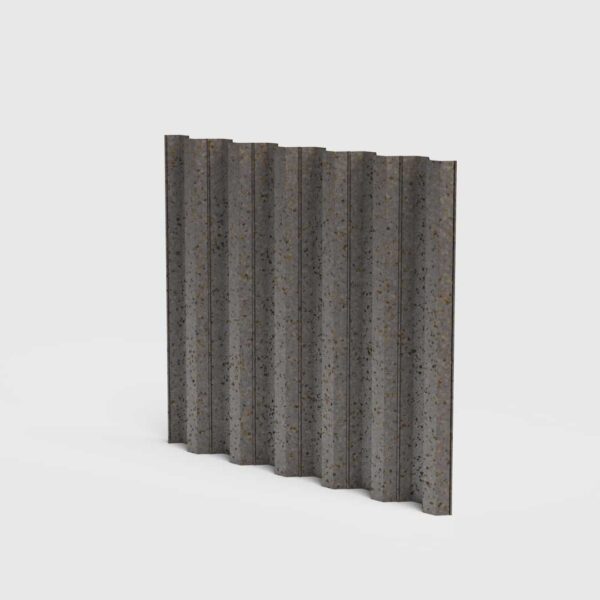

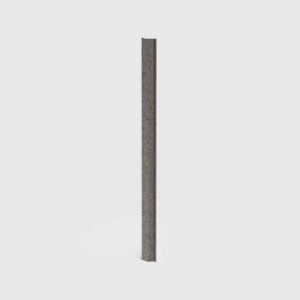

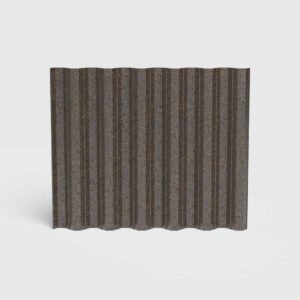

Conquip GU13N interlocking Sheet Piles are predominately used to form permanent walls or barriers for excavations or for temporary support during construction.

The heavy-duty overlapping sheet profiles ensure high strength-to-weight-ratio, providing a safe environment and for operatives working in excavations, and watertight structures for flood defence and marine environments. Typical applications include retaining walls for seawalls, canals, car parks, basements, and other ground excavations.

Our range of GU13N Sheet Piles are available in lengths from 4-metre to 10-metre lengths in 0.5-metre increments and can be supplied and installed as single, double, or triple piles.

Type

Length

Hire/Purchase

Clear

SKU: N/A Category: Excavation Support

Description

FEATURES

Robust, high strength, steel design.
Overlapping profiles.

BENEFITS

Choose from lengths from 4 metres to 10 metres.
Can be supplied and installed as single, double, or triple piles.
Versatile range ideal for multiple applications and project types.

Specification

PRODUCT TYPE	AVAILABLE LENGTHS (m)	EFFECTIVE WIDTH (mm)	THICKNESS (1) (mm)	THICKNESS (2) (mm)	DEPTH (mm)	PAN WIDTH (mm)	WEIGHT		SECTION MODULUS (cm³/m)	MOMENT OF INERTIA	MAX SWL* (kNm/m)
PRODUCT TYPE	AVAILABLE LENGTHS (m)	EFFECTIVE WIDTH (mm)	THICKNESS (1) (mm)	THICKNESS (2) (mm)	DEPTH (mm)	PAN WIDTH (mm)	(kg/m)	(kg/m²)	SECTION MODULUS (cm³/m)	MOMENT OF INERTIA	MAX SWL* (kNm/m)
GU13N	4 - 10	600 (1200)	9	7.4	230 (418)	250	59.9	99.8	658 (1270)	9066 (26250)	191 (368)

* Safe Working Load.
NB: Values in brackets are for interlocked piles/m. All other values apply to a single pile/m unclutched.

GU13N

There are no optional extras for this product.

User Guide

Supporting Documentation

How do I know if I need a sheet pile or trench sheet for my excavation support project?

Our hire desk and temporary works engineers can best advise but as a general guide, Sheet Piles are more commonly used for providing watertight, heavy-duty, permanent barriers or walls for cofferdams, seawalls, canals, car parks and basements.

Where can I see the profile and sheet dimensions?

Please visit page 3 of our Specification Sheet under 'Technical Documents'.
