Excavator Drag Skip

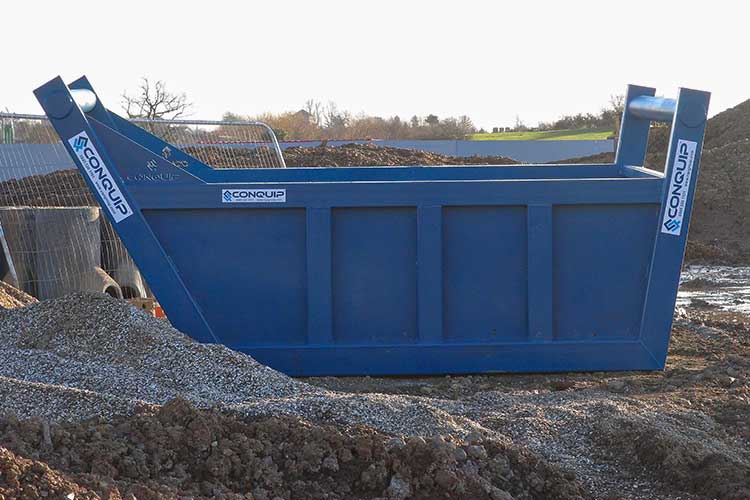

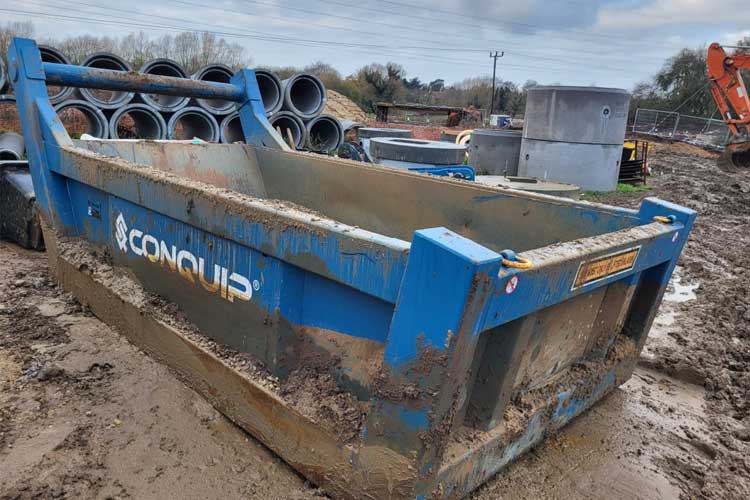

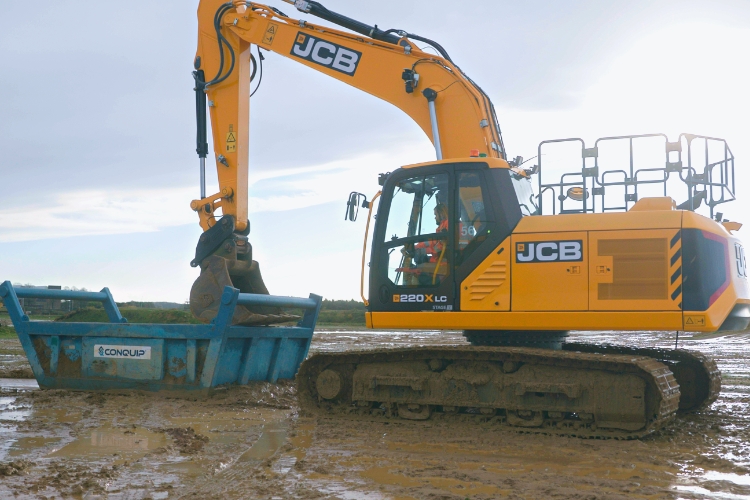

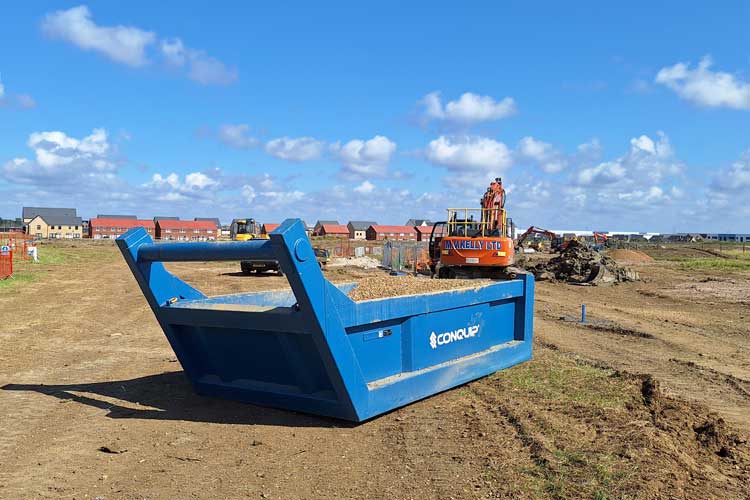

The Conquip Excavator Drag Skip is a heavy-duty, flat-based skip designed to be dragged across site by an excavator.

Also known as a ‘stone-saver’ or ‘shingle bin’, it’s ideal for transporting bulk materials such as shingle, sand, dry mix concrete, backfill, stone, and other aggregates. Built for durability and efficiency in demanding site conditions.

Capacity

Hire/Purchase

Clear

SKU: N/A Categories: Excavator Attachments, Waste Skips

Description

FEATURES

Flat base for easy movement and transportation.
Low sides for easy material fill.
Durable design with reinforced drag bar and thicker plate on the base and the sloping edge for additional strength and longevity.
Crane lift points on each side of the Excavator Drag Skip allow for easy unload and movement around larger sites, when the skip is unladen.

BENEFITS

Available in a range of capacities to suit varying applications and site requirements.
Prevents material wastage on the ground, saving Groundworks Contractors up to 3/4 of a cube of material wastage per load.
Allows material to be accessed by excavators in areas that are unreachable for dump trucks.
Ideal for bedding concrete pipes on deep drainage applications or backfilling utility installations.
Improves productivity on-site by reducing the need to track back and forth from stockpiles.
Eliminates typical wear and damage to dump trucks.
Can remove the need of a dumper & operator saving costs.

Specification

PRODUCT CODE	LENGTH (mm)	WIDTH (mm)	HEIGHT (mm)	WEIGHT (kg)	CAPACITY (litres)
GS003AD-04500	3450	1835	1675	1530	4500
GS003AD-07500	4450	2135	1735	2110	7500
GS003AD-09500	5500	2135	1735	2570	9500

GS003AD-04500, GS003AD-07500, GS003AD-09500

There are no optional extras for this product.

User Guide

Customer Support Video

Supporting Documentation

What volume of material could I save?

We typically see that contractors save 5% or ¾ of a cube of all loose material per load. But there are other savings associated with using the Drag Skip, as there’s no need to hire a dumper along with the operator and fuel. Plus, it reduces excavator fuel and downtime tracking back and forth from stockpiles.

How can I move this skip around a site when it’s empty?

It has four crane lift points for ease of movement on larger sites.

How much material can I drag around?

Anywhere from 4500 litres to 9500 litres, depending on which size of skip you choose.

[The Excavation Drag Skips are..] Brilliant things, with other firms I've had old waste type skips with beam cross bars welded on to drag them around. These are much better than beating a dumper to death.

Nigel Williams

Plant Operator

I'm currently using 1 on a HMH CIVILS LIMITED job in Redcar, brilliant idea, keeps my pipe bedding clean and with no wastage

Dean Turnbull

Director | T&C Construction Ltd

We've used Conquip Drag Skips with our 30 tonne excavators for a number of years. It's our first choice method for reducing aggregate waste to almost nothing and it's a far more efficient way of working. We choose the skips on all our projects - for roads, sewers and housebuilding sites.

Richard Baker

MD | Baker Groundworks
