Skip Washing Platform

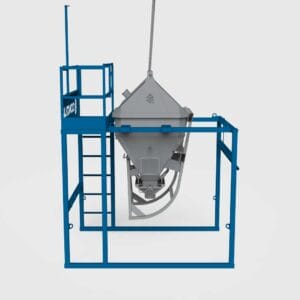

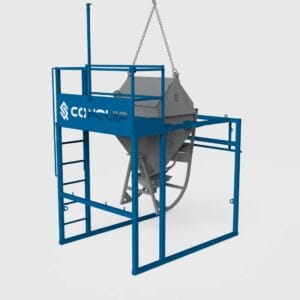

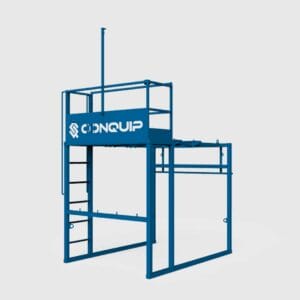

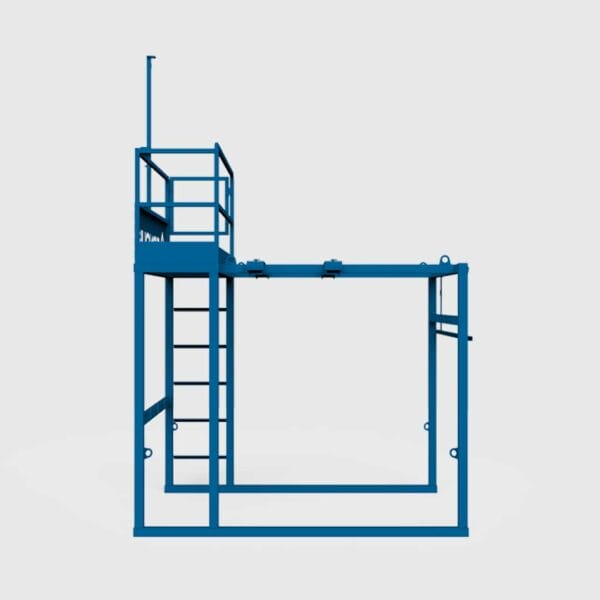

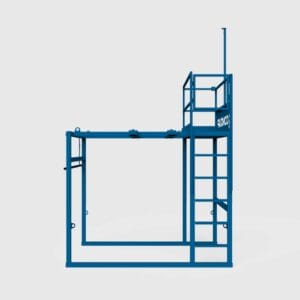

The Conquip Skip Washing Platform facilitates a compact, safe method of washing out concrete skips on site. It allows site operatives to use a hose or jet-washer to clean the skip, whilst the skip is secured in the robust frame.

Available in small or large sizes to suit varying site requirements, both sizes are compatible with our Concrete Washout System, which keeps concrete wastewater contained and allows it to be reused.

SKU: N/A Category: Brand:

Description

FEATURES

  • Reinforced, one-piece, robust frame with lifting points to enable a single crane-lift when empty.
  • Small platform compatible with Conquip Concrete Skip With Bale Arm or Concrete Skip Without Bale Arm from 500 to 2000 litres.
  • Large platform compatible with Conquip Concrete Skip With Bale Arm or Concrete Skip Without Bale Arm from 500 to 3000 litres (other options available for larger skips).
  • Compact design for when space is premium.
  • Complete with access steps and harness attachment point.
  • Resting pads and restraint bar accommodate varying skip sizes.
  • Removable handrail for better access to skip during washout.

BENEFITS

  • Commonly used with a Conquip Skip Washing Platform Drip Tray and designed to hold the concrete skip in a upright position to facilitate easy and safe cleaning, and act as a safe “parking spot” for the skip when not in use.
  • Facilitates cleaning of concrete skips which prevents deterioration from the build up of dried concrete.
  • Improves the safety of site personnel as the skip is safely secured on the platform during washout.

Specification

PRODUCT CODESIZELENGTH
(mm)
WIDTH
(mm)
HEIGHT (Overall)
(mm)
Height (Transpsort)
(mm)
WEIGHT
(kg)
WLL*
(kg)
CS231Small2455210032152475450Self Weight
CS241Large2910221043953374580Self Weight

* Working Load Limit.

CS231, CS241

There are no optional extras for this product.

Supporting Documentation

We're working on this so check back soon.
