Track Mats

Name: Track Mats
SKU: SS490

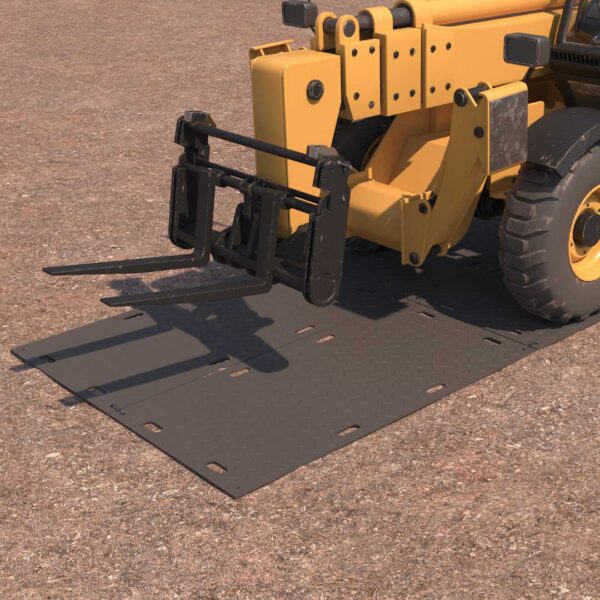

Conquip Track Mats provide safe and reliable access for plant, vehicles and personnel across soft, wet, or unstable ground conditions.

Manufactured from durable, high-strength plastic with an anti-skid surface, these ground protection mats distribute loads over a larger surface area, reducing ground pressure and improving traction. Multiple mats can be bolted together with connector plates to cover large areas and secured to the surface with robust steel anchors.

Hire/Purchase

Clear

SKU: SS490 Category: Site Management

Description

FEATURES

Oval cut-outs for manhandling.
Anti-skid surface.
Connector Plates.
Steel Anchors.

BENEFITS

Durable, sustainable material that reduces environmental impact.
Protects existing ground surfaces, minimising rutting, surface damage and post-project restoration costs.
Supports loads up to 80 tonnes, depending on ground conditions, making these mats suitable for heavy plant, vehicles and equipment.
Oval cut outs and lightweight design means they can be easily manhandled and installed by two operatives without relying on lifting equipment.
Reversible high-traction surface provides excellent grip for vehicles and personnel in wet or uneven conditions.
Creates stable access routes that withstand demanding site conditions and repeated use.
Cost-effective reusable solution, reducing replacement costs.

Specification

PRODUCT CODE	PRODUCT TYPE	LENGTH (mm)	WIDTH (mm)	HEIGHT (mm)	WEIGHT (kg)	WEIGHT LOADING* (tonnes)
SS490-02880	Track Mat	2400	1200	12	38	80
SS490AB	Connector Plate	184	184	12	0.5	-
SS490AA	Steel Anchor	305	64	-	1	-

* Weight Loading can vary depending on ground conditions.
Our Track Mats are designed to spread the load rather than bear it but they can take a load capacity of up to 80 tonnes.

SS490-02880, SS490AB, SS490AA

There are no optional extras for this product.

Technical Data Sheet

Supporting Documentation

How are Track Mats installed?

Conquip Track Mats are installed by simply positioning them in place and securing them to the ground surface with steel anchors.

Are Track Mats suitable for larger surface areas?

Yes, our connector plates allow multiple Track Mats to be fixed together for greater ground coverage.

How much weight load can they take?

Conquip Track Mats have a weight loading of up to 80 tonnes making them suitable for personnel, vehicles and heavy plant. However, weight loading can vary depending on ground conditions and our mats are designed to spread load, rather than bear it.
