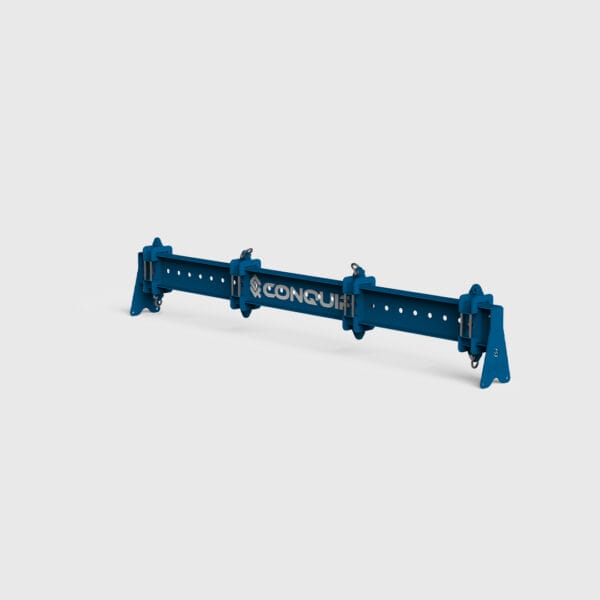

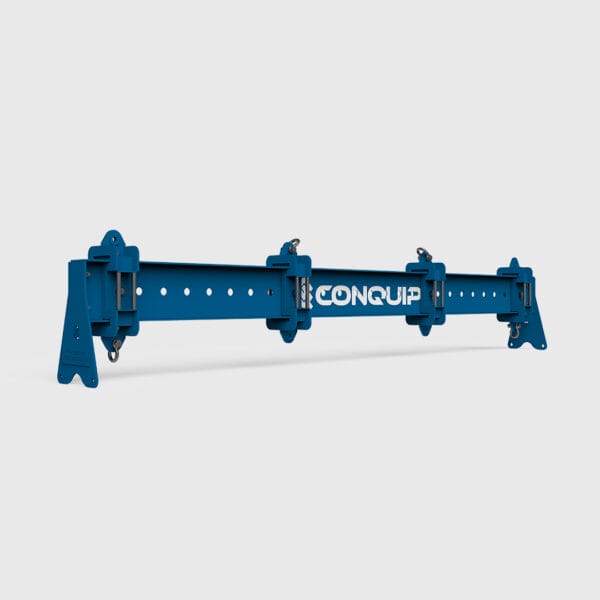

A lifting beam for transporting large or awkward loads.

The Adjustable Lifting Beam is the ideal solution for securely transporting heavy or uneven loads. Robust, slidable lifting points can be moved along the beam to achieve even weight distribution, including loads where the centre of gravity is not centrally positioned.

The chains do not need to be adjusted for uneven loads, which reduces the number of test lifts required and manual handling, ensuring a safer, more efficient lifting solution.

With a Working Load Limit up to 10,000kg, the Adjustable Lifting Beam is ideal for large or awkward lifts, such as a modular pod installation.

Clear
Quantity

Specification

PRODUCT CODEHEIGHTWIDTHLENGTHWEIGHTWLL*LIFTING POINTS
CA235AA-10000900mm430mm4995mm500kg10,000kg4
*Working Load Limit
