Escape Set

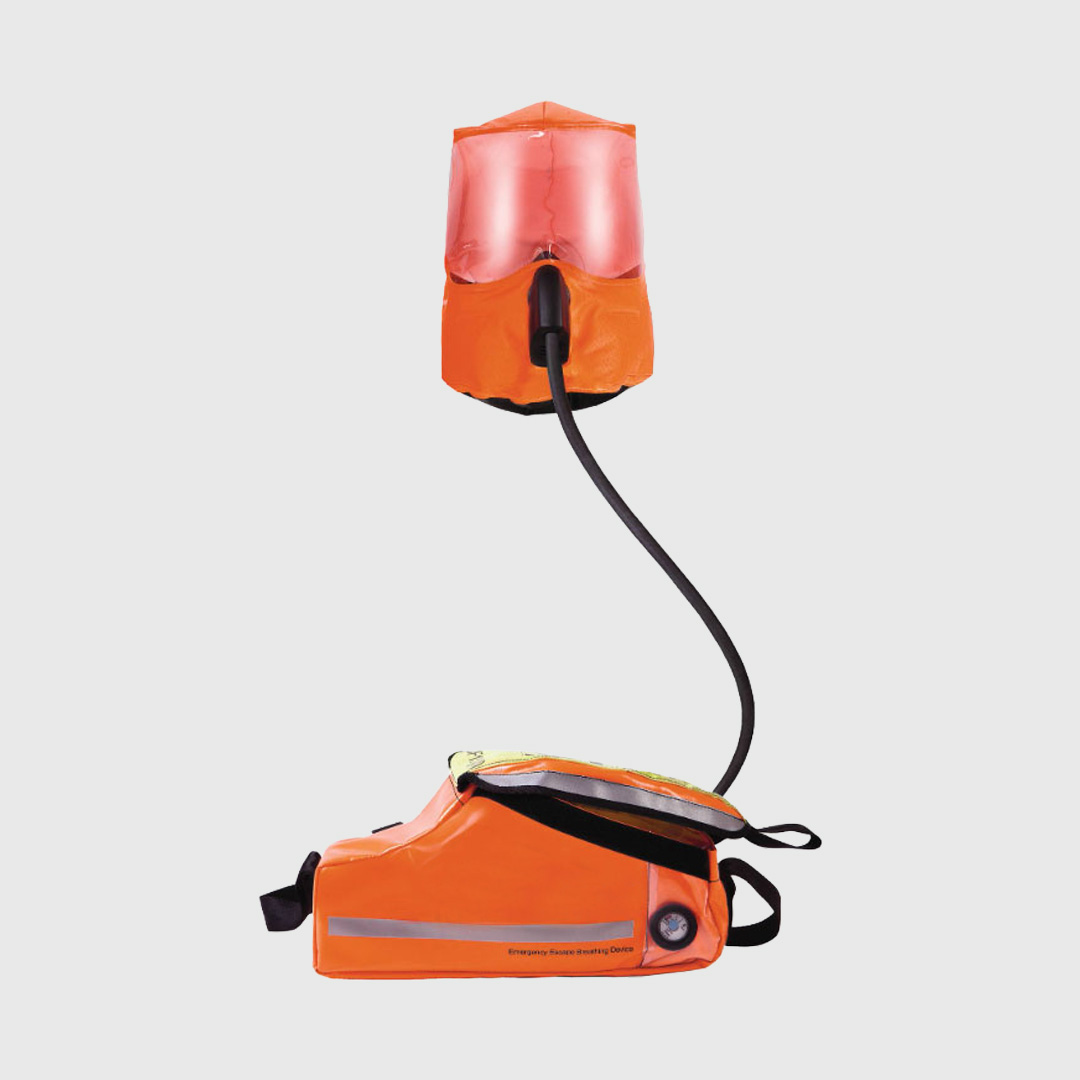

The Conquip Escape Set is a breathing apparatus used to provide clean oxygen whilst safely exiting hazardous environments in an emergency.

Simple to fit, it operates automatically, providing a constant flow of oxygen to the operative for up to 15 minutes, preventing the inhalation of smoke or toxic fumes.

SKU: N/A Categories: ,

Description

FEATURES

  • Constant flow hood
  • Visor
  • Reflective strips
  • Photoluminescent panels
  • Cylinder gauge

BENEFITS

  • Photoluminescent panels and reflective stripes make the unit easy to locate when visibility is limited.
  • A fail-safe reducer provides constant airflow, with an alarm whistle warning before the air supply runs out.
  • Flame-resistant hood and large visor provide protection and wide peripheral vision.
  • Robust, washable materials withstand harsh conditions while allowing water to drain freely.
  • Transparent viewing windows allow cylinder pressure to be checked without unpacking the unit.
  • Complies with BS EN1146:2005, Lloyd’s Register Certificate of Fire Approval and Lloyd’s Register Certificate of Type Approval. Plus, SOLAS Chapter II-2, the Marine Equipment
    Directive, the Pressure Equipment Directive and ISO 23269-1:2008.

Specification

PRODUCT CODETYPEDIMENSIONS
(mm)
OPERATING TEMPERATURE
(°C)
WEIGHT*
(kg)
CYLINDER PRESSURE
(bar)
CYLINDER CAPACITY
(litres)
LENGTHHEIGHTTHICKNESSMINMAX
PE14615-minute510260190-15+605.22003

* Weight includes cylinders

There are no optional extras for this product.
