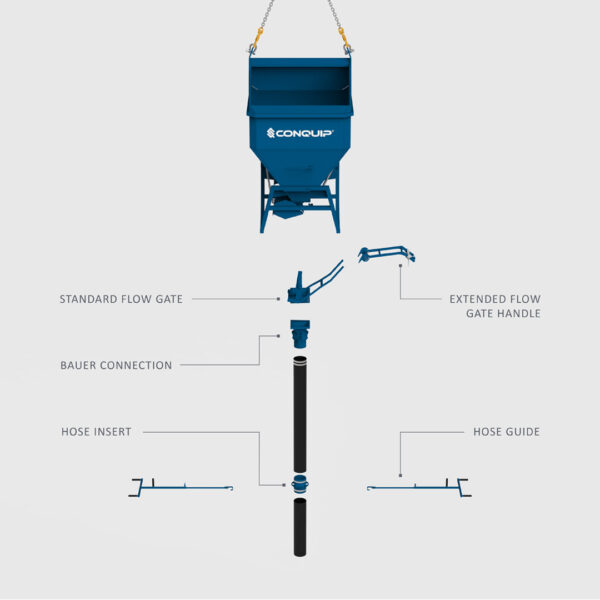

Conquip's Concrete Skip without Bale Arm with Optional Extras listed

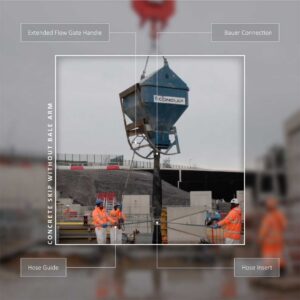

Conquip Concrete Skip Without Bale Arm with key parts labelled

Concrete-Skip-Without-Bale-Arm-Extended-Handle+Bauer-Connection+Hose-Guide-3m-hose+insert-Front

Concrete-Skip-Without-Bale-Arm+Blowout-Attachment-Front

Concrete Skip Without Bale Arm

The Conquip Concrete Skip Without Bale Arm — also known as a Tremie Skip — is a versatile, all-purpose skip ideal for pouring concrete into columns, walls, and narrow formwork. Available in sizes ranging from 500 to 4000 litres and with attachments that improve safer pouring available.

This skip is designed for efficient, controlled concrete placement. To explore optional extras and customisations, click here. Prefer a version with a bale arm instead of lifting chains, click here.

Capacity

Optional Extras

Blowout Attachment

Hire/Purchase

Clear

SKU: CS210AA Categories: Concrete Skips, Lifting Equipment

Description

FEATURES

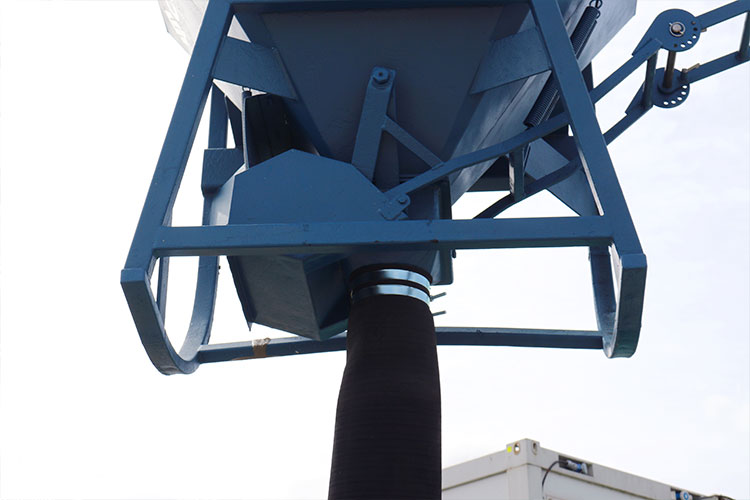

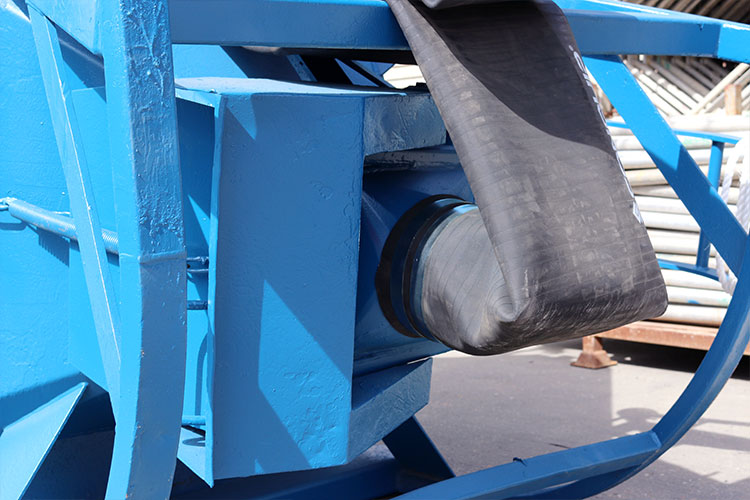

Provided with a 3-metre length of reinforced rubber discharge hose and pull rope for pouring concrete.
Deflector plate prevents concrete splashing personnel or contaminating the ground below when the flow gate opens and closes.
Grout tray collects any excess concrete during flow gate operation.
Robust design to ensure durability on construction sites.

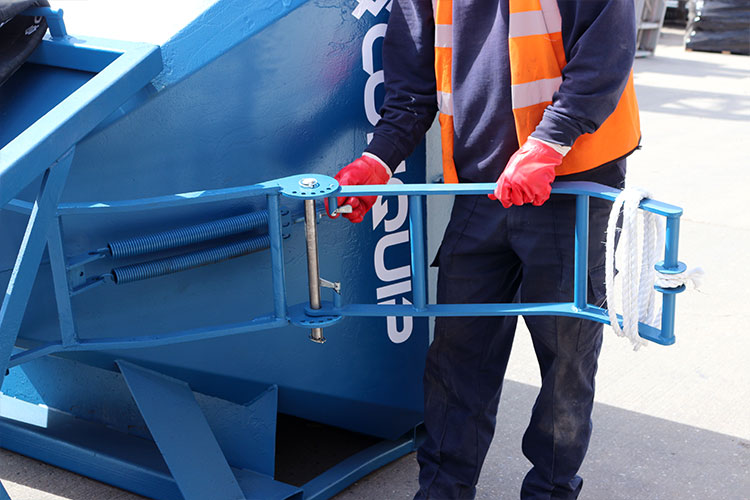

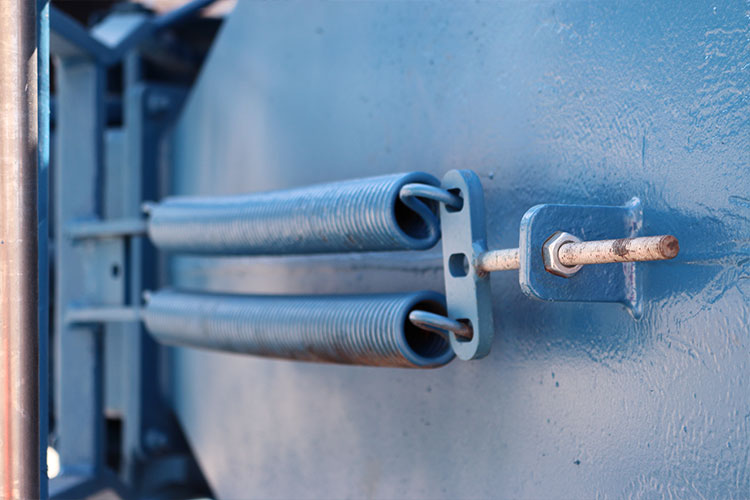

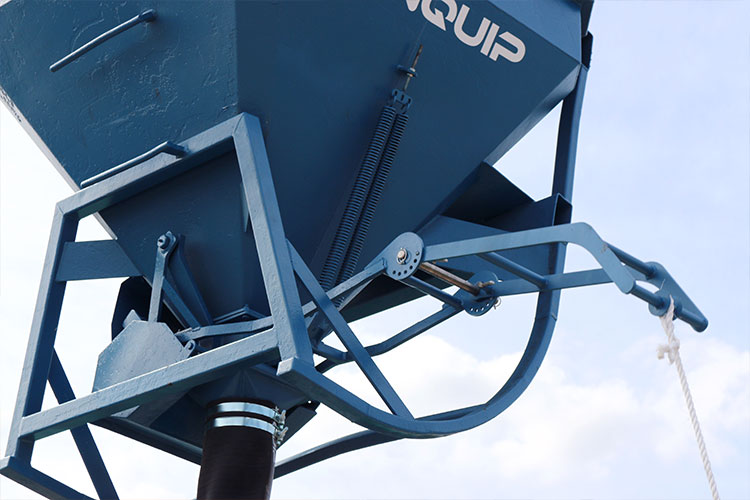

A strong spring retractor ensures automatic closing of the discharge gate when pouring is complete.

BENEFITS

Reinforced heavy duty gate mechanism to reduce gate wear and jamming.

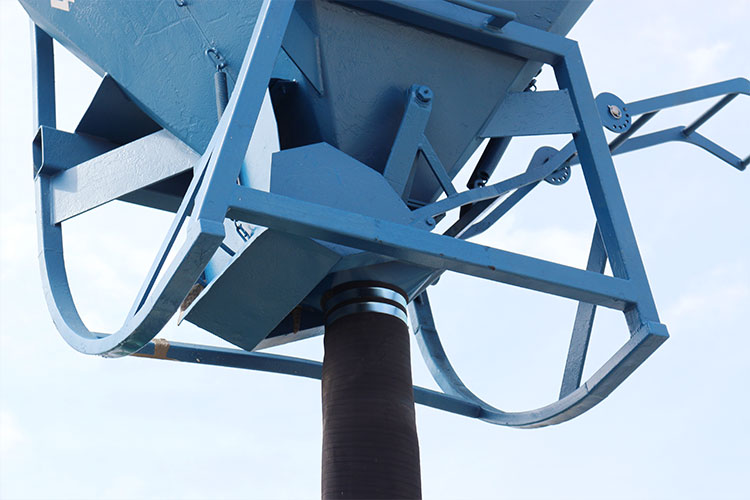

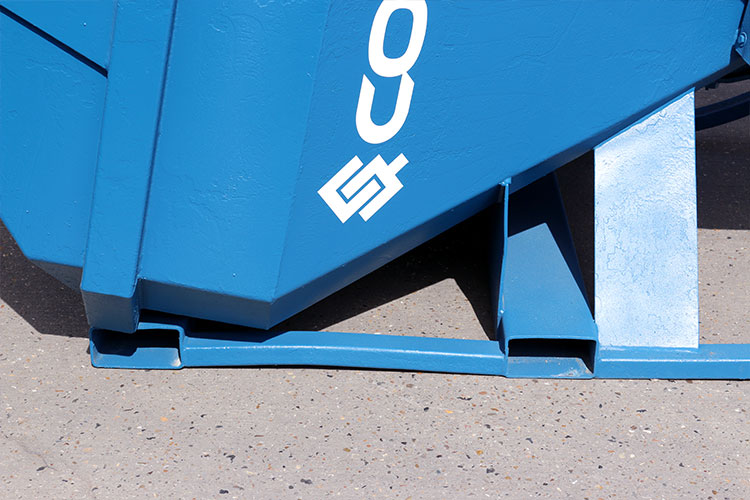

Reinforced & enclosed roll frame to prevent bending and concrete filling up in the channels.
Easily removable gate mechanism for ease of emplacement when worn.
Multiple optional extra’s for larger and longer hoses, hose directional placement and gate upgrades.

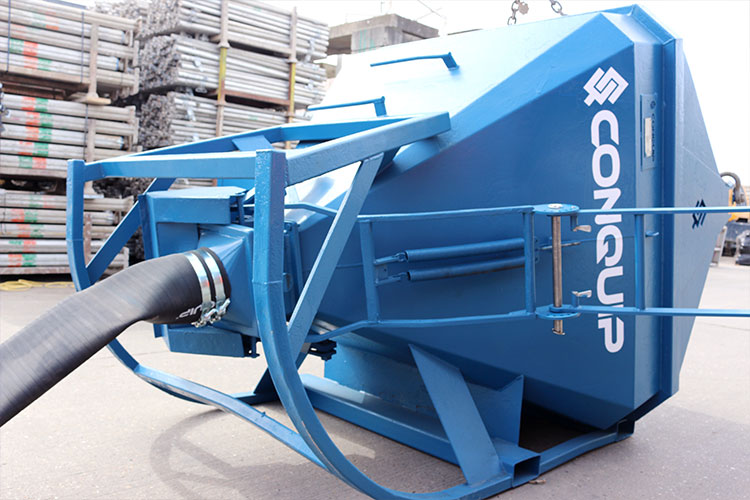

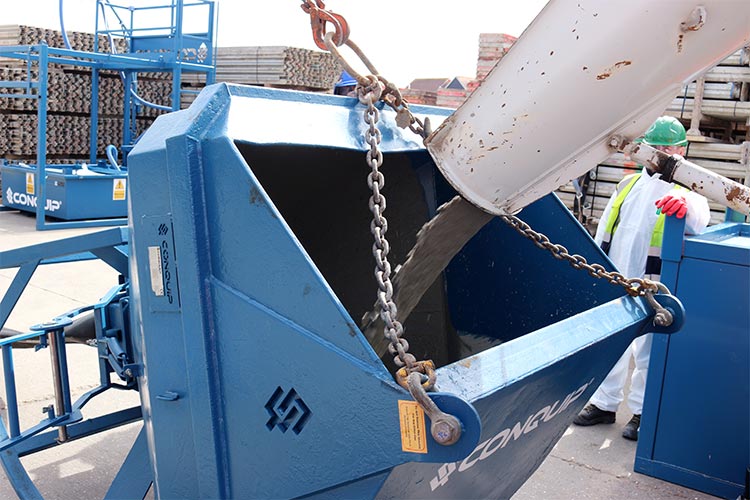

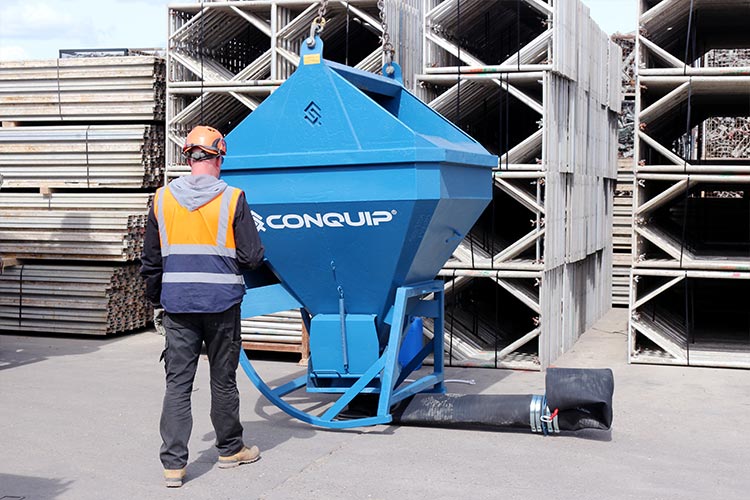

Designed to lay horizontally on the ground to assist filling from the concrete truck.
Available in a range of sizes with capacities from 500 to 4000 litres, ensuring there is a solution for every project, regardless of the crane capacity or amount of concrete required.
Available with a range of modifications to improve safety on-site:

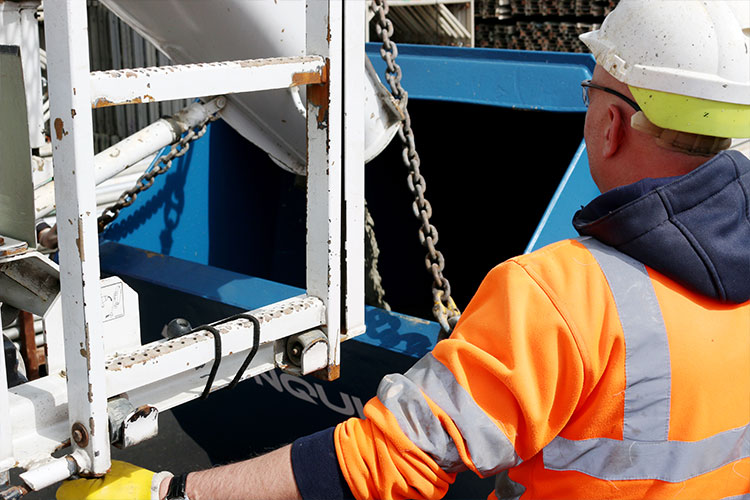

01. Extended Flow Gate Handle: Removes operative from underneath the skip when operating the flow gate.

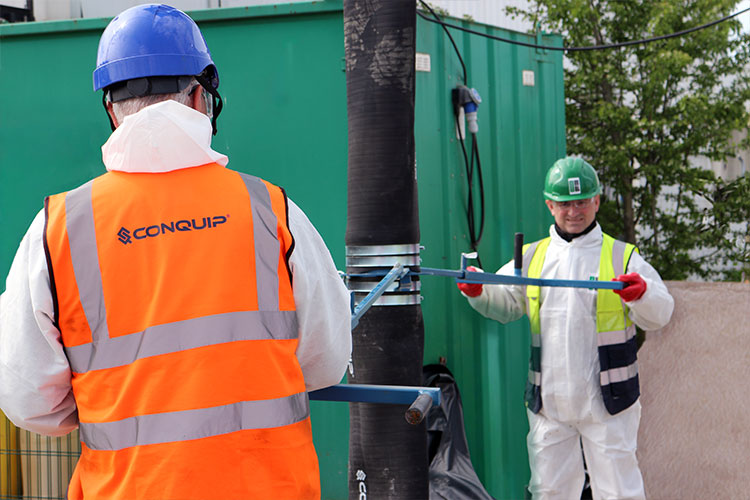

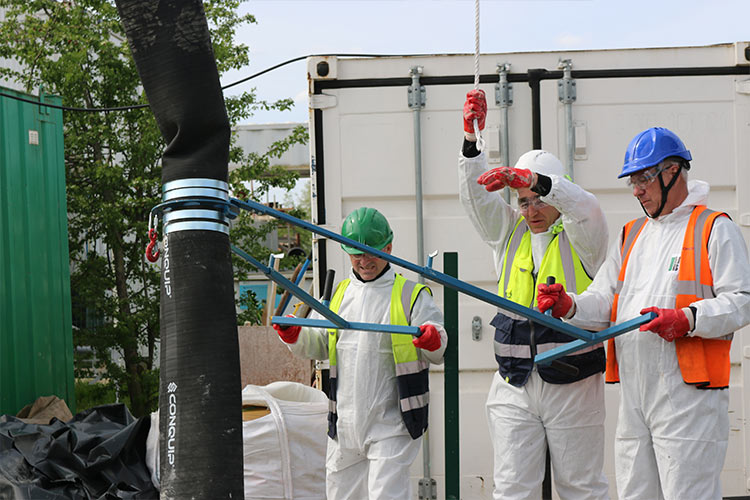

02. Hose Guide: Allows operatives to position the hose during a pour without being stood underneath the skip.
03. Bauer Connection: Quick-release system for switching between different hose lengths without needing to tamper with hose clips and refit hoses.
Blowout Attachment available for clearing concrete lines into the skip after use, minimising concrete waste and improving project sustainability.

Specification

PRODUCT CODE	LENGTH (mm)	WIDTH (mm)	HEIGHT (mm)	WEIGHT (kg)	WLL* (kg)	CAPACITY (litres)
CS210AA-00500	1970	1130	1270	360	1500	500
CS210AA-01000	2350	1385	1465	490	3000	1000
CS210AA-01500	2450	1590	1660	580	4500	1500
CS210AA-02000	2730	1580	1670	670	6000	2000
CS210AA-03000	3500	1980	2130	1000	9000	3000
CS210AA-04000	3830	2150	2350	1480	12000	4000

* Working Load Limit.

CS210AA-00500, CS210AA-01000, CS210AA-01500, CS210AA-02000, CS210AA-03000, CS210AA-04000

Blowout Attachment

A simple attachment to allow safe concrete line blowout.

Cover

A cover for use during blowout and transport.

Filling Grate

Pulley

Conquip Concrete Skip Extended Lever Gate Handle

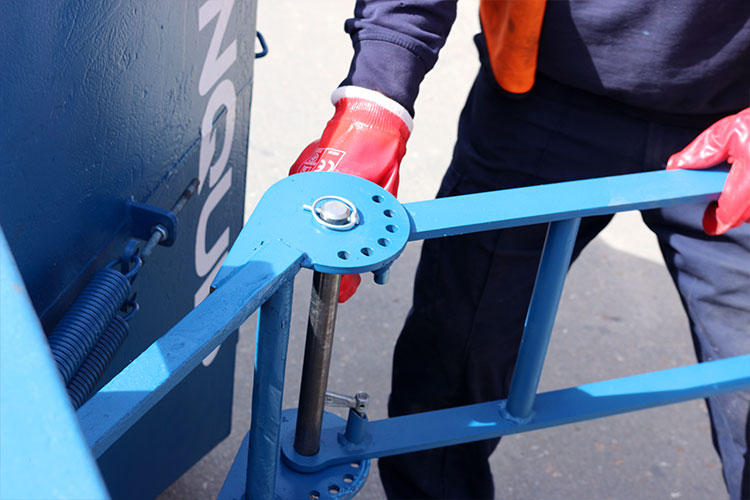

Extended Flow Gate Handle

Control the pour from a safer distance, keeping operatives safely away from the suspended load.

Hose Guide & Insert

Precisely position the hose during a pour without putting the site team at risk, enhancing both the safety and productivity.

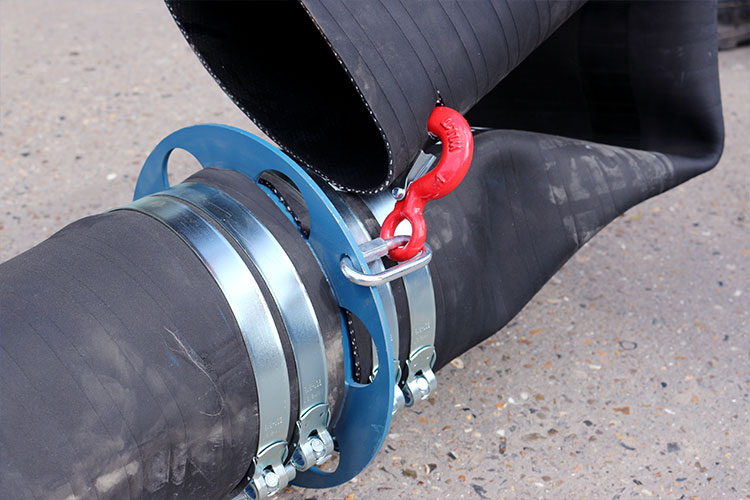

Bauer Connection

Seamlessly switch between different hose lengths with ease, saving time and eliminating manual refitting. Available on 2000-litre skips or larger.

User Guide

Customer Support Video

Supporting Documentation

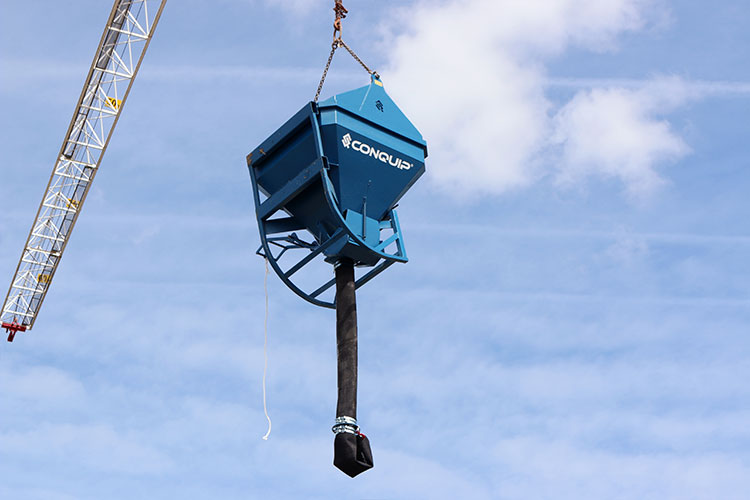

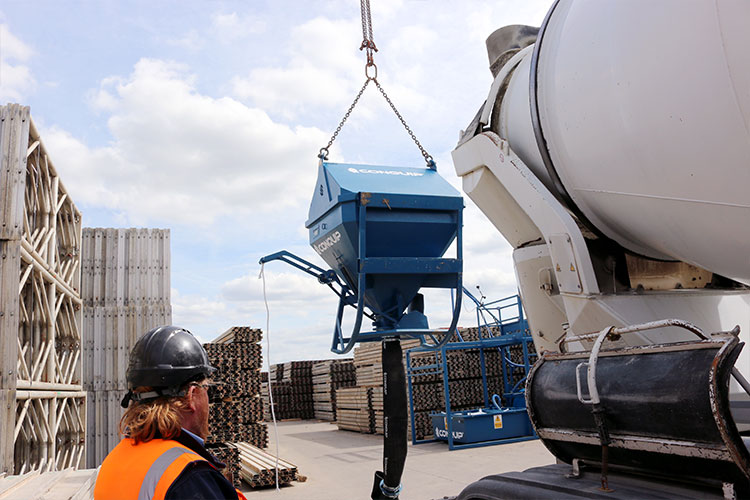

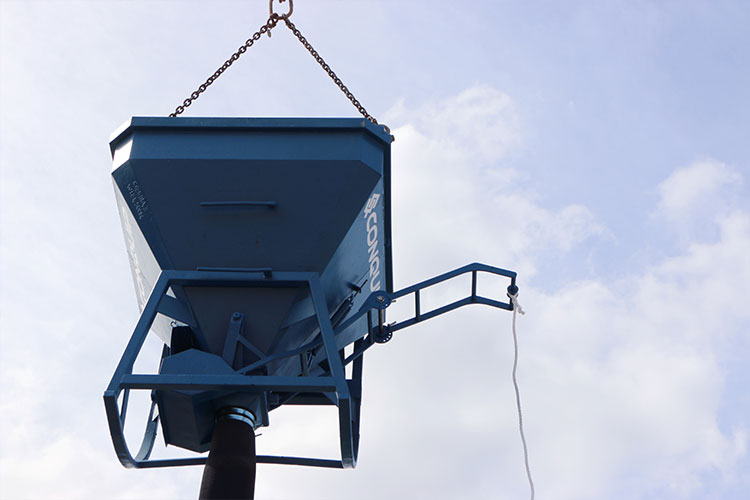

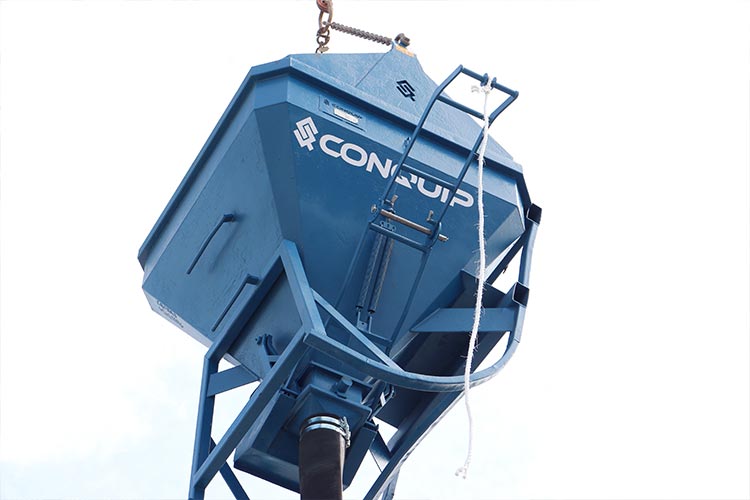

How is this skip attached to a crane?

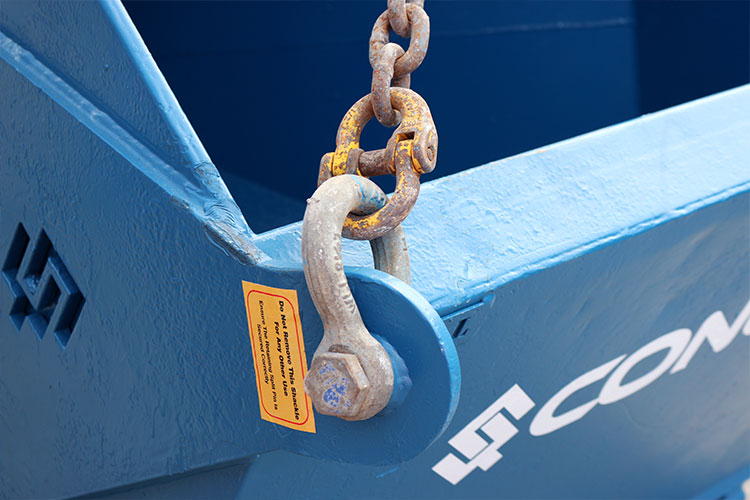

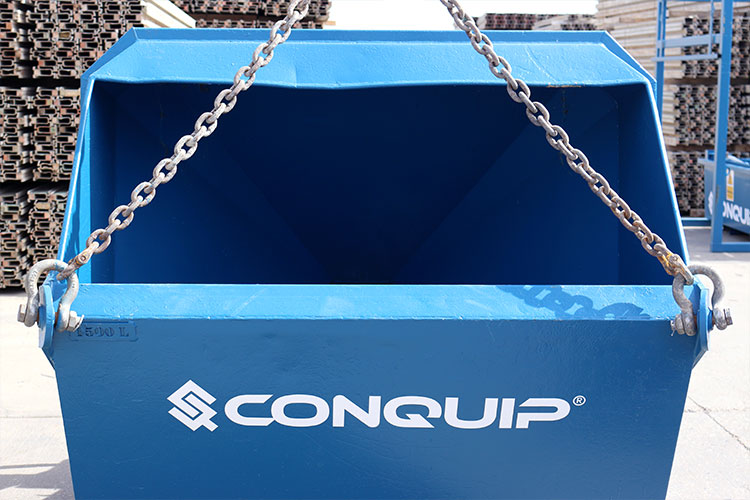

With a two-leg chain sling attached to a master link and the lifting points on the sides of the skip.

What sizes of skip can I buy?

We stock skips in capacities ranging from 500 litres to 4000 litres.

What length of hose comes with the Concrete Skip?

A 3-metre length of hose comes as standard with every skip, but larger sizes can be purchased on request.

What optional extras can I add?

A range of customisations are available, including recently developed modifications that improve safety on-site: an Extended Flow Gate Handle and a Hose Guide, which keeps operatives away from the danger zone under the skip, a Bauer Connection for switching between hose lengths and a Blowout Attachment for clearing concrete pump lines. Click here for these.
