Trench Box

A Trench Box is a durable, easy-to-assemble two-sided trench shoring system engineered for trench depths up to 5.18 metres.

Designed for safe excavation and utility installation it accommodates a variety of pipe section sizes to suit different site requirements. Installed using an excavator, this trench box provides dependable ground support where soil movement is minimal — ideal for pipe laying and general trench work.

If your excavator has limited lifting capacity, consider our Lightweight Trench Box — offering the same reliability in a more compact, easy-handling design.

Strut Type

Trench Depth

Working Width

Hire/Purchase

Clear

SKU: N/A Category: Excavation Support

Description

FEATURES

Robust design provides more durability, ensuring these trench boxes are ideal for dig and push installation.
Incremental struts allow for varying working widths ranging from 0.55 to 3.98 metres. These struts enhance the functionality of trench boxes.

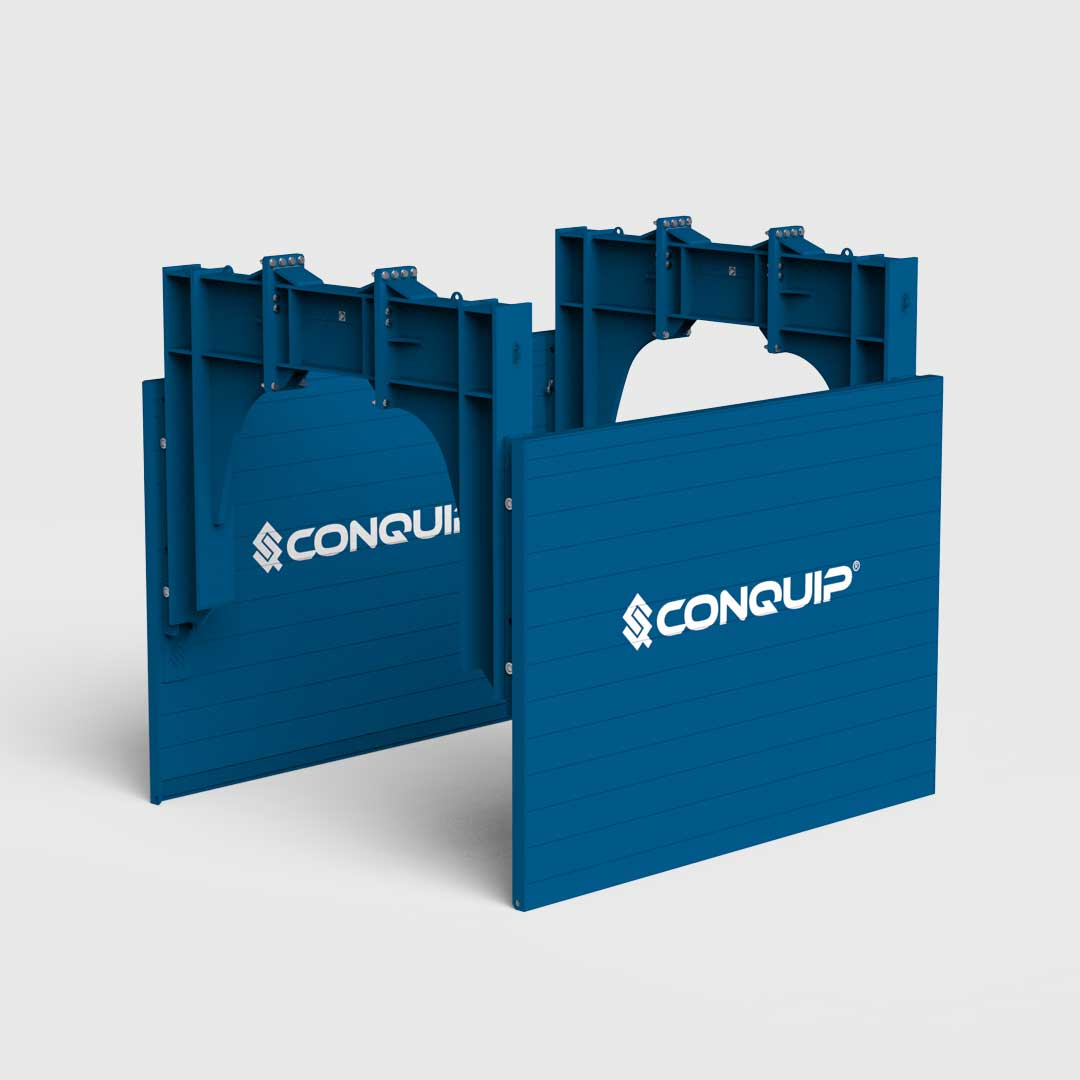

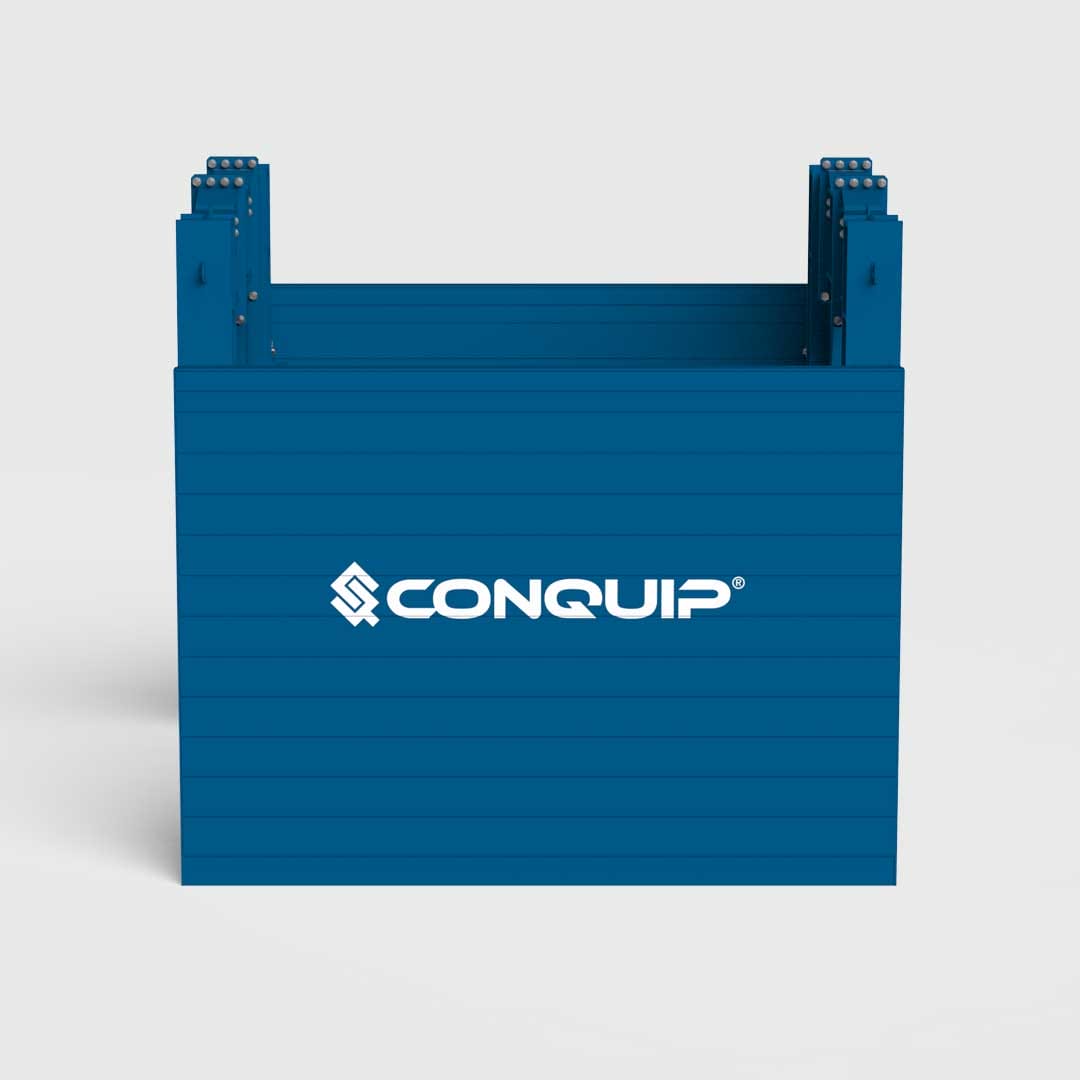

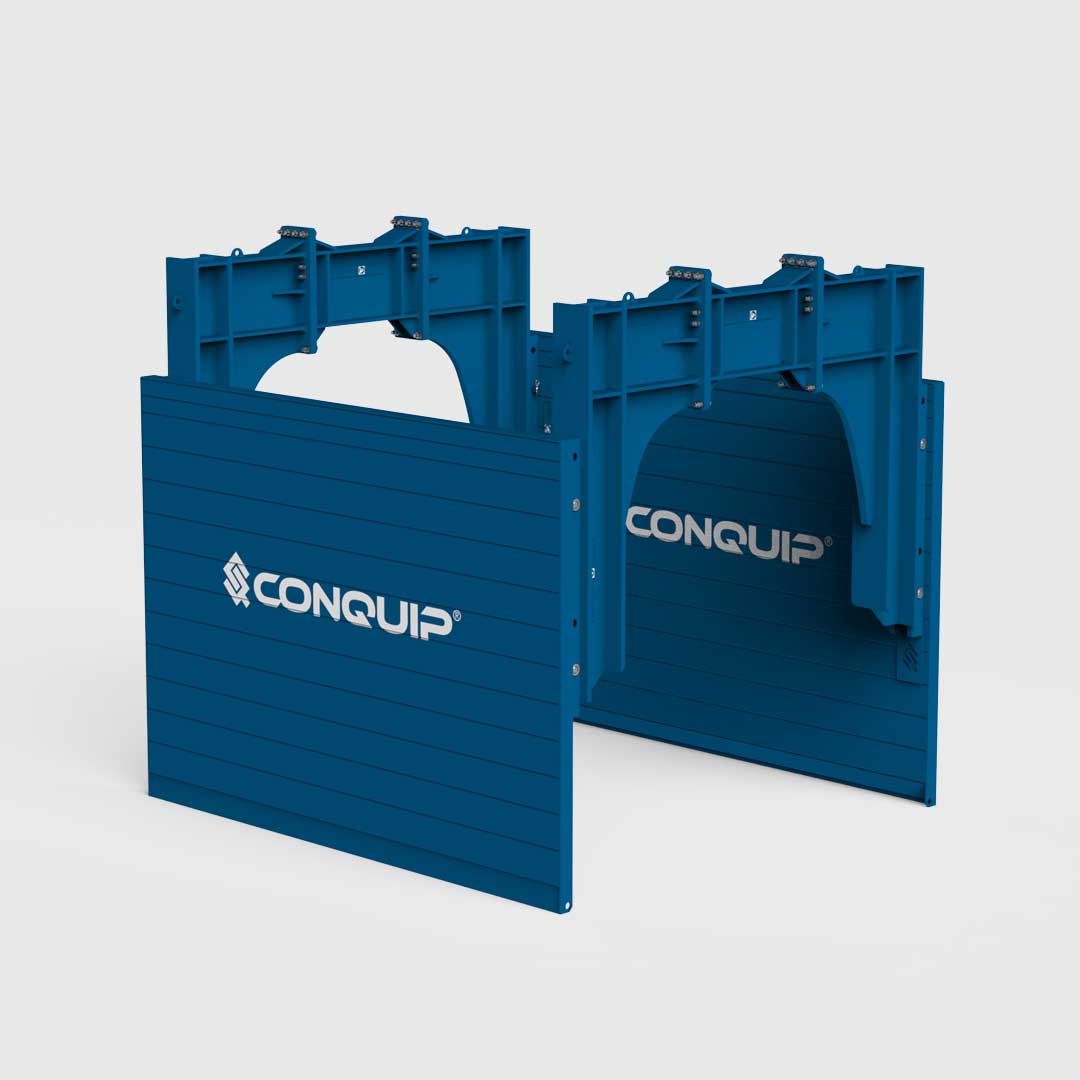

High clearance struts available for working widths from 2.05 to 5 metres.
Rocker assemblies in the incremental struts reduce strain on the panels during ‘dig and push’ installation, crucial for a trench box system.
Reinforced lifting points for easy manoeuvre around site.

BENEFITS

Incremental and high clearance struts accommodate varying pipe sizes and applications. The ability to adjust makes trench box usage flexible.
Suitable for trench depths of up to 5.18 metres and trench widths of up to 4.2 metres with standard incremental struts.
Suitable for trench depths of 3.87 metres and trench widths of up to 5.2 metres with high clearance struts, making trench boxes ideal for different projects.
Edge Protection panels available with all box hires and purchases.
Flexible payment options with easy-to-understand documents.
Comprehensive user guides with full assembly, installation, and extraction instructions and supporting videos that complement trench box usage.
Can be supplied with a full range of suitable lifting and extraction chains and trench access accessories – see our full range here.

Specification

PRODUCT CODE	BOX TYPE	STRUT TYPE	LENGTH (mm)	WORKING WIDTH (mm)		HEIGHT (mm)	CBS¹	WEIGHT² (kg)		SWL³ (kPa)
PRODUCT CODE	BOX TYPE	STRUT TYPE	LENGTH (mm)	MIN	MAX	HEIGHT (mm)	CBS¹	MIN	MAX	SWL³ (kPa)

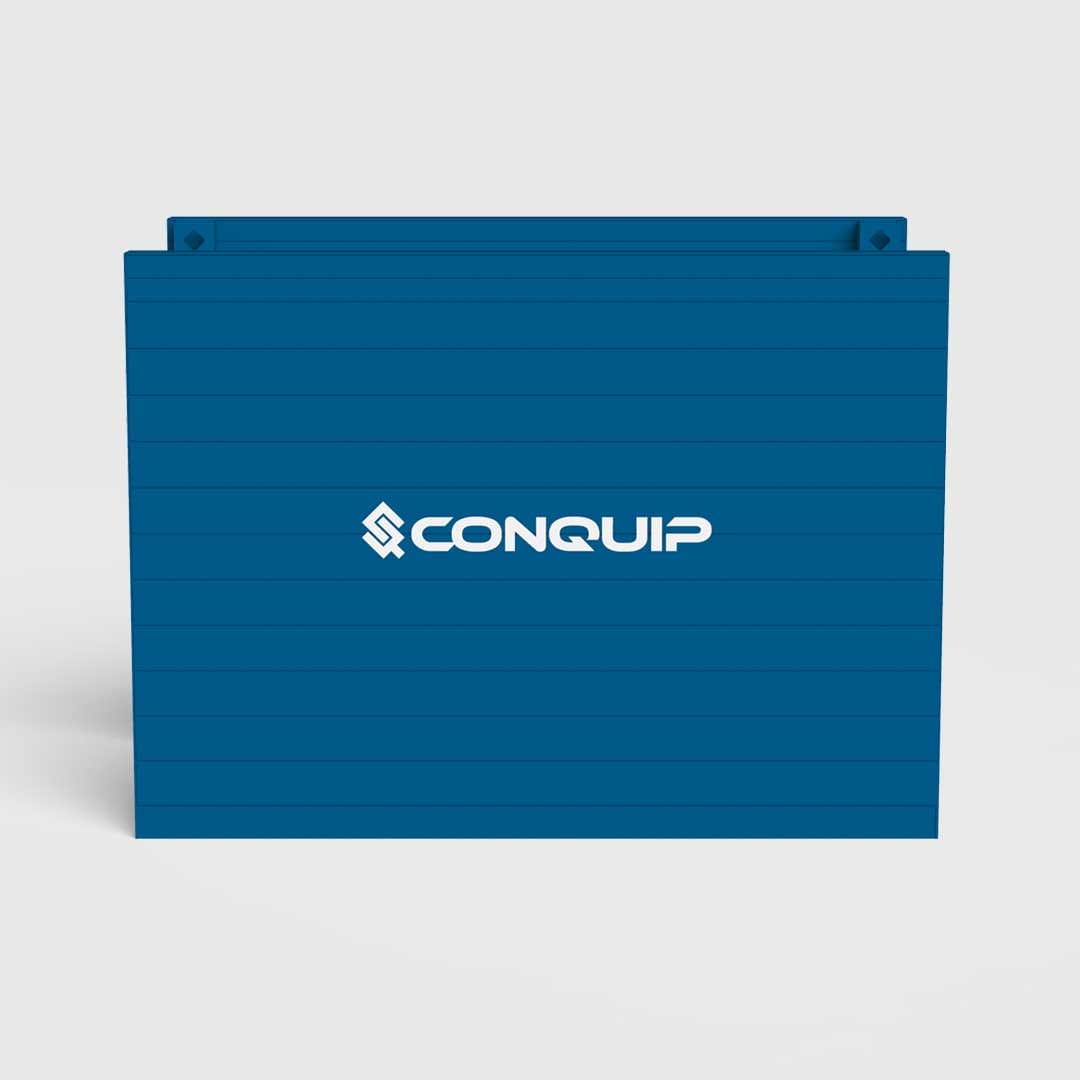

TL101-00003	Base	Standard (Incremental)	3500	550	3985	2560	3100	2177	2611	30 / 50
TL101-00004	Extension	Standard (Incremental)	3500	550	3985	1310	3100	1163	1380	50
TL101-00003	Base	High Clearance	3500	2065	5000	2560	3100	3216	3644	30 / 50
TL101-00004	Extension	High Clearance	3500	2065	5000	1310	3100	2266	2694	50

¹ Clearance Between Struts.
² Weight will depend on your strut configuration; our team will provide more information on the configuration needed to meet the requirements specified in your quote request.
³ Safe Working Load.

TL101-00003, TL101-00004, TL101-00003, TL101-00004

Four-Leg Chain Sling

A durable, hard-wearing lifting chain sling with four chain legs.

Edge Protection

A full safety system for trench shoring excavations.

Trench Access Platform

Gated platform for safe access to an excavated trench via access ladder.

Trench Access Ladder

An easy, safe access facility for entering supported excavated trenches.

Davit Fall Arrest System

A means of rescue for workers in trenches and confined spaces.

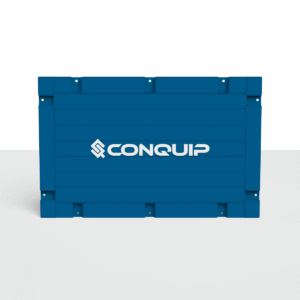

End Panels

A structural stell panel to close off open-ended excavations.

User Guide

How-to Guide

Customer Support Video

Shoring Solutions Design Service

Supporting Documentation

What type of Trench Box do I need for my project?

It depends on the trench depth you require and the machinery available. For excavators up to 9 tonnes, you’ll need our Backhoe Trench Box. For shallow trenches or those no deeper than 4 metres, our Lightweight or Mini Trench Boxes will suit; these are compatible with 13-22 tonne excavators. Deeper drainage applications will benefit from our standard Trench Box, able to support depths of 5 metres and compatible with 13-50-tonne excavators.

I am laying large-diameter pipe sections and need a lot of clearance under the strut; do you offer a solution?

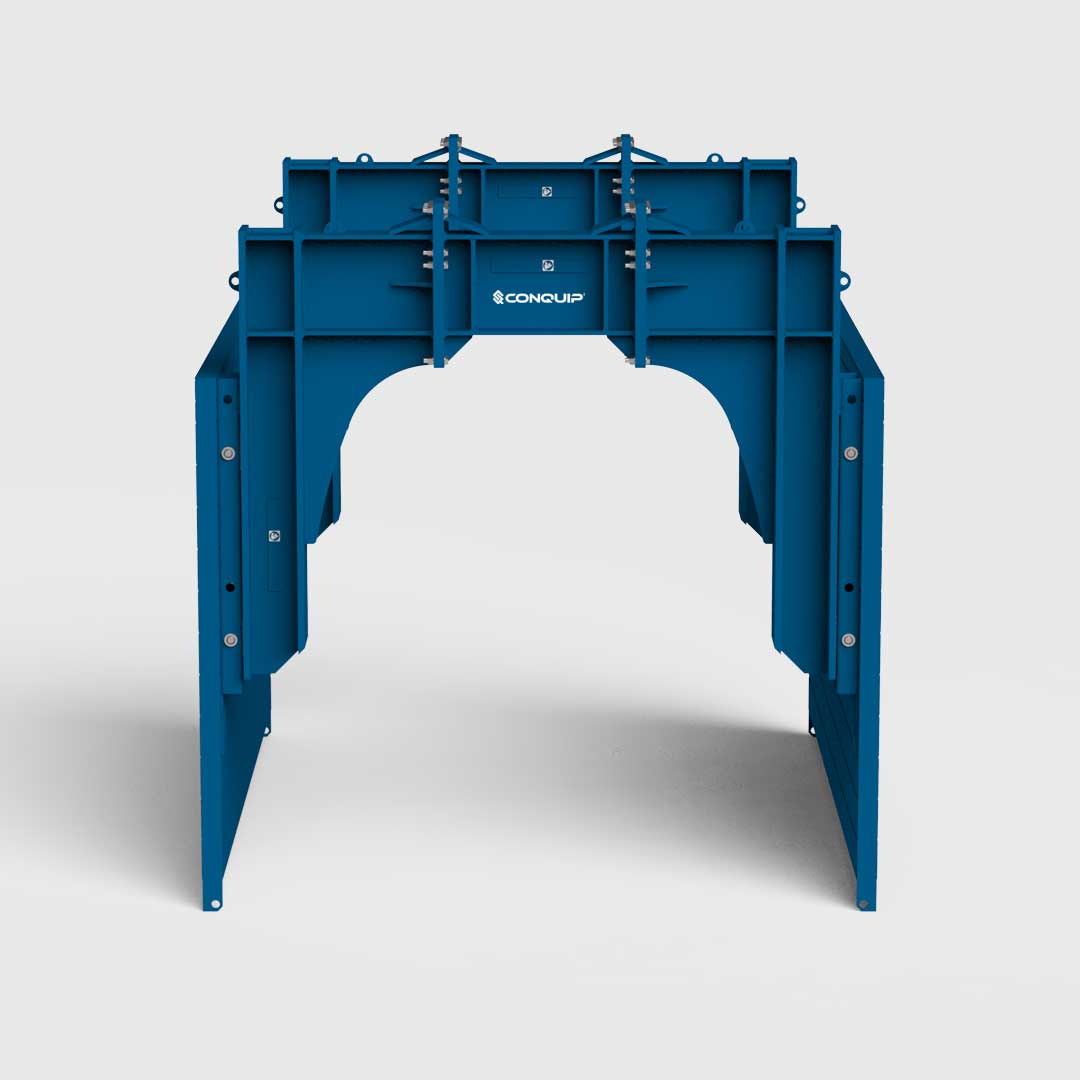

Yes, our High Clearance Struts are specifically designed to provide greater distance from the base of the trench (2750mm) than our standard Incremental Struts (up to 1500mm), making them ideal for installing large concrete pipe sections.

I need to generate a temporary works design for my project. Can you help?

Yes, we have a dedicated Shoring Design Service offering three types of temporary works designs;
01. Standard – for general site conditions.
02. Standard + Check Certificate – for verification that soils are suitable with a standard drawing.
03. Bespoke – for projects requiring a unique design that covers all aspects.
Temporary Work designs are available by contacting our hire desk team and our technical sales team can support with any on-site support.
