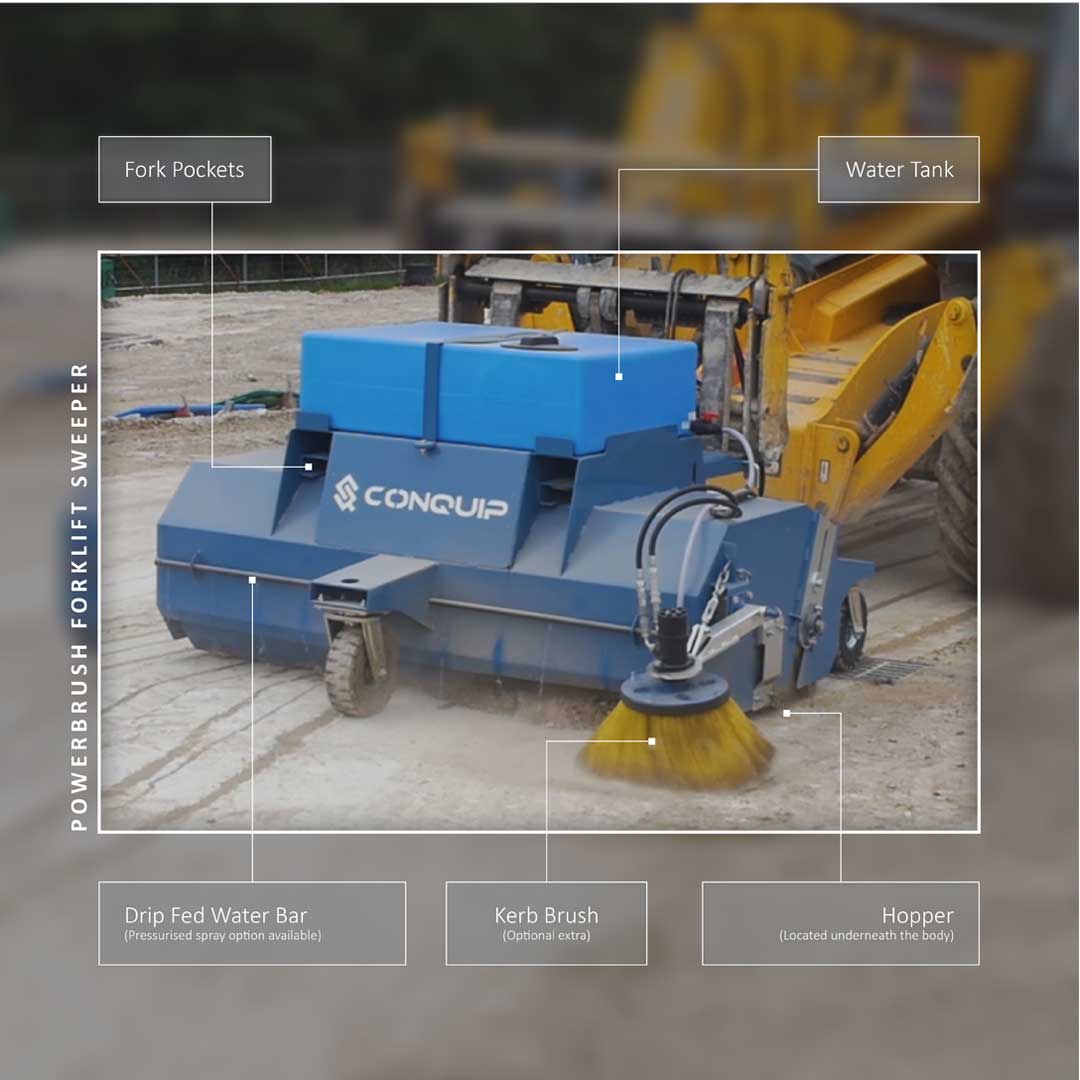

Conquip Powerbrush with key parts labelled

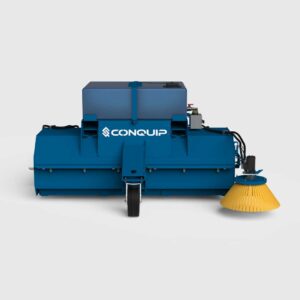

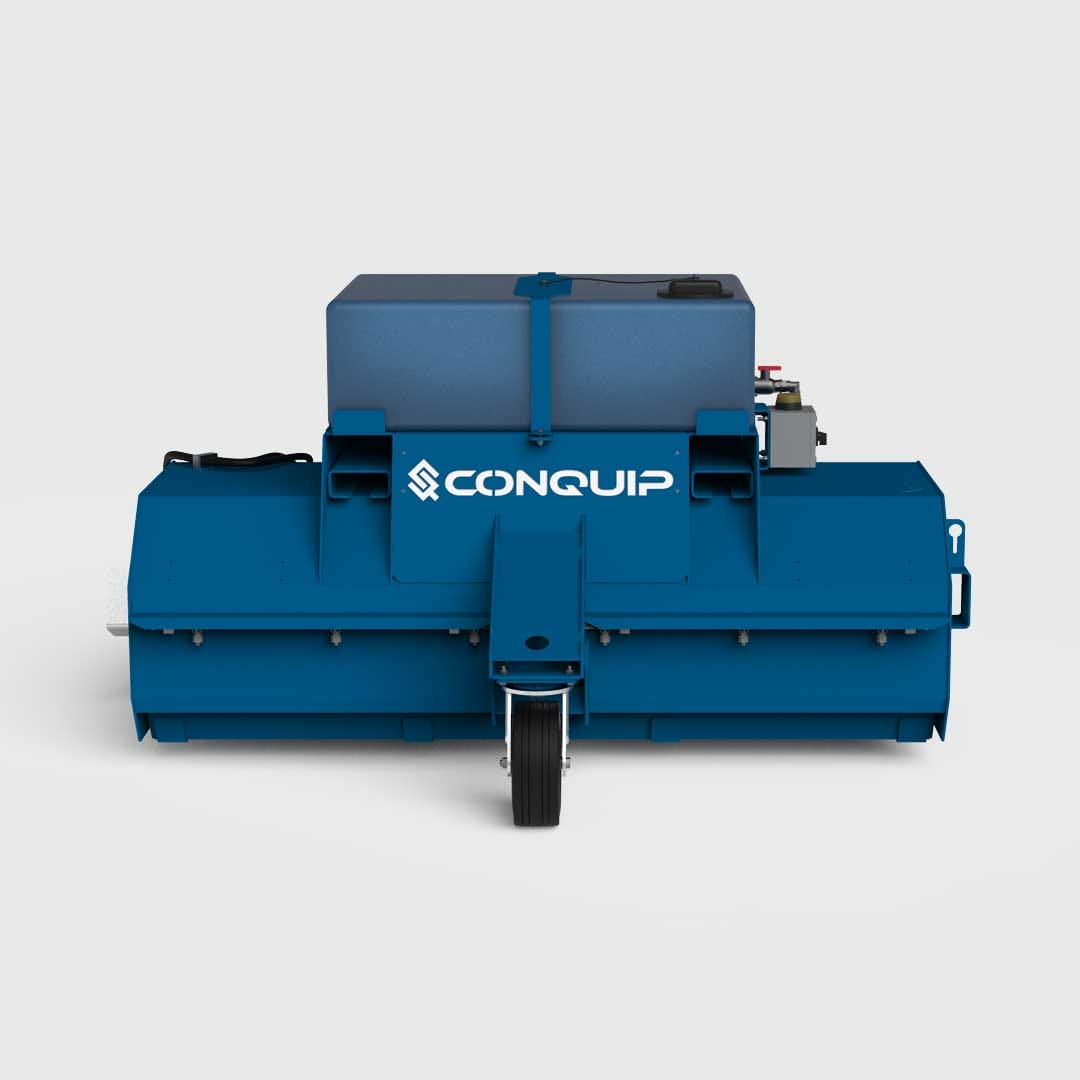

Powerbrush-Dust-Suppression+Kerb-Brush_Front

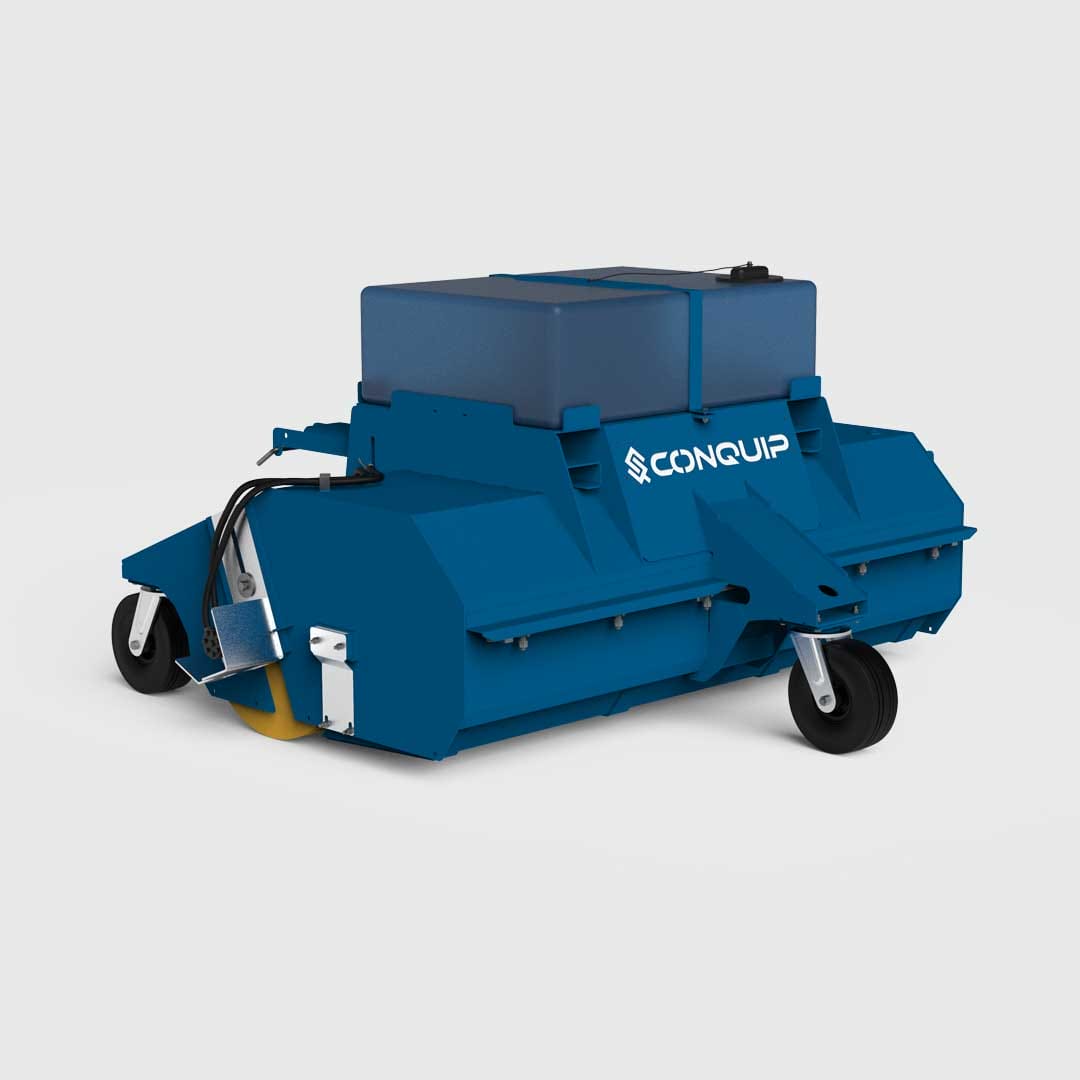

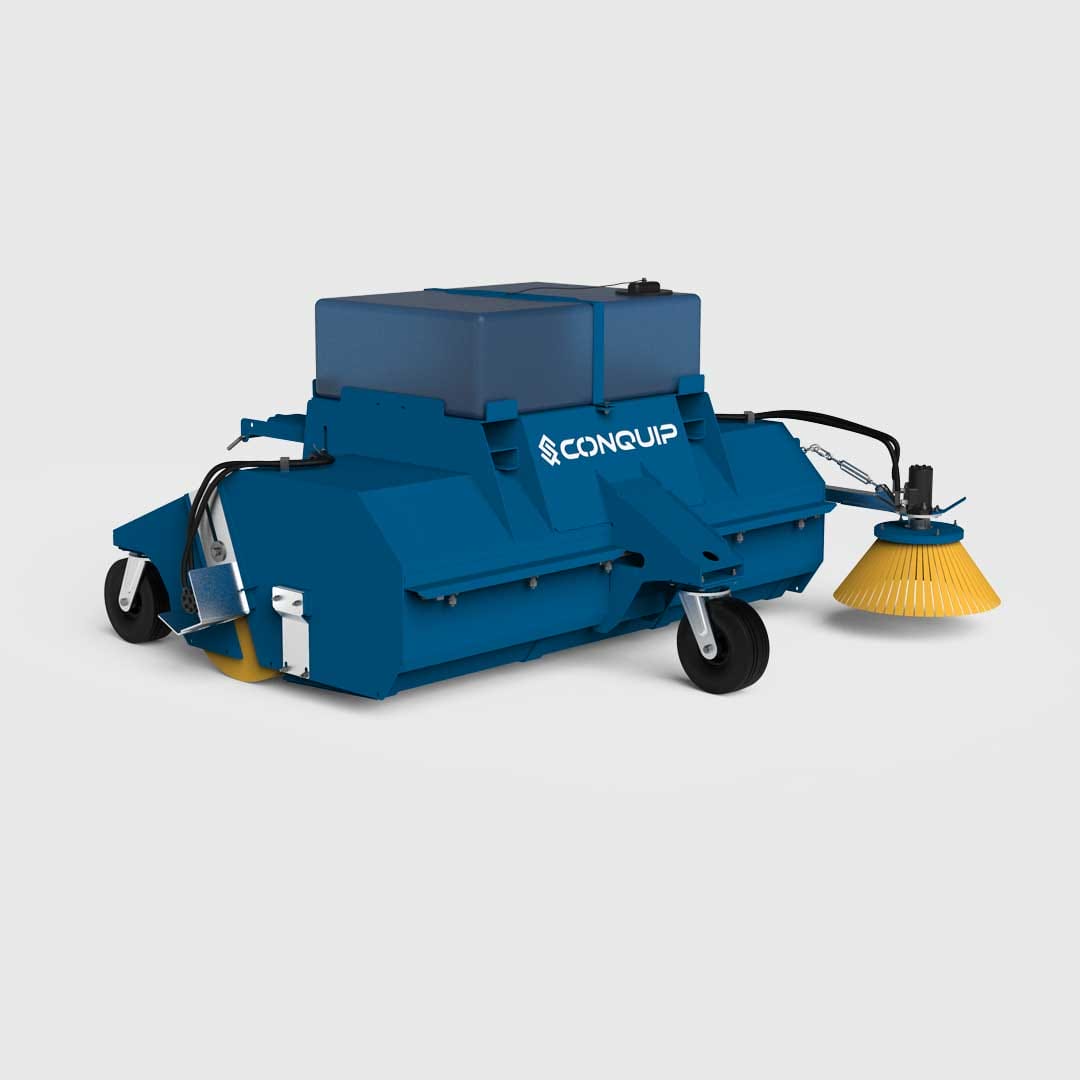

Powerbrush-Dust-Suppression+Kerb-Brush_RF

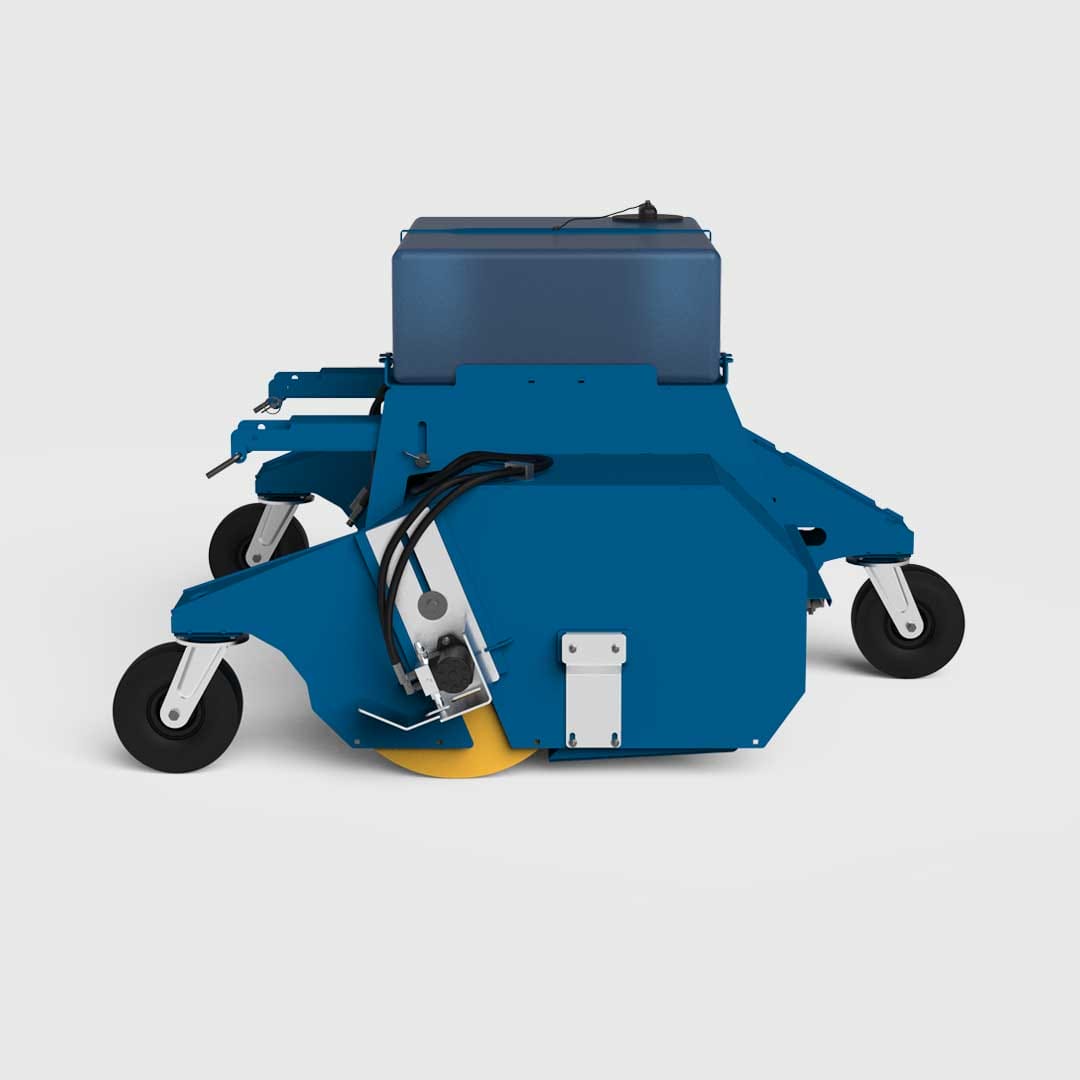

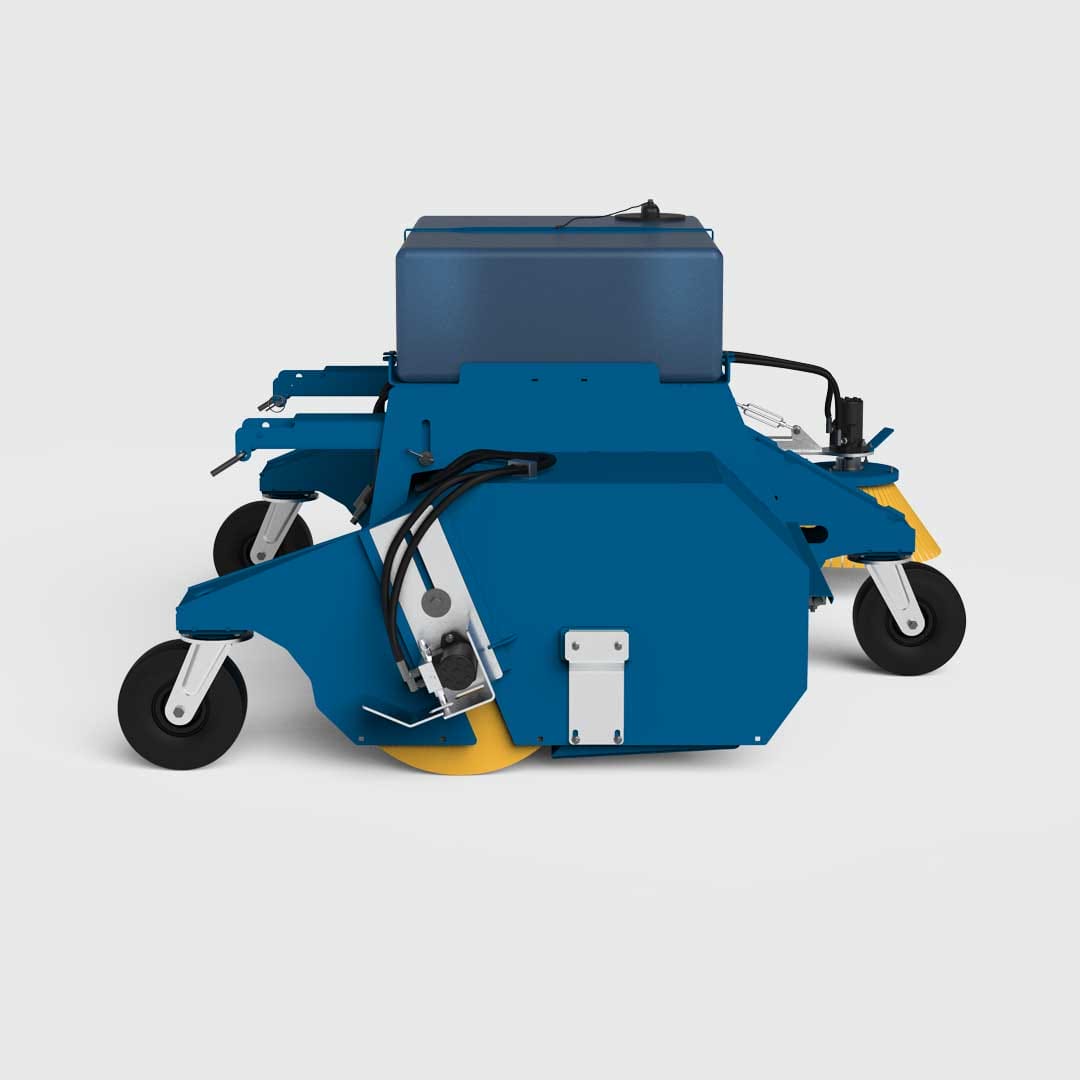

Powerbrush-Dust-Suppression+Kerb-Brush_Right

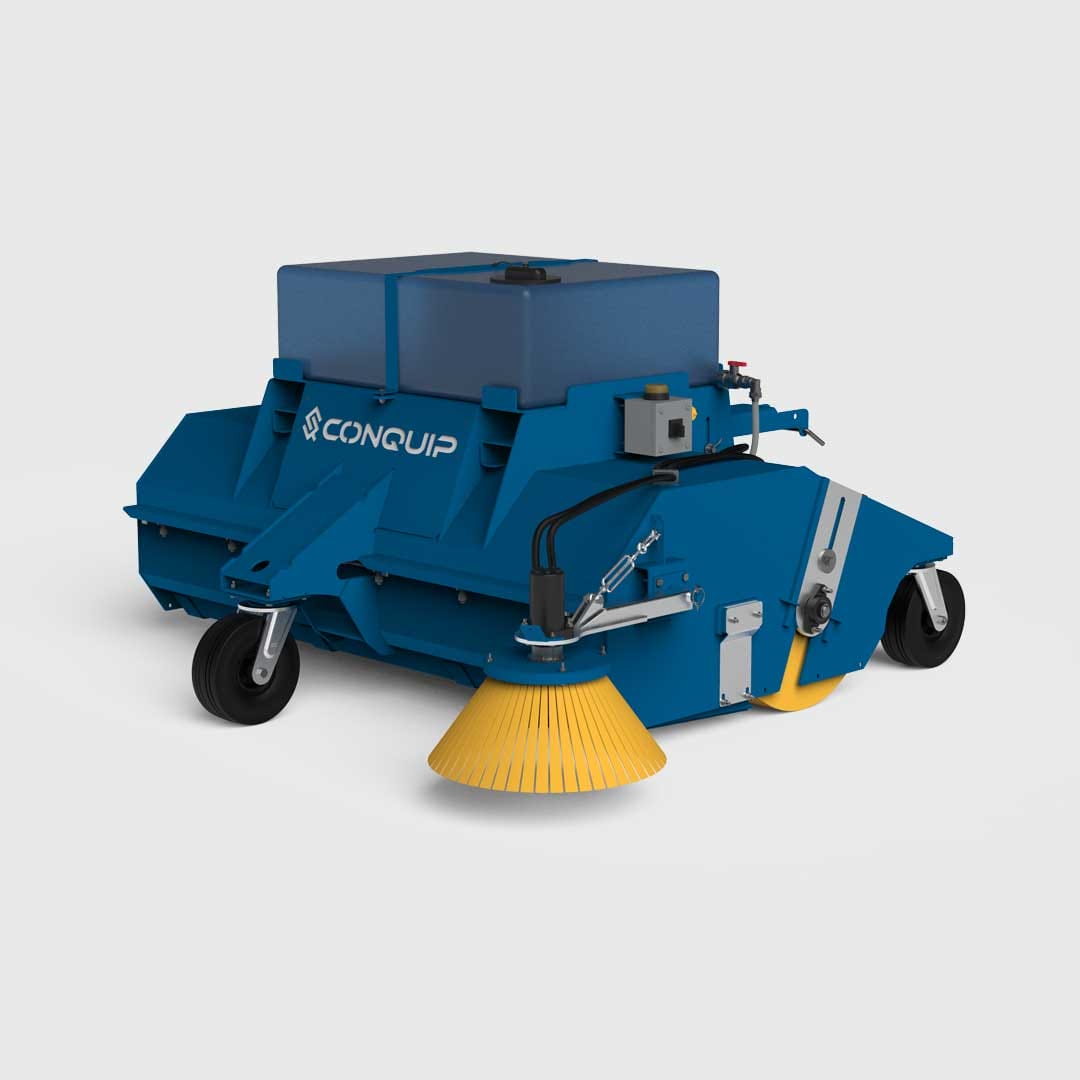

Powerbrush-Dust-Suppression+Kerb-Brush_LF

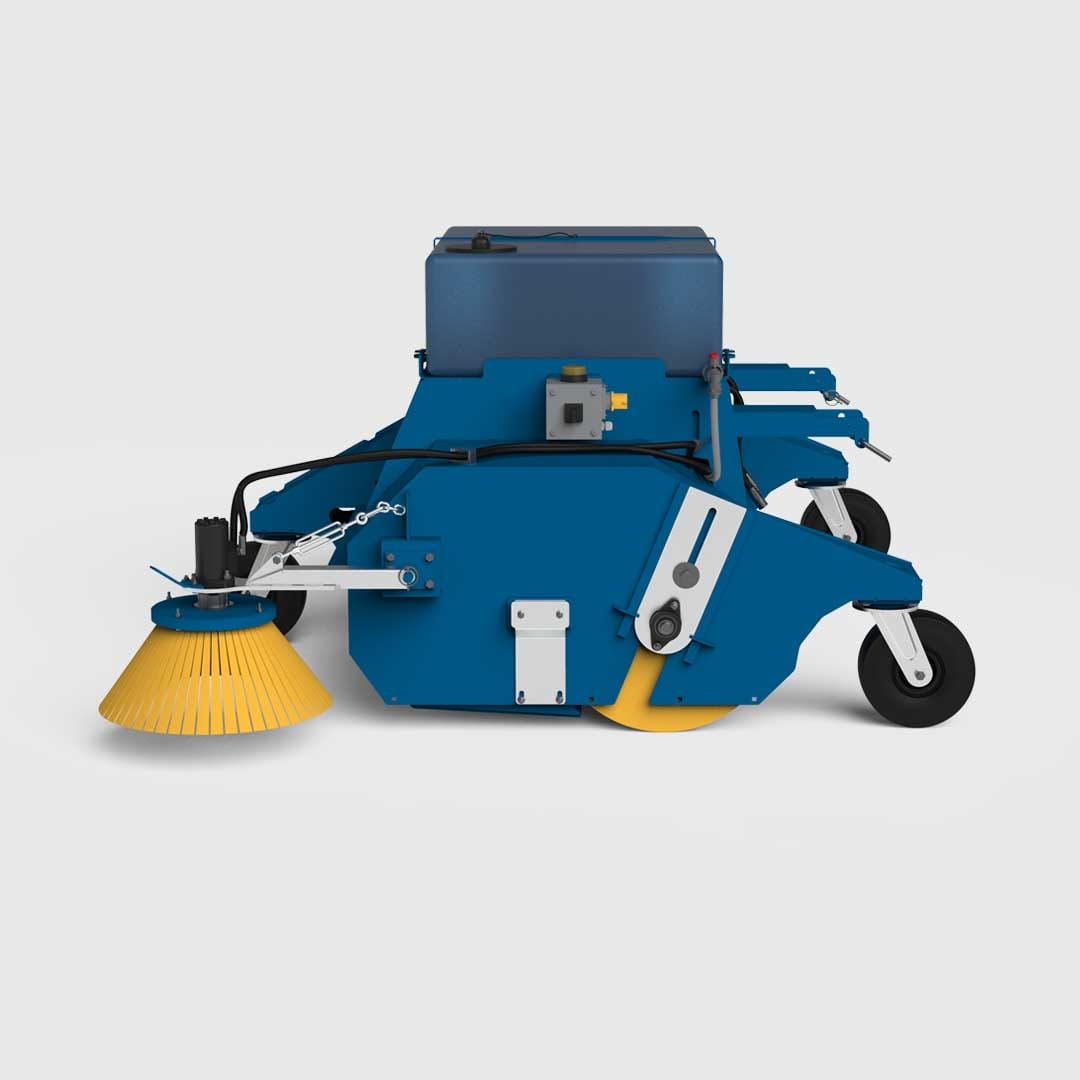

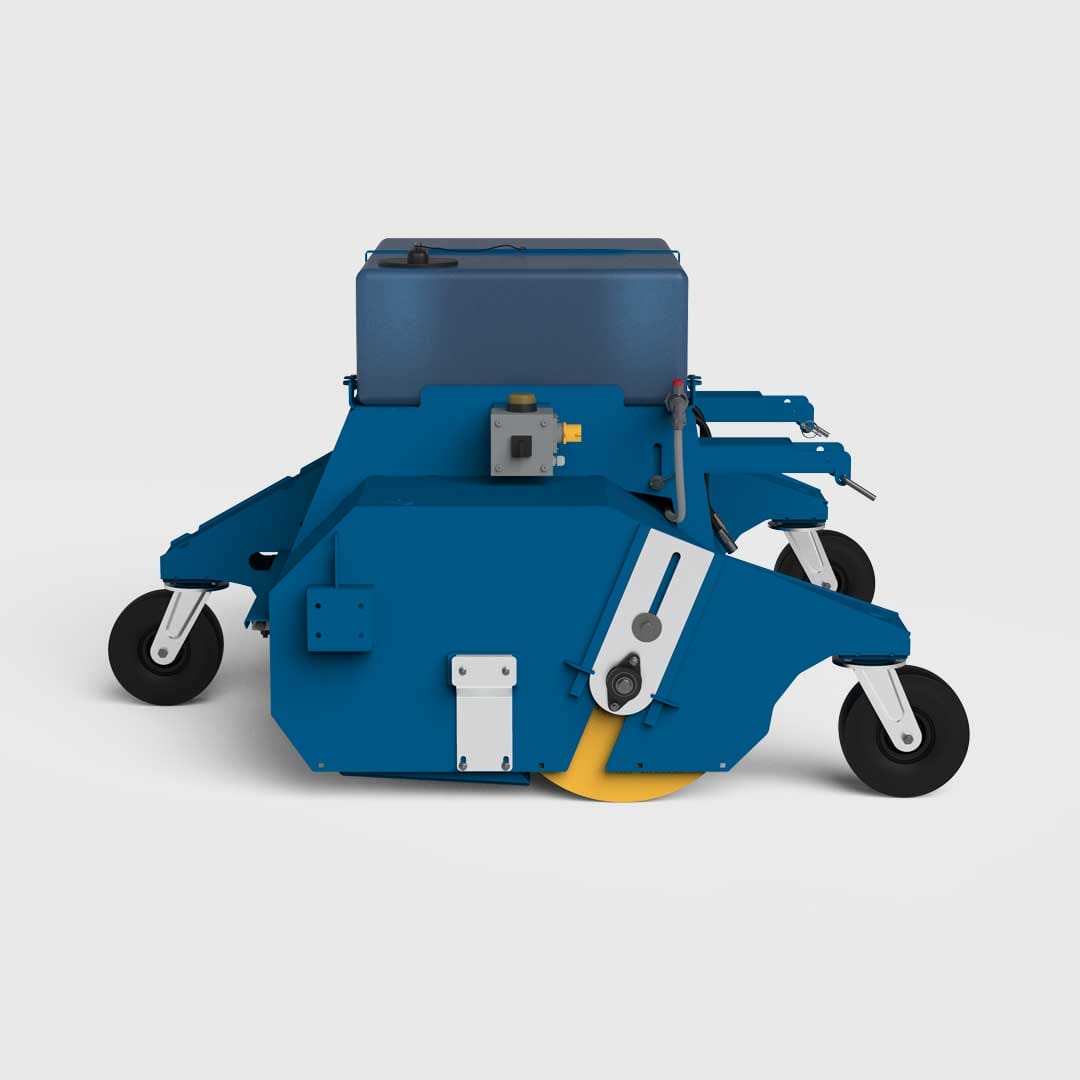

Powerbrush-Dust-Suppression+Kerb-Brush_Left

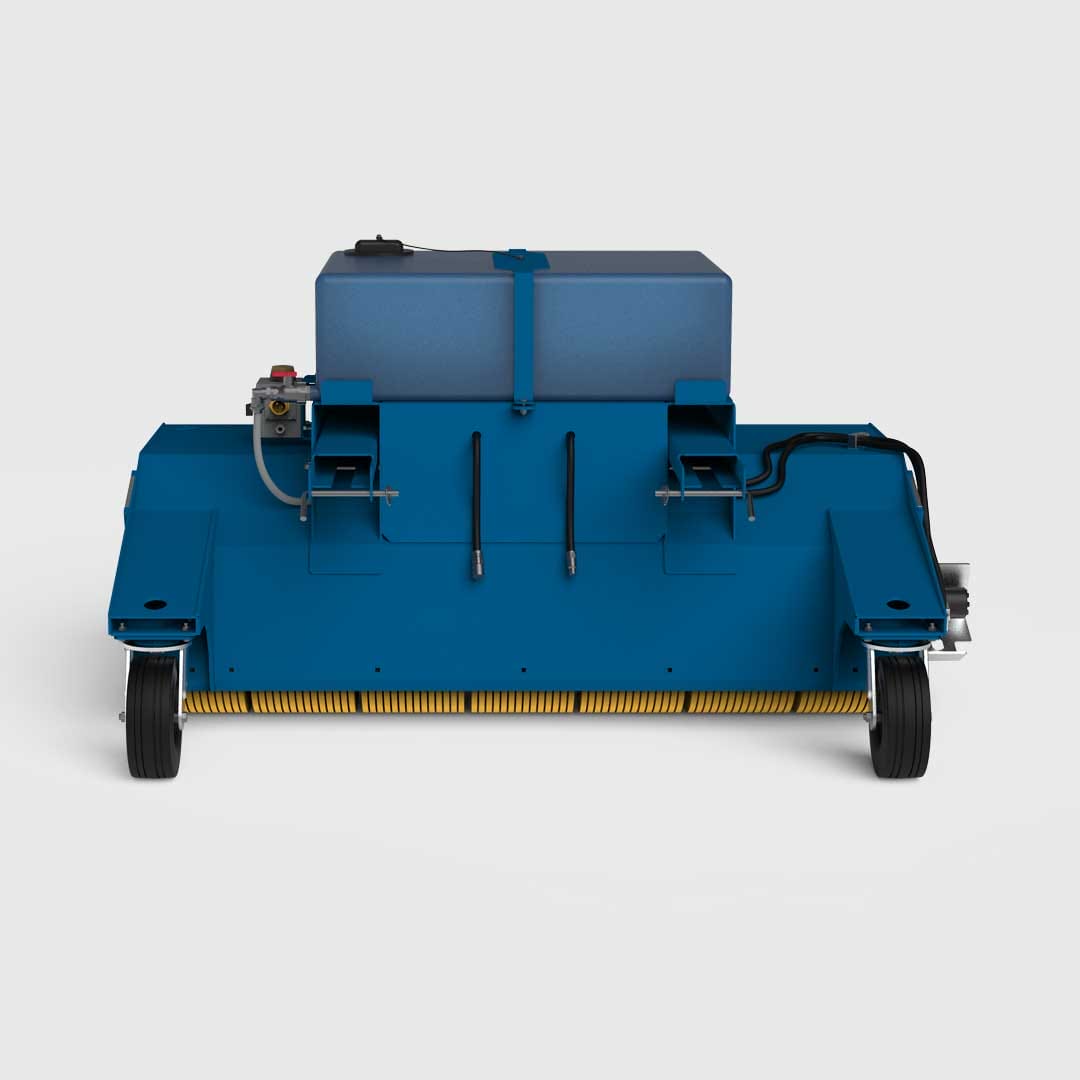

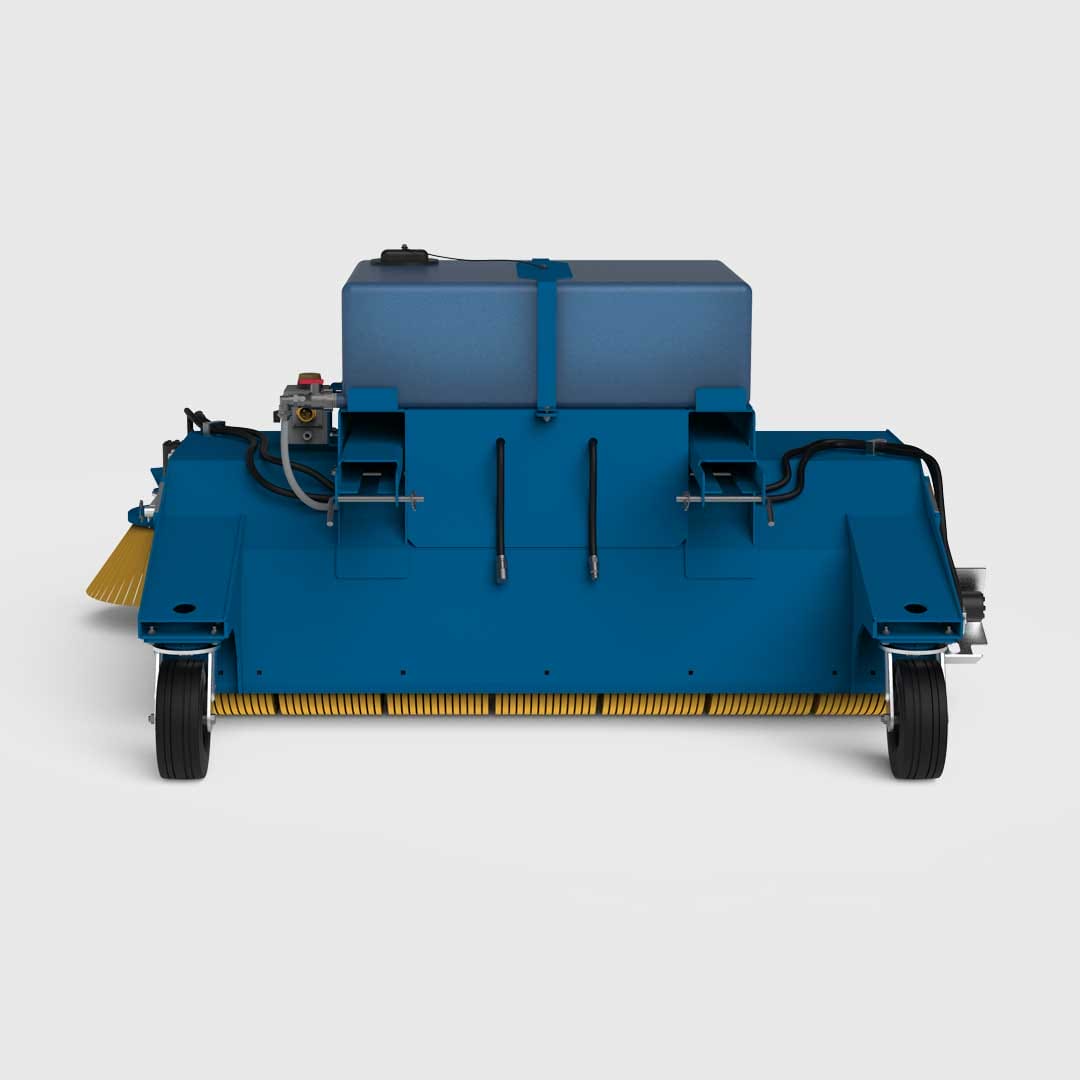

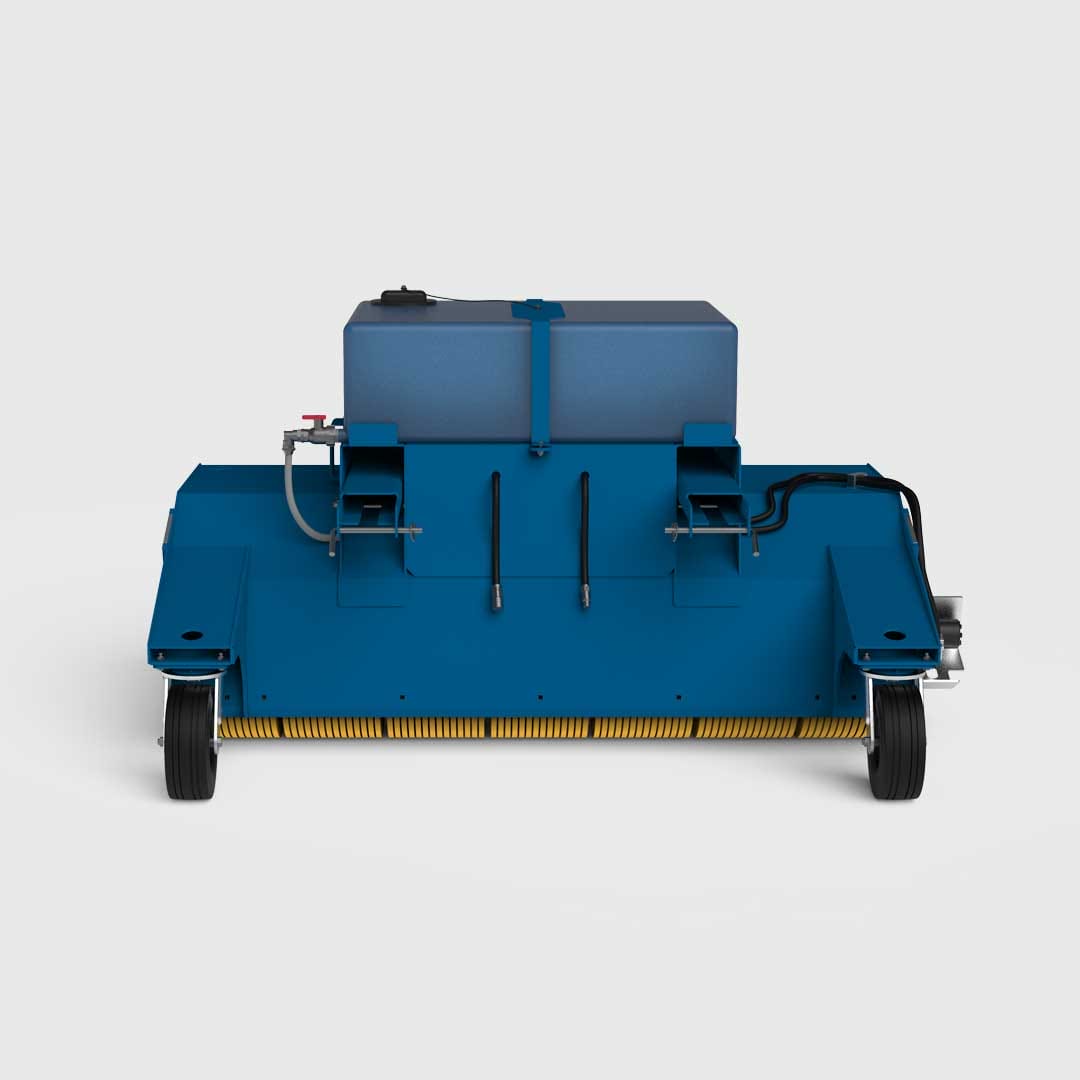

Powerbrush-Dust-Suppression+Kerb-Brush_Back

Powerbrush Forklift Sweeper

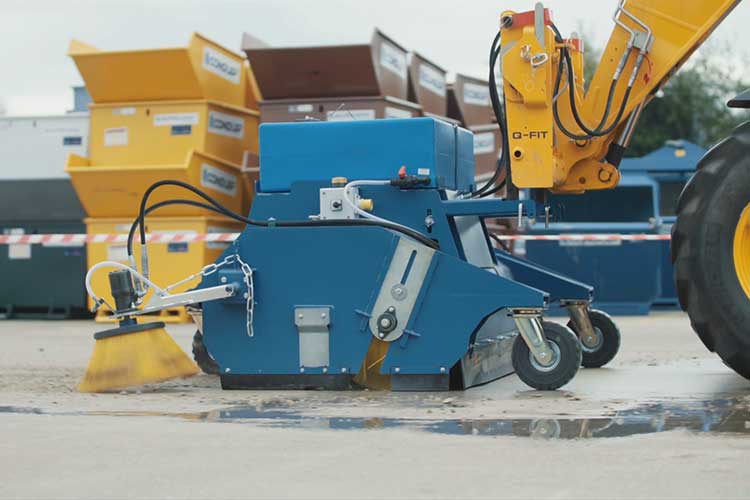

The Conquip Powerbrush Forklift Sweeper is a hydraulic forklift attachment that cleans and collects dirt and waste.

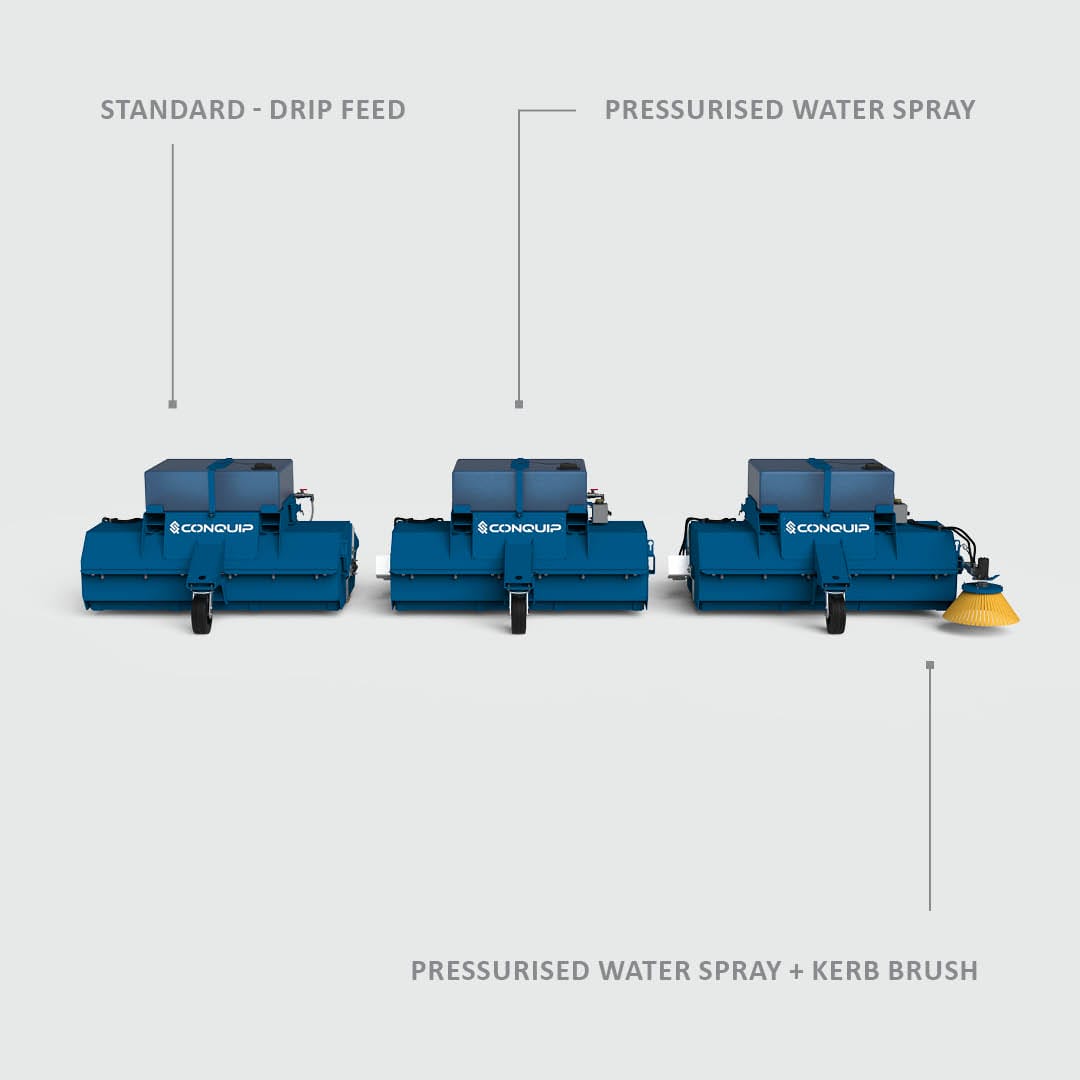

Choose between the Standard model with drip fed water or the Pressurised Water Spray model which is ideal for those particularly dusty sites. Both models are available with a kerb brush as an optional extra, perfect for cleaning gullies and kerbs.

Type

Optional Extras

Hire/Purchase

Clear

SKU: N/A Category: Forklift Attachments

Description

FEATURES

Simple hydraulic system with a single 1-way valve.
Robust hopper design for collecting dirt and waste.
Heel pins provided to keep the unit secure on the machine’s forks.
Three wheels for maximum stability allowing the sweeper to follow uneven ground.
Storage for spare fork retaining pins, or when the Powerbrush is not in use.
250-litre-capacity water tank, with plug for quick release if required. The tank cap is supplied with a cable attaching it to the tank to prevent loss.

BENEFITS

Huge project cost savings compared to road sweeper hire.
Always available on-site, no waiting for unreliable road sweeper appointments, increasing productivity and reducing downtime.
Less machinery or vehicles on-site reduces carbon emissions, improving project sustainability.
All weather solution for keeping the mud at bay during the autumn and winter months and suppressing dust in the spring and summer months.
Choice between standard drip feed water or pressurised water spray options.
Available with a kerb brush an optional extra.
The main brush is made up of just 7 components, which allows them to be replaced quickly and easily.
Easy to adjust the height adjustment of the brushes.
Designed with 2 wheels at the rear of the unit, as this is where there is the largest downward force from the telehandler’s forks.
Hydraulic flow rate: Maximum 60 litres per minute continuous, 75 litres per minute intermittent.
Hydraulic pressure: Maximum 175 bar continuous, 190 bar intermittent.
Maximum pressure drop if flow rate and pressure are high: 135 bar continuous.

Specification

PRODUCT CODE	PRODUCT TYPE	LENGTH (mm)	WIDTH (mm)	HEIGHT (mm)	FORK POCKETS (W x H) (mm)	WEIGHT (kg)	TANK CAPACITY (litres)
SA800AK-02100	Standard Drip Feed	2180	2340	1260	148 x 60	560	250
SA800AI-02100	Pressurised Water Spray	2180	2340	1260	148 x 60	560	250
SA800AP-02100	Standard Drip Feed + Kerb Brush	2300	2700	1260	148 x 60	585	250
SA800AQ-02100	Pressurised Water Spray + Kerb Brush	2300	2700	1260	148 x 60	585	250

HYDRAULIC COUPLINGS: Upon your enquiry, our team will be in touch to confirm the type of hydraulic couplings required with your Powerbrush to fit the machine on your site.

SA800AK-02100, SA800AI-02100, SA800AP-02100, SA800AQ-02100

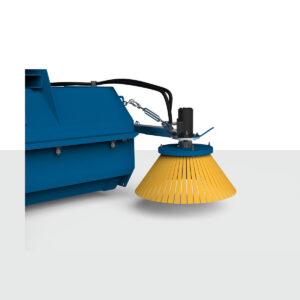

Kerb Brush

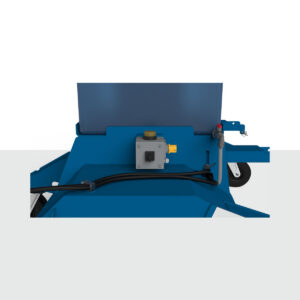

Dust Suppression for Conquip Powerbrush Forklift Sweeper

Pressurised Water Spray

User Guide

Customer Support Video

How-to Guide

Supporting Documentation

How does the pressurised water spray work?

It’s powered by a chargeable battery with a 110v lead.

Can Conquip provide operatives with more help to set up, check and use the Powerbrush Forklift Sweeper?

Yes, we’ve created a series of customer support resources, including check lists, step-by-step user guide, troubleshooting help and a video, which can be found here.

Is using this sweeper with a forklift cheaper than a road sweeper?

Yes, we’ve calculated the costs for both, and it is much cheaper than a road sweeper. See how much you could save by watching the video under the Media Gallery.
