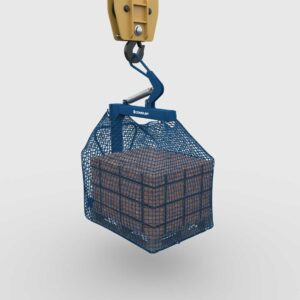

Crane-Forks-With_Safety-Restraint-Net-Back-RF

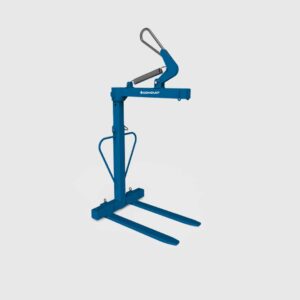

crane forks with adjustable height option
two options of self levelling crane forks
crane pallet forks attachment for lifting of pallets with a crane right side view
Crane-Forks-With_Safety-Restraint-Net-RF
self levelling crane forks for lifting pallets and packs of bricks with a crane
self levelling crane forks for lifting of pallets with a crane
Crane-Forks-With_Safety-Restraint-Net-Back-RF
crane forks with adjustable height option

Crane Forks

Conquip Crane Forks are a self-levelling crane attachment for lifting palletised material or packs of bricks around site. They should always be used with a Safety Restraint Net.

A spring-loaded design ensures that the forks are self-levelling regardless of the weight of the load, and they are especially helpful for situations where forklifts or telehandlers are inadequate.

SKU: N/A Category:

Description

FEATURES

  • Spring-loaded lifting eye ensures a balanced lift.
  • Adjustable height of Telescopic version allows for flexibility with the size of load that can be lifted.
  • Collared eye bolts to adjust fork tine width for different pallet sizes and types.
  • Hooks on the top arm for securing a Safety Restraint Net around the load.

BENEFITS

  • Use with a Crane Forks Cage for a fail-safe lifting solution, improving site safety compared to using a Safety Restraint Net.
  • Fully self-levelling when placed on the ground for easy and safe storage.
  • Fixed and Telescopic versions available to accommodate varying load heights.

Specification

PRODUCT CODETYPELENGTH
(mm)		WIDTH
(mm)		HEIGHT
(mm)		HEIGHT (Minimum)
(mm)		WEIGHT
(kg)		WLL*
(kg)
CA102-02000Fixed Height11809401960N/A1502000
CA103-02000Telescopic Height1200950260019751902000

* Working Load Limit .

CA102-02000, CA103-02000

Safety Restraint Net

A net to safeguard against falling material.

User Guide

Customer Support Video

Supporting Documentation

We're working on this so check back soon.

Want to shout about this product? Give us a review on TrustPilot.

Trustpilot rating

Related Products and Accessories

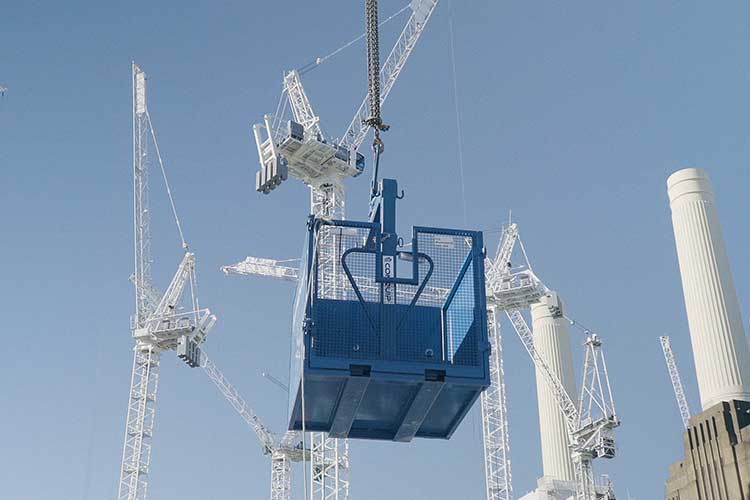

Crane Forks Cage

Crane Forks Cage

  • The fail-safe method for moving and lifting blocks and bricks.
  • Best-practice solution when used with Conquip Crane Forks.
Goods Cage for safe lifting of materials and equipment

Goods Cage

  • Goods Lifting Cage for transporting and lifting materials or equipment.
  • Choose from small or large and with gate or ramp access.
Lifting Beam with multiple lifting points

Lifting Beam

  • A beam for transporting materials that require more than one lift point.
  • Choose from 3m, 5m and 7m lengths.
safety restraint net around pallet of bricks shown with crane forks

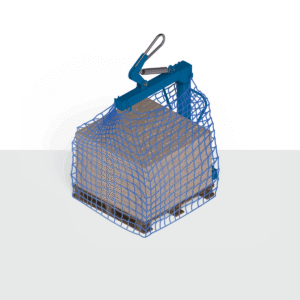

Safety Restraint Net
