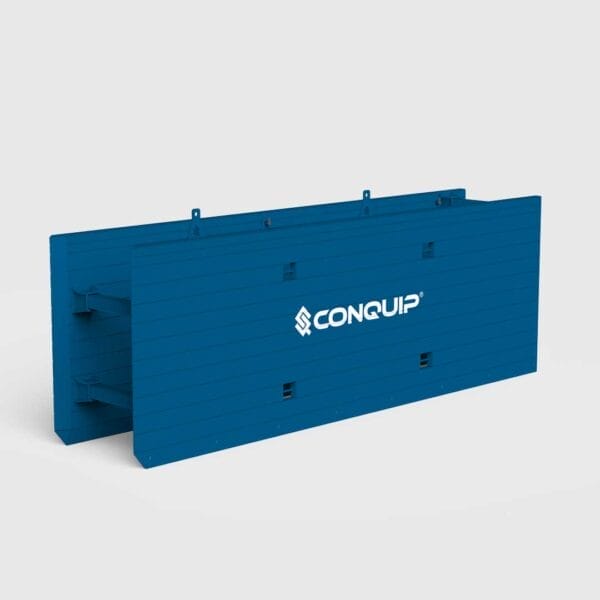

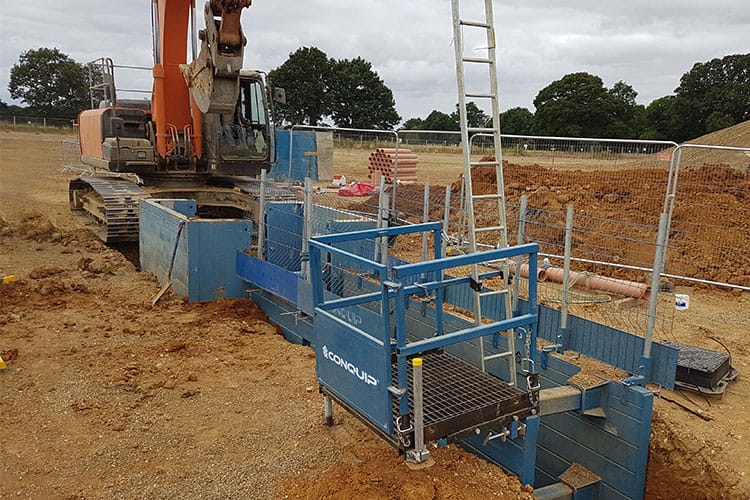

Drag Box

The Conquip Drag Box is a robust, edge-supported trench lining system designed to provide reliable excavation support during utility and pipeline installation.

Simple to assemble and built for durability, this heavy-duty system can be dragged along the trench by an excavator, allowing operators to lay pipelines quickly and efficiently without the need to reposition multiple trench boxes.

Looking for a solution better suited to smaller trenches or shallow excavations? Explore our Trench Sheets for a lightweight alternative.

Strut Type

Trench Depth

Working Width

Hire/Purchase

Clear

SKU: N/A Category: Excavation Support

Description

FEATURES

Convex panel edges cut through spoil, aiding dragging motion.
Fixed Struts provide maximum durability to withstand regular usage.
Hog Back Strut available where extra clearance is required.
Robust design.

BENEFITS

Suitable for trench depths of 4.4 metres and trench widths of up to 3 metres.
Hog Back Strut option available for applications where additional clearance is required.
5-metre and 7-metre sizes available for varying site requirements.
Manufactured from high-quality steel for greater longevity, reducing repair or replacement costs.
Simple to assemble with step-by-step user guide and animation for assembly, installation, and extraction.
Available with a full range of suitable lifting and extraction chains and trench access accessories – see our full range here.

Specification

PRODUCT CODE	BOX TYPE	STRUT TYPE	LENGTH (mm)	WORKING WIDTH (mm)		HEIGHT (mm)	CBS¹	WEIGHT² (kg)		SWL³ (kPa)
PRODUCT CODE	BOX TYPE	STRUT TYPE	LENGTH (mm)	MIN	MAX	HEIGHT (mm)	CBS¹	MIN	MAX	SWL³ (kPa)
TL100-00002	Base	Fixed	5110	700	3000	2410	4140	3600	4015	30
TL100-00003	Extension	Fixed	5110	700	3000	1810	4140	2475	2785	30
TL100-00010	Base	Fixed	7110	700	3000	2410	6140	5120	5535	20
TL100-00011	Extension	Fixed	7110	700	3000	1810	6140	3845	4285	20
TL100-00002	Base	Hog Back	5110	2190	2190	2410	4140	3600	4015	30
TL100-00003	Extension	Hog Back	5110	2190	2190	1810	4140	2475	2785	30
TL100-00010	Base	Hog Back	7110	2190	2190	2410	6140	5120	5535	20
TL100-00011	Extension	Hog Back	7110	2190	2190	1810	6140	3845	4285	20

¹ CBS = Clearance Between Struts.
² Weight will be equal to or less than the weight stated depending on your strut configuration. Our team will provide more information on trench widths or working widths depending on requirements specified in your quote request.
³ SWL = Safe Working Load.

TL100-00002, TL100-00003, TL100-00010, TL100-00011, TL100-00002, TL100-00003, TL100-00010, TL100-00011

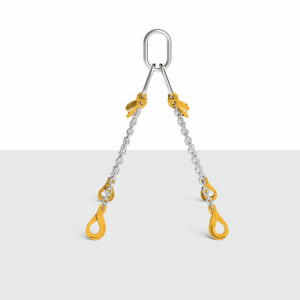

Four-Leg Chain Sling

A durable, hard-wearing lifting chain sling with four chain legs.

User Guide

How-to Guide

Customer Support Video

Shoring Solutions Design Service

Supporting Documentation

I'm not sure which type of Drag Box I need; can you help?

Yes - If you have an excavator up to 13 tonnes, you'll need our Midi Drag Box. For 13-22 tonnes, select our High Clearance Drag Box. For 13-50 tonnes, choose our Drag Box.

I need to lay large diameter pipes on a project and need a lot more area under the strut. What should I do?

Fixed Struts and Hog Back Struts are used solely with our Drag Boxes. The robust design of the Fixed Strut is able withstand the pressure applied by the excavator when the box is dragged and they are available in a range of lengths to suit working widths from 700mm to 3 metres. The Hog Back Strut provides extra distance below it, ideal for larger diameter pipes or applications where extra clearance is required.

I need to generate a temporary works design for my project. Can you help?

Yes, we have a dedicated Shoring Design Service offering three types of temporary works designs; 01 standard - for general site conditions, 02 standard + check certificate – for verification that soils are suitable with a standard drawing. 03 bespoke – for projects requiring a unique design that covers all aspects. Temporary work designs are available by contacting our hire desk team and our technical sales team can support with any on-site support.
