Fixed Flush CantiDeck

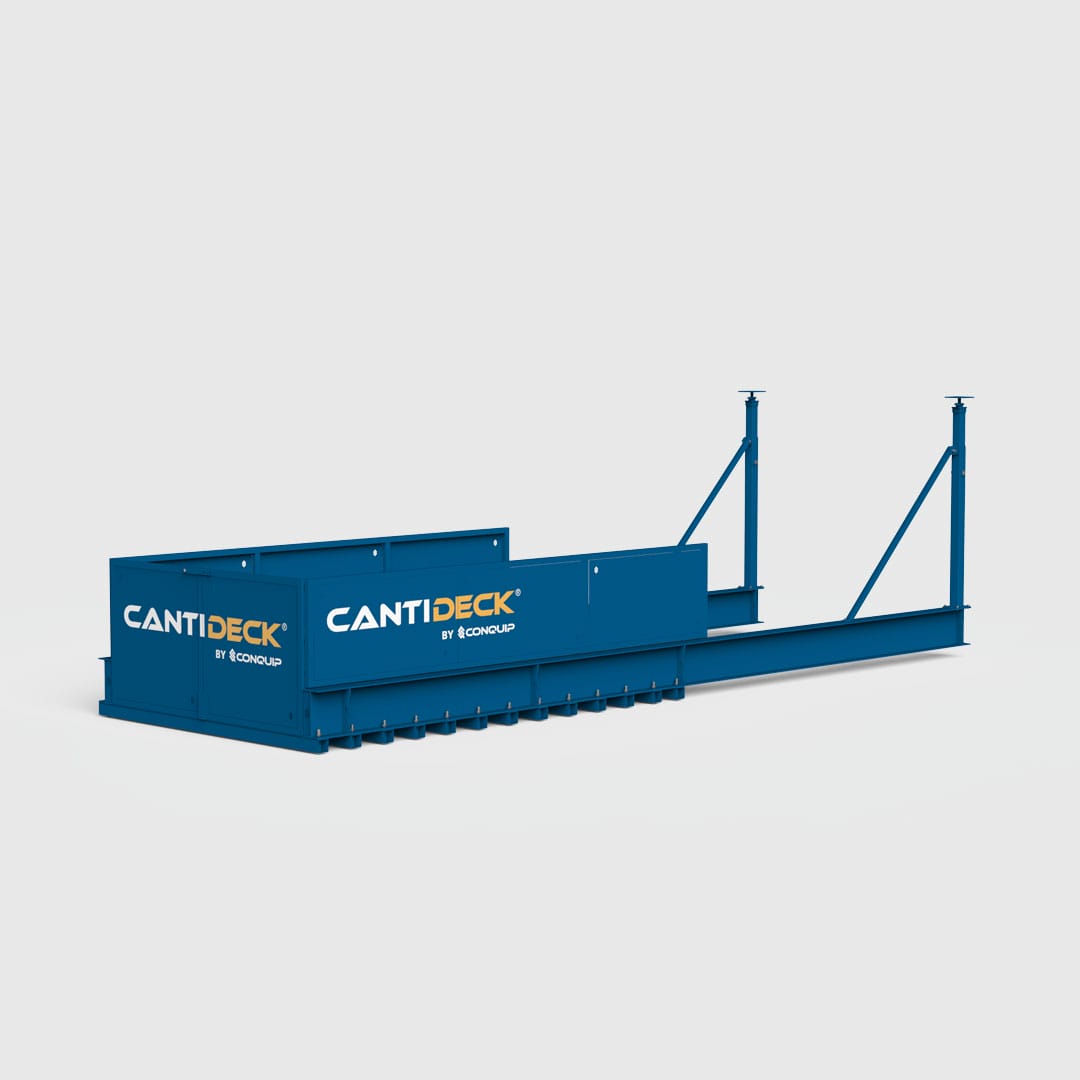

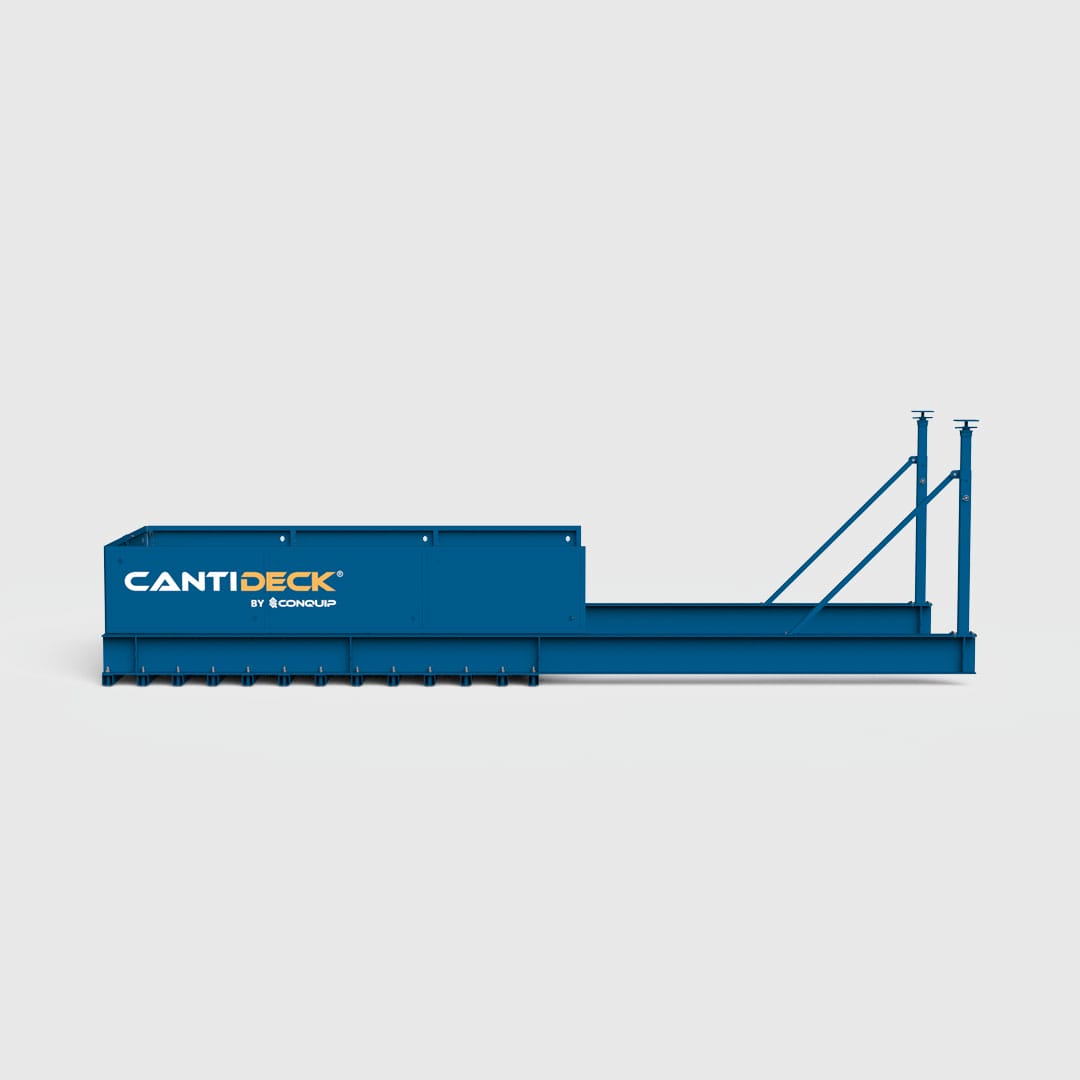

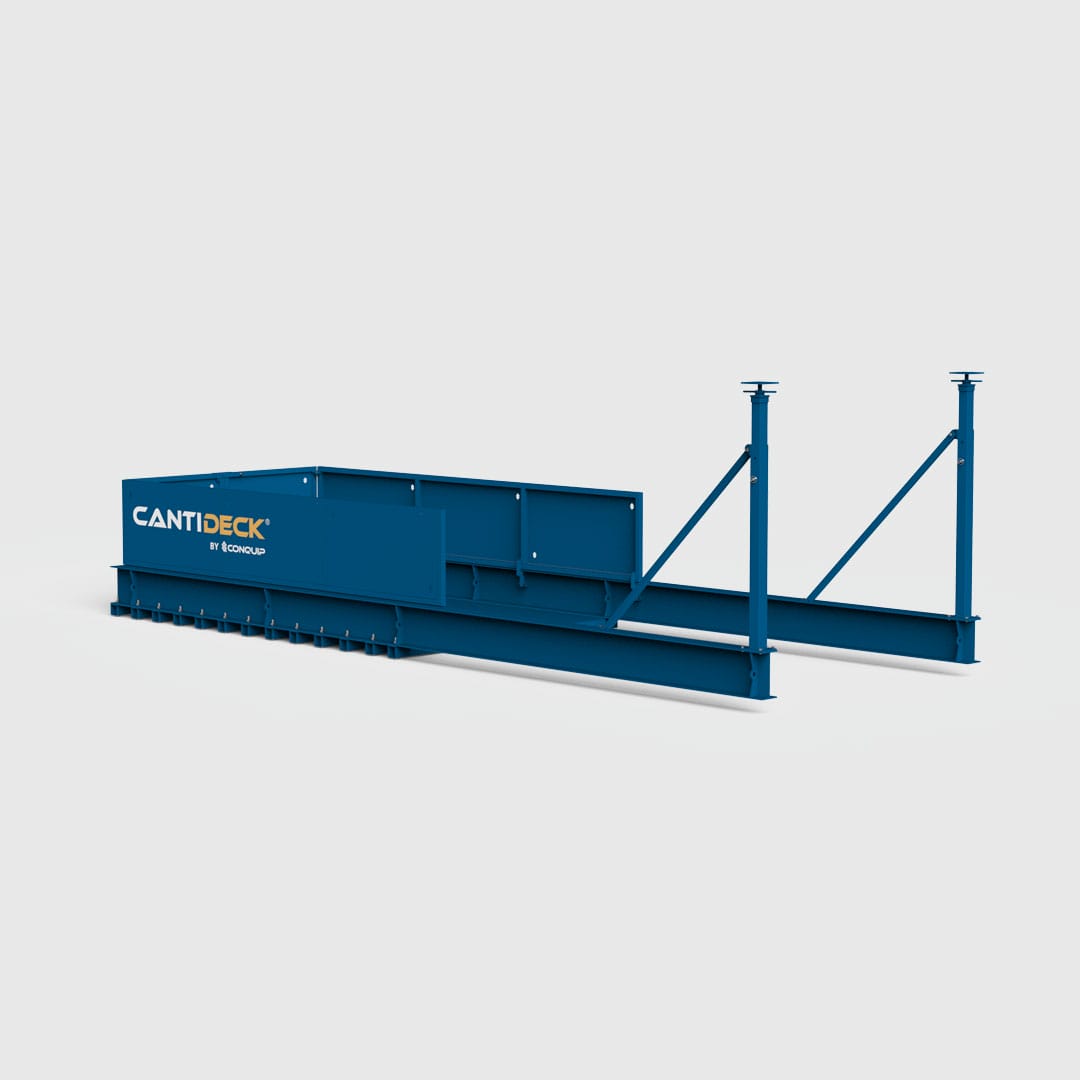

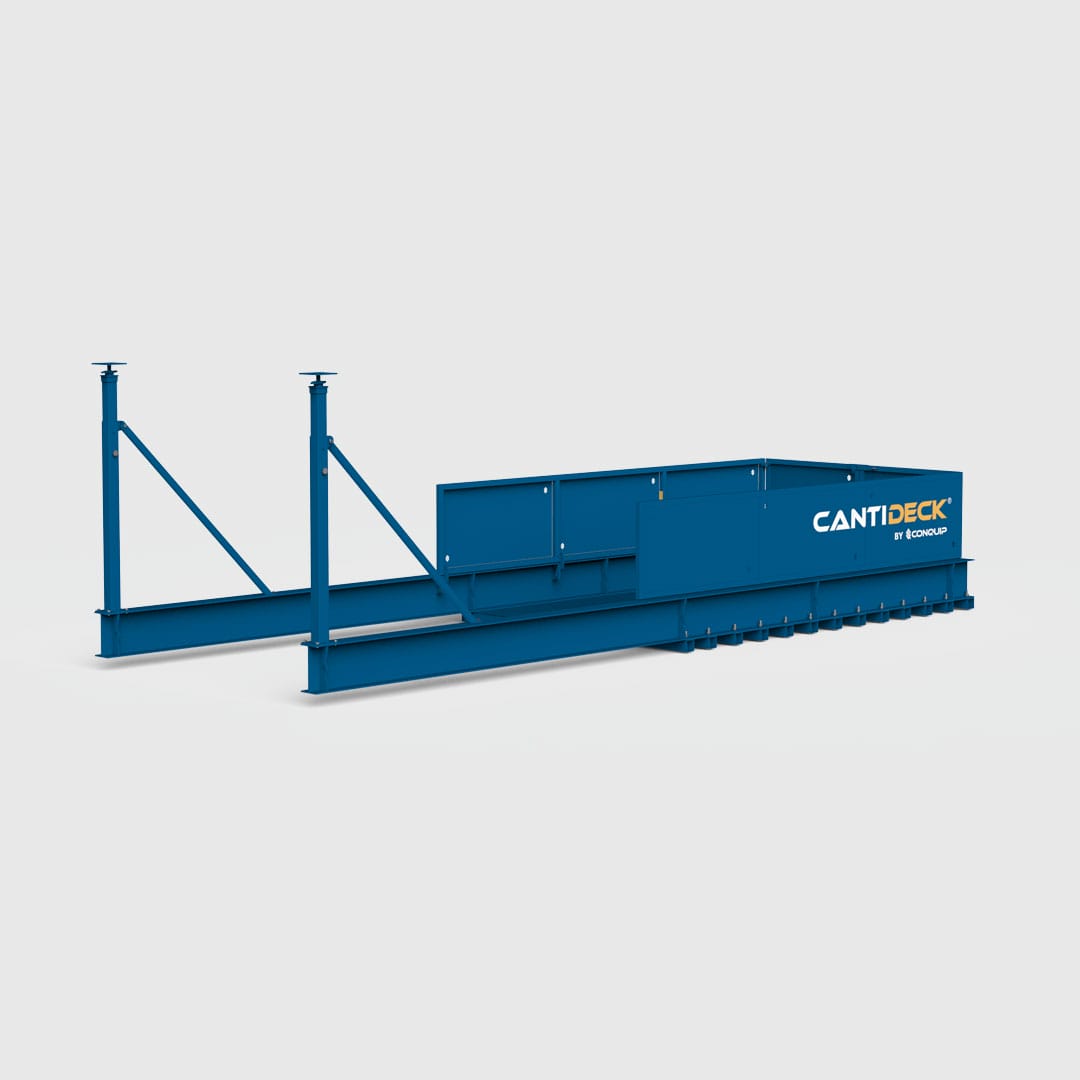

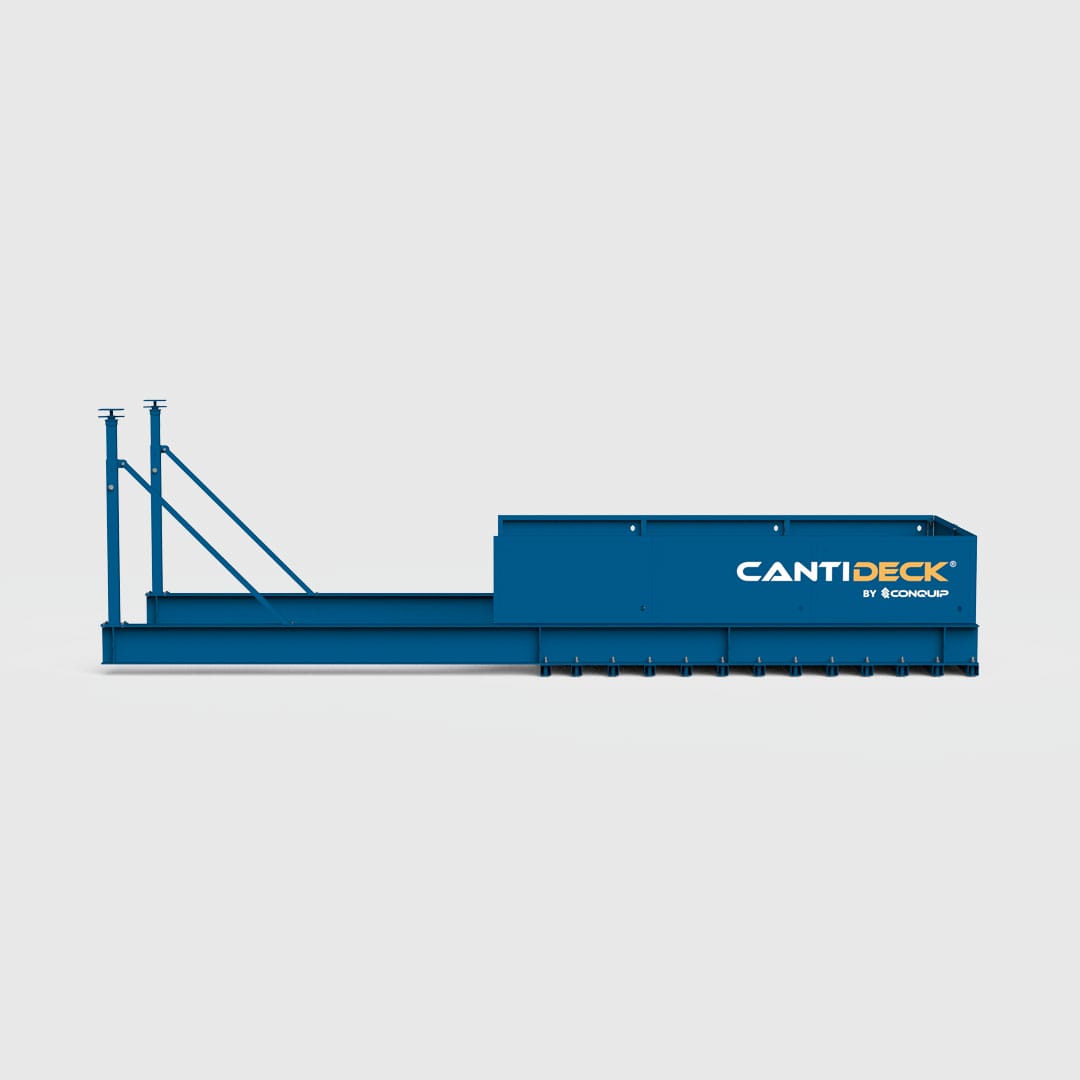

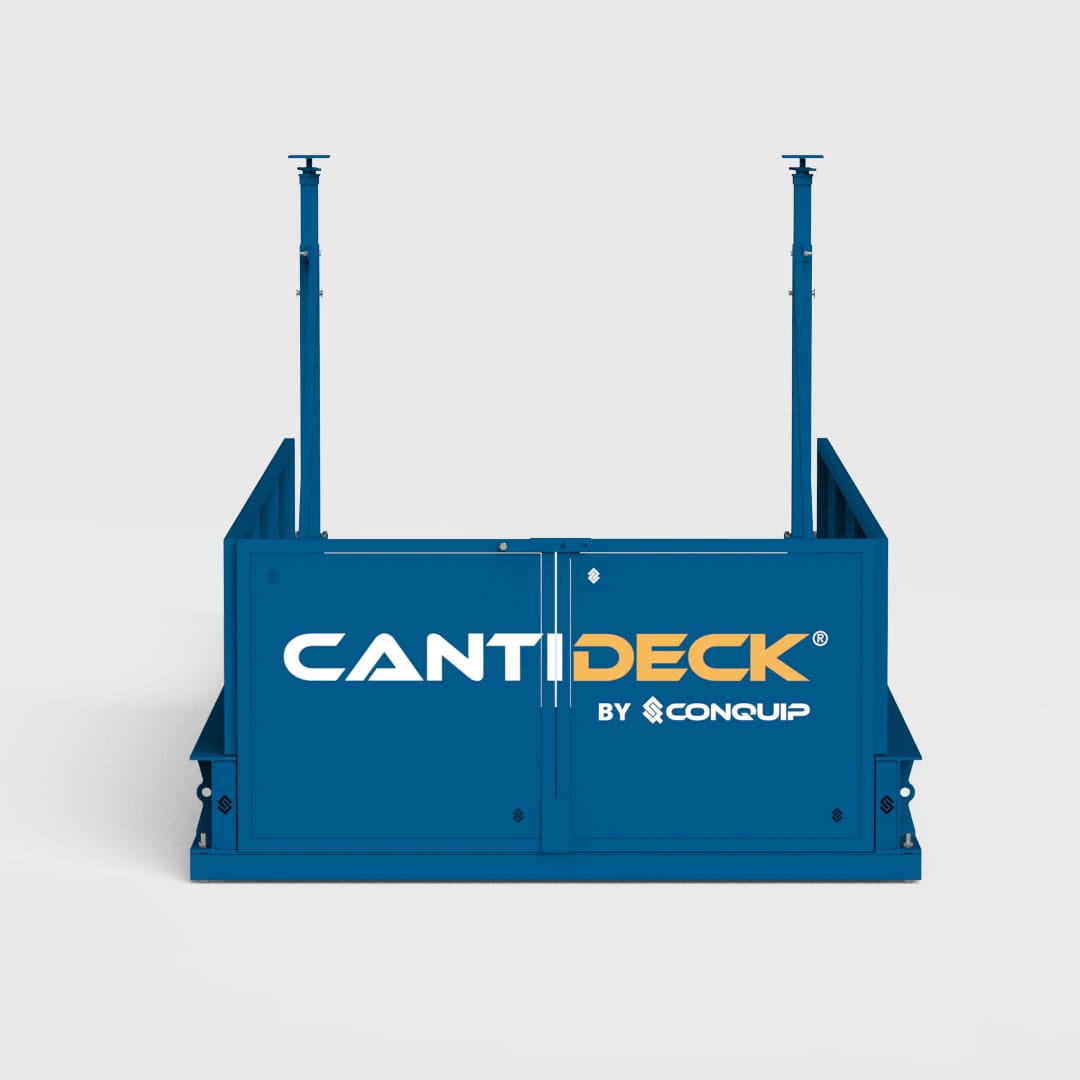

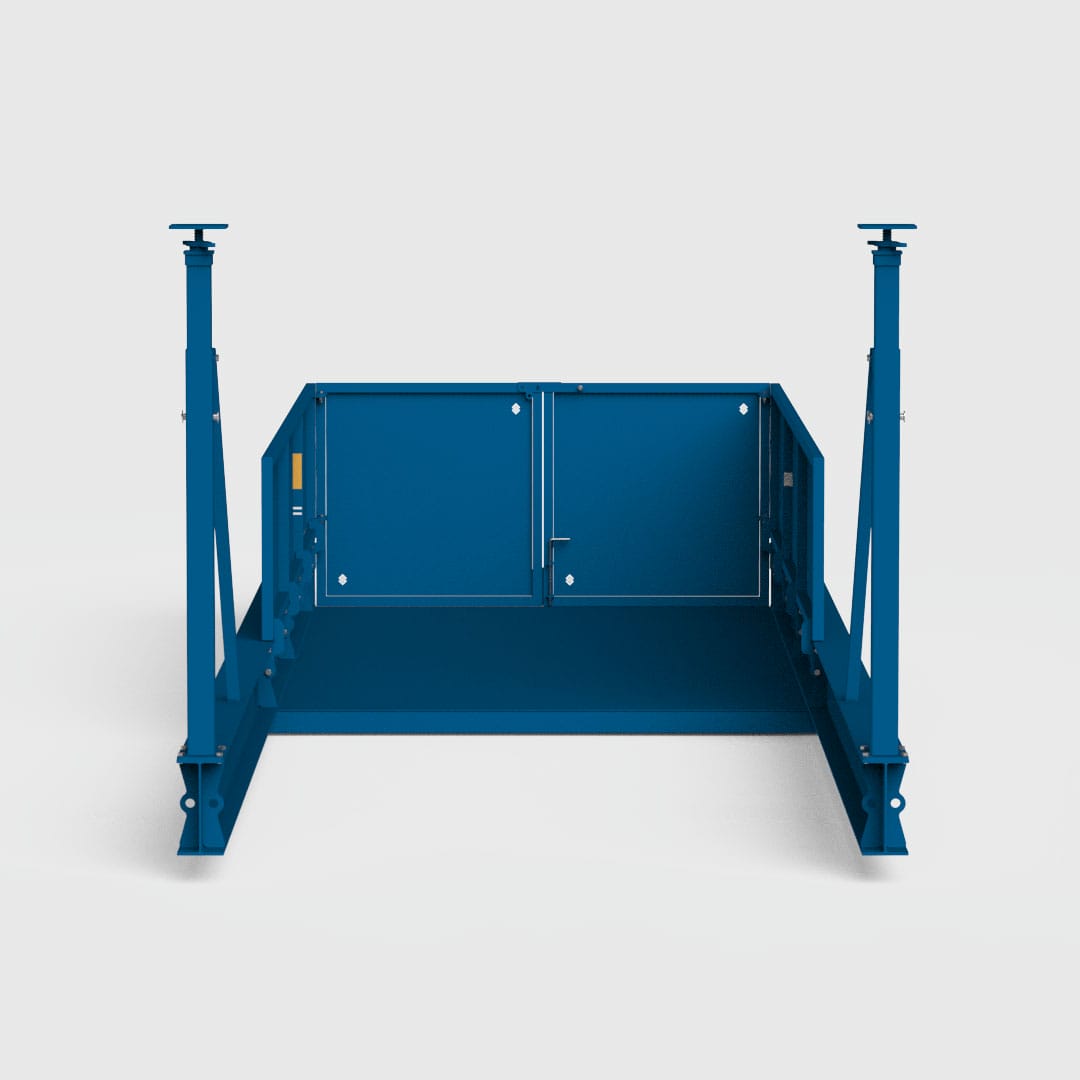

The Conquip Fixed Flush CantiDeck is a crane loading platform designed for environments with limited headroom, where working height and maximum clearance are critical.

Ideal for lifting prefabricated modular units, formwork tables, large façade panels, and awkward loads, this platform ensures efficient, safe material handling on high-rise projects.

Its unique design features a deck suspended from the base of the main load-bearing beam, providing a completely flush transition from the building floor to the platform — eliminating trip hazards and improving handling of large components.

Click here to learn more about the full CantiDeck range.

SKU: N/A Category:

Description

Features

  • Large loading area suitable for wide a variety of materials, pallets or awkward loads.
  • Large working load limit capacity.
  • Gated access.
  • Unique single prop design reduces the weight of the deck and the reaction loadings to the structure.

Benefits

  • Quick and simple to install and relocate.
  • Design provides flush transition from the loading bay of the deck to the building level, providing maximum clearance and allowing easy load and unload with pallet trucks or trolleys.
  • Unique single prop design reduces the weight of the deck and the reaction loadings to the structure. This means it transfers the prop loads further into the building allowing for higher WLL to be approved on the decks.
  • Quick and simple to install and relocate with fast fold down sides and doors and certified lifting eyes for lifting chain connection.
  • Variety of sizes, with bespoke solutions available.
  • All installation and relocation training provided by our training team.

Specification

PRODUCT CODELENGTH (Outboard)
(mm)		LENGTH (Total)
(mm)		WIDTH (External)
(mm)		WIDTH (Internal)
(mm)		WEIGHT
(kg)		WLL (UDL)*
(kg)
FF20400080002000155018505000
FF24400080002400195020005000
FF27400080002700225020005000
FF35400080003500305026005000
FF45400080004500405028005000

* Working Load Limit | UDL = Uniformly Distributed Load.


Loading Data Sheets

PRODUCT CODE WLL*
FF20 1000kg, 2000kg, 3000kg, 5000kg
FF24 1000kg, 2000kg, 3000kg, 4000kg, 5000kg
FF27 500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg
FF35 500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg
FF45 500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg

*Working Load Limit

FF20, FF24, FF27, FF35, FF45

There are no optional extras for this product.

User Guide

Supporting Documentation

We're working on this so check back soon.

'CantiDecks allow for a multitude of deliveries to be put into the building, once, and once only. Installing a CantiDeck is very simple, it’s a day’s training by a Conquip engineer....you can then install a CantiDeck within two hours....I would recommend these to any main contractors or sub-contractors who are looking to build a project on time, and efficiently.

Chris Jones

Project Manager, Shore Group

[CantiDeck's] versatility, ease of use and ease of relocation was very beneficial to us. The pre-start service provided by Conquip was also very helpful.

Mehul Ruda

Project Manager for Seele Gmbh
