Road Plates

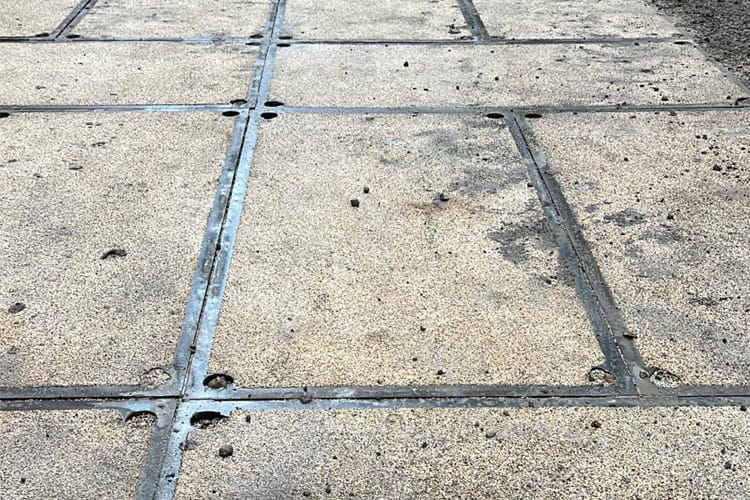

Conquip steel Road Plates provide a durable, temporary pathway across uneven, sunken, or broken ground, allowing vehicles, machinery and pedestrians to move safely and efficiently around construction sites.

The range includes Standard, Anti-Skid, Centre-Lift, and Anti-Skid Centre-Lift options, suitable for a variety of on-site applications.

We offer Standard Solutions for spanning supported trenches, public roads and temporarily buried trenches, providing reliable access wherever needed. For more details contact our Hire Desk.

Type

Length

Hire/Purchase

Clear

SKU: N/A Category: Site Management

Description

FEATURES

Anti-Skid feature non-slip coating.
Centre-Lift compatible with a specific locking tool for a guaranteed safe lift.
Lifting points in the corners enable easy transportation around site.
The Centre-Lift feature an integrated weld plate that requires a specific lifting tool to manoeuvre them, for a safe and secure lift.

BENEFITS

Available in four steel variations – Standard, Anti-Skid, Centre-Lift and Anti-Skid Centre-Lift.
Choice between small and large sizes.
Compliant with Street & Roadworks Code of Safe Practice.
Improves access for vehicles and machinery and prevents damage to them, saving on repair or replacement costs.
We offer a set of Standard Solutions for Road Plates for spanning over supported trenches, public roads and temporarily buried trenches. Contact our Hire Desk for more details.

Specification

PRODUCT CODE	PRODUCT TYPE	LENGTH* (mm)	WIDTH* (mm)	THICKNESS* (mm)	HOLE DIAMETER (mm)	WEIGHT (kg)
SS520-01440	Standard Small	1200	1000	19.77 / 34/4"	800	226
SS520-02880	Standard Large	2400	1200	19.77 / 34/4"	80	452
SS520AB-02880	Anti-Skid Large	2400	1200	19.77 / 34/4"	80	452
SS520AC-01440	Centre-Lift Small	1200	1200	19.77 / 34/4"	80	226
SS520AC-02880	Centre-Lift Large	2400	1200	19.77 / 34/4"	80	452
SS520AD-01440	Anti-Skid, Centre-Lift Small	1200	1200	19.77 / 34/4"	80	226
SS520AD-02880	Anti-Skid, Centre-Lift Large	2400	1200	19.77 / 34/4"	80	452

* Manufacturing tolerances mean the width and length could vary by 10mm +/- and the thickness by 2mm +/-.

SS520-01440, SS520-02880, SS520AB-02880, SS520AC-01440, SS520AC-02880, SS520AD-01440, SS520AD-02880

My project needs to produce a temporary works design that includes road plates. Can Conquip help me with this?

Yes, we offer a set of Standard Solutions for our Road Plates for spanning over supported trenches, public roads and temporarily buried trenches. Contact our Hire Desk for more details.

Is the hole diameter the same for the large and small plates?

Yes, it’s 80mm.

What is the maximum force the road plates can withstand?

The maximum bending and force that can be imposed on a single plate depends on: the length of the free span, the number of half-axles that can be accommodated within the free span, the weights of the half-axles and the positions of the half-axles.
