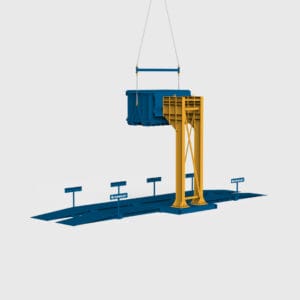

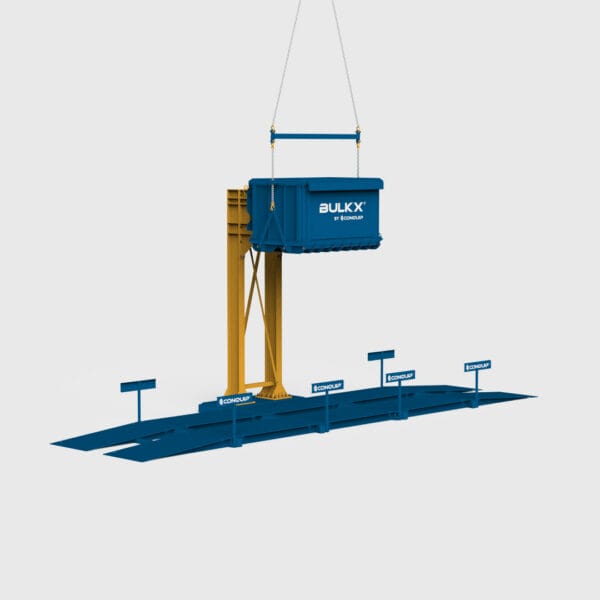

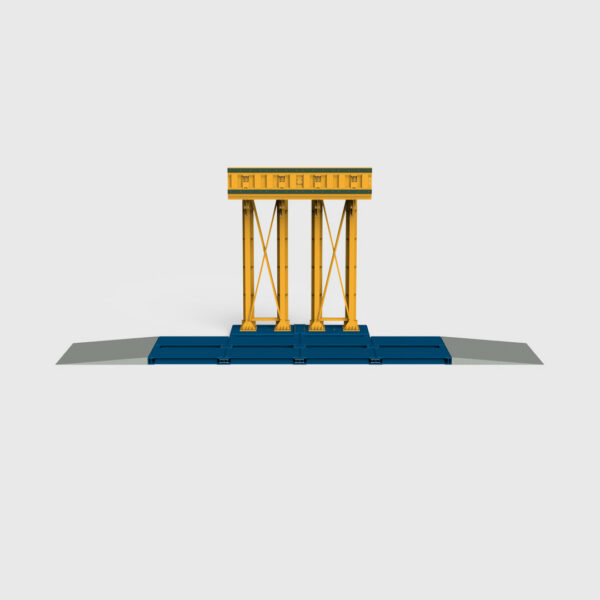

Pit Lane Gantry BulkX

BulkX is a quick, efficient muck away solution allowing excavation and transfer of the waste directly into spoil removal vehicles or stockpiles.

The Pit Lane Gantry BulkX configuration allows the discharge area on the roadside to also used by other delivery vehicles, maximising available space. This option enables the muck-away truck to act as part of the counter-balance mass, making it ideal for sites with limited space or where a single road closure needs to be used for muck away and offloading delivery vehicles.

For more information on the full BulkX range, click here.

BulkX Skip Capacity

Hire/Purchase

Clear

SKU: N/A Category: Solutions

Description

Features

Robust gantry design to withstand regular use on-site.
Integrated hook for quick and easy attachment of the skip to the gantry.
2-leg gantry for smaller skip sizes/capacities.
4-leg gantry for larger skip sizes/capacities.

Benefits

Maximises available space on site, or where anchoring down to the ground is not an option.
Allows the same area to be used for discharging the BulkX skip into the back of muck away trucks and offloading delivery trucks.
Compatible with Side-Mounted BulkX skip sizes from 4m³ to 14m³.
System can be customised for specific requirements, for example gantry extending over the site hoarding to discharge into truck.
Useful for basement excavation or demolition behind a retained façade, if only a single road closure can be negotiated for spoil trucks.
A compact solution that breaks down into sections, so it is easy to assemble and set-up.
Bespoke skip sizes and customised gantry options available on request.
Our engineers will support you throughout the planning, design and installation of this system.

Specification

The Pit Lane Gantry is compatible with all our standard Side-Mounted BulkX skip sizes listed below. Bespoke skip sizes are also available upon request. Contact our team for more information.

Skip

PRODUCT CODE	BULKX SKIP TYPE	GANTRY TYPE	WLL* (kg)	CAPACITY (litres)
CA505-04000	Side-Mounted BulkX	Cantilevered / Pit Lane	10,000	4000
CA505-05000	Side-Mounted BulkX	Cantilevered / Pit Lane	10,000	5000
CA505-06000	Side-Mounted BulkX	Cantilevered / Pit Lane	14,000	6000
CA505-07000	Side-Mounted BulkX	Cantilevered / Pit Lane	14,000	7000
CA505-08000	Side-Mounted BulkX	Cantilevered / Pit Lane	20,000	8000
CA505-10000	Side-Mounted BulkX	Cantilevered / Pit Lane	20,000	10,000
CA505-12000	Side-Mounted BulkX	Cantilevered / Pit Lane	28,000	12,000
CA505-14000	Side-Mounted BulkX	Cantilevered / Pit Lane	28,000	14,000

Gantry

PRODUCT CODE	LENGTH (mm)	WIDTH (mm)	HEIGHT (mm)	WEIGHT (kg)	WLL* (kg)	SKIP CAPACITY (litres)
MB101	9830	6537	6274	22,714	35,000	4000-14,000

* Working Load Limit.
NB: Our stock of gantries has evolved over the years and some dimensions may differ from the information in this table. Please contact us to discuss your requirements in detail.

CA505-04000, CA505-05000, CA505-06000, CA506-07000, CA505-08000, CA505-10000, CA505-12000, CA505-14000, MB101

Skip

[table id=149 /]

Gantry

[table id=148 /] * Working Load Limit.
NB: Our stock of gantries has evolved over the years and some dimensions may differ from the information in this table. Please contact us to discuss your requirements in detail.

CA505-04000, CA505-05000, CA505-06000, CA506-07000, CA505-08000, CA505-10000, CA505-12000, CA505-14000, MB101

A bulk excavation skip that increases productivity and safety of construction projects.

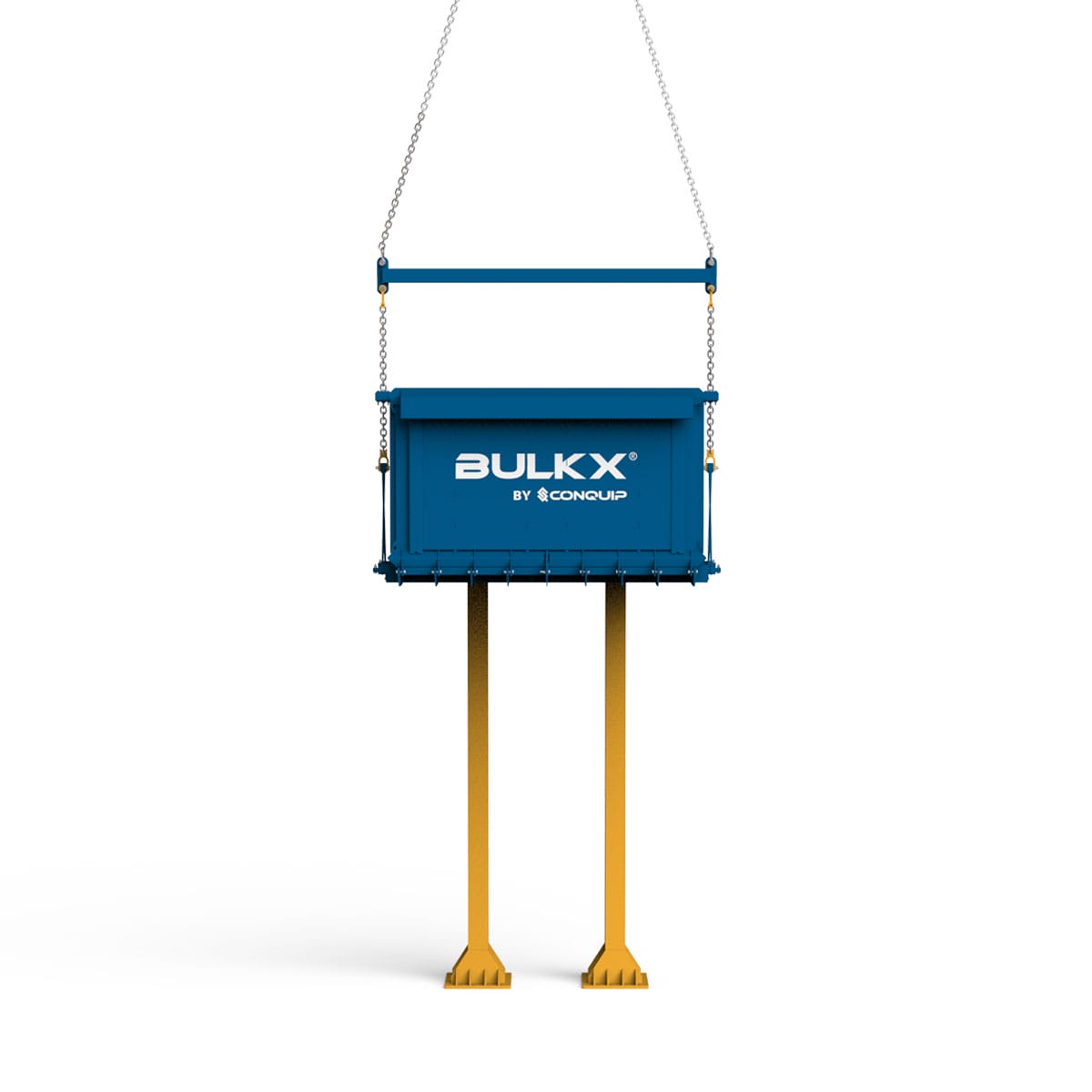

A heavy-duty gantry system for small or restricted sites, in up to 20m³ capacities.
