Free-Standing Gantry BulkX

BulkX is a quick, efficient muck away solution allowing excavation and transfer of the waste directly into spoil removal vehicles or stockpiles.

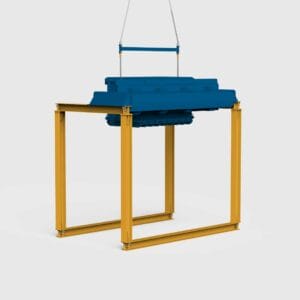

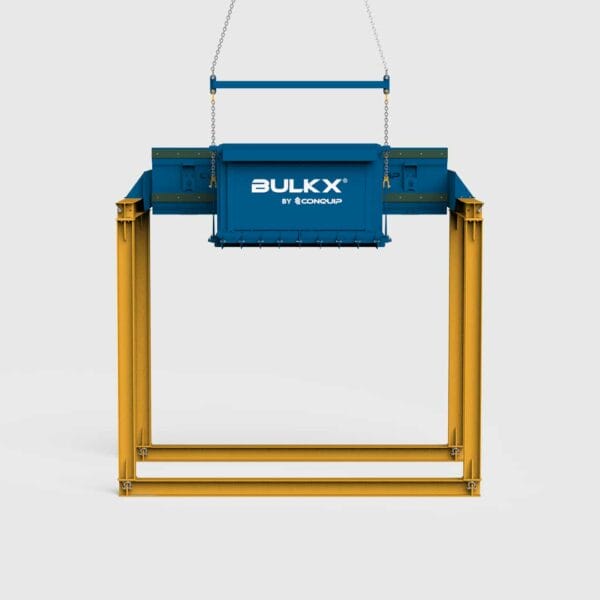

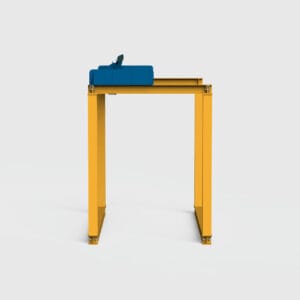

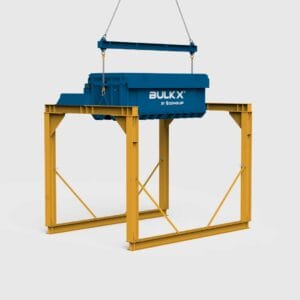

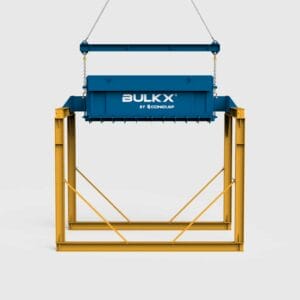

The Free-Standing Gantry configuration features a robust, crane-lift framework with guides to ease placement of the Winged BulkX skip, where it can discharge into the area below once landed.

This versatile solution allows spoil to be discharged into muck away trucks positioned under the frame, stored a muck bay, or simply just stockpiled, and can be relocated to other areas on-site, when required.

BulkX Skip Capacity

Hire/Purchase

Clear

SKU: N/A Category: Solutions

Description

FEATURES

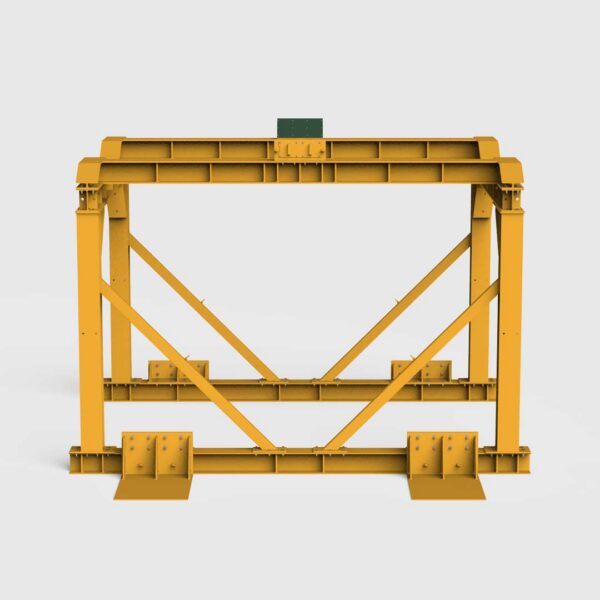

Robust gantry design to withstand regular use on-site.
Integrated bracket guides for quick and easy placement of the Winged BulkX Skip on the gantry.
Designated plates at the bottom of each gantry leg for placement of counterweights to stabilise the gantry.

BENEFITS

Ideal for site where the location of the discharge area needs to change throughout the project, or where anchoring down to the ground is not an option, such as where a one lane road closure is permitted during certain hours in an excavation programme – the Free-Standing Gantry can be moved at night to allow the road to open again.
Reduce costs and your excavation programme with less machinery required on-site and more efficient spoil handling.
Suitable for tunnelling, shaft sinking, demolition arisings removal and basement excavations.
Compatible with a variety of Winged BulkX Skip sizes – from 6000 litres to 20,000 litres see the specification tab for details.
Conquip can manufacture any required bespoke skip size and will collaborate with the site team to develop the ideal gantry solution for your project, or in some cases without a gantry, see our Smart-Release BulkX system.

Specification

The Free-Standing Gantry is compatible with a range of Winged BulkX skip sizes listed below. Bespoke skip sizes are also available upon request. Contact our team for more information.

Skip

PRODUCT CODE	BULKX SKIP TYPE	GANTRY TYPE	WLL* (kg)	CAPACITY (litres)
CA500-06000	Winged BulkX	Free-Standing	14,000	6000
CA500-08000	Winged BulkX	Free-Standing	20,000	8000
CA505-10000	Winged BulkX	Free-Standing	20,000	10,000
CA505-12000	Winged BulkX	Free-Standing	28,000	12,000
CA505-14000	Winged BulkX	Free-Standing	28,000	14,000
CA505-16000	Winged BulkX	Free-Standing	32,000	16,000
CA505-20000	Winged BulkX	Free-Standing	40,000	20,000

Gantry

PRODUCT CODE	LENGTH (mm)	WIDTH (mm)	HEIGHT (mm)	WEIGHT (kg)	WLL* (kg)	SKIP CAPACITY (litres)
MB100	6500	7635	4665	9804	40,000	6000-20,000

* Working Load Limit

NB: Our stock of gantries has evolved over the years and some dimensions may differ from the information in this table. Please contact us to discuss your requirements in detail.

CA500-06000, CA500-08000, CA500-10000, CA500-12000, CA500-14000, CA500-16000, CA500-20000, MB100

There are no optional extras for this product.

We're working on this so check back soon.

Want to shout about this product? Give us a review on TrustPilot.

Product gallery

free standing gantry bulkx mersey gateway

bulkx with gantry collaboration used at sydney metro project

free standing gantry bulkx curzon street

Skip

[table id=150 /]

Gantry

[table id=146 /] * Working Load Limit
NB: Our stock of gantries has evolved over the years and some dimensions may differ from the information in this table. Please contact us to discuss your requirements in detail.

CA500-06000, CA500-08000, CA500-10000, CA500-12000, CA500-14000, CA500-16000, CA500-20000, MB100

A gantry system ideal for discharging into trucks, stockpiles or muck bays on large infrastructure projects.
A bulk excavation skip that increases productivity and safety of construction projects.
Gantry system compatible with skip capacities from 6000-20,000 litres.
