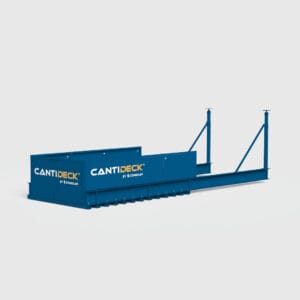

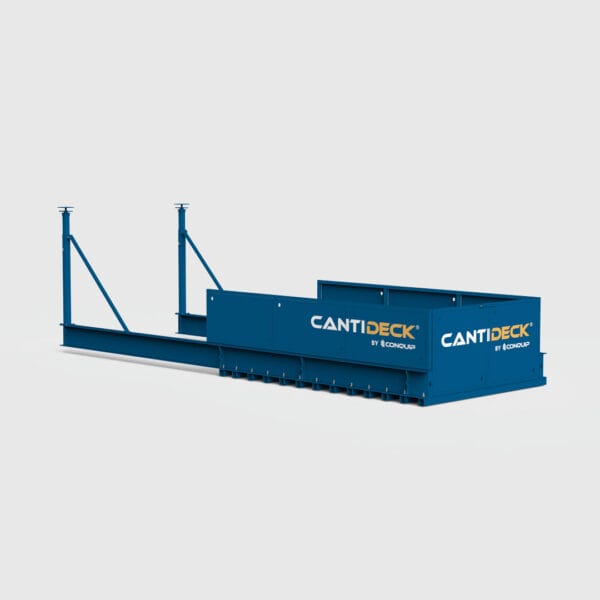

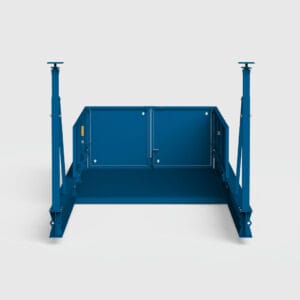

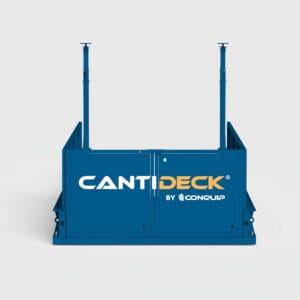

Fixed Flush CantiDeck

The Conquip Fixed Flush CantiDeck is a crane loading platform designed for environments with limited headroom, where working height and maximum clearance are critical.

Ideal for lifting prefabricated modular units, formwork tables, large façade panels, and awkward loads, this platform ensures efficient, safe material handling on high-rise projects.

Its unique design features a deck suspended from the base of the main load-bearing beam, providing a completely flush transition from the building floor to the platform — eliminating trip hazards and improving handling of large components.

Click here to learn more about the full CantiDeck range.

Width (External)

Hire/Purchase

Clear

SKU: N/A Category: CantiDeck

Features & Benefits
Specification

Description

Features

Large loading area suitable for wide a variety of materials, pallets or awkward loads.
Large working load limit capacity.
Gated access.
Unique single prop design reduces the weight of the deck and the reaction loadings to the structure.

Benefits

Quick and simple to install and relocate.
Design provides flush transition from the loading bay of the deck to the building level, providing maximum clearance and allowing easy load and unload with pallet trucks or trolleys.
Unique single prop design reduces the weight of the deck and the reaction loadings to the structure. This means it transfers the prop loads further into the building allowing for higher WLL to be approved on the decks.
Quick and simple to install and relocate with fast fold down sides and doors and certified lifting eyes for lifting chain connection.
Variety of sizes, with bespoke solutions available.
All installation and relocation training provided by our training team.

Specification

PRODUCT CODE	LENGTH (Outboard)	LENGTH (Total)	WIDTH (External)	WIDTH (Internal)	WEIGHT	WLL*
FF20	4000mm	8000mm	2000mm	1550mm	1850kg	5000kg UDL
FF24	4000mm	8000mm	2400mm	1950mm	2000kg	5000kg UDL
FF27	4000mm	8000mm	2700mm	2250mm	2000kg	5000kg UDL
FF35	4000mm	8000mm	3500mm	3050mm	2600kg	5000kg UDL
FF45	4000mm	8000mm	4500mm	4050mm	2800kg	5000kg UDL

Download Loading Data Sheets

PRODUCT CODE	WLL*
FF20	1000kg, 2000kg, 3000kg, 5000kg
FF24	1000kg, 2000kg, 3000kg, 4000kg, 5000kg
FF27	500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg
FF35	500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg
FF45	500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg

*Working Load Limit | UDL = Uniformly Distributed Load
