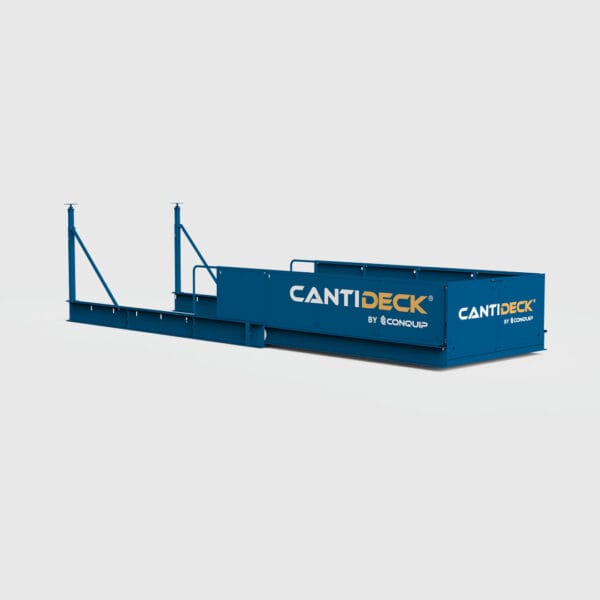

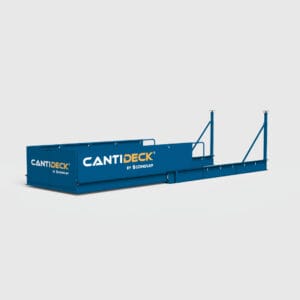

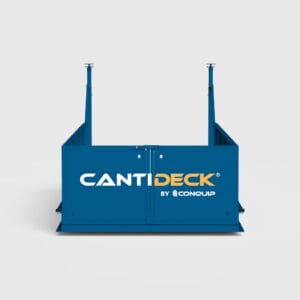

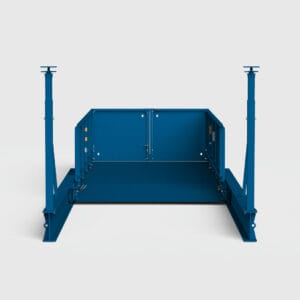

Super Roller CantiDeck
A retractable loading platform used for moving equipment and materials efficiently in and out of structures during construction.
The Conquip Super Roller CantiDeck crane loading platform can be fully retracted within the frame and building edge so that it is flush with the edge of the structure when not in use.
Multiple platforms can be installed in a stacked configuration, meaning there is no downtime relocating platforms between floors, increasing working time and crane efficiency. It also allows a reduction of dynamic loadings in high winds.
Specification
| PRODUCT CODE | WIDTH (External) | WIDTH (Internal) | LENGTH (Outboard) | LENGTH (Inboard) | LENGTH (Total) | WEIGHT | WLL* |
| SR22 | 2200mm | 1690mm | 3800mm | 5800mm | 9600mm | 2650kg | 5000kg (8000kg in certain configurations) |
| SR29 | 2900mm | 2390mm | 3800mm | 5800mm | 9600mm | 3000kg | 5000kg (6000kg in certain configurations) |
| SR35 | 3500mm | 2990mm | 3800mm | 5800mm | 9600mm | 3400kg | 5000kg (6000kg in certain configurations) |
Download Loading Data Sheets
| PRODUCT CODE | WLL* |
| SR22 | 500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg |
| SR29 | 500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg |
| SR35 | 500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 3500kg, 4000kg, 4500kg, 5000kg |
