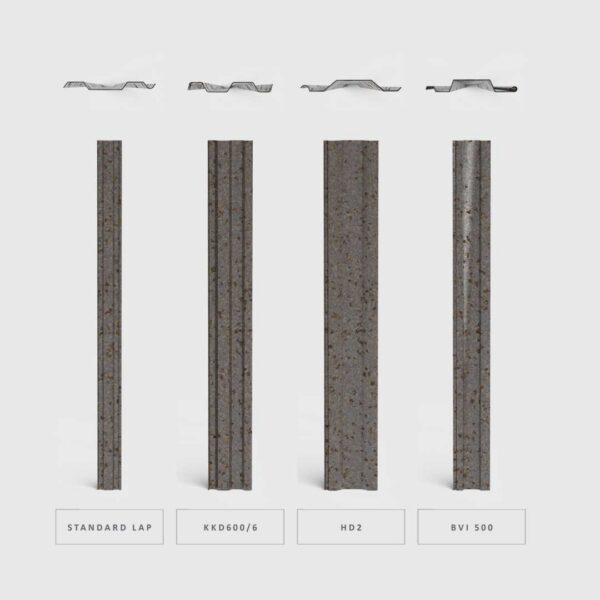

Trench-Sheets-All-Types-Annotated
Trench-Sheets-All-Types_Front
Trench-Sheets-All-Types_Top
Trench-Sheets-All-Types_LF
Trench-Sheets-All-Types_RF
Trench-Sheets-Standard-Lap_Front
Trench-Sheets-Standard-Lap_Top
Trench-Sheets-KKD-600_Front
Trench-Sheets-KKD-600_Top
Trench-Sheets-HD2_Front
Trench-Sheets-HD2_Top
Trench-Sheets-BVI-500_Front
Trench-Sheets-BVI-500_Top
Trench-Sheets-All-Types-Annotated
Trench-Sheets-All-Types_Front
Trench-Sheets-All-Types_Top
Trench-Sheets-All-Types_LF
Trench-Sheets-All-Types_RF
Trench-Sheets-Standard-Lap_Front
Trench-Sheets-Standard-Lap_Top
Trench-Sheets-KKD-600_Front
Trench-Sheets-KKD-600_Top
Trench-Sheets-HD2_Front
Trench-Sheets-HD2_Top
Trench-Sheets-BVI-500_Front
Trench-Sheets-BVI-500_Top

Trench Sheets

Conquip Trench Sheets are lightweight, overlapping trench sheeting profiles, ensuring a high strength to weight ratio, providing a safe environment for personnel working in trenches.

Typical applications include small trenches and excavations, including basements, sewerage, water, gas or other services. They are particularly useful for when services cross.

If you are digging larger trenches where the ground is stable or self-supporting, our Drag Boxes would be a more viable option.

SKU: N/A Category:

Description

FEATURES

  • Robust design.
  • Overlapping profiles.

BENEFITS

  • Available in a variety of lengths in Standard Lap, KKD600/6, HD2 and BVI500 variations to suit specific site requirements.
  • Provides a safe environment for workers working in the excavation.
  • Quick and easy to use and set up using a compatible Trench Sheets Driving Cap.
  • Can be easily lifted and extracted using Conquip’s Trench Sheet Extractor.
