Drag Box

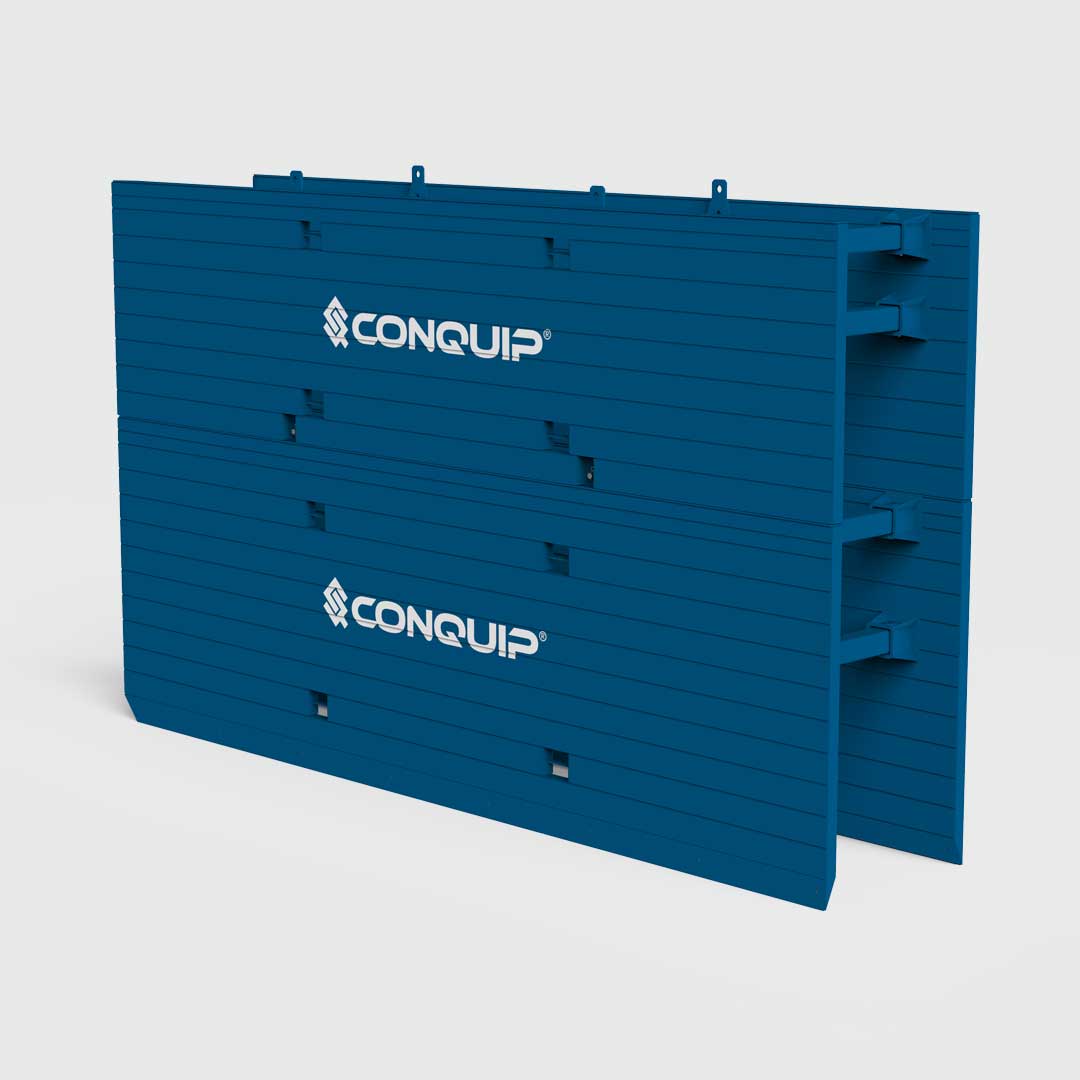

The Conquip Drag Box is a robust, edge-supported trench lining system designed to provide reliable excavation support during utility and pipeline installation. Simple to assemble and built for durability, this heavy-duty system can be dragged along the trench by an excavator, allowing operators to lay pipelines quickly and efficiently without the need to reposition multiple trench boxes.

Looking for a solution better suited to smaller trenches or shallow excavations? Explore our Trench Sheets for a lightweight alternative.

Strut Type

Trench Depth

Working Width

Hire/Purchase

Clear

SKU: N/A Category: Excavation Support

Features & Benefits
Specification

Description

FEATURES

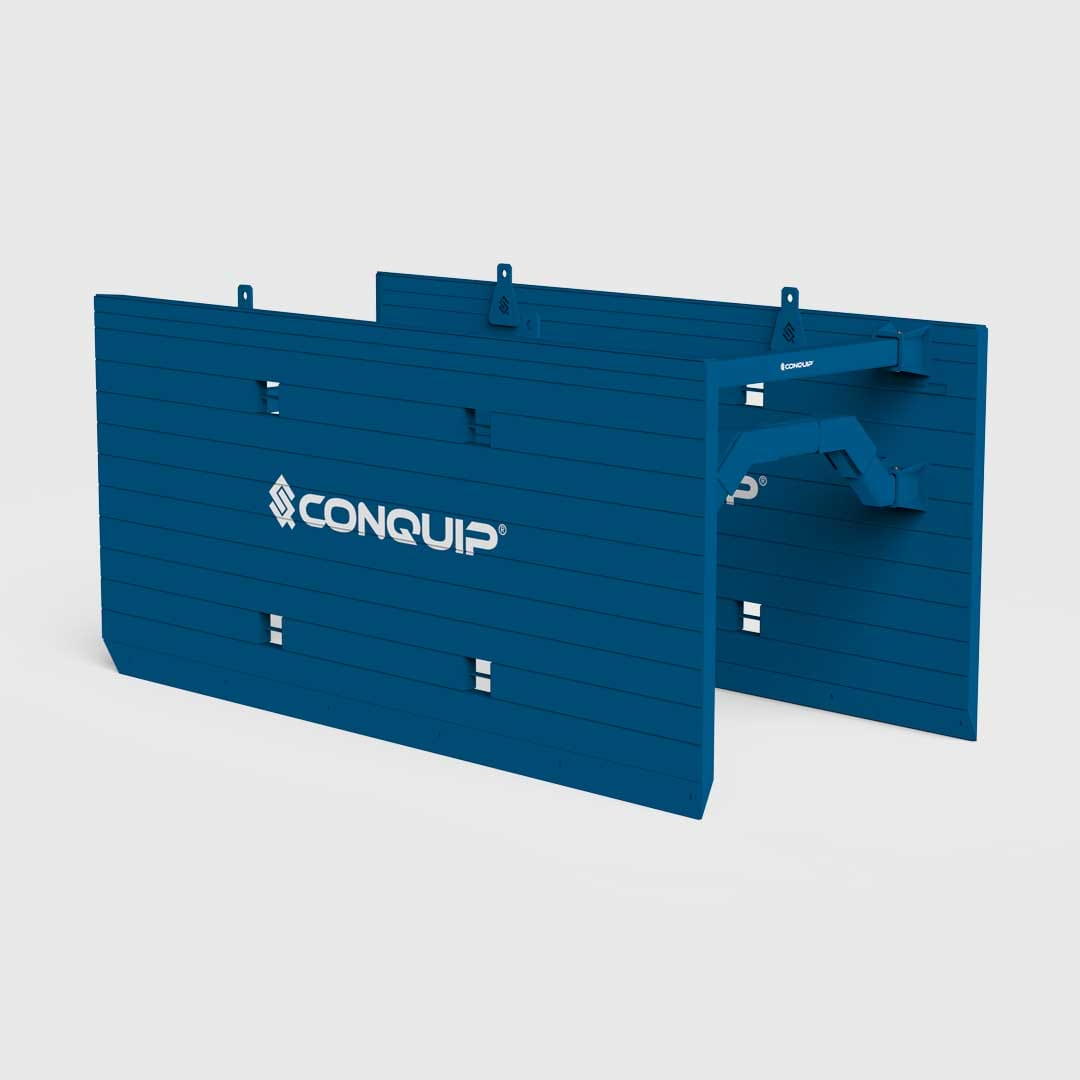

Convex panel edges cut through spoil, aiding dragging motion.

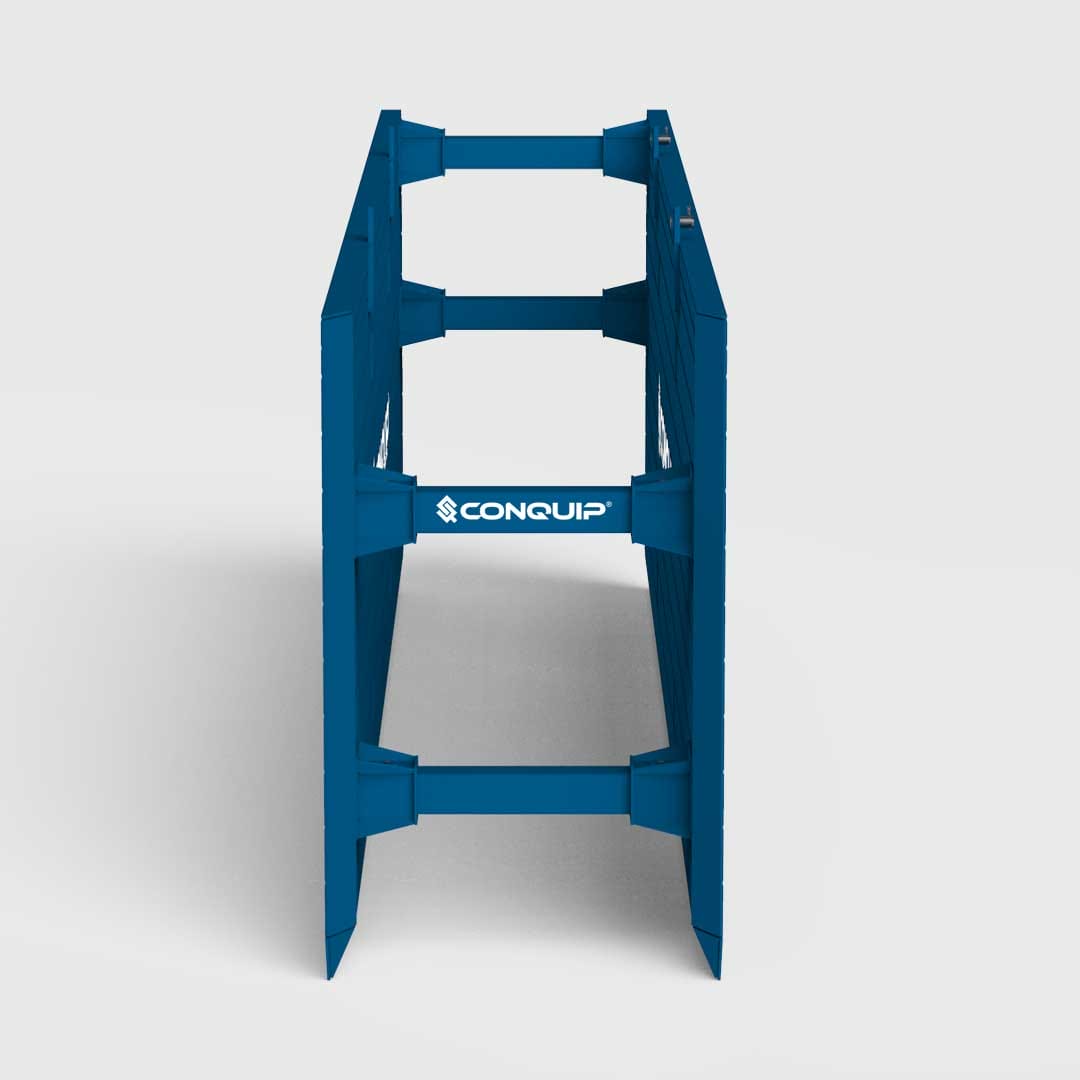

Fixed Struts provide maximum durability to withstand regular usage.

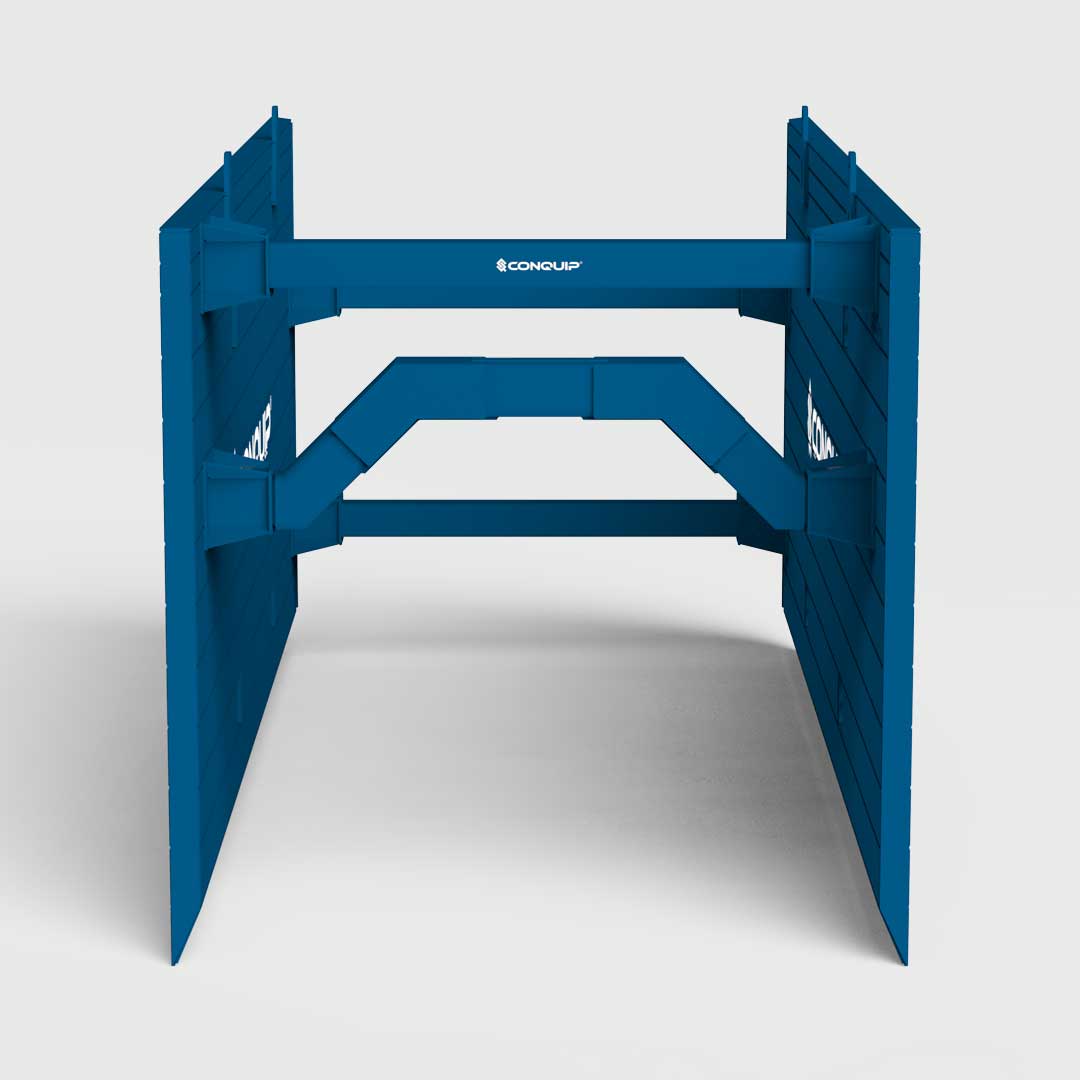

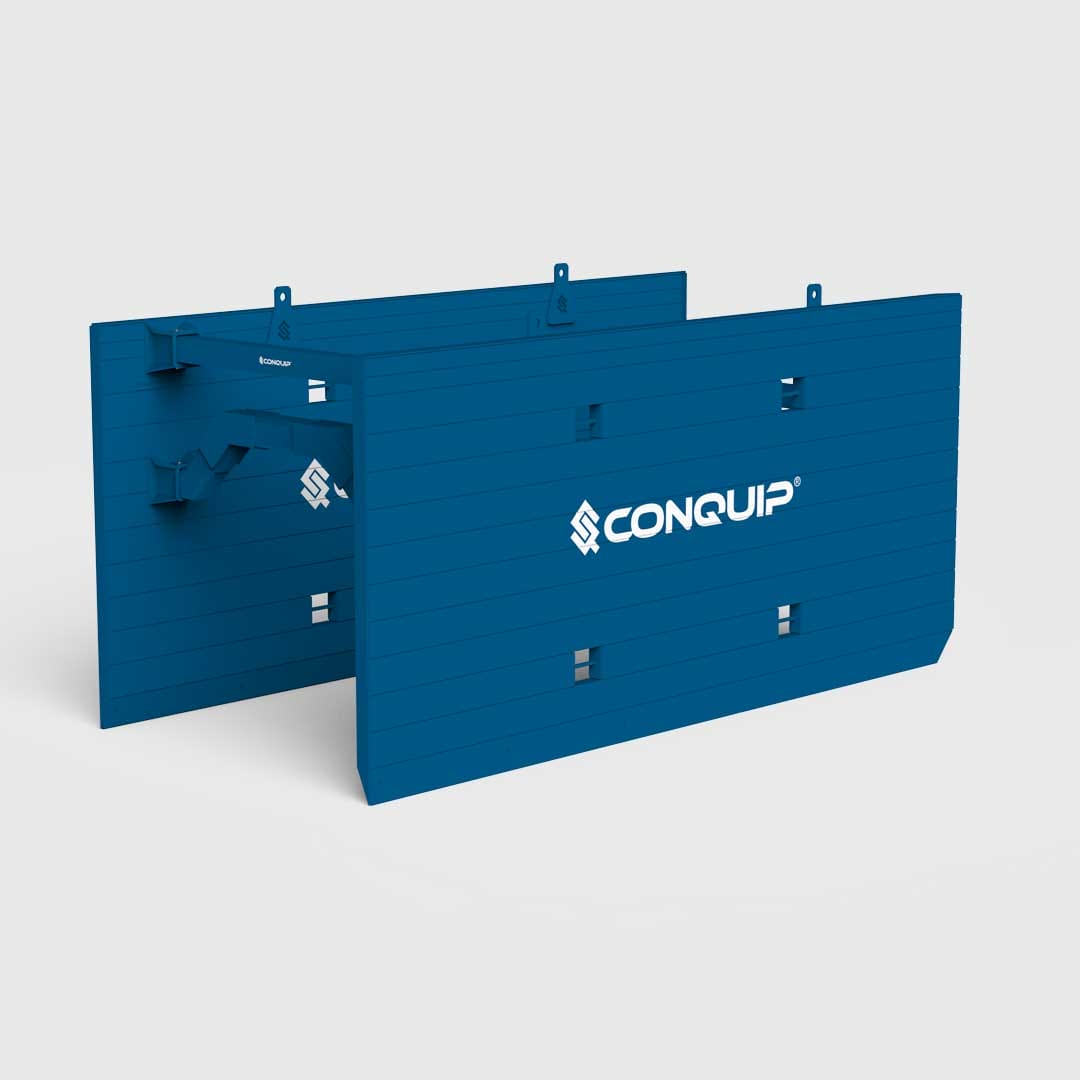

Hog Back Strut available where extra clearance is required.
Robust design.

BENEFITS

Suitable for trench depths of 4.4 metres and trench widths of up to 3 metres.
Hog Back Strut option available for applications where additional clearance is required.
5-metre and 7-metre sizes available for varying site requirements.
Manufactured from high-quality steel for greater longevity, reducing repair or replacement costs.
Simple to assemble with step-by-step user guide and animation for assembly, installation, and extraction.
Available with a full range of suitable lifting and extraction chains and trench access accessories – see our full range here.

Specification

CODE	BOX TYPE	STRUT TYPE	LENGTH	WORKING WIDTH		HEIGHT	CBS¹	WEIGHT²		SWL³
				MIN	MAX			MIN	MAX

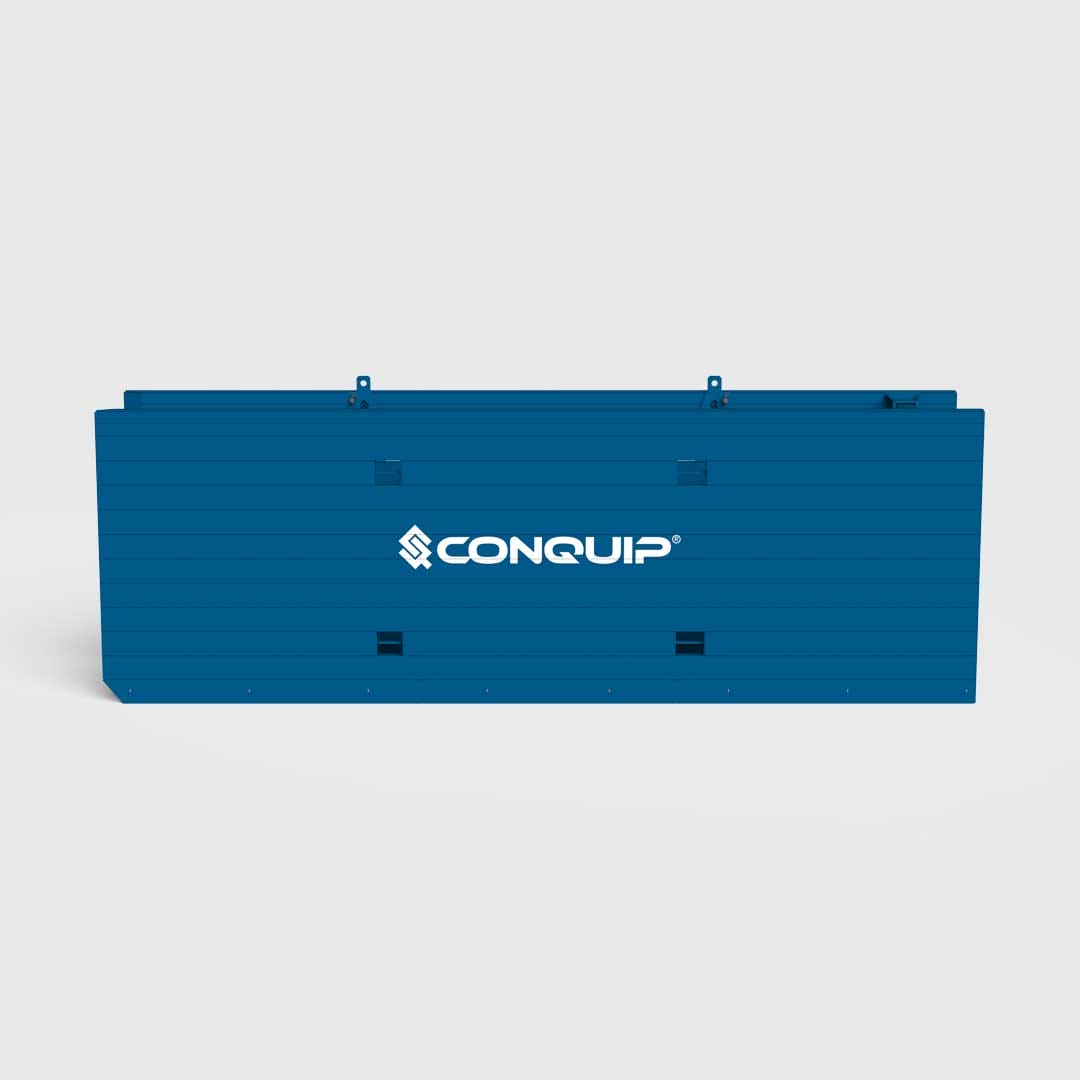

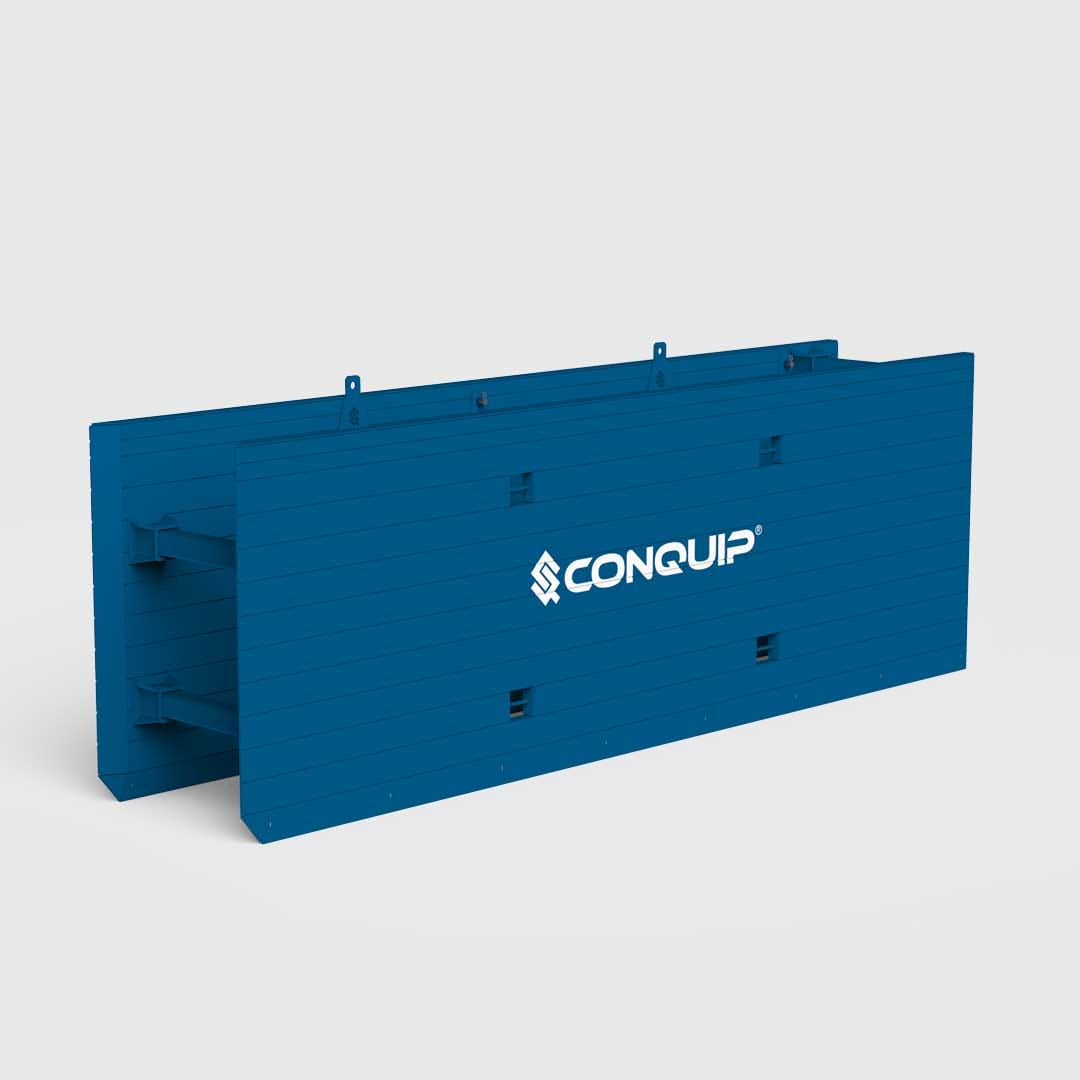

TL100-00002	Base	Fixed	5110mm	600mm	3000mm	2410mm	1400mm	3600kg	4015kg	30kPa

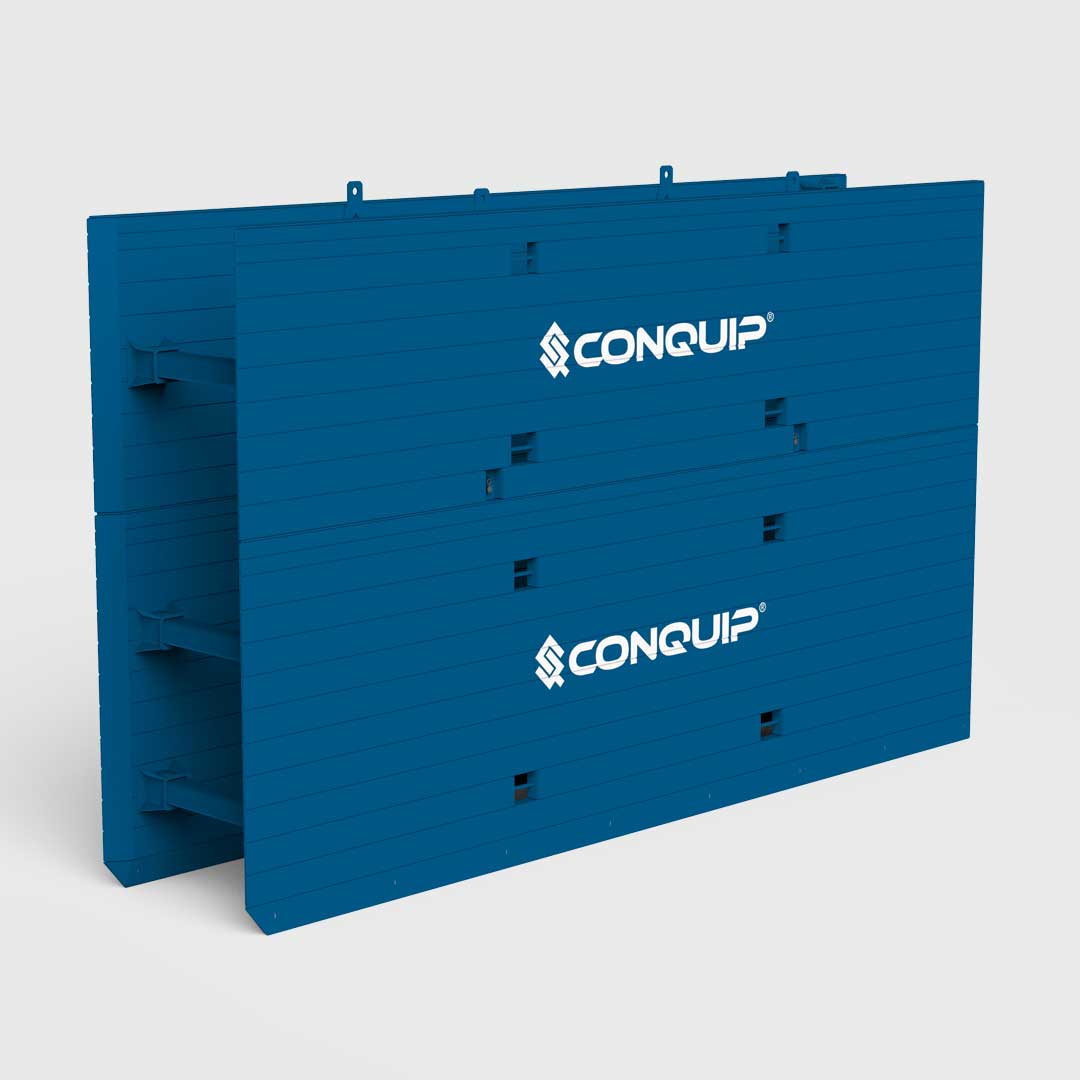

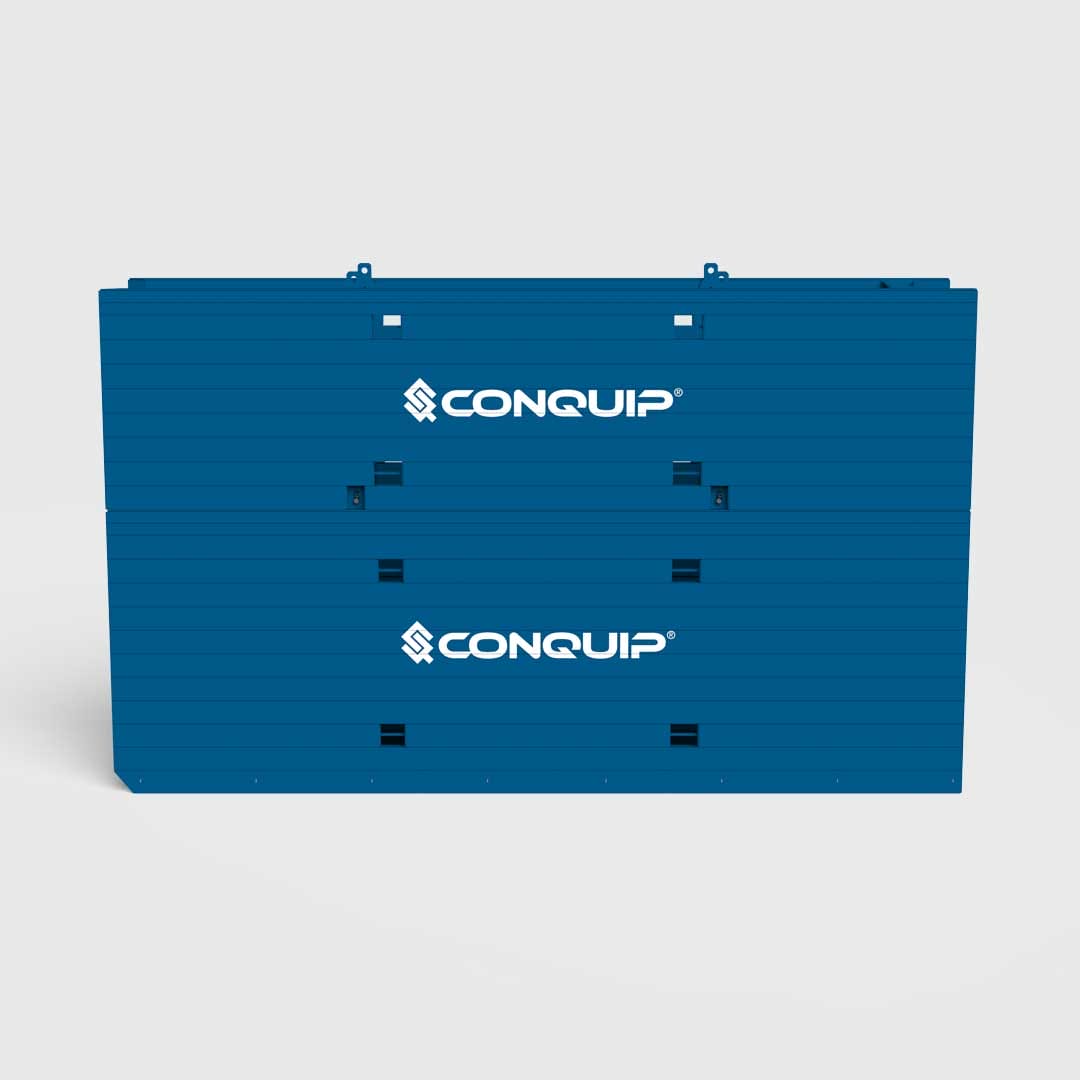

TL100-00003	Extension	Fixed	5110mm	600mm	3000mm	1810mm	1400mm	2475kg	2785kg	30kPa
TL100-00010	Base	Fixed	7110mm	600mm	3000mm	2410mm	1400mm	5120kg	5535kg	20kPa
TL100-00011	Extension	Fixed	7110mm	600mm	3000mm	1810mm	1400mm	3845kg	4285kg	20kPa
TL100-00002	Base	Hog Back	5110mm	2190mm	2190mm	2410mm	1750mm	3600kg	4015kg	30kPa
TL100-00003	Extension	Hog Back	5110mm	2190mm	2190mm	1810mm	1750mm	2475kg	2785kg	30kPa
TL100-00010	Base	Hog Back	7110mm	2190mm	2190mm	2410mm	1750mm	5120kg	5535kg	20kPa
TL100-00011	Extension	Hog Back	7110mm	2190mm	2190mm	1810mm	1750mm	3845kg	4285kg	20kPa
