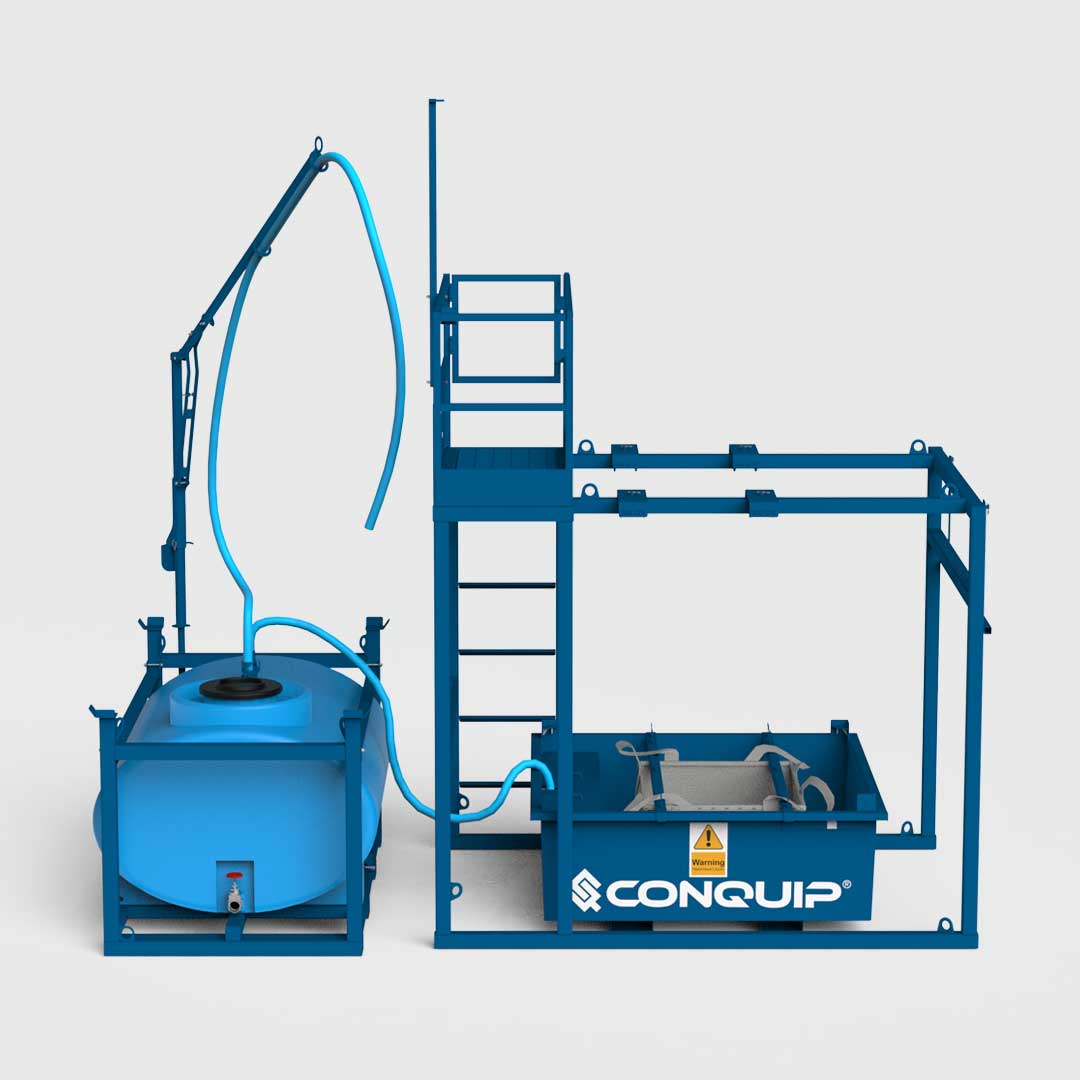

concrete washout system

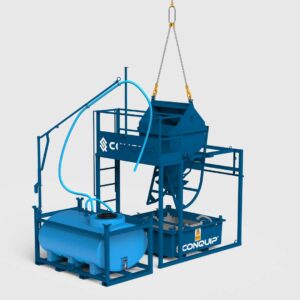

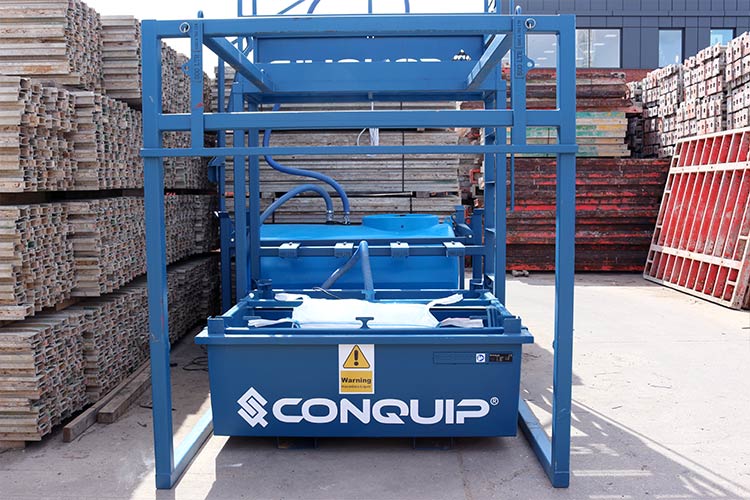

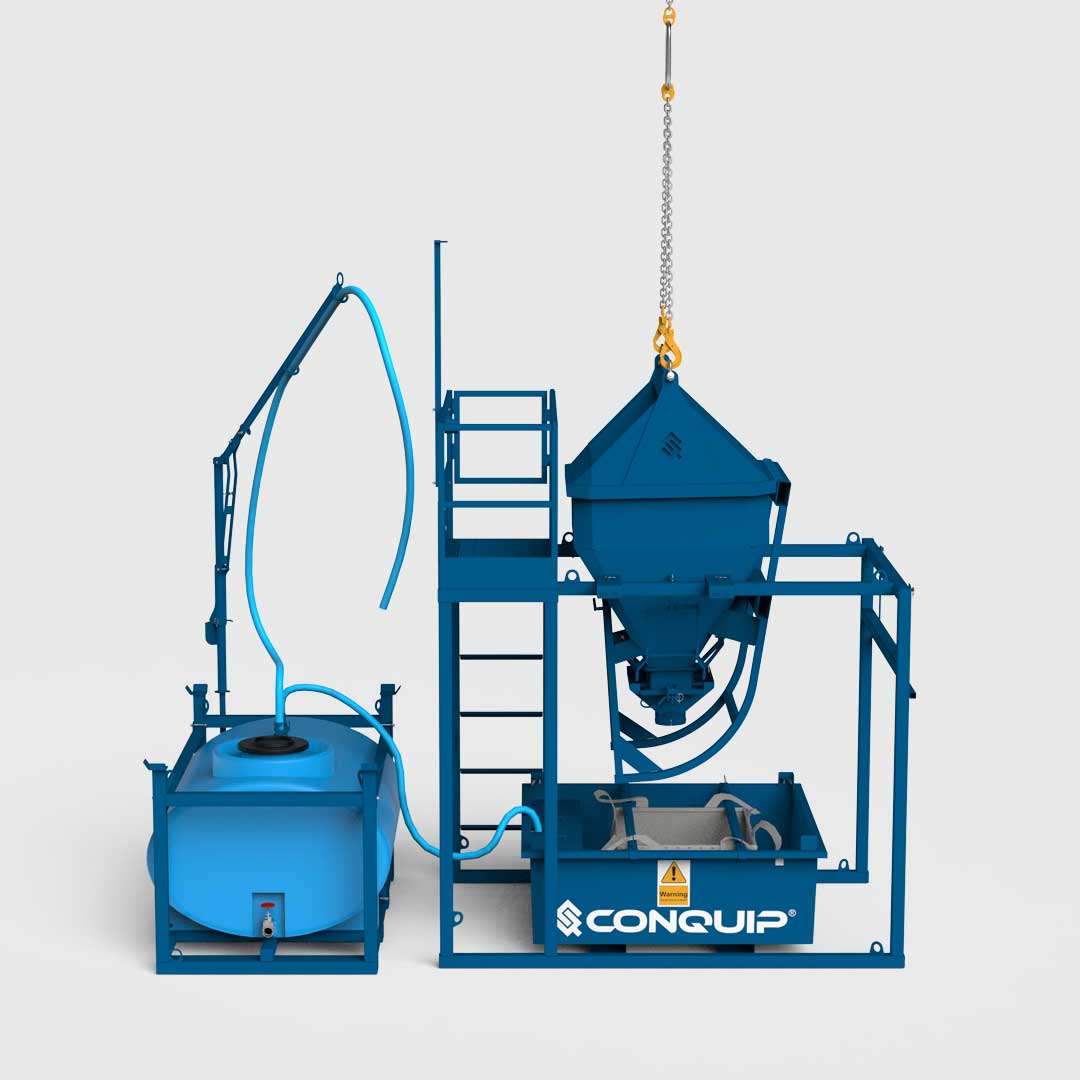

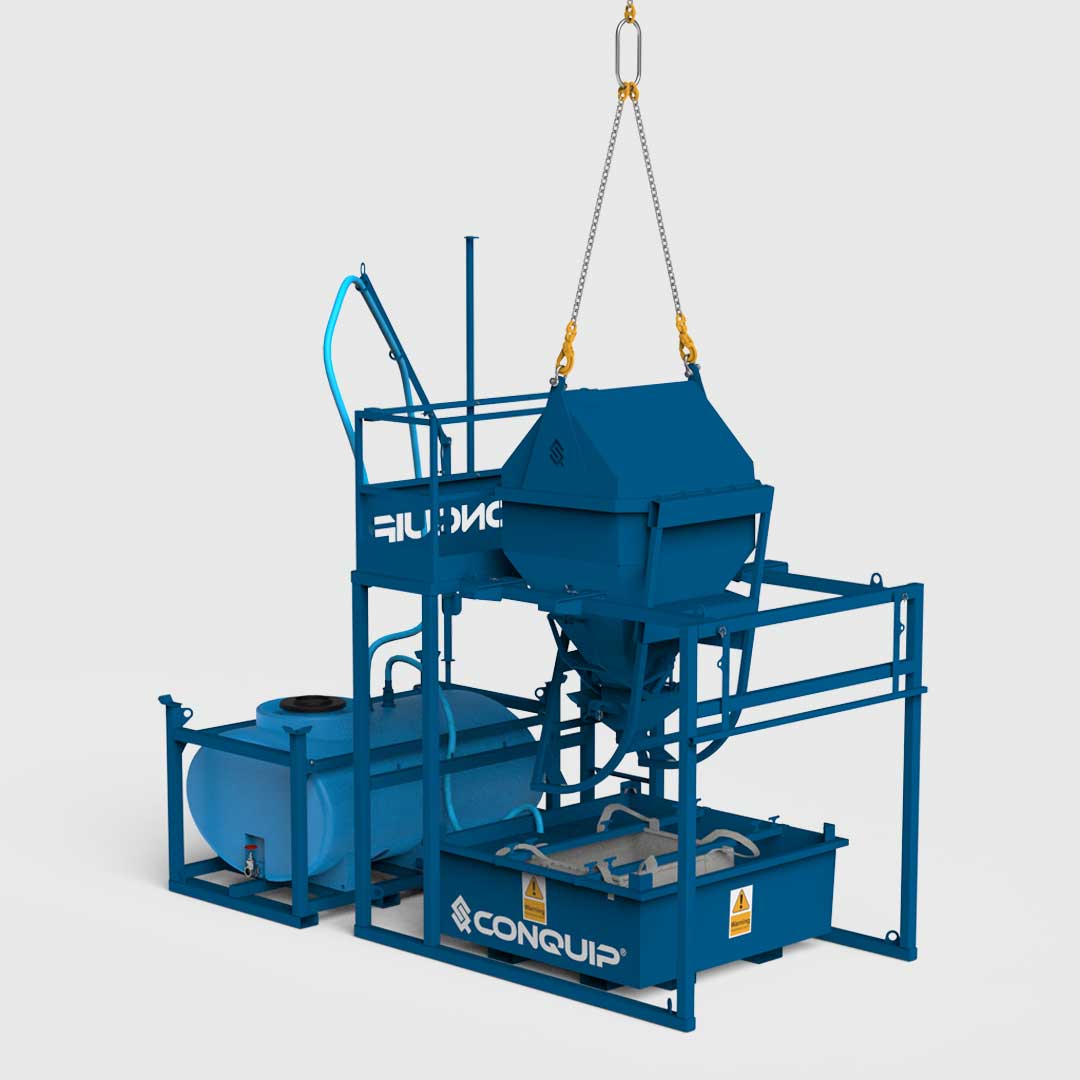

concrete washout system with concrete column skip front view

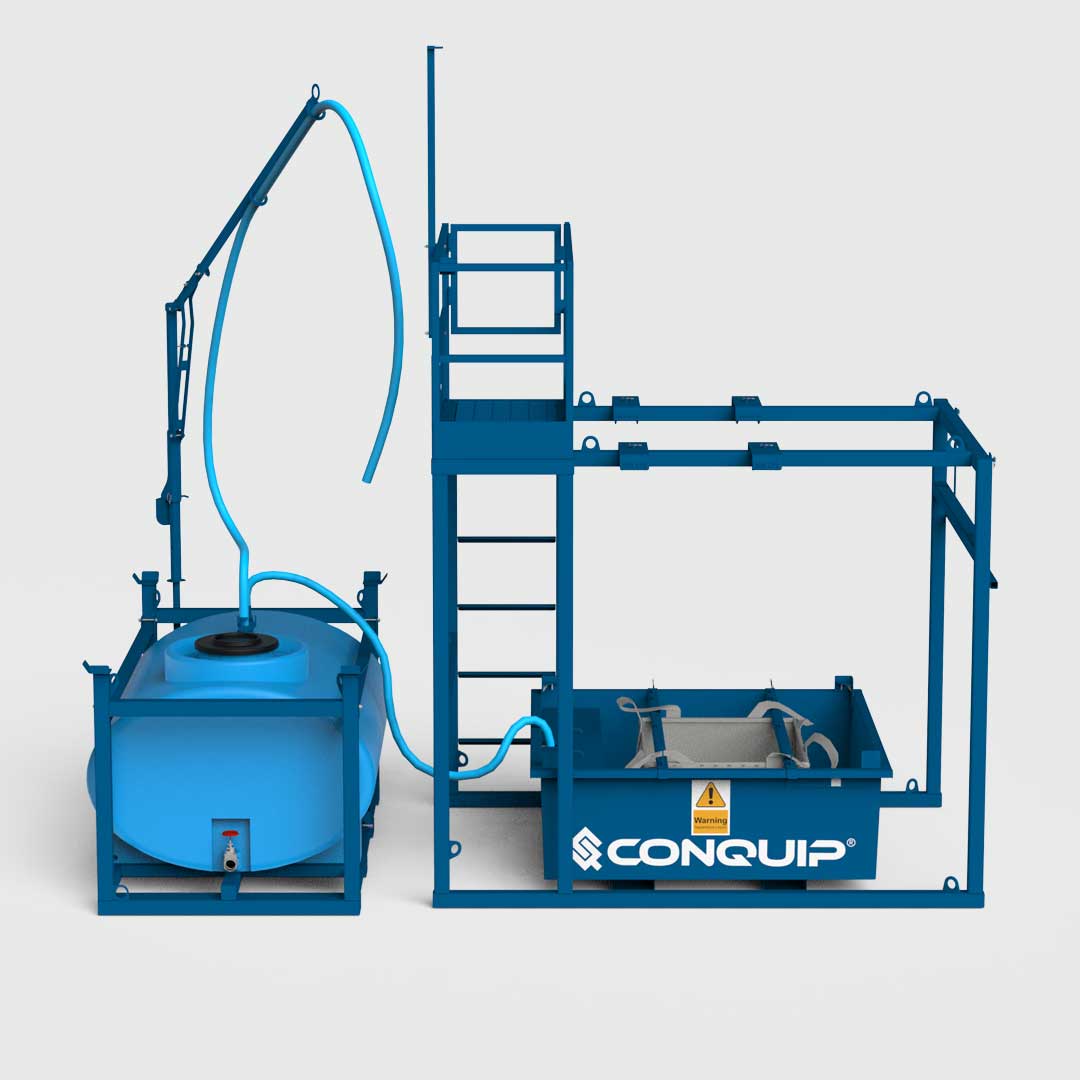

concrete washout system
concrete washout system with concrete column skip side view

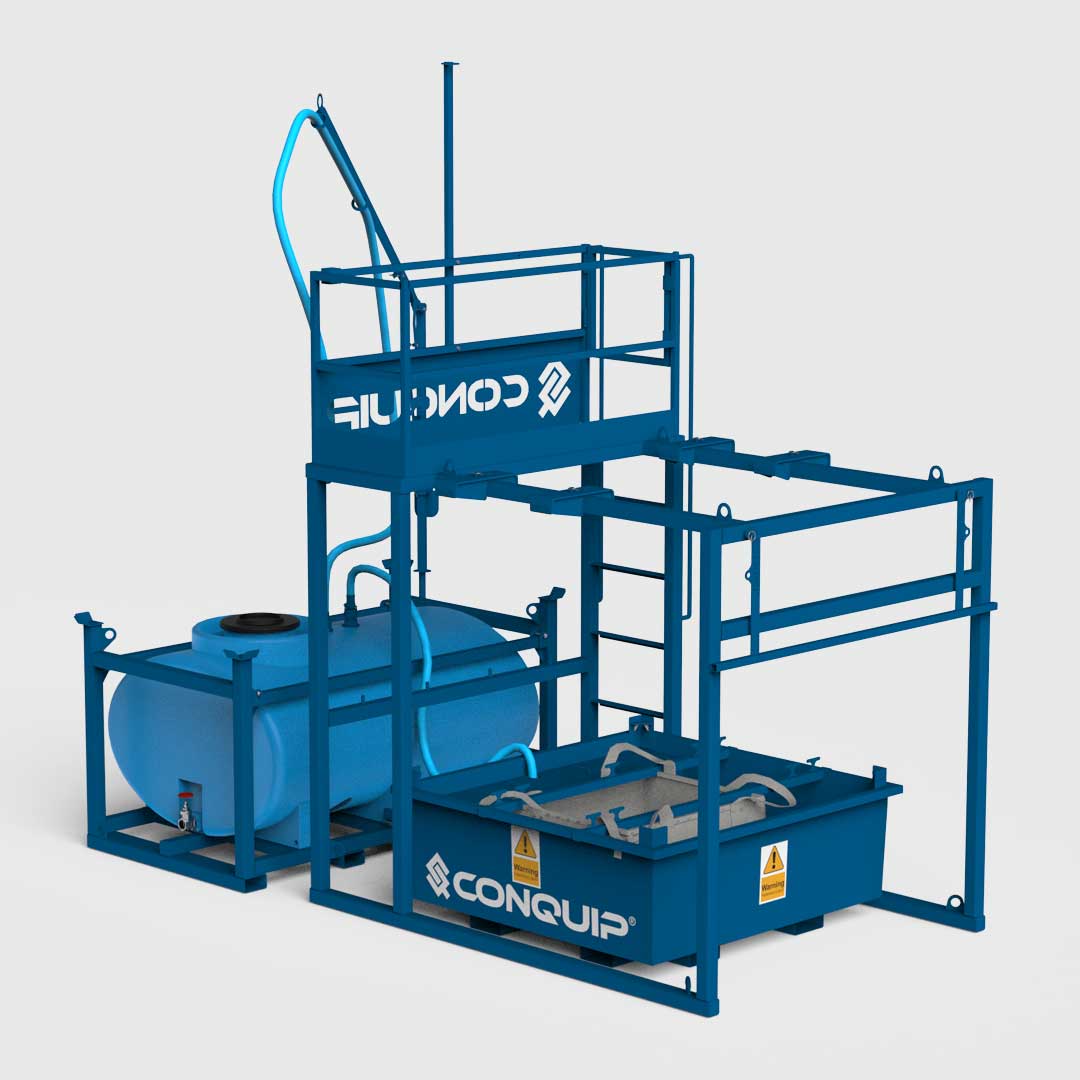

concrete washout system

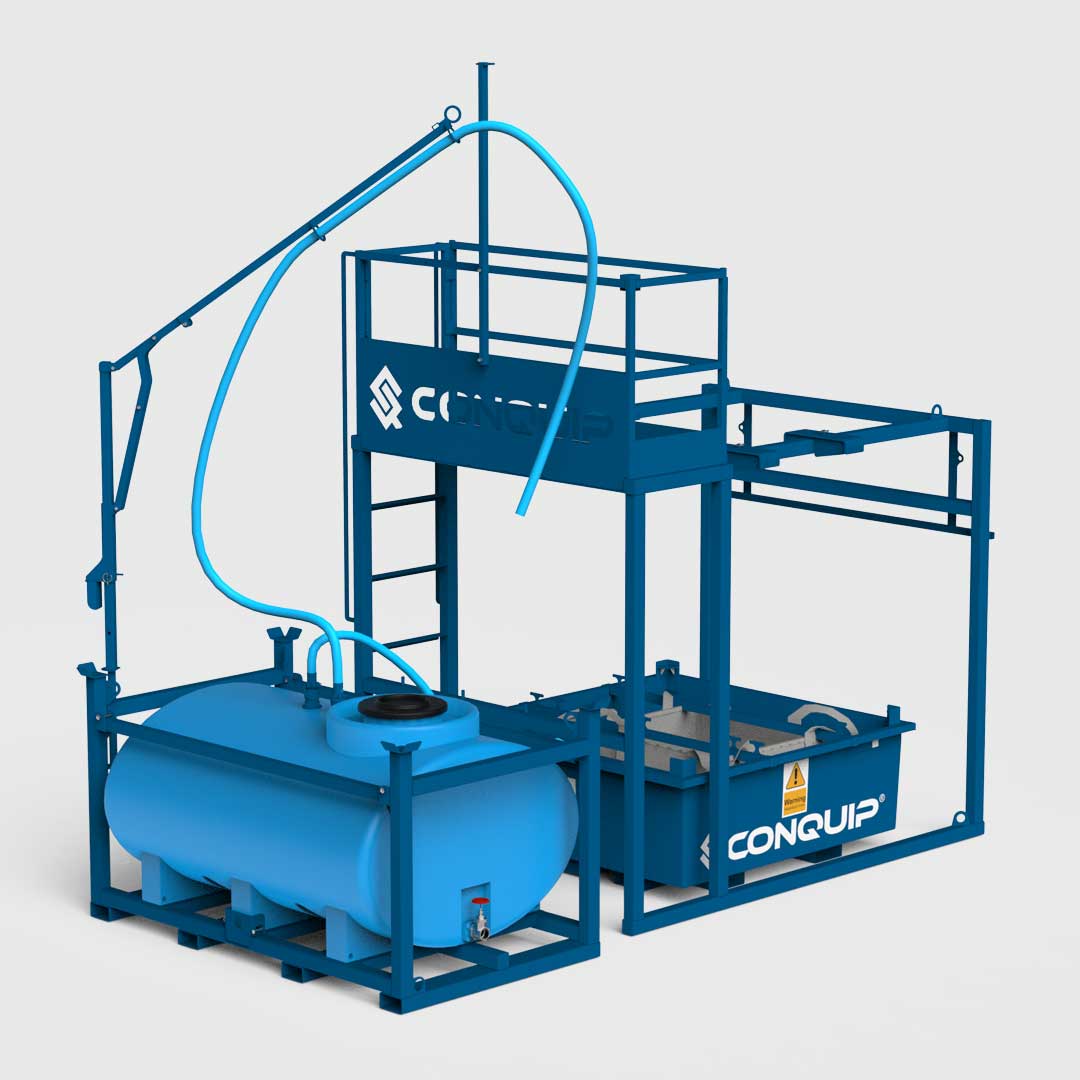

concrete washout system

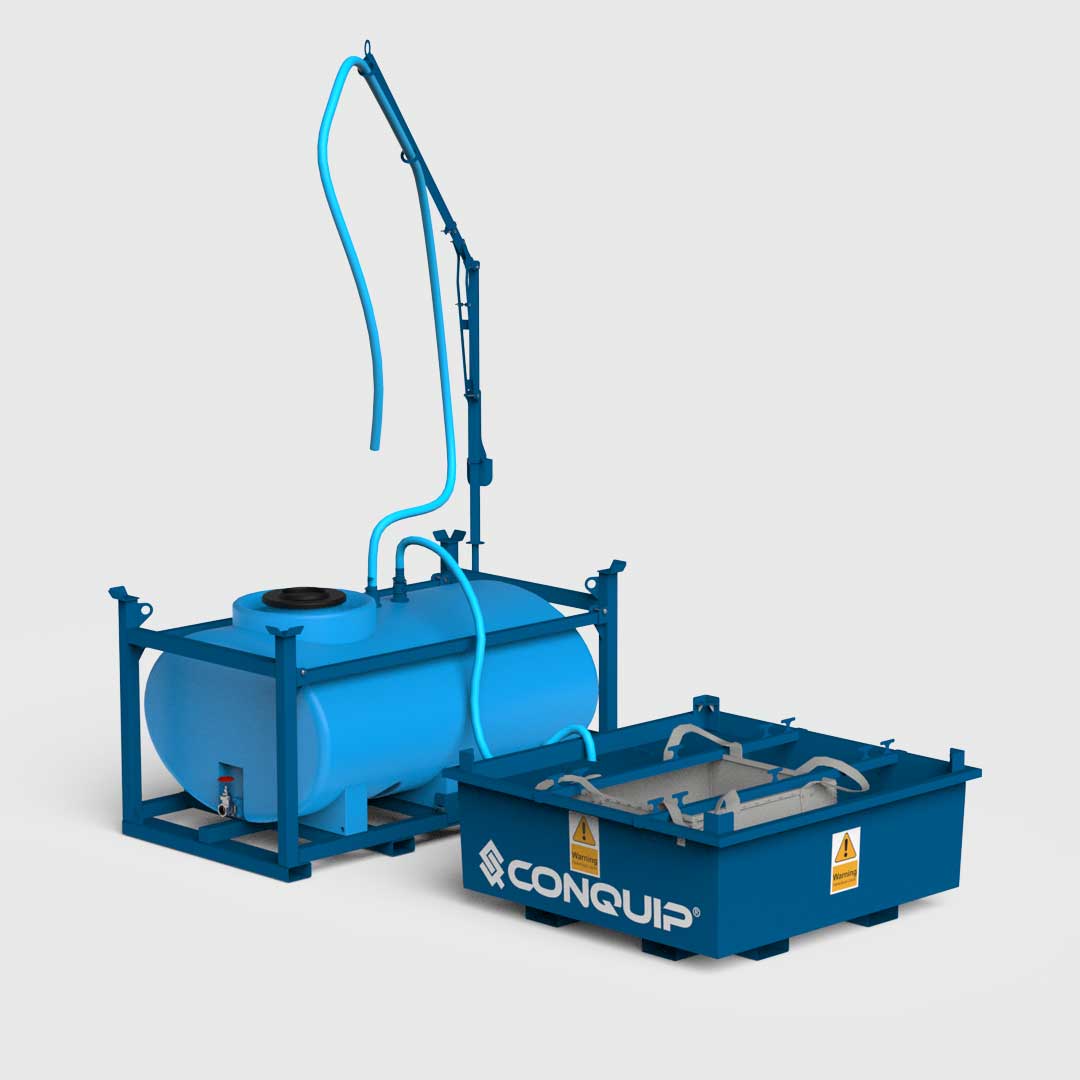

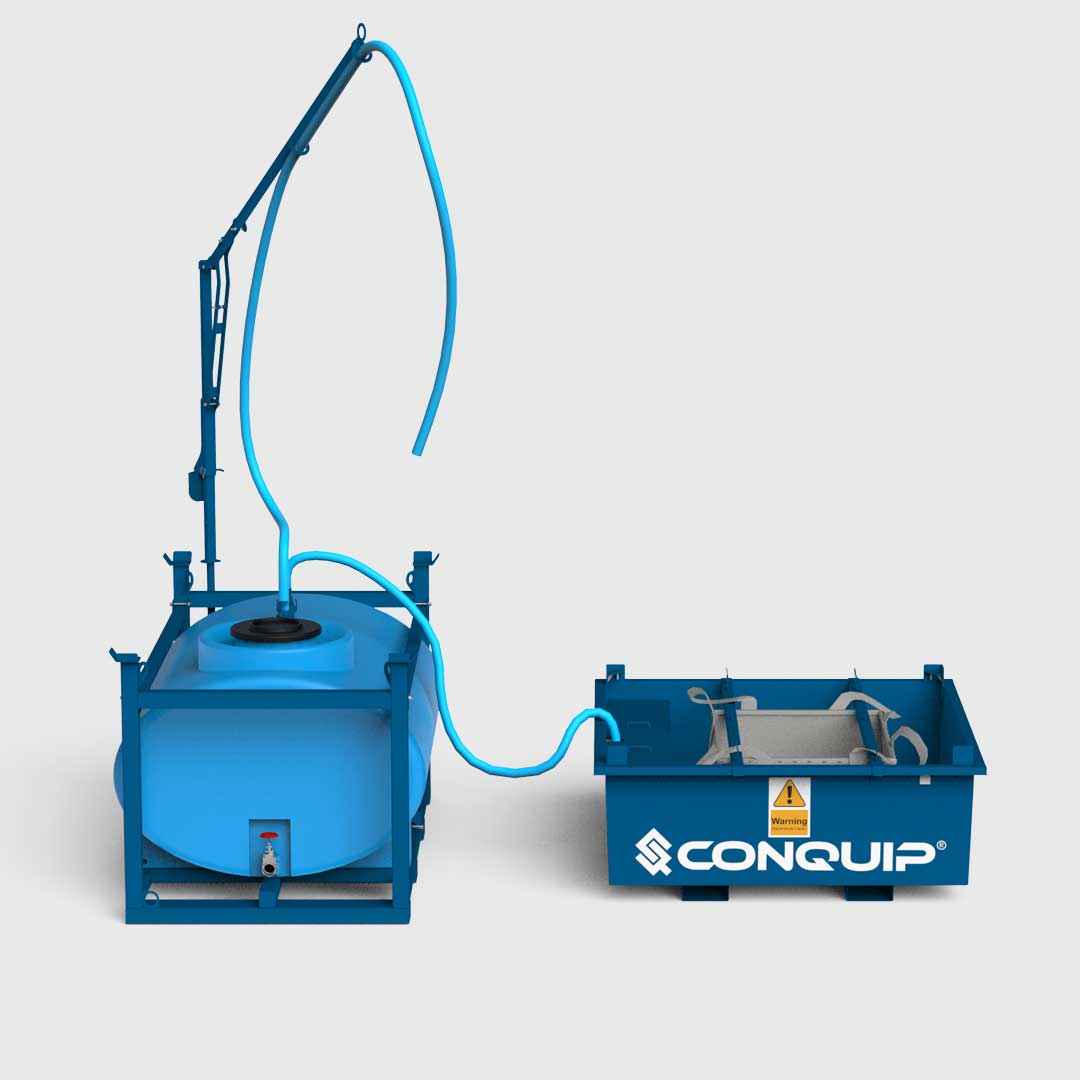

concrete washout system without frame
concrete washout system
concrete washout system with concrete column skip front view
concrete washout system
concrete washout system with concrete column skip side view
concrete washout system
concrete washout system
concrete washout system without frame

Concrete Washout System

An innovative approach to concrete water management on construction sites, the Conquip Concrete Washout System is a complete, best practice solution for concrete washout. It enables sites to reuse the concrete wastewater from washing concrete trucks, pumps and skips. Not only will it improve your environmental footprint, the system is easy to use, safe and cost effective.

Quantity
SKU: N/A Category: Tags: , , , , , , , , , , , ,

Description

Features

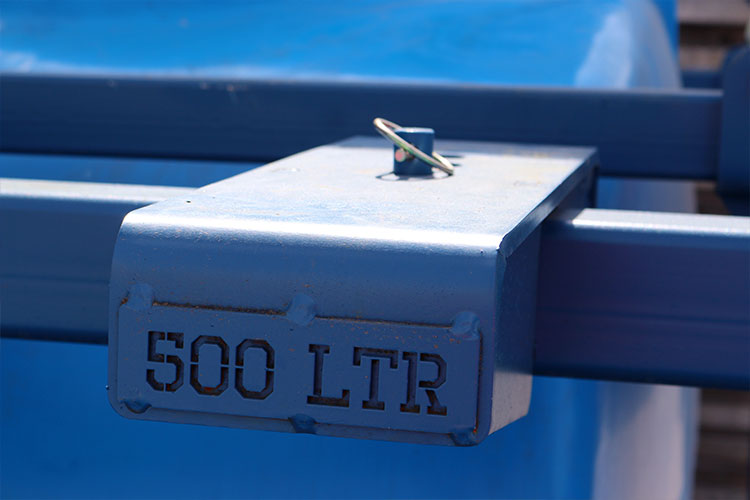

  • Resting pads and restraint bar allow for varying sizes of skips.
  • Delivery hose arm provides better control of the hose when washing equipment.

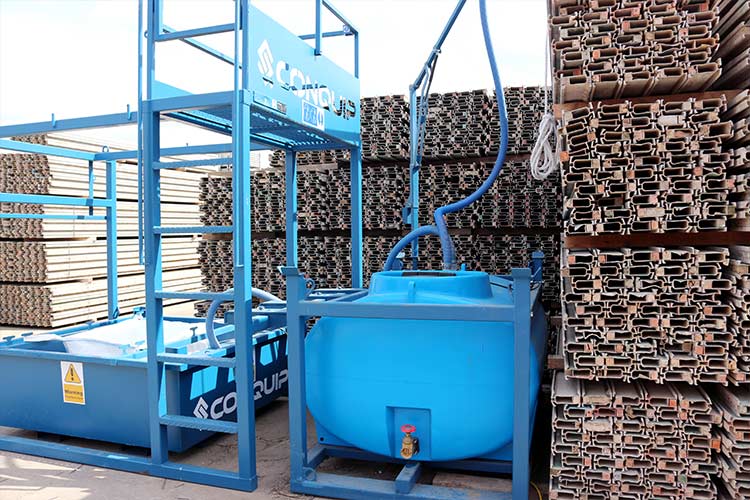

  • Large 2000-litre water storage tank.
  • Large Skip Washing Platform compatible with the 500-3000-litre Conquip Concrete Skips.
  • Small Skip Washing Platform compatible with 500-2000-litre Conquip Concrete Skips.

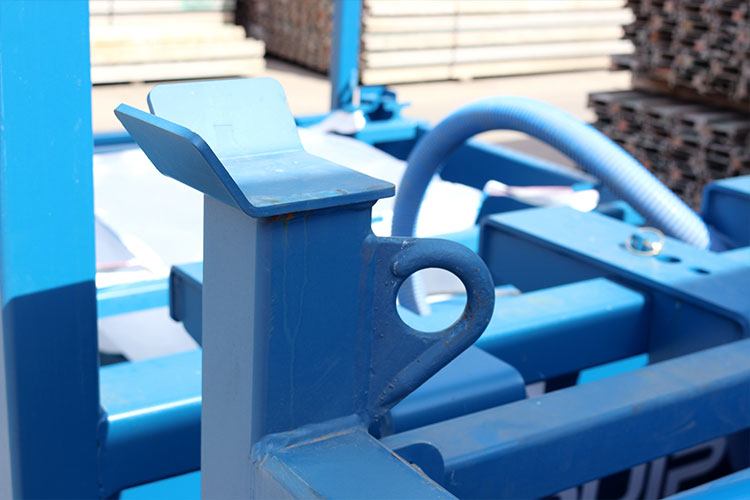

  • Harness attachment point to keep operative on the work platform safe.

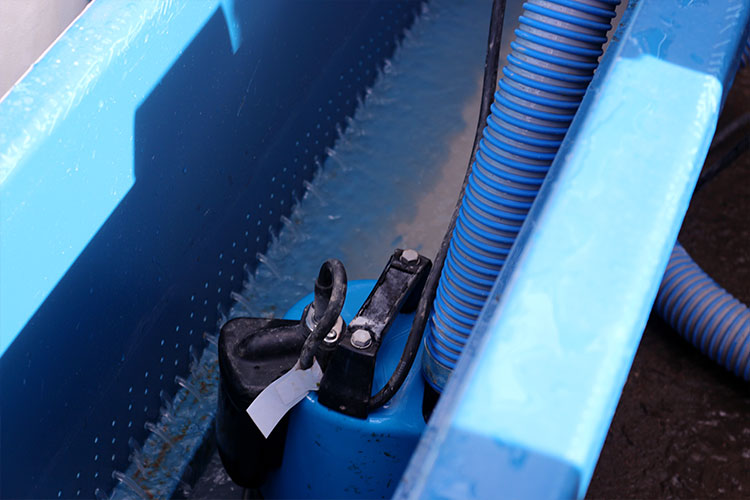

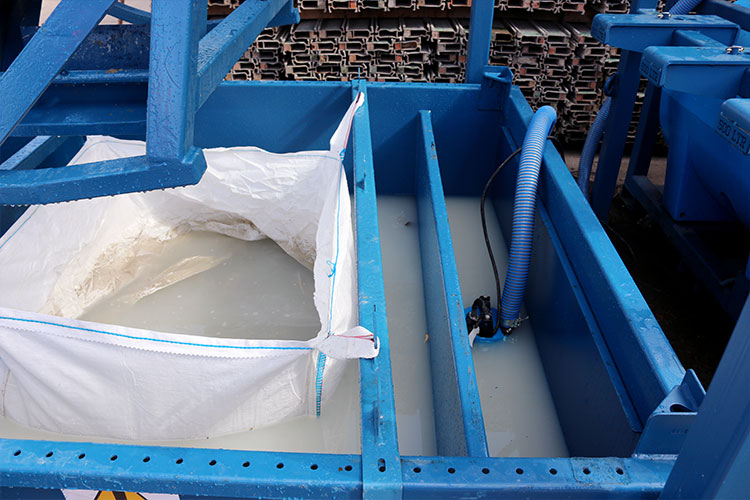

  • Weir system filters out concrete particles and sediment before it is transferred back into the water storage tank.
  • Compact, space saving system.

Benefits

  • Complete environmentally-friendly methodology for concrete washout, enabling sites to reuse concrete wastewater.
  • Prevents environmental contamination from high-alkaline concrete waste.
  • Versatile system that can be used for different applications, including washing concrete skips, concrete pumps and concrete trucks.
  • Filtered wastewater remaining in the water storage tank can be used for further washout or wet-curing process.

Product gallery

conquip concrete washout system

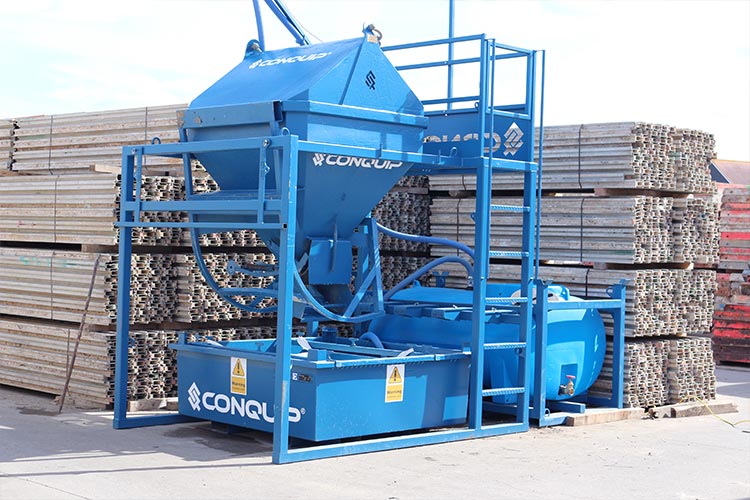

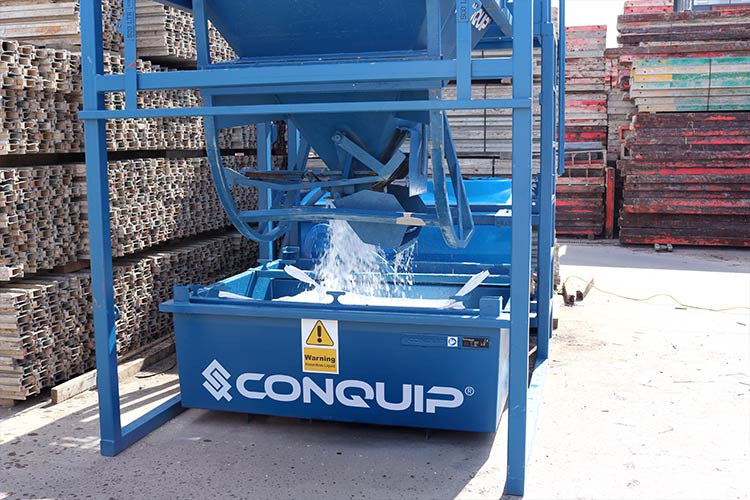

concrete washout system for washout of concrete skips and trucks
conquip concrete skip washout system

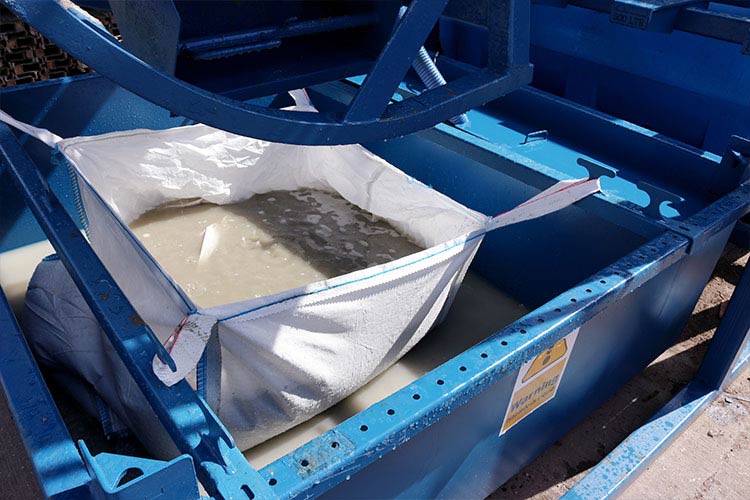

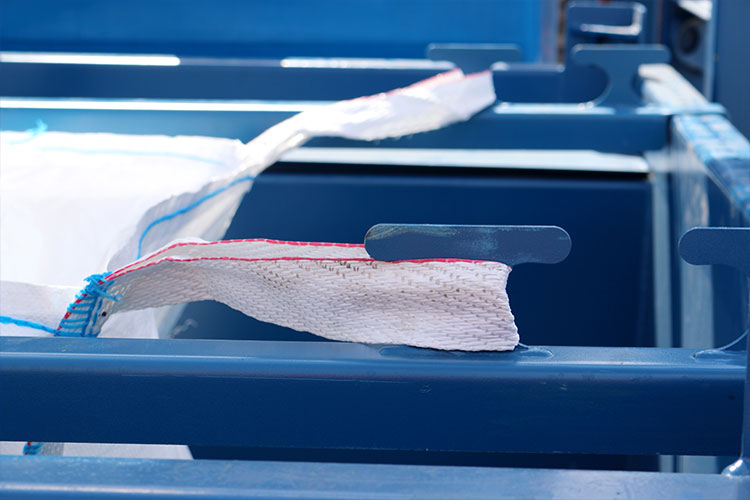

filtering bags for filtering of concrete water
concrete washout system helps re-use concrete waste water

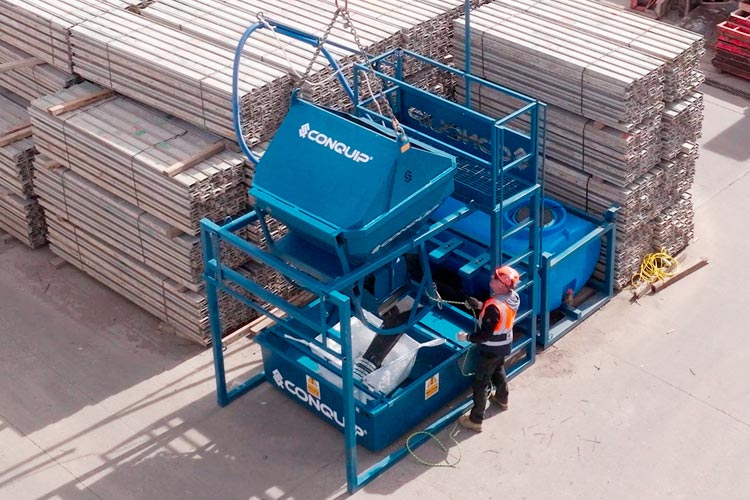

concrete skip washout system from conquip
concrete skip washout system
Array
(
    [_edit_lock] => Array
        (
            [0] => 1732098841:39
        )

    [_edit_last] => Array
        (
            [0] => 39
        )

    [total_sales] => Array
        (
            [0] => 195
        )

    [_tax_status] => Array
        (
            [0] => taxable
        )

    [_tax_class] => Array
        (
            [0] =>
        )

    [_manage_stock] => Array
        (
            [0] => no
        )

    [_backorders] => Array
        (
            [0] => no
        )

    [_sold_individually] => Array
        (
            [0] => no
        )

    [_virtual] => Array
        (
            [0] => no
        )

    [_downloadable] => Array
        (
            [0] => no
        )

    [_download_limit] => Array
        (
            [0] => -1
        )

    [_download_expiry] => Array
        (
            [0] => -1
        )

    [_stock] => Array
        (
            [0] =>
        )

    [_stock_status] => Array
        (
            [0] => instock
        )

    [_wc_average_rating] => Array
        (
            [0] => 0
        )

    [_wc_review_count] => Array
        (
            [0] => 0
        )

    [_product_version] => Array
        (
            [0] => 8.5.2
        )

    [specification] => Array
        (
            [0] =>




PRODUCT TYPE
PRODUCT CODE
HEIGHT
LENGTH
WIDTH
FORK POCKET (W x H)
WLL*
WEIGHT
CAPACITY






Filtration Tray
CS236-02100
764mm
2613mm
1900mm
150 x 70mm
 1000kg
565kg
2100 litres




Skip Washing Platform
CS241
4395mm
2960mm
2208mm
-
-
590kg
-




Water Storage Tank
FB306-02000
2900mm
2693mm
1500mm
150 x 70mm
2000kg
570kg
2000 litres





*Working Load Limit
        )
