Concrete Skip Without Bale Arm

The Conquip Concrete Skip Without Bale Arm, sometimes known as a Tremie Skip, is a versatile, all-purpose skip used for pouring concrete in columns, walls, narrow formwork, and pipe laying applications. This bale arm version is available in a range of sizes from 500 litres to 4000 litres. We also offer this skip with a bale arm, rather than lifting chains – click here to view.

For more info on the optional extras for this skip click here.

Quantity
SKU: CS210AA Categories: , Tags: , , , , , , , , , , , , , , , , , ,

Description

Features

  • Provided with a 3-metre length of reinforced rubber discharge hose and pull rope for pouring concrete.
  • Deflector plate prevents concrete splashing personnel or contaminating the ground below when the flow gate opens and closes.
  • Grout tray collects any excess concrete during flow gate operation.
  • Robust design to ensure durability on construction sites.
  • A strong spring retractor ensures automatic closing of the discharge gate when pouring is complete.

Benefits

  • Reinforced heavy duty gate mechanism to reduce gate wear and jamming.
  • Reinforced & enclosed roll frame to prevent bending and concrete filling up in the channels.
  • Easily removable gate mechanism for ease of emplacement when worn.
  • Multiple optional extra’s for larger and longer hoses, hose directional placement and gate upgrades.

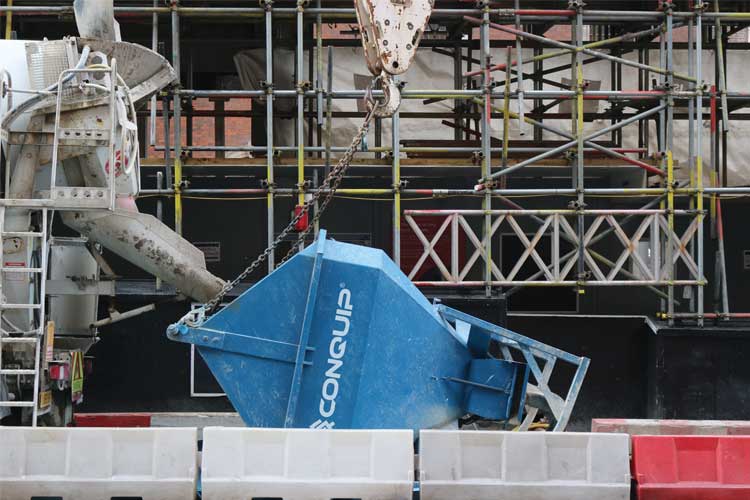

  • Designed to lay horizontally on the ground to assist filling from the concrete truck.
  • Available in a range of sizes with capacities from 500 to 4000 litres, ensuring there is a solution for every project, regardless of the crane capacity or amount of concrete required.
  • Version with bale arm also available – click here to view
  • Now available with a range of NEW modifications to improve safety on-site:
    01/ Extended Flow Gate Handle: Removes operative from underneath the skip when operating the flow gate.
    02/ Hose Guide: Allows operatives to position the hose during a pour without being stood underneath the skip.
    03/ Bauer Connection: Quick-release system for switching between different hose lengths without needing to tamper with hose clips and refit hoses.
  • Blowout Attachment available for clearing concrete lines into the skip after use, minimising concrete waste and improving project sustainability.

Product gallery

Array
(
    [_yoast_indexnow_last_ping] => Array
        (
            [0] => 1731320364
            [1] => 1731320364
        )

    [_edit_lock] => Array
        (
            [0] => 1732207411:39
        )

    [_edit_last] => Array
        (
            [0] => 39
        )

    [qwc_enable_quotes] => Array
        (
            [0] => on
        )

    [qwc_display_prices] => Array
        (
            [0] =>
        )

    [total_sales] => Array
        (
            [0] => 794
        )

    [_tax_status] => Array
        (
            [0] => taxable
        )

    [_tax_class] => Array
        (
            [0] =>
        )

    [_manage_stock] => Array
        (
            [0] => no
        )

    [_backorders] => Array
        (
            [0] => no
        )

    [_sold_individually] => Array
        (
            [0] => no
        )

    [_virtual] => Array
        (
            [0] => no
        )

    [_downloadable] => Array
        (
            [0] => no
        )

    [_download_limit] => Array
        (
            [0] => -1
        )

    [_download_expiry] => Array
        (
            [0] => -1
        )

    [_stock] => Array
        (
            [0] =>
        )

    [_stock_status] => Array
        (
            [0] => instock
        )

    [_wc_average_rating] => Array
        (
            [0] => 0
        )

    [_wc_review_count] => Array
        (
            [0] => 0
        )

    [_product_version] => Array
        (
            [0] => 8.5.2
        )

    [_yoast_wpseo_primary_product_cat] => Array
        (
            [0] => 4538
        )

    [_yoast_wpseo_content_score] => Array
        (
            [0] => 90
        )

    [_yoast_wpseo_focuskeywords] => Array
        (
            [0] => []
        )

    [_product_attributes] => Array
        (
            [0] => a:4:{s:8:"capacity";a:6:{s:4:"name";s:8:"Capacity";s:5:"value";s:80:"500 litres | 1000 litres | 1500 litres | 2000 litres | 3000 litres | 4000 litres";s:8:"position";i:0;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:15:"optional-extras";a:6:{s:4:"name";s:15:"Optional Extras";s:5:"value";s:212:"None | Extended Flow Gate Handle | Hose Guide | Bauer Connection | Extended Flow Gate Handle + Hose Guide | Extended Flow Gate Handle + Hose Guide + Bauer Connection | Extended Flow Gate Handle + Bauer Connection";s:8:"position";i:1;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:18:"blowout-attachment";a:6:{s:4:"name";s:18:"Blowout Attachment";s:5:"value";s:8:"Yes | No";s:8:"position";i:2;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:13:"hire-purchase";a:6:{s:4:"name";s:13:"Hire/Purchase";s:5:"value";s:52:"Hire Only | Purchase Only | Quote me on both options";s:8:"position";i:3;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}}
        )

    [_wp_old_date] => Array
        (
            [0] => 2019-08-28
        )

    [specification] => Array
        (
            [0] =>




PRODUCT CODE
HEIGHT
WIDTH
LENGTH
WLL*
WEIGHT
CAPACITY






CS210AA-00500
1270mm
1130mm
1970mm
1500kg
360kg
500 litres




CS210AA-01000
1465mm
1385mm
2350mm
3000kg
490kg
1000 litres




CS210AA-01500
1660mm
1590mm
2450mm
4500kg
580kg
1500 litres




CS210AA-02000
1670mm
1580mm
2730mm
6000kg
670kg
2000 litres




CS210AA-03000
2130mm
1980mm
3500mm
9000kg
1000kg
3000 litres




CS210AA-04000
2350mm
2150mm
3830mm
12000kg
1480kg
4000 litres





*Working Load Limit
        )
