Autolock Tipping Skip
The faster, easier and safer method of transporting waste material, Conquip Autolock Tipping Skips are the choice for many sites and leading plant companies.
Designed for use with forklifts and telehandlers, these skips are thoroughly tested and built to last. A gas assisted ram ensures the skip automatically locks on the forks and its unique design guarantees 100% restraint on the forks when it is emptied.
SKU: N/A
Categories: Forklift Attachments, Waste Skips
Tags: auto tipping, ca128, CA128-00500, CA128-01200, ca134, CA134-00500, CA134-01200, castor wheels, fa800, FA800-00500, FA800-01200, FA801-00500, FA801-01200, fork bucket, forklift bucket, loading bay, self discharge, self tipping, skip, tipping bucket, user guide, waste skip, waste skips
Description

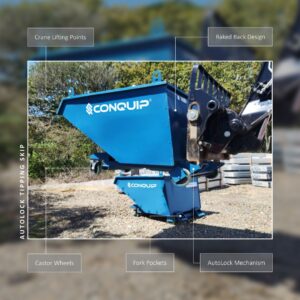

Features
- Utilises the telehandlersโ tilt function to empty the load ensuring the skip cannot be accidentally tipped.
- Standard width fork pockets reduces the need for adjustment of forks.
- Raked-back design prevents damage to the skip.
- Gas assisted ram ensures automatic locking of the skip to the forks.
Benefits
- Autolock mechanism eliminates the need to attach safety restraint chains around the machineโs carriage, reducing downtime and improving productivity.
- No levers or cables are required to discharge the skip, so the driver can remain safely seated within the machineโs cab.
- Design reduces the impact the skip receives from the back of the forks, increasing its longevity and reducing repair or replacement costs.
- Available in 500 and 1200-litre sizes to accommodate varying site requirements.

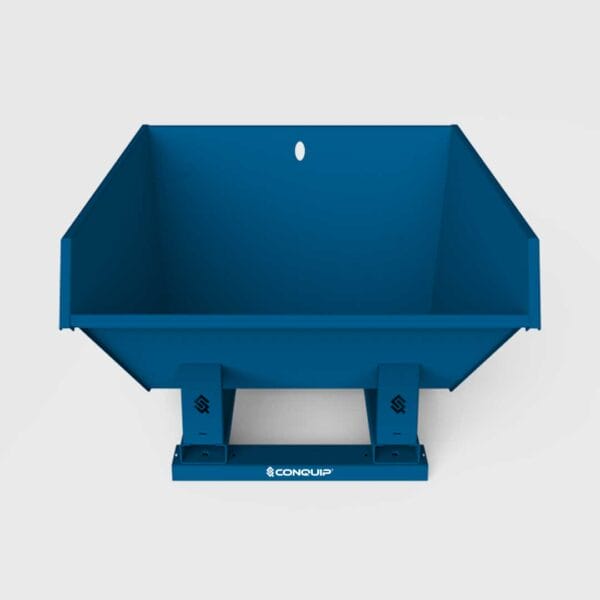

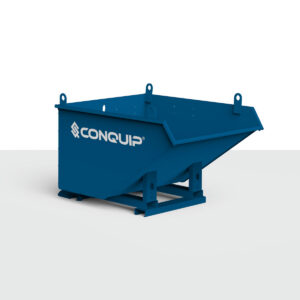

- Customisable with castors for easily transporting the skip over short distances and lifting eyes for lifting the skip to high and low locations on-site.
- Can be painted in the Institute of Civil Engineers standard colours for waste segregation.
Typical applications of the Autolock Tipping Skip:
- House building โ transportation of building materials around the site
- Site waste management โ transportation of waste materials to a larger skip
- Interior fit-out & refurbishment โ easy movement of materials within a building, compact size allows for transportation through standard door frame
Specification
PRODUCT TYPE | PRODUCT CODE | LENGTH | WIDTH | HEIGHT | FORK POCKETS (W x H) | WLL* | WEIGHT | CAPACITY |
---|---|---|---|---|---|---|---|---|
Standard Autolock | FA800-00500 | 1400mm | 920mm | 934mm | 142 x 62mm | 1000kg | 125kg | 500 litres |
With Castors | FA801-00500 | 1400mm | 989mm | 1023mm | 142 x 62mm | 1000kg | 160kg | 500 litres |
Cranelift | CA128-00500 | 1400mm | 920mm | 1050mm | 142 x 62mm | 1000kg | 130kg | 500 litres |
Cranelift with Castors | CA134-00500 | 1400mm | 989mm | 1138mm | 142 x 62mm | 1000kg | 165kg | 500 litres |
Standard Autolock | FA800-01200 | 1818mm | 1224mm | 964mm | 142 x 62mm | 2000kg | 150kg | 1200 litres |
With Castors | FA801-01200 | 1818mm | 1224mm | 1051mm | 142 x 62mm | 2000kg | 185kg | 1200 litres |
Cranelift | CA128-01200 | 1818mm | 1224mm | 1078mm | 142 x 62mm | 1000kg | 155kg | 1200 litres |
Cranelift with Castors | CA134-01200 | 1818mm | 1224mm | 1160mm | 142 x 62mm | 1000kg | 190kg | 1200 litres |
