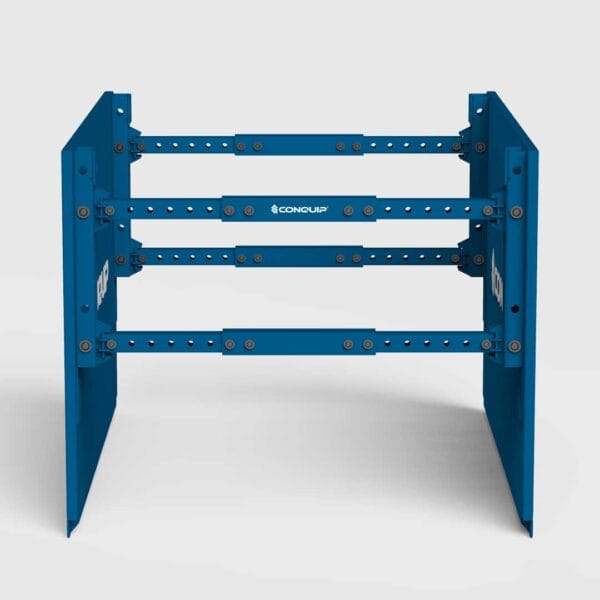

Lightweight-Trench-Box-Base-Box-Front
Lightweight-Trench-Box-Base-Box-RF

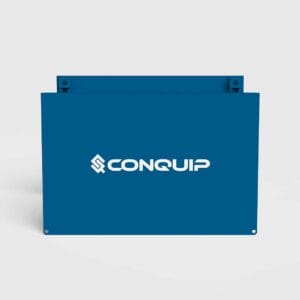

Lightweight-Trench-Box-Base-Box-Right

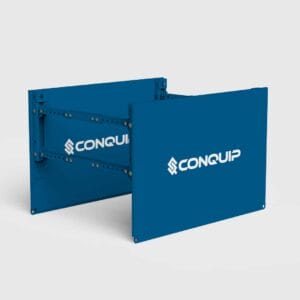

Lightweight-Trench-Box-Base-Box-LF
Lightweight-Trench-Box-Base+Extension-Front

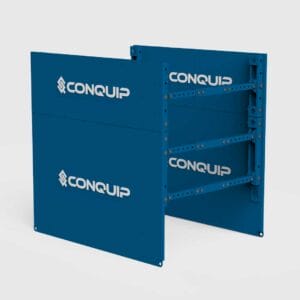

Lightweight-Trench-Box-Base+Extension-RF
Lightweight-Trench-Box-Base+Extension-Right
Lightweight-Trench-Box-Base+Extension-LF
Lightweight-Trench-Box-Base-Box-Front
Lightweight-Trench-Box-Base-Box-RF
Lightweight-Trench-Box-Base-Box-Right
Lightweight-Trench-Box-Base-Box-LF
Lightweight-Trench-Box-Base+Extension-Front
Lightweight-Trench-Box-Base+Extension-RF
Lightweight-Trench-Box-Base+Extension-Right
Lightweight-Trench-Box-Base+Extension-LF

Lightweight Trench Box

The Conquip Lightweight Trench Box is a simple to assemble, two sided trench lining support system allowing the safe installation of utility pipes. Designed to be installed by an excavator, the system can accommodate various pipe sections sizes and is suitable for trench depths of up to 4 metres. If you have a large excavator, or you are digging a sizeable trench, our standard Trench Box will be more suitable.

Quantity
SKU: N/A Category: Tags: , , , , , , , , , , , , , ,

Description

    Features

  • Robust design provides more durability ensuring these boxes ideal for dig and push installation.
  • Incremental struts allow for varying working widths ranging from 550mm to 3985mm.
  • Reinforced lifting points for easy manoeuvre around site.

    Benefits

  • Suitable for trench depths of up to 4 metres.
  • Edge Protection panels provided free-of-charge with all box hires and purchases.
  • Flexible payment options with easy-to-understand documents.
  • Comprehensive user guides with full assembly, installation and extraction instructions.
  • Can be supplied with a full range of suitable lifting and extraction chains and trench access accessories – see our full range here.
Array
(
    [_edit_lock] => Array
        (
            [0] => 1728901282:39
        )

    [_edit_last] => Array
        (
            [0] => 39
        )

    [_thumbnail_id] => Array
        (
            [0] => 24278
        )

    [total_sales] => Array
        (
            [0] => 541
        )

    [_tax_status] => Array
        (
            [0] => taxable
        )

    [_tax_class] => Array
        (
            [0] =>
        )

    [_manage_stock] => Array
        (
            [0] => no
        )

    [_backorders] => Array
        (
            [0] => no
        )

    [_sold_individually] => Array
        (
            [0] => no
        )

    [_virtual] => Array
        (
            [0] => no
        )

    [_downloadable] => Array
        (
            [0] => no
        )

    [_download_limit] => Array
        (
            [0] => -1
        )

    [_download_expiry] => Array
        (
            [0] => -1
        )

    [_stock] => Array
        (
            [0] =>
        )

    [_stock_status] => Array
        (
            [0] => instock
        )

    [_wc_average_rating] => Array
        (
            [0] => 0
        )

    [_wc_review_count] => Array
        (
            [0] => 0
        )

    [_product_version] => Array
        (
            [0] => 8.5.2
        )

    [_product_image_gallery] => Array
        (
            [0] => 24277,24280,24281,24279,24273,24275,24276,24274
        )

    [specification] => Array
        (
            [0] =>




BOX TYPE
PRODUCT CODE
LENGTH
HEIGHT
CLEARANCE BETWEEN STRUTS
WORKING WIDTH (MIN – MAX)
ASSEMBLED WEIGHT* (MIN – MAX)
WORKING LOAD LIMIT






Base
TL102-00003
3000mm
2000mm
2600mm
550-3985mm
1097-1531kg
27kPa




Extension
TL102-00004
3000mm
1000mm
2600mm
 550-3985mm
643-860kg
27kPa





*Weight will depend on your strut configuration. Our team will provide more information on the configuration needed to meet the requirements specified in your quote request.
        )
