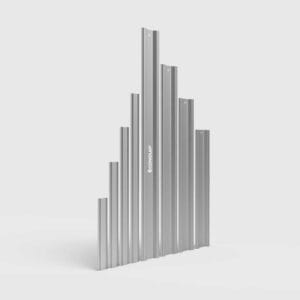

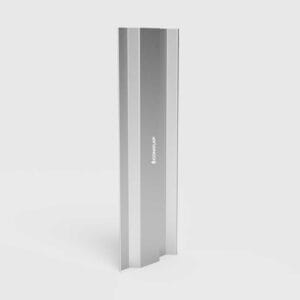

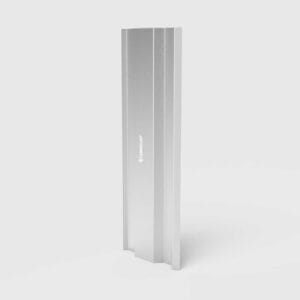

Trench Sheets

Conquip Trench Sheets are lightweight, overlapping trench sheeting profiles, ensuring a high strength to weight ratio, providing a safe environment for personnel working in trenches. Typical applications include small trenches and excavations, including basements, sewerage, water, gas or other services. They are particularly useful for when services cross. If you are digging larger trenches where the ground is stable or self-supporting, our Drag Boxes would be a more viable option.

Quantity
SKU: N/A Category: Tags: , , , , , , , , , , , , , , , ,

Description

Features

  • Robust design.
  • Overlapping profiles.

Benefits

  • Available in a variety of lengths n Standard Lap and HD2 variations to suit specific site requirements.
  • Provides a safe environment for workers working in the excavation.
  • Quick and easy to use and set up using Conquip’s Trench Sheet Driving Cap.
  • Can be easily lifted and extracted using Conquip’s Trench Sheet Extractor.
Array
(
    [_edit_lock] => Array
        (
            [0] => 1734534166:39
        )

    [_edit_last] => Array
        (
            [0] => 39
        )

    [_thumbnail_id] => Array
        (
            [0] => 4866
        )

    [total_sales] => Array
        (
            [0] => 18810
        )

    [_tax_status] => Array
        (
            [0] => taxable
        )

    [_tax_class] => Array
        (
            [0] =>
        )

    [_manage_stock] => Array
        (
            [0] => no
        )

    [_backorders] => Array
        (
            [0] => no
        )

    [_sold_individually] => Array
        (
            [0] => no
        )

    [_virtual] => Array
        (
            [0] => no
        )

    [_downloadable] => Array
        (
            [0] => no
        )

    [_download_limit] => Array
        (
            [0] => -1
        )

    [_download_expiry] => Array
        (
            [0] => -1
        )

    [_stock] => Array
        (
            [0] =>
        )

    [_stock_status] => Array
        (
            [0] => instock
        )

    [_wc_average_rating] => Array
        (
            [0] => 0
        )

    [_wc_review_count] => Array
        (
            [0] => 0
        )

    [_product_version] => Array
        (
            [0] => 8.5.2
        )

    [_product_image_gallery] => Array
        (
            [0] => 3929,3928,3930,3931
        )

    [specification] => Array
        (
            [0] =>




TYPE
AVAILABLE LENGTHS
TOTAL WIDTH
EFFECTIVE WIDTH
PAN WIDTH
THICKNESS
DEPTH
WEIGHT
WEIGHT
SECTION MODULUS
SWL*






Standard
2m - 5m
350mm
330mm
110mm
3.4mm
35mm
10.8kg/m
32.9kg/m²
48cm³/m
8.5kNm/m




HD2
4m - 7m
764mm
742mm
267mm
8mm
90mm
54.2kg/m
73.0kg/m²
252cm³/m
59kNm/m





* SWL = Safe Working Load

NB: Click on the 'Download User Guide' button to view the correlating drawings
        )

    [_specification] => Array
        (
            [0] => field_5d6787385450d
        )

    [usp] => Array
        (
            [0] => No hidden hire charges
        )

    [_usp] => Array
        (
            [0] => field_5d6787485450e
        )

    [usp_2] => Array
        (
            [0] => Quick Delivery
        )

    [_usp_2] => Array
        (
            [0] => field_5d67874b5450f
        )

    [real_life_Real life image galleryimage_gallery] => Array
        (
            [0] =>
        )

    [_real_life_Real life image galleryimage_gallery] => Array
        (
            [0] => field_5d678e9461d6d
        )

    [user_guide] => Array
        (
            [0] => https://cqegroup.com/uk/wp-content/uploads/sites/5/2024/02/Trench-Sheets-Spec-Sheet-2024_Issue-3.pdf
        )

    [_user_guide] => Array
        (
            [0] => field_5d67c0b2894c6
        )

    [_yoast_wpseo_primary_product_cat] => Array
        (
            [0] => 4546
        )

    [_yoast_wpseo_focuskw_text_input] => Array
        (
            [0] => Trench Sheets
        )

    [_yoast_wpseo_focuskw] => Array
        (
            [0] => Trench Sheets
        )

    [_yoast_wpseo_title] => Array
        (
            [0] => Trench Sheets | Standard Lap Trench Sheets | Conquip UK
        )

    [_yoast_wpseo_metadesc] => Array
        (
            [0] => Conquip Trench Sheets provide a safe environment when working in trenches. Standard Lap and HD2 variations with high strength to weight ratio. Hire or buy.
        )

    [_yoast_wpseo_linkdex] => Array
        (
            [0] => 62
        )

    [_yoast_wpseo_content_score] => Array
        (
            [0] => 90
        )

    [_yoast_wpseo_focuskeywords] => Array
        (
            [0] => []
        )

    [_video_url] => Array
        (
            [0] => https://vimeo.com/254457626
        )

    [_video_image_url] => Array
        (
            [0] => 3437
        )

    [_wp_old_date] => Array
        (
            [0] => 2019-09-11
        )

    [_product_attributes] => Array
        (
            [0] => a:3:{s:4:"type";a:6:{s:4:"name";s:4:"Type";s:5:"value";s:18:"Standard Lap | HD2";s:8:"position";i:0;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:6:"length";a:6:{s:4:"name";s:6:"Length";s:5:"value";s:27:"2m | 3m | 4m | 5m | 6m | 7m";s:8:"position";i:1;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:13:"hire-purchase";a:6:{s:4:"name";s:13:"Hire/Purchase";s:5:"value";s:52:"Hire Only | Purchase Only | Quote me on both options";s:8:"position";i:2;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}}
            [1] => a:3:{s:4:"type";a:6:{s:4:"name";s:4:"Type";s:5:"value";s:18:"Standard Lap | HD2";s:8:"position";i:0;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:6:"length";a:6:{s:4:"name";s:6:"Length";s:5:"value";s:27:"2m | 3m | 4m | 5m | 6m | 7m";s:8:"position";i:1;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}s:13:"hire-purchase";a:6:{s:4:"name";s:13:"Hire/Purchase";s:5:"value";s:52:"Hire Only | Purchase Only | Quote me on both options";s:8:"position";i:2;s:10:"is_visible";i:1;s:12:"is_variation";i:1;s:11:"is_taxonomy";i:0;}}
        )

    [disable_woothumbs] => Array
        (
            [0] => no
        )

    [_iconic_woothumbs] => Array
        (
            [0] => a:1:{s:9:"video_url";s:27:"https://vimeo.com/254457626";}
        )

    [_wcrp_related_ids] => Array
        (
            [0] => a:4:{i:0;s:4:"3389";i:1;s:4:"3381";i:2;s:4:"3387";i:3;s:4:"3388";}
        )

    [_yoast_wpseo_keywordsynonyms] => Array
        (
            [0] => [""]
        )

    [_last_editor_used_jetpack] => Array
        (
            [0] => classic-editor
        )

    [video_embed] => Array
        (
            [0] =>
        )

    [_video_embed] => Array
        (
            [0] => field_6024f3750f70d
        )

    [_searchwp_last_index] => Array
        (
            [0] => 1634547074
        )

    [_heateor_sss_meta] => Array
        (
            [0] => a:2:{s:7:"sharing";i:0;s:16:"vertical_sharing";i:0;}
        )

    [href_lang_x-default] => Array
        (
            [0] => 1
        )

    [_href_lang_x-default] => Array
        (
            [0] => field_65840831d974a
        )

    [href_lang_uk] => Array
        (
            [0] => 1
        )

    [_href_lang_uk] => Array
        (
            [0] => field_6584083cd974b
        )

    [href_lang_us] => Array
        (
            [0] => 1
        )

    [_href_lang_us] => Array
        (
            [0] => field_65840848d974c
        )

    [href_lang_au] => Array
        (
            [0] => 1
        )

    [_href_lang_au] => Array
        (
            [0] => field_65840852d974d
        )

    [href_lang_nz] => Array
        (
            [0] => 1
        )

    [_href_lang_nz] => Array
        (
            [0] => field_65840862d974e
        )

    [href_lang] => Array
        (
            [0] =>
        )

    [_href_lang] => Array
        (
            [0] => field_6584081ed9749
        )

    [_yoast_wpseo_estimated-reading-time-minutes] => Array
        (
            [0] => 1
        )

    [_yoast_wpseo_wordproof_timestamp] => Array
        (
            [0] =>
        )

    [_yoast_indexnow_last_ping] => Array
        (
            [0] => 1734533854
        )

    [_price] => Array
        (
            [0] => 1
        )

    [depot_locator_show_depot_locator] => Array
        (
            [0] => 1
        )

    [_depot_locator_show_depot_locator] => Array
        (
            [0] => field_6607fd5c6cc4c
        )

    [depot_locator_background_colour] => Array
        (
            [0] => #01426a
        )

    [_depot_locator_background_colour] => Array
        (
            [0] => field_6607fd916cc4d
        )

    [depot_locator] => Array
        (
            [0] =>
        )

    [_depot_locator] => Array
        (
            [0] => field_6607fd046cc4b
        )

    [choose_accreditation] => Array
        (
            [0] =>
        )

    [_choose_accreditation] => Array
        (
            [0] => field_65e1d12a57656
        )

    [show_accreditation] => Array
        (
            [0] => 1
        )

    [_show_accreditation] => Array
        (
            [0] => field_65e1d17c0deed
        )

    [user_guide_and_technical_docs] => Array
        (
            [0] =>
        )

    [_user_guide_and_technical_docs] => Array
        (
            [0] => field_66b370e65c35a
        )

    [how_to_video] => Array
        (
            [0] =>
        )

    [_how_to_video] => Array
        (
            [0] => field_66c84df293d67
        )

    [product_cards_new_product] => Array
        (
            [0] => 0
        )

    [_product_cards_new_product] => Array
        (
            [0] => field_66c84bbb39c0d
        )

    [product_cards_next_day_delivery] => Array
        (
            [0] => 0
        )

    [_product_cards_next_day_delivery] => Array
        (
            [0] => field_66c84be539c0e
        )

    [product_cards_for_hire] => Array
        (
            [0] => 1
        )

    [_product_cards_for_hire] => Array
        (
            [0] => field_66c84c0d39c0f
        )

    [product_cards_attachments] => Array
        (
            [0] => 0
        )

    [_product_cards_attachments] => Array
        (
            [0] => field_66c84c2739c10
        )

    [product_cards_card_list] => Array
        (
            [0] =>


  • Standard lap trench sheets for construction work and temporary deployment
    •

  • Choose from HD2 or Standard Lap and 2m to 7m lengths
    •

  • Available for hire and purchase
    •


        )

    [_product_cards_card_list] => Array
        (
            [0] => field_66c84c3239c11
        )

    [product_cards] => Array
        (
            [0] =>
        )

    [_product_cards] => Array
        (
            [0] => field_66c84ba439c0c
        )

)

Related Products

Edge Protection, Hero Image, Blue render, White BG

Edge Protection

  • A full safety system for trench shoring excavations
  • Choose from panels, telescopic clamps and poles
  • Available for hire and purchase
Trench Box, hero image, blue render, white BG

Trench Box

  • A simple to assemble, two sided trench lining support system
  • Choose from 2.5m to 5.1m depth and 550mm to 3985mm working width
  • Available for hire and purchase
trench sheet driving cap

Trench Sheet Driving Cap

  • A cap to aid driving trench sheets into the ground during installation with an excavator
  • Fits most types and sizes, in 300mm or 660mm lengths
  • Available for hire and purchase
trench sheets extractor for extracting of trench sheets

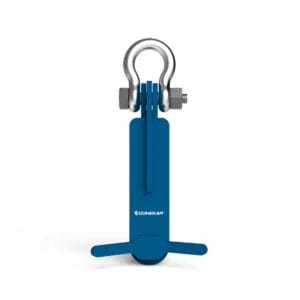

Trench Sheet Extractor
