Chain Storage Rack
An A-frame rack for keeping lifting equipment clean and organised on-site.

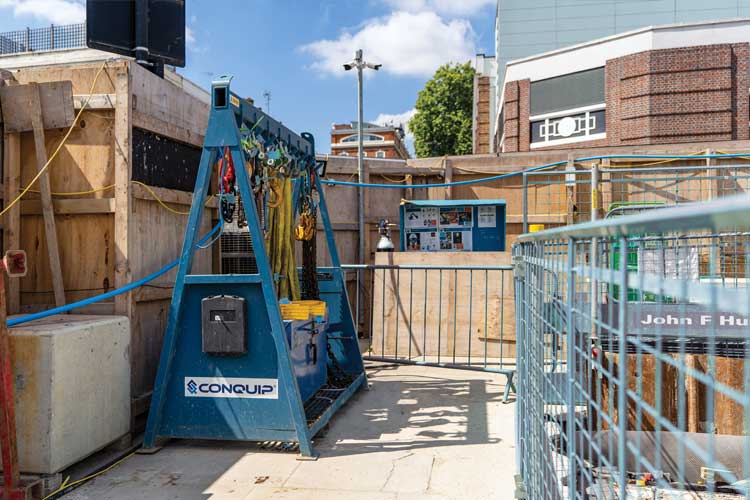

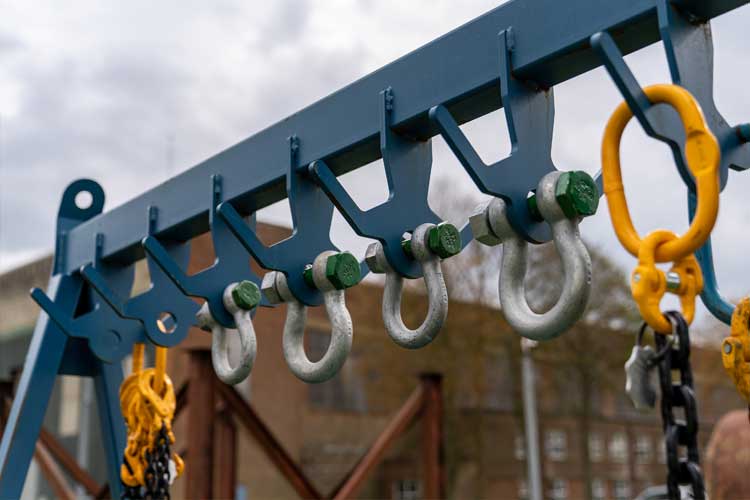

The Chain Storage Rack is a metal rack used as a central location to store chains and other small lifting equipment. It features 7 overhead hooks that can be loaded each side, a weatherproof test certificate box to keep documents dry and with the relevant lifting equipment and a solid base with an optional, lockable toolbox to keep smaller items secure.
Standard size fork pockets and crane lifting shackles ensure it is quick and easy of to manoeuvre around site and the A-frame design provides maximum stability on uneven ground.
Specification
Chain Storage Rack
PRODUCT CODE | HEIGHT | LENGTH | WIDTH | FORK POCKETS (W x H) | WLL* | WEIGHT |
ST111-01000 | 2350mm | 2000mm | 1148mm | 148 x 60mm | Self Weight | 260kg |

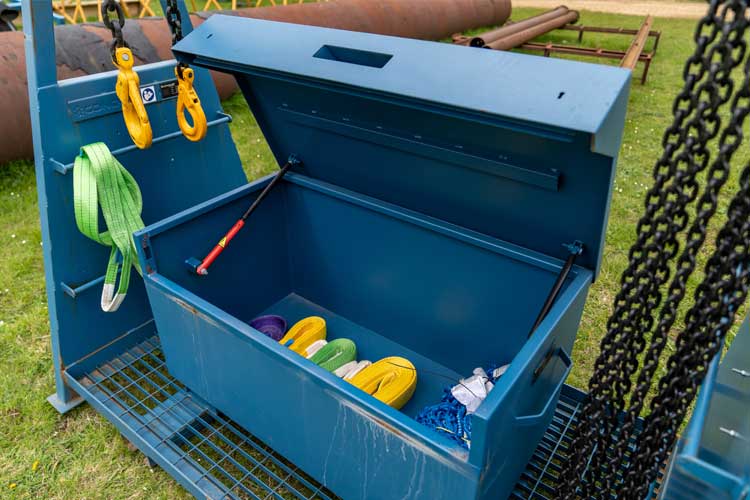

Toolbox (Optional)
ITEM | HEIGHT | LENGTH | WIDTH | WEIGHT | INTERNAL HEIGHT | INTERNAL LENGTH | INTERNAL WIDTH |
Toolbox | 630mm | 1200mm | 665mm | 318kg | 545mm | 1115mm | 595mm |
