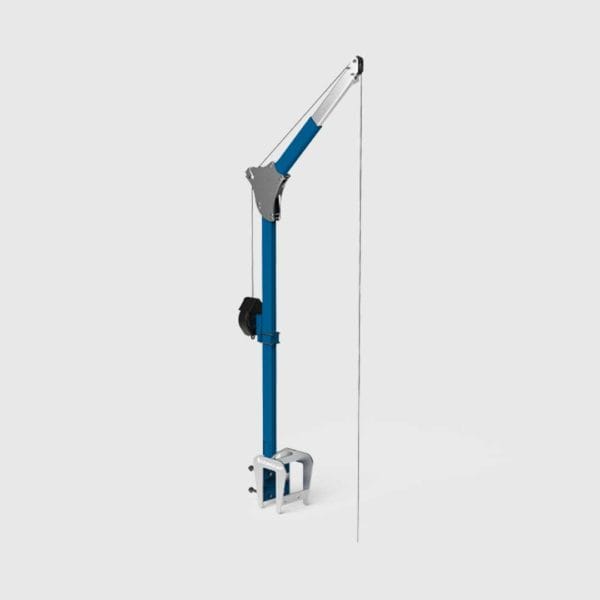

Davit Fall Arrest System

A means of rescue for workers in trenches and confined spaces.

The Conquip Davit Fall Arrest System is a simple, robust, removable, cantilevered fall arrest system designed to be fitted to trench shoring systems, including trench box systems and large trench sheets. It provides a suitable means of rescue for those working in trenches and confined places.

The system comprises of a Davit Clamp, a two-part Davit arm, a Fall Arrest Recovery Device and the relevant brackets to hold the recovery device in place.

Quantity
SKU: N/A Category: Tags: , , , , , , , , , , , ,

Details

  • Provides a suitable means of rescue which satisfies the requirement of the Confined Spaces Regulation (1997).
  • Lightweight and durable.
  • Fall Arrest Recovery Device has a 15-metre galvanised steel cable on the pulley.
  • Compatible with Conquip Trench Shoring systems, including Trench Boxes and Trench Sheets.

Specification

PRODUCT CODE MAX HEIGHT MIN HEIGHT HEIGHT TO PIVOT MAX REACH MIN REACH MAX ANGLE THROAT WIDTH WEIGHT WLL*
PE136 3023mm 2794mm 2235mm 737mm 495mm 135° 5 – 131mm 60kg 150kg

*Working Load Limit
