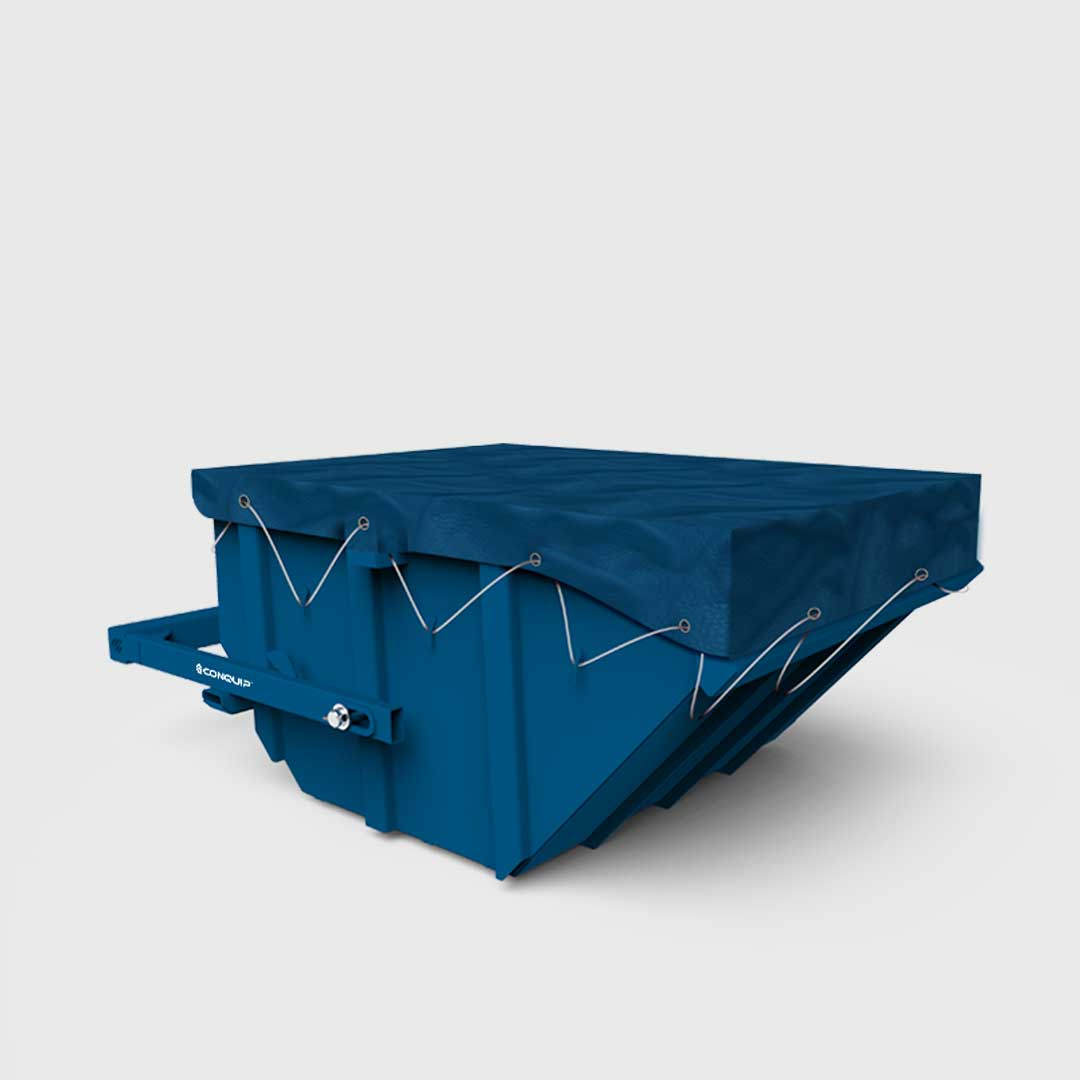

boat skip 4000 litres
boat skip 4000 litres
boat skip 4000 litres

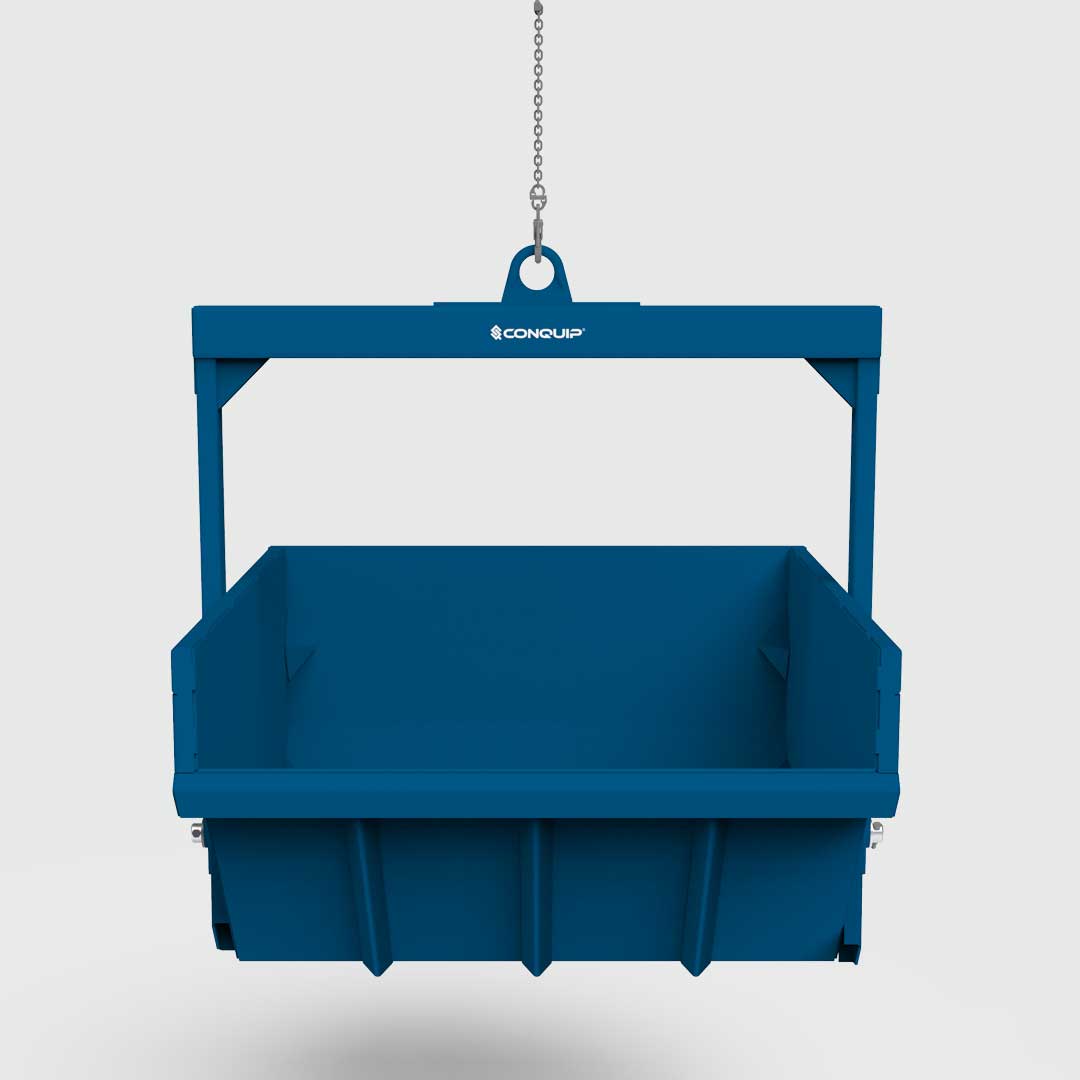

conquip boat skip lifted front view

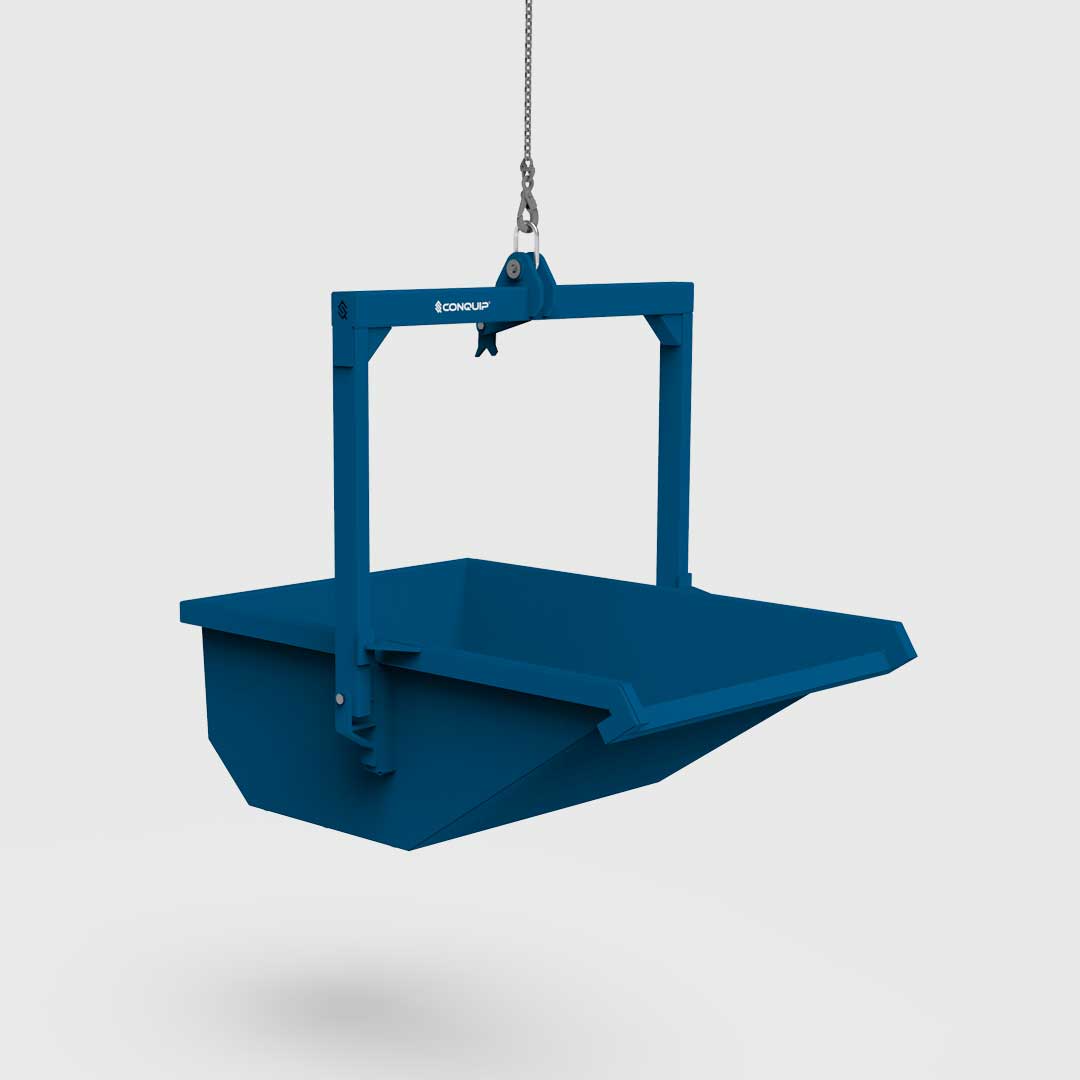

conquip boat skip lifted side view

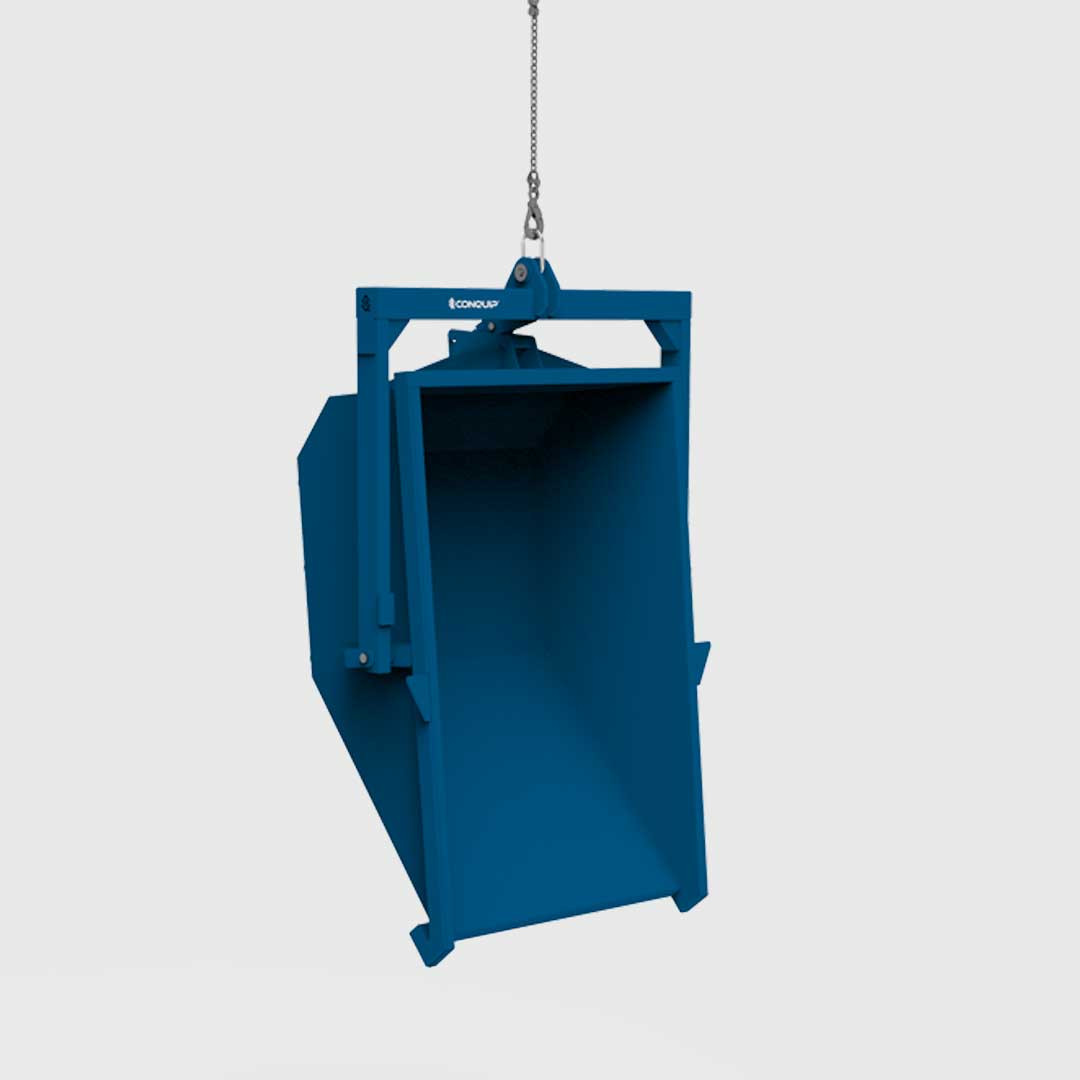

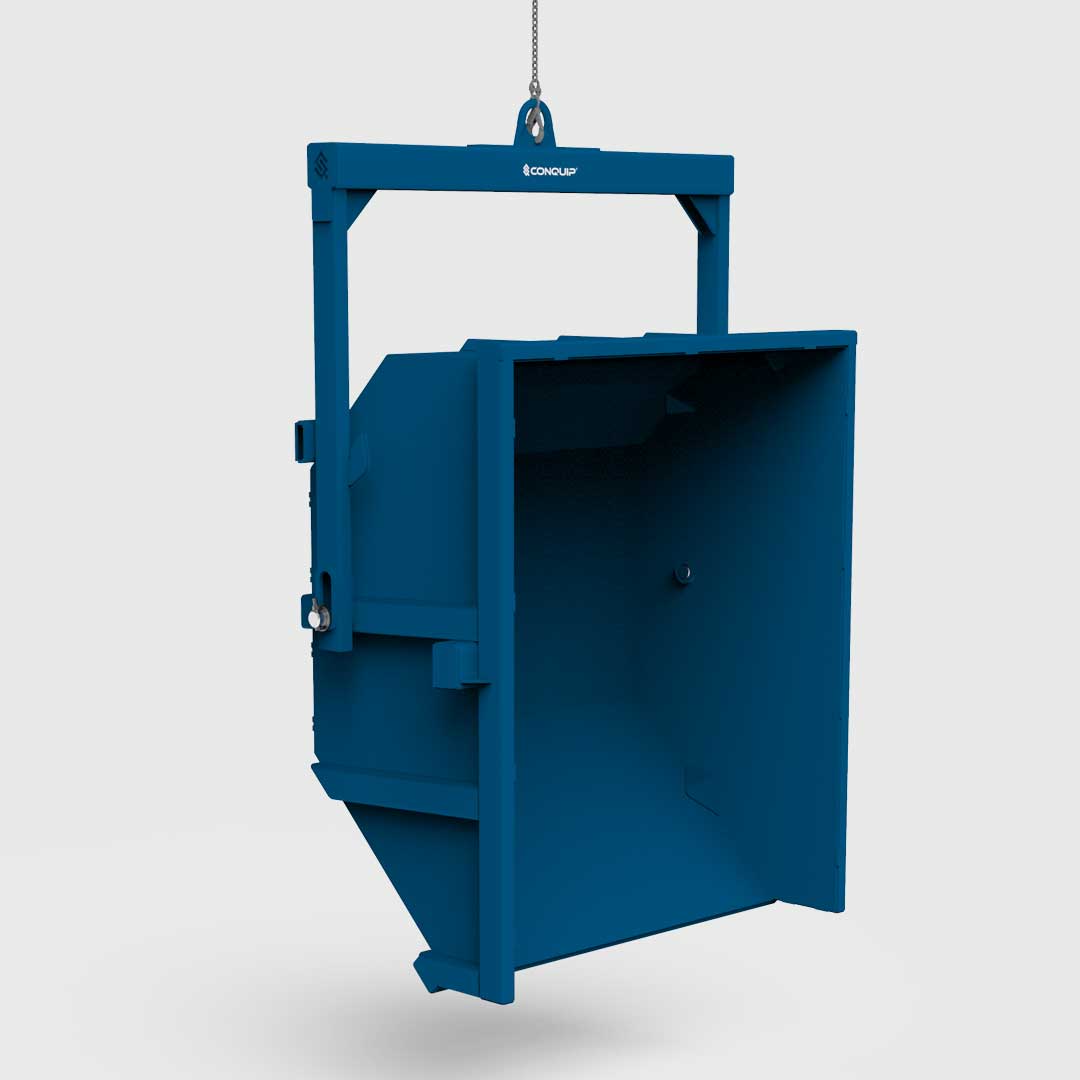

conquip boat skip lifted tipping side view

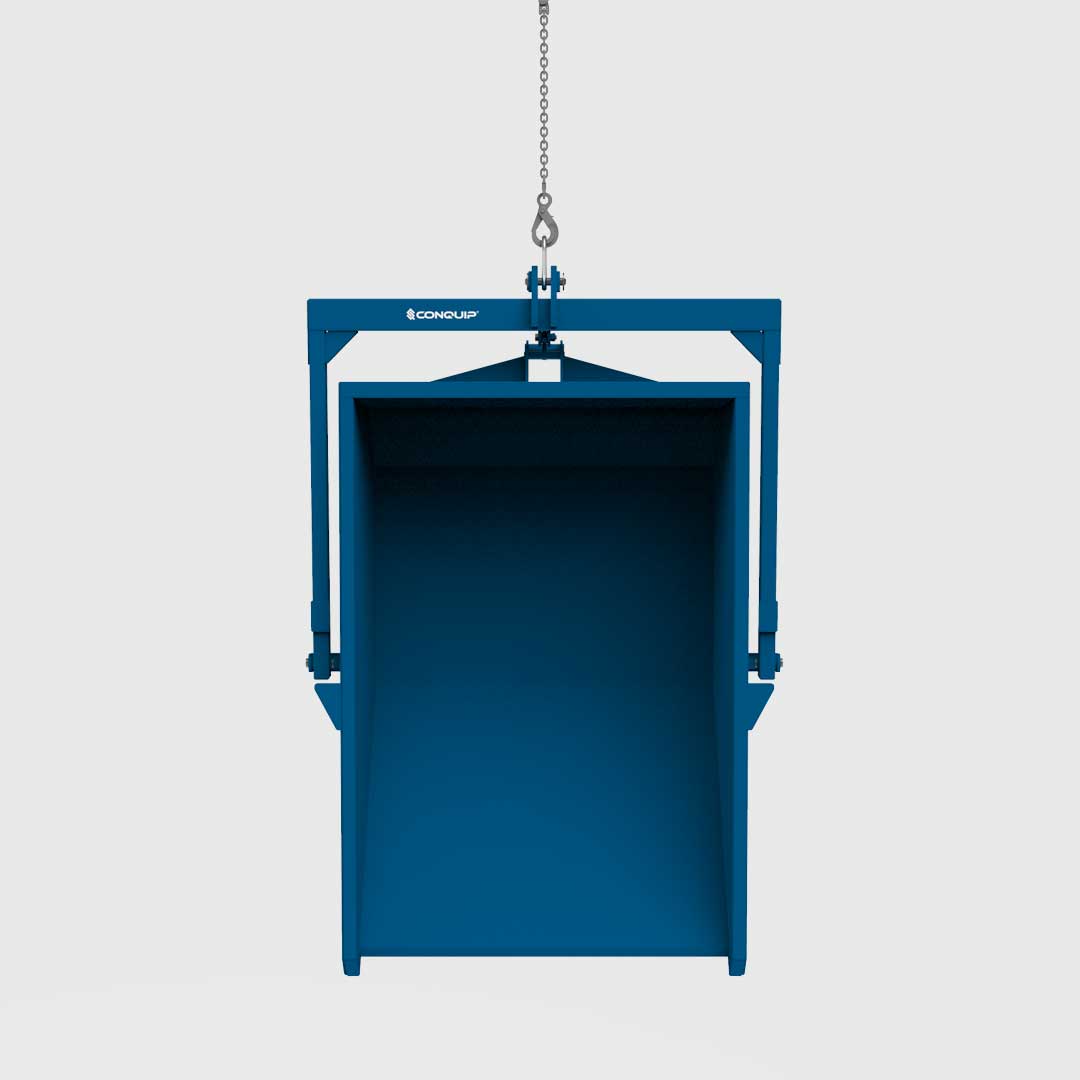

conquip boat skip lifted tipping front view

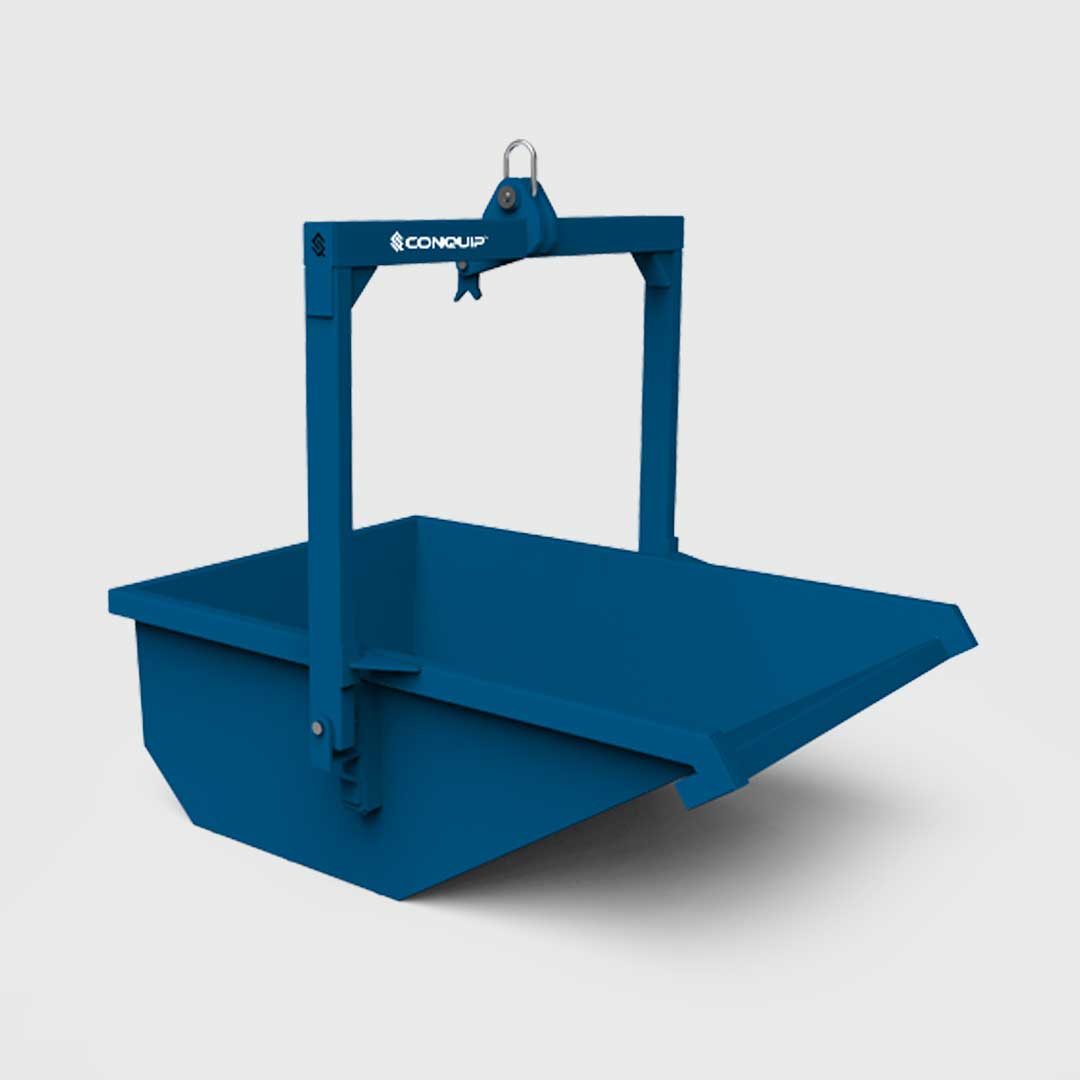

boat skip 1000 litres

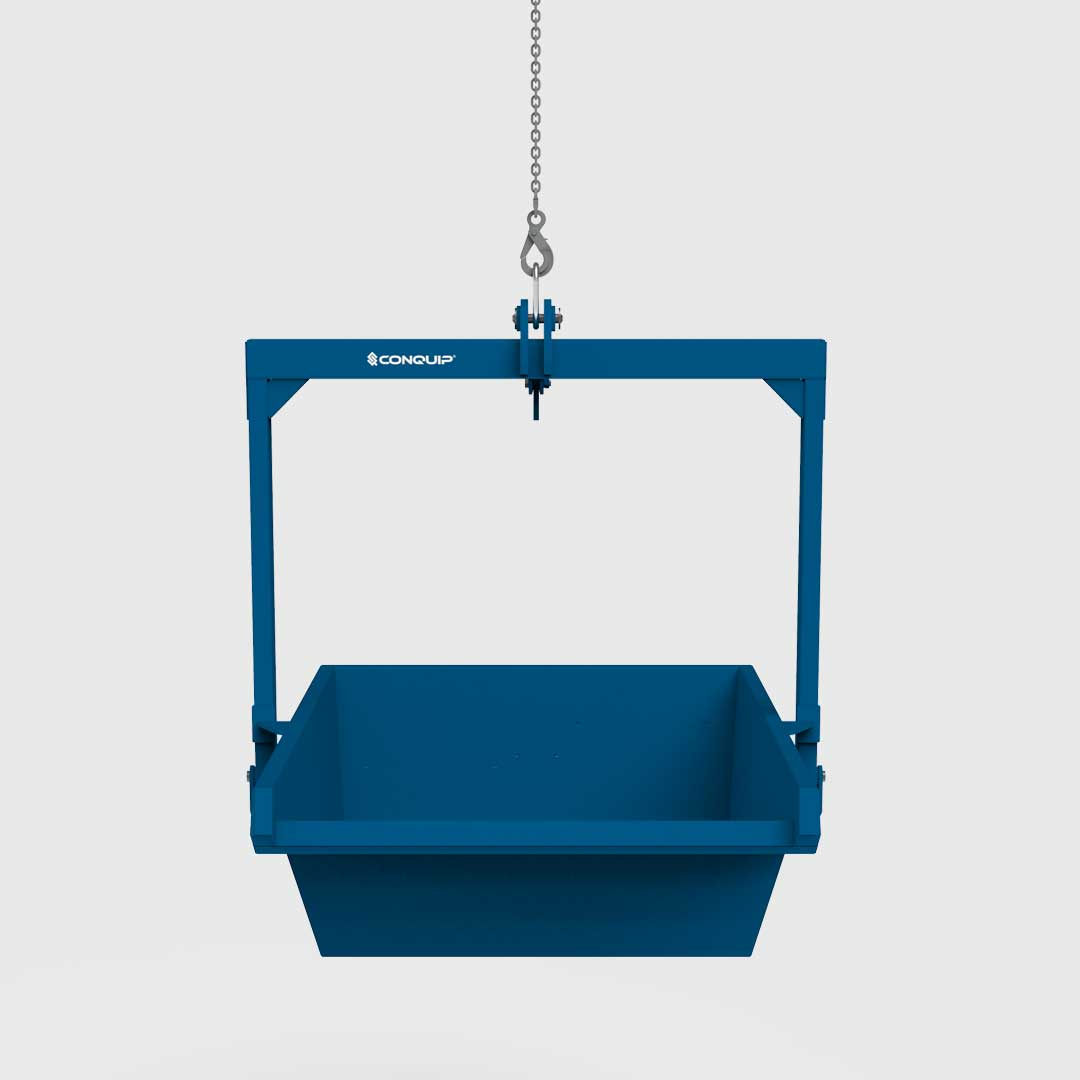

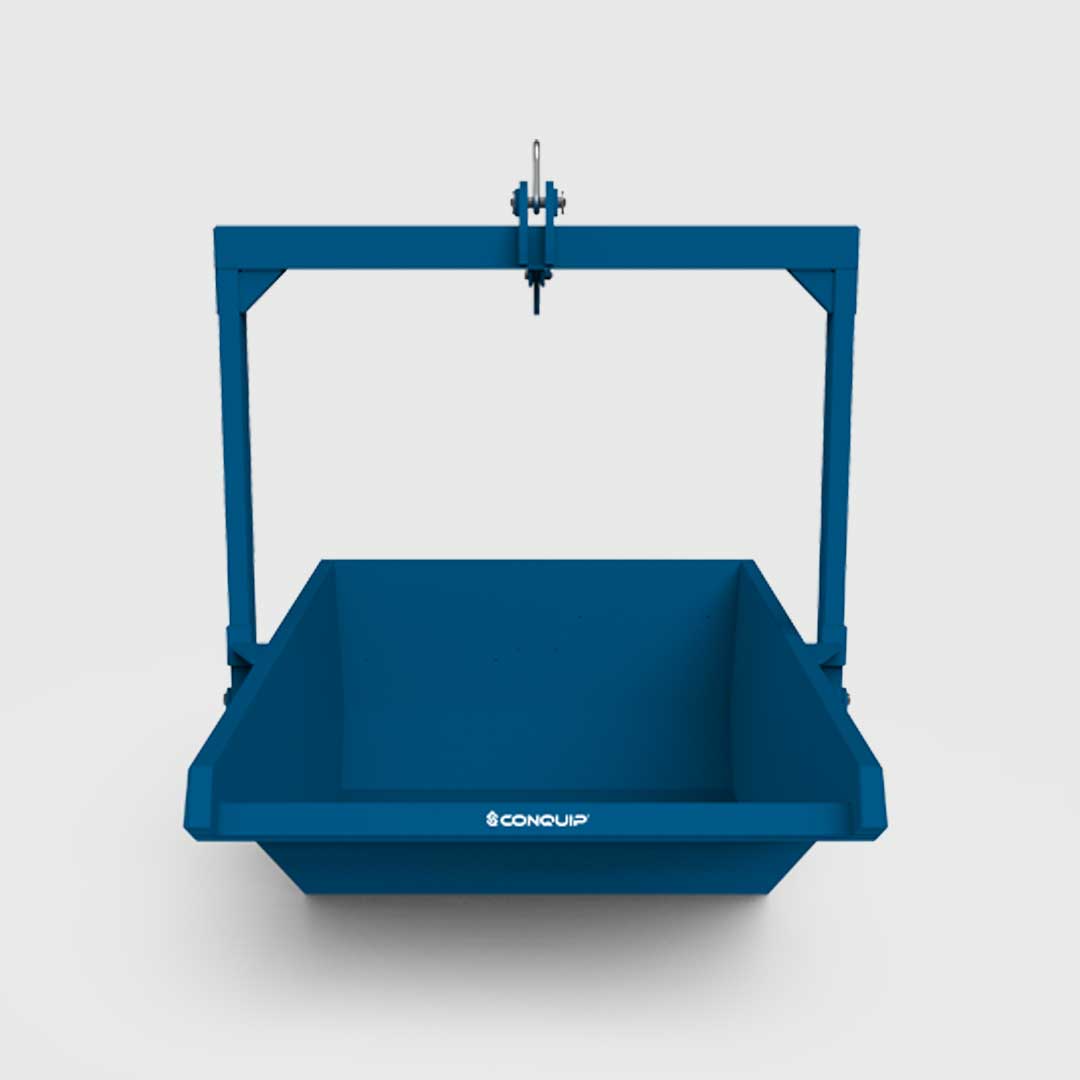

conquip boat skip lifted front view
boat skip 1000 litres
conquip boat skip lifted side view
conquip boat skip lifted tipping front view
conquip boat skip lifted tipping side view
boat skip 4000 litres
boat skip 4000 litres
boat skip 4000 litres
conquip boat skip lifted front view
conquip boat skip lifted side view
conquip boat skip lifted tipping side view

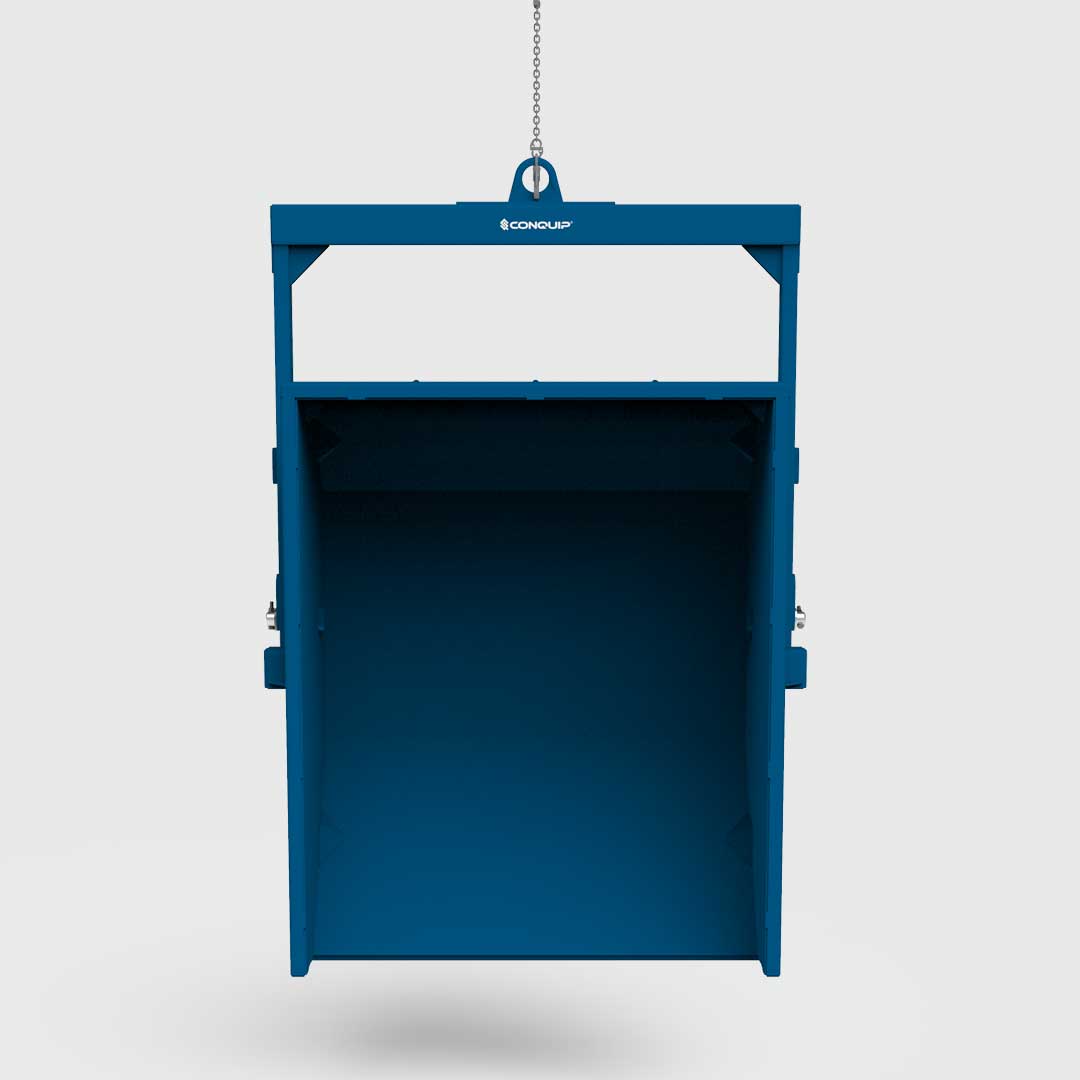

conquip boat skip lifted tipping front view
boat skip 1000 litres
conquip boat skip lifted front view
boat skip 1000 litres
conquip boat skip lifted side view
conquip boat skip lifted tipping front view
conquip boat skip lifted tipping side view

Boat Skip

Heavy-duty skip for general muck and waste removal, ideal for heavy loads.

The Conquip Boat Skip has a low loading height and drop-down bale making loading the skip very easy. It is designed with a slotted bale arm, lifting point and latch for automatic emptying of the skip by the crane operator, eliminating the need for an assistant to manually operate a release mechanism.

Quantity
SKU: N/A Category: Tags: , , , , , , , ,

Specification

PRODUCT TYPE PRODUCT CODE HEIGHT HEIGHT (with bale arm) LENGTH LENGTH (with bale arm) WIDTH WLL* WEIGHT CAPACITY
Small CA108-00500 520mm 1570mm 1500mm 1850mm 1360mm 1000kg 130kg 500 litres
Small CA108-00750 570mm 1720mm 1700mm 2050mm 1500mm 1500kg 235kg 750 litres
Small CA108-01000 640mm 1730mm 2060mm 2260mm 1540mm 2000kg 255kg 1000 litres
Small CA108-01500 900mm 1830mm 1930mm 2150mm 1650mm 3000kg 425kg 1500 litres
Small CA108-02000 920mm 2000mm 2200mm 2500mm 1810mm 4000kg 540kg 2000 litres
Large CA122-02000 850mm 1790mm 1840mm 2620mm 2100mm 4000kg 680kg 2000 litres
Large CA122-03000 1050mm 2030mm 2200mm 2950mm 2100mm 6000kg 980kg 3000 litres
Large CA122-04000 1250mm 2370mm 2500mm 3240mm 2100mm 8000kg 1100kg 4000 litres
Large CA122-06000 1440mm 2420mm 2830mm - 2100mm 12000kg 1760kg 6000 litres
