Drag Box

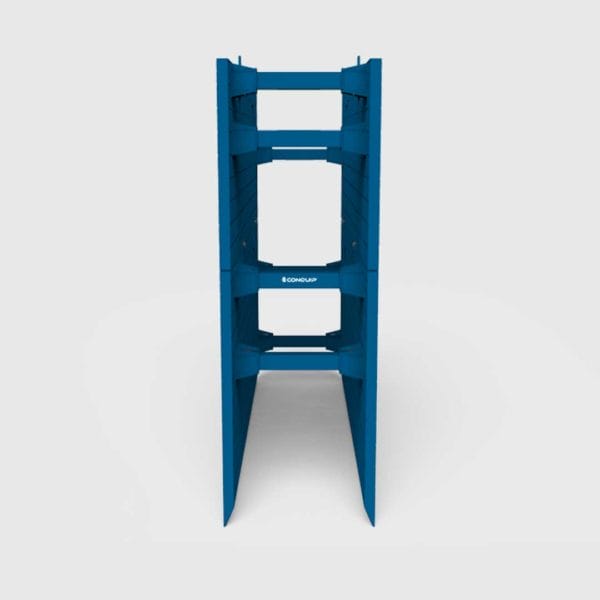

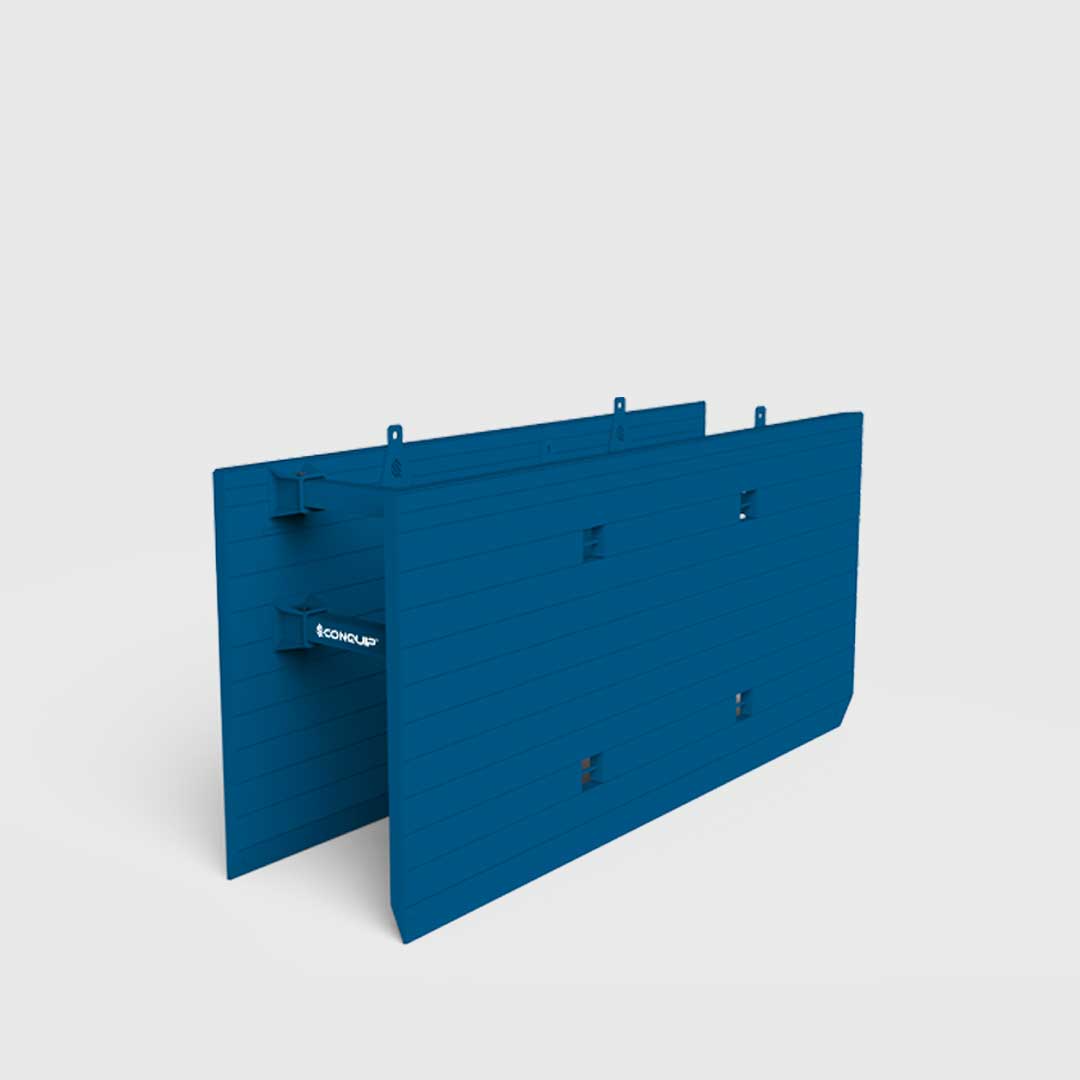

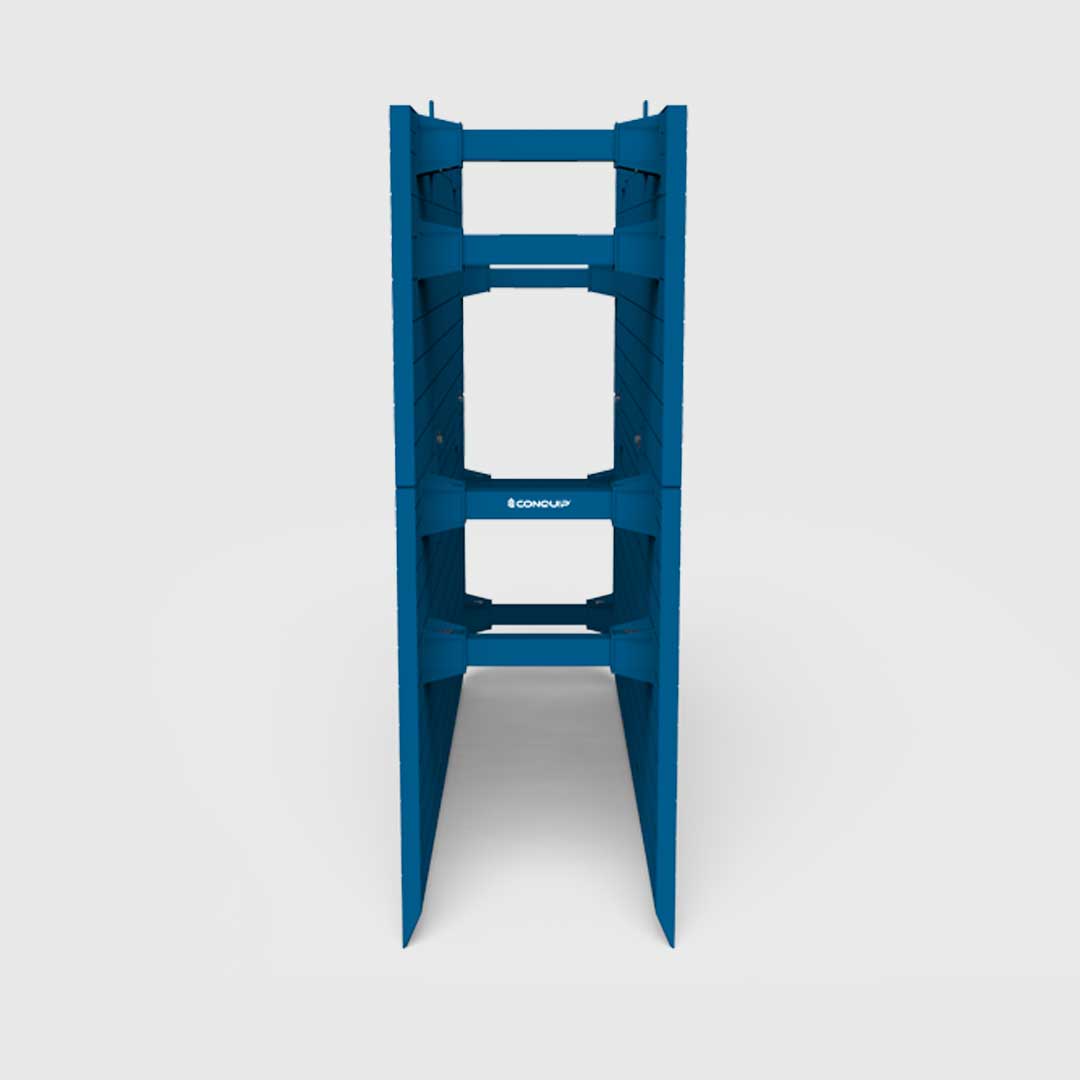

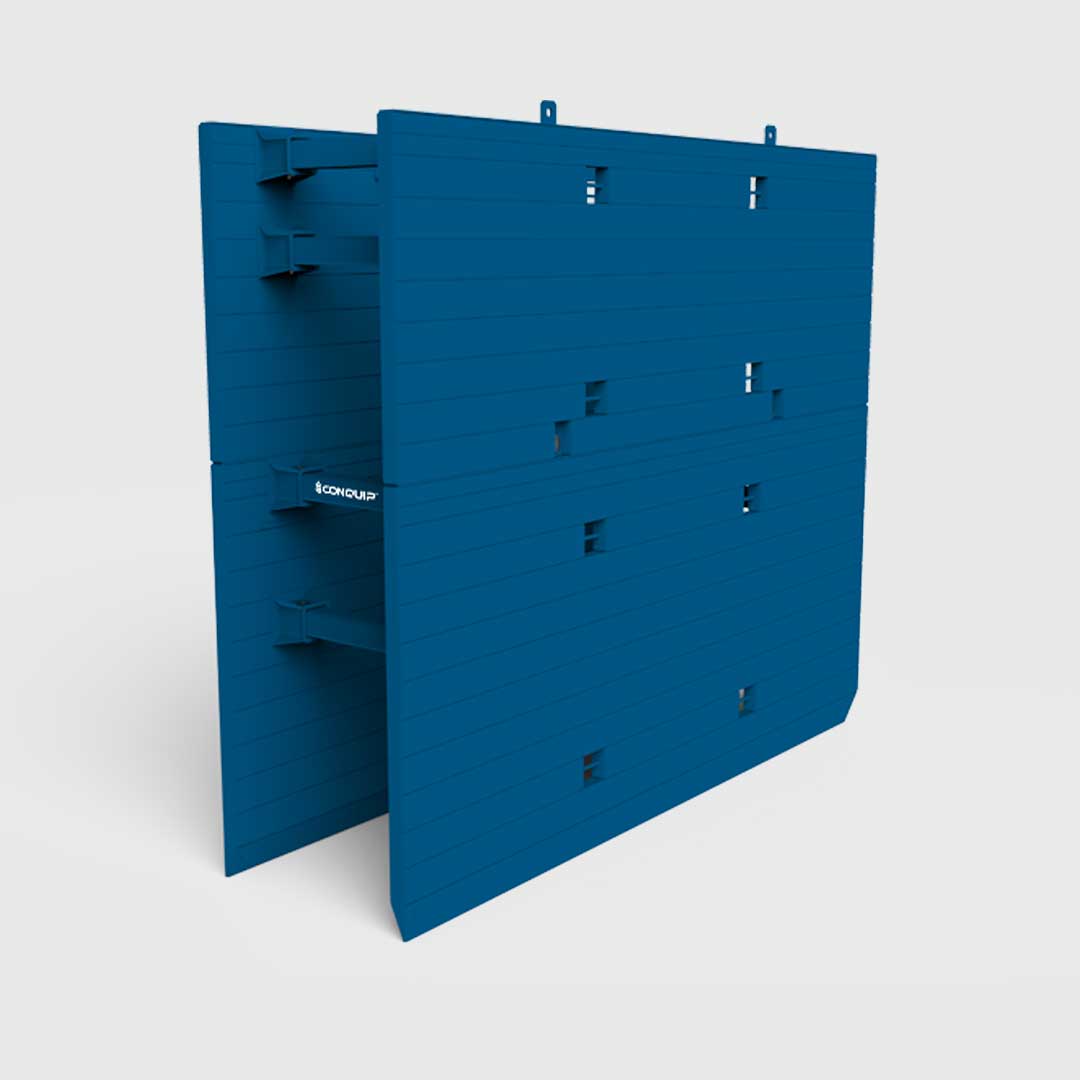

An edge-supported trench lining system, a transportable ‘shield’.

The Conquip Drag Box is a simple to assemble, edge-supported trench lining system intended to be used by an excavator using the excavate and drag technique.

It is designed to provide local support for trenches as transportable ‘shields’ generally in stable or self-supporting ground conditions. The Conquip Drag Box is normally selected for installing utility pipes in non-urban environments where increased laying rate is required and ground movements are not critical.

Looking for something more suitable for smaller trenches or excavations? Our Trench Sheets may be a better option.

Quantity
SKU: N/A Category: Tags: , , , , , , , , , , , , ,

Details

  • Suitable for trench depths of 4.4 metres and trench widths of up to 3.2 metres.
  • Designed to be used with Conquip Fixed Struts for maximum strength.
  • Manufactured from high quality British and European steel.
  • Available with a full range of suitable lifting and extraction chains, edge protection and trench access accessories.

Specification

ITEM PRODUCT CODE HEIGHT EXTERNAL LENGTH INTERNAL LENGTH WORKING WIDTH
(Min - Max)		 MAXIMUM WEIGHT* LIMIT STATE DESIGN LOAD
Base Box 5000 TL100-00002 2410mm 5000mm 4140mm 600-3000mm 3716kg 44kN/m²
Extension Box 5000 TL100-00003 1810mm 5000mm 4140mm 600-3000mm 2570kg 44kN/m²
Base Box 7000 TL100-00010 2410mm 7100mm 6150mm 600-3000mm 5236kg 20kN/m²
Extension Box 7000 TL100-00011 1810mm 7100mm 6150mm 600-3000mm 3940kg 20kN/m²

*Weight will be equal to or less than the weight stated depending on your strut configuration. Our team will provide more information on trench widths or working widths depending on requirements specified in your quote request.
