Access Cage

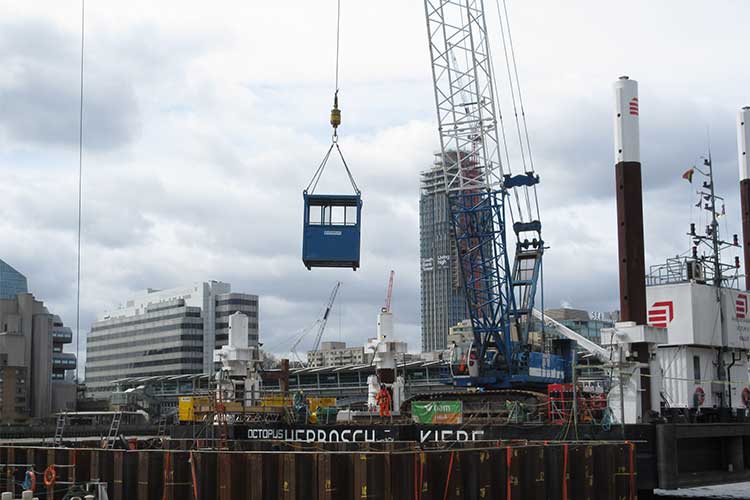

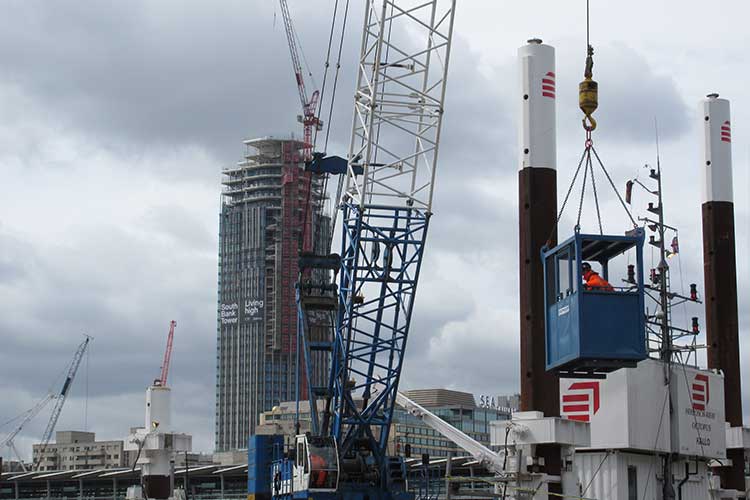

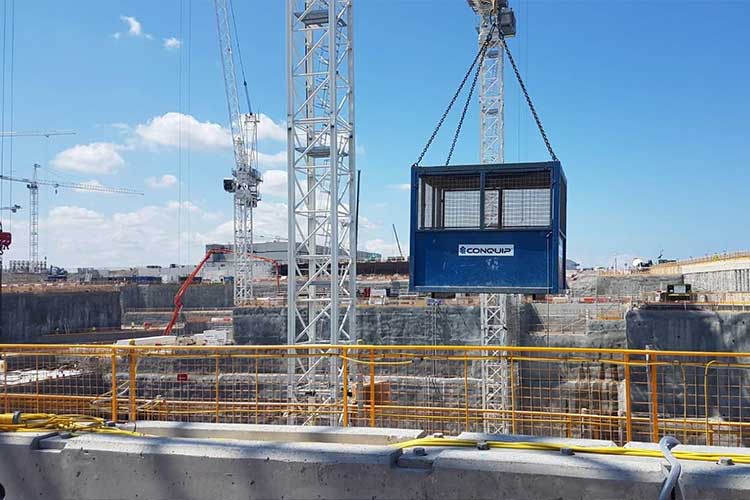

The Conquip Access Cage is a secure cage used to transport personnel around site. It can reach confined spaces or provide access to high and low locations on-site, including tunnels and shafts.

Available in a wide range of sizes, from 1 to 12-person capacities, the 2-person Access Cage is designed for people to work from it, adjacent to a structure or building.

Capacity

Hire/Purchase

Clear

Quantity

SKU: N/A Category: Lifting Equipment Tags: 2 man cage, 4 man cage, access man cage, ca120, ca123, ca126, fa802, man cage, personnel cage, tunnel access

Details

FEATURES

All Access Cages can be transported by crane using the designated lifting points and are supplied with a certified 4-leg lifting chain.
The 2-person Access Cage also has fork pockets for transportation by forklift.
Manufactured with half-height solid steel sides for maximum safety as well as offering good visibility for machine operator and personnel in the cage.
Internal harness attachment points.
Safety locking catch for secure door closure.

BENEFITS

Versatile cages suitable for varying applications, from personnel movement to access for working in confined spaces.
Safer, faster and easier method for transporting multiple operatives to high or low locations on-site.
Compliant to all BS EN, EU and LOLER Regulations, supplied with chain slings and fitted with internal harness points and recessed handrails to prevent “Knuckling”.
Available in a range of sizes to suit site-specific requirements and varying numbers of operatives.

Specification

CODE	TYPE	LENGTH	WIDTH	HEIGHT	FORK POCKET	WEIGHT	WLL*

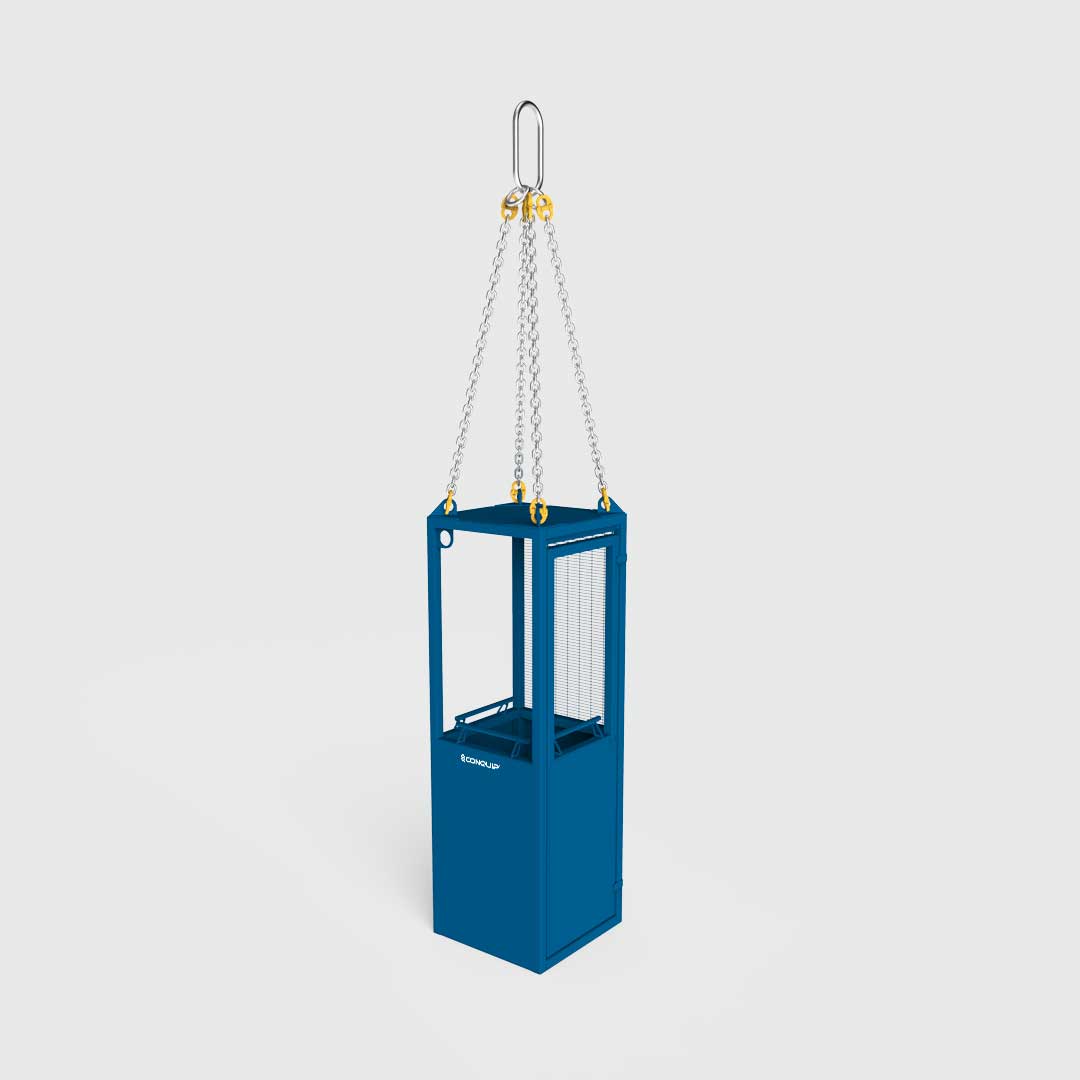

CA126-00120	1 Person	700mm	700mm	2300mm	-	170kg	120kg

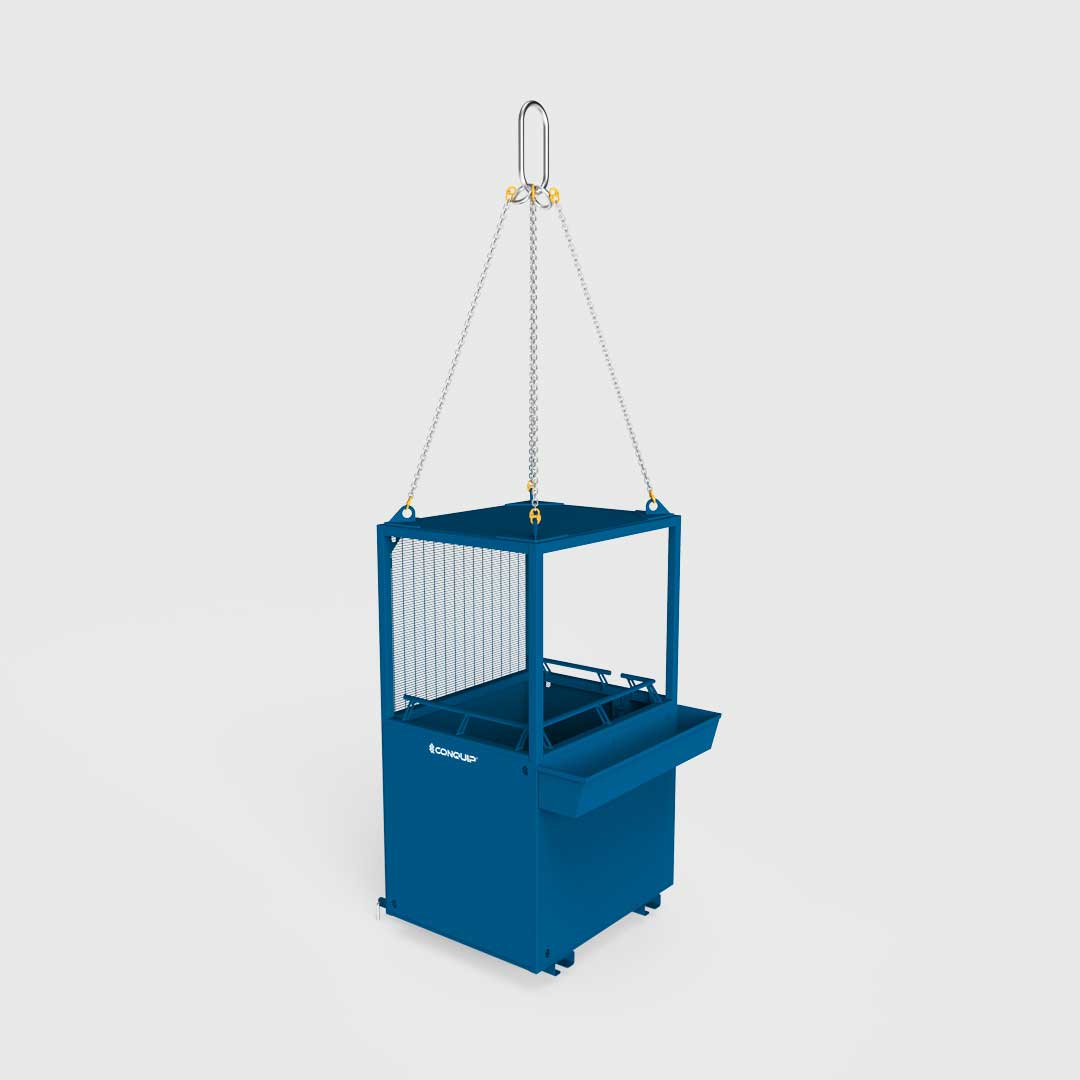

CA120-00240	2 Person	1450mm	1200mm	2210mm	148 x 60mm	400kg	240kg
CA123-00480	4 Person	1450mm	1500mm	2500mm	-	590kg	480kg

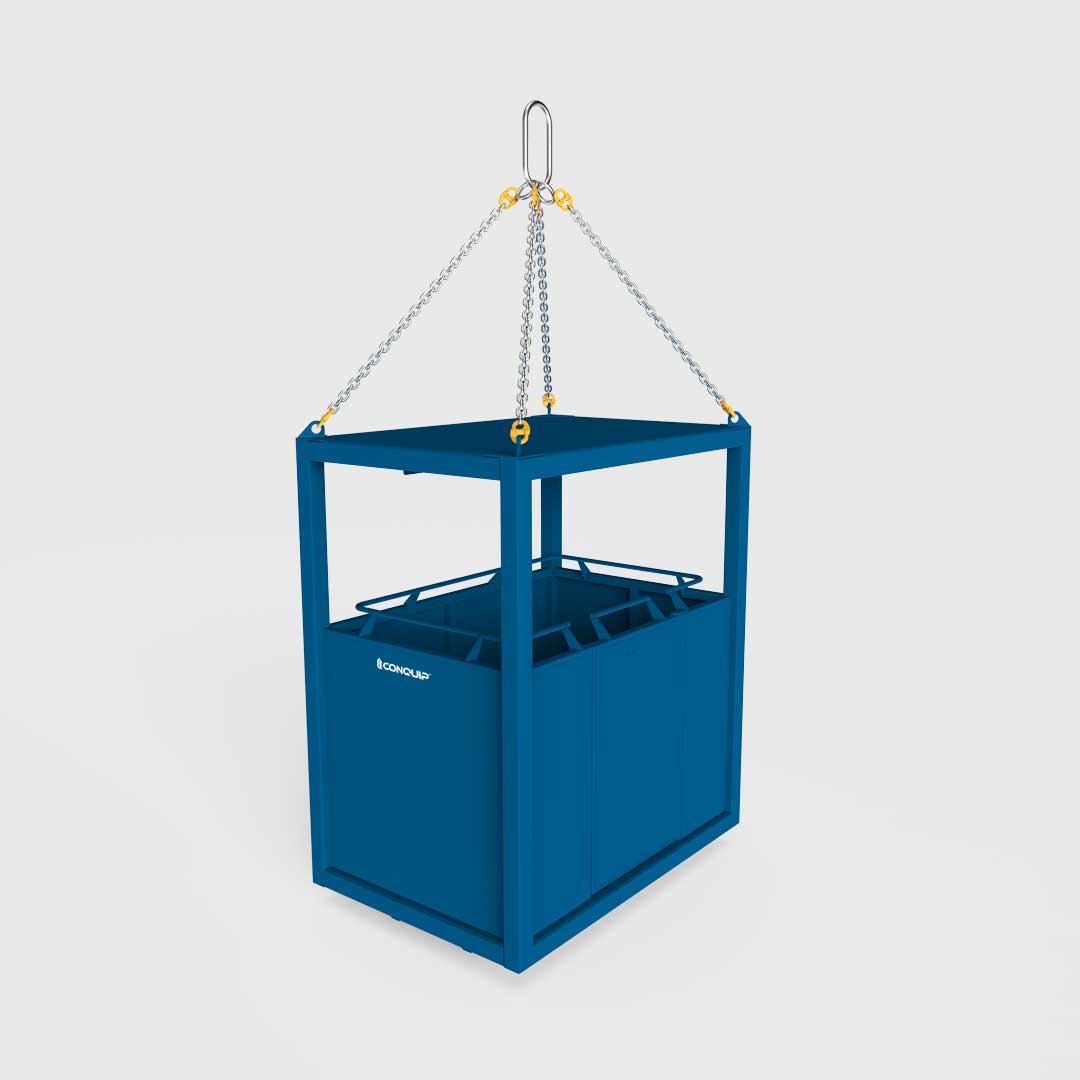

CA123-00720	6 Person	2000mm	1400mm	2250mm	-	730kg	720kg
CA123-01400	12 Person	2700mm	2000mm	2550mm	-	1100kg	1440kg
