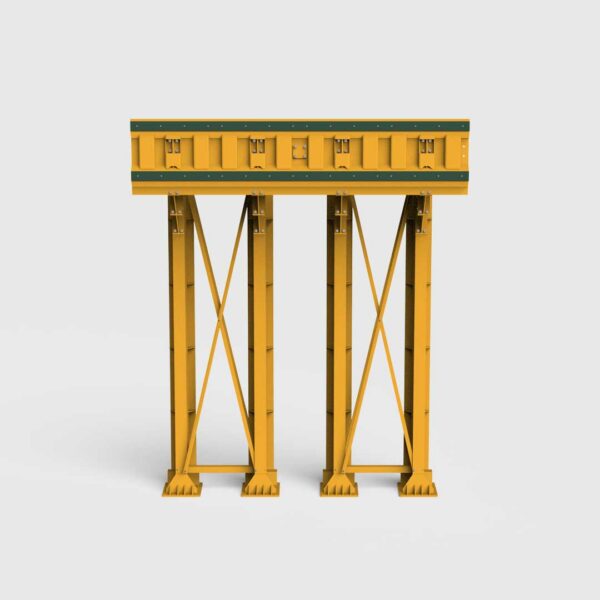

Cantilevered-(Fixed)-Gantry_Front
Cantilevered-(Fixed)-Gantry+Skip_Front
Cantilevered-(Fixed)-Gantry_LF
Cantilevered-(Fixed)-Gantry+Skip_LF
Cantilevered-(Fixed)-Gantry_Left
Cantilevered-(Fixed)-Gantry+Skip_Left
Cantilevered-(Fixed)-Gantry_RF
Cantilevered-(Fixed)-Gantry+Skip_RF
Cantilevered-(Fixed)-Gantry_Front
Cantilevered-(Fixed)-Gantry+Skip_Front
Cantilevered-(Fixed)-Gantry_LF
Cantilevered-(Fixed)-Gantry+Skip_LF
Cantilevered-(Fixed)-Gantry_Left
Cantilevered-(Fixed)-Gantry+Skip_Left
Cantilevered-(Fixed)-Gantry_RF
Cantilevered-(Fixed)-Gantry+Skip_RF

Cantilevered Gantry BulkX


BulkX is a quick, efficient muck away solution allowing excavation and transfer of the waste directly into spoil removal vehicles or stockpiles.

The Cantilevered Gantry BulkX configuration consists of a compact, bolt-down gantry framework, making it ideal for sites with limited space. Thanks to its simplicity and size, it is often used on inner city projects to minimise restrictions to traffic.

For more information, please visit BulkX System.

Quantity
SKU: N/A Category:

Details

FEATURES

  • Robust gantry design to withstand regular use on-site.
  • Integrated hook for quick and easy attachment of the skip to the gantry.
  • 2-leg gantry for smaller skip sizes/capacities.
  • 4-leg gantry for larger skip sizes/capacities.

BENEFITS

  • Compact configuration, ideal for sites with restricted space or limited access.
  • Works well if erected to the side of a loading bay on tight sites as it doesn’t affect other delivery unloading area.
  • Compatible with Side-Mounted BulkX skip sizes from 4m³ to 14m³.
  • System can be customised for specific requirements, for example gantry extending over the site hoarding to discharge into truck.
  • Conquip can manufacture any required bespoke skip size and will collaborate with the site team to develop the ideal gantry solution for your site, or in some cases without a gantry, see our Direct-to-Truck BulkX system.

Specification

The Cantilevered Gantry is compatible with all our standard Side-Mounted BulkX skip sizes listed below. Bespoke skip sizes are also available upon request. Contact our team for more information.

Skip

PRODUCT CODE BULKX SKIP TYPE GANTRY TYPE WLL* CAPACITY
CA505-04000 Side-Mounted BulkX Cantilevered / Pit Lane 10,000kg 4000 litres
CA505-05000 Side-Mounted BulkX  Cantilevered / Pit Lane 10,000kg 5000 litres
CA505-06000 Side-Mounted BulkX  Cantilevered / Pit Lane 14,000kg 6000 litres
CA505-07000 Side-Mounted BulkX  Cantilevered / Pit Lane 14,000kg 7000 litres
CA505-08000 Side-Mounted BulkX  Cantilevered / Pit Lane 20,000kg 8000 litres
CA505-10000 Side-Mounted BulkX  Cantilevered / Pit Lane 20,000kg 10000 litres
CA505-12000 Side-Mounted BulkX  Cantilevered / Pit Lane 28,000kg 12000 litres
CA505-14000 Side-Mounted BulkX  Cantilevered / Pit Lane 28,000kg 14000 litres



Gantry

PRODUCT CODE LENGTH WIDTH HEIGHT WEIGHT WLL* SKIP CAPACITY
MB101 2082mm 4900mm 5908mm 7214kg 28,000kg 4000-14,000 litres

* Working Load Limit.

NB: Our stock of gantries has evolved over the years and some dimensions may differ from the information in this table. Please contact us to discuss your requirements in detail.
