Trench Sheets

Name: Trench Sheets
SKU: 3386
Availability: InStock

Standard lap trench sheets for construction work and temporary deployment.

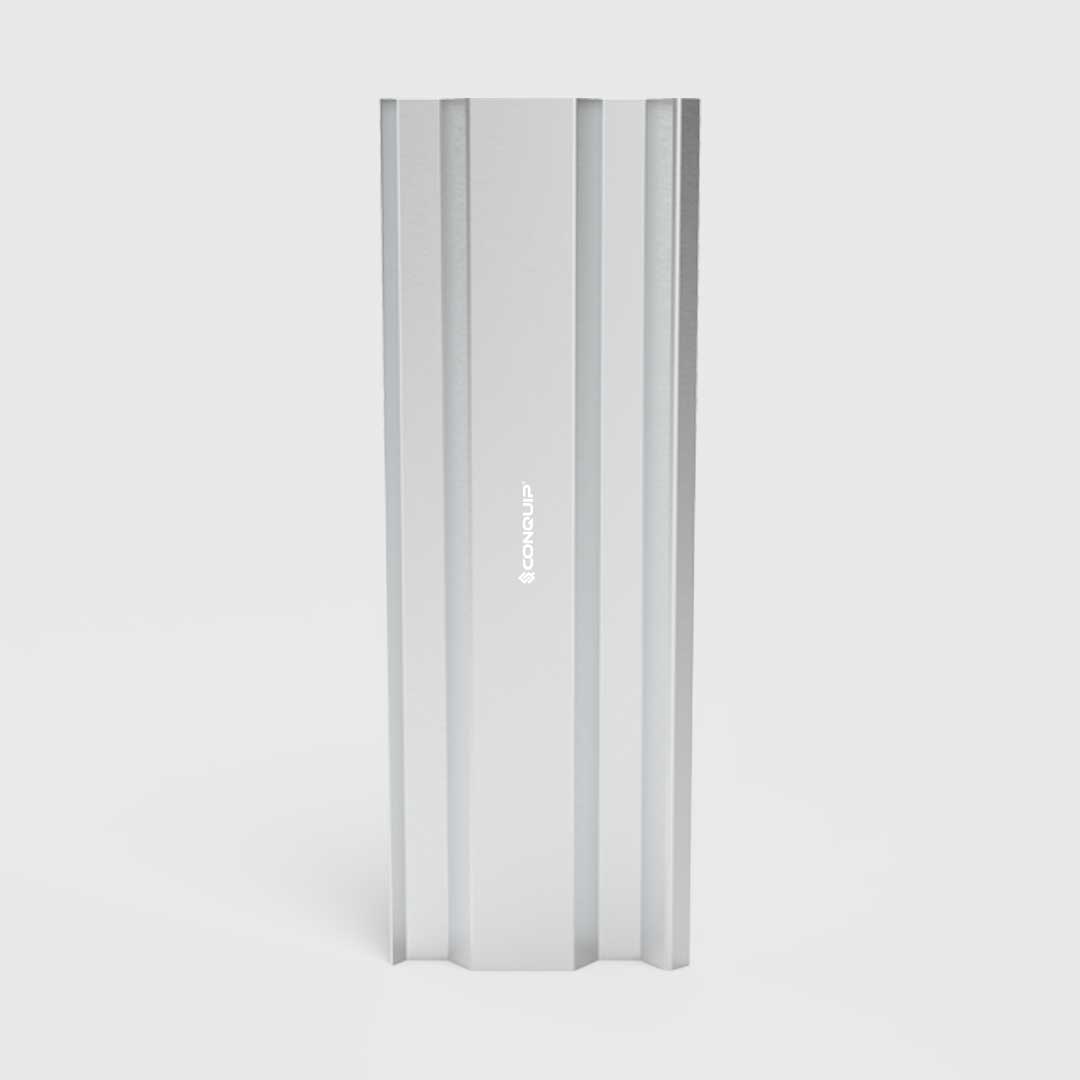

The Conquip Trench Sheets are lightweight, overlapping trench sheeting profiles, ensuring a high strength to weight ratio, which provides a safe environment for those working in trenches.

Typical applications include small trenches and excavations, including basements, sewerage, water, gas or other services. They are particularly useful for when services cross.

Type

Height

Clear

Quantity

SKU: N/A Category: Trench Shoring Tags: excavation equipment, excavation support, lap, lap sheet, lap sheets, lining, profiles, sheet profiles, shoring, standard lap trench sheets, steel, TL, trench lap sheet, trench lapping, trench lining, trench protection

Product features & benefits
Specification

Product features & benefits

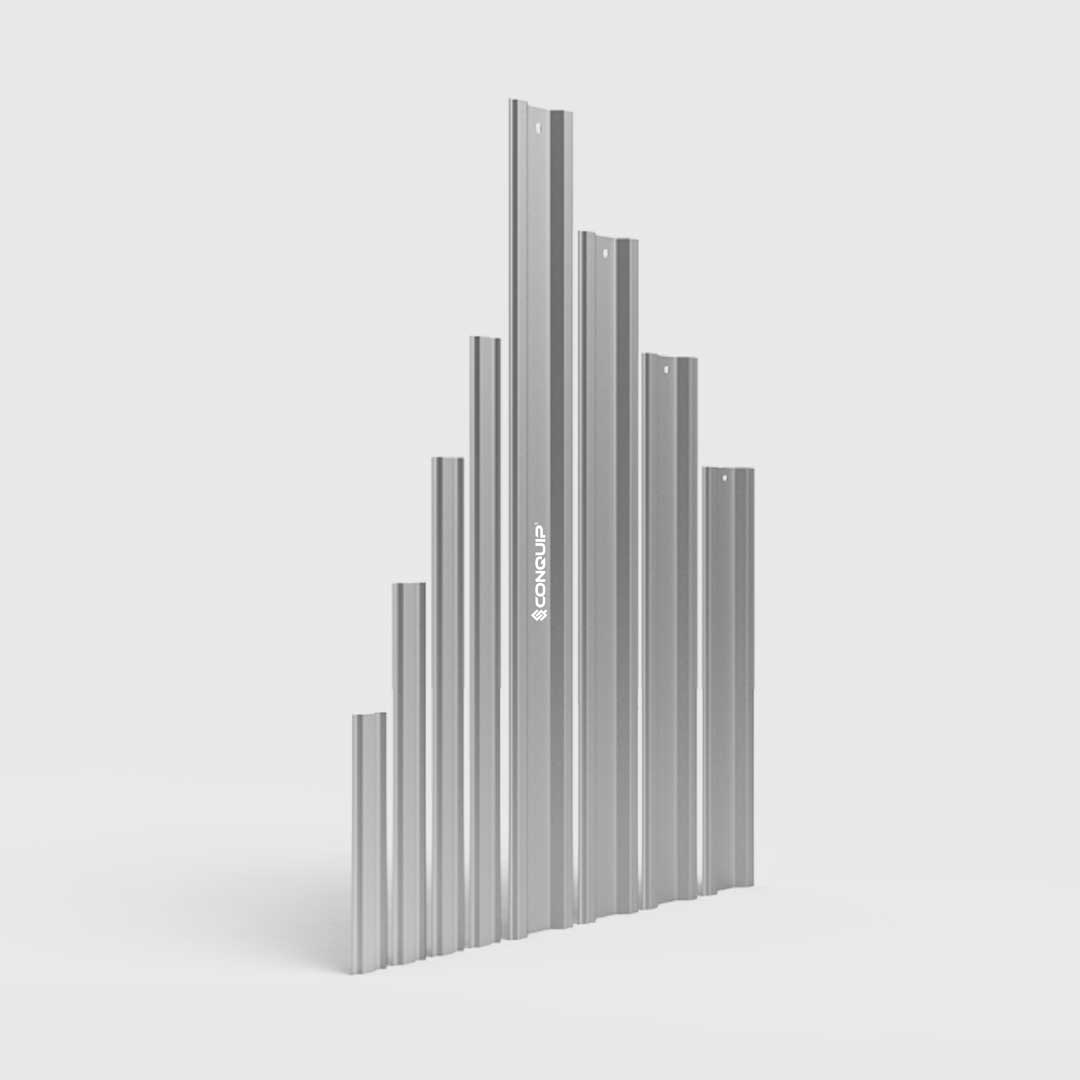

Available in a variety of lengths to suit specific site requirements.
Provides a safe environment for workers working in the excavation.
Quick and easy to use and set up.

Specification

PRODUCT TYPE	PRODUCT CODE	HEIGHT	WIDTH	EFFECTIVE WIDTH	DEPTH	STEEL THICKNESS	WEIGHT	WEIGHT (Per m²)	SECTION MODULUS (Per meter width)
Standard	TL900024	2000mm	345mm	330mm	35mm	3.4mm	22kg	10.8kg	48.3cm³
Standard	TL900028	3000mm	345mm	330mm	35mm	3.4mm	33kg	10.8kg	48.3cm³
Standard	TL900021	4000mm	345mm	330mm	35mm	3.4mm	44kg	10.8kg	48.3cm³
Standard	TL900022	5000mm	345mm	330mm	35mm	3.4mm	55kg	10.8kg	48.3cm³
HD2	TL900025	4000mm	764mm	742mm	90mm	8mm	217kg	54.2kg	187.91cm³
HD2	TL900023	5000mm	764mm	742mm	90mm	8mm	271kg	54.2kg	187.91cm³
HD2	TL900091	6000mm	764mm	742mm	90mm	8mm	325kg	54.2kg	187.91cm³
HD2	TL900079	7000mm	764mm	742mm	90mm	8mm	380kg	54.2kg	187.91cm³
