Manhole Ring Lifting Pin
A steel pin for quick, safe lifting of concrete manhole ring sections.

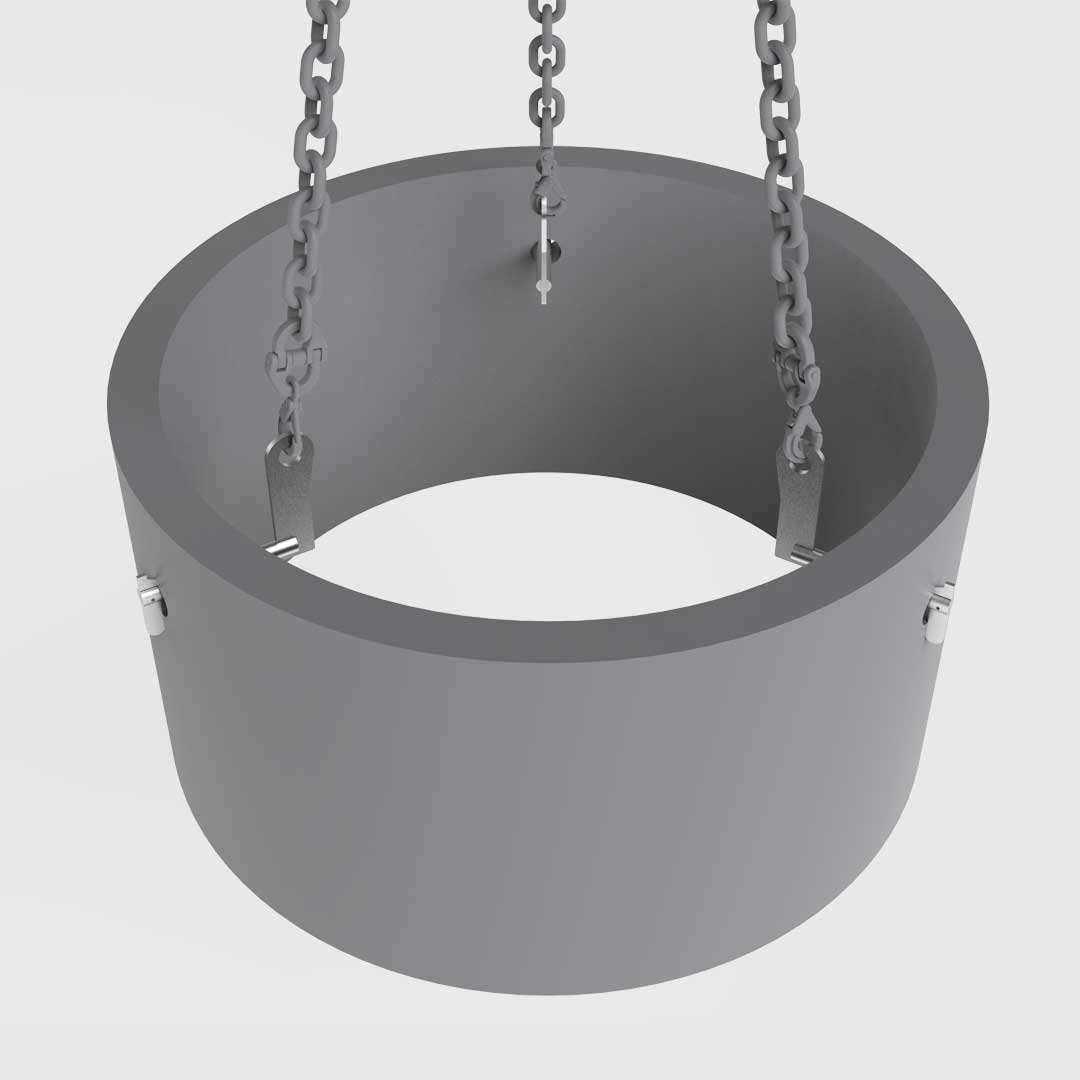

The Conquip Manhole Ring Lifting Pin is a steel pin with a lifting point for positioning and repositioning precast concrete manhole ring sections by crane, or other similar lifting apparatus, quickly, safely and easily.
Details
- Simple design for quick, safe attachment and release.
- Ideal for repositioning manhole ring sections, or to assist with removing lifting slings from around the ring section.
- Available in a range of sizes to a suit most recast ring sections.
Specification
| PRODUCT CODE | HEIGHT | LENGTH | BAR DIAMETER | MAX WALL THICKNESS | WLL* | WEIGHT |
| CA211-00750 | 140mm | 270mm | 25mm | 115mm | 750kg | 2kg |
| CA211-01000 | 140mm | 310mm | 32mm | 150mm | 1000kg | 2.5kg |
| CA211-01500 | 155mm | 335mm | 35mm | 175mm | 1500kg | 3.5kg |
| CA211-02000 | 155mm | 375mm | 38mm | 215mm | 2000kg | 4kg |
*Working Load Limit
