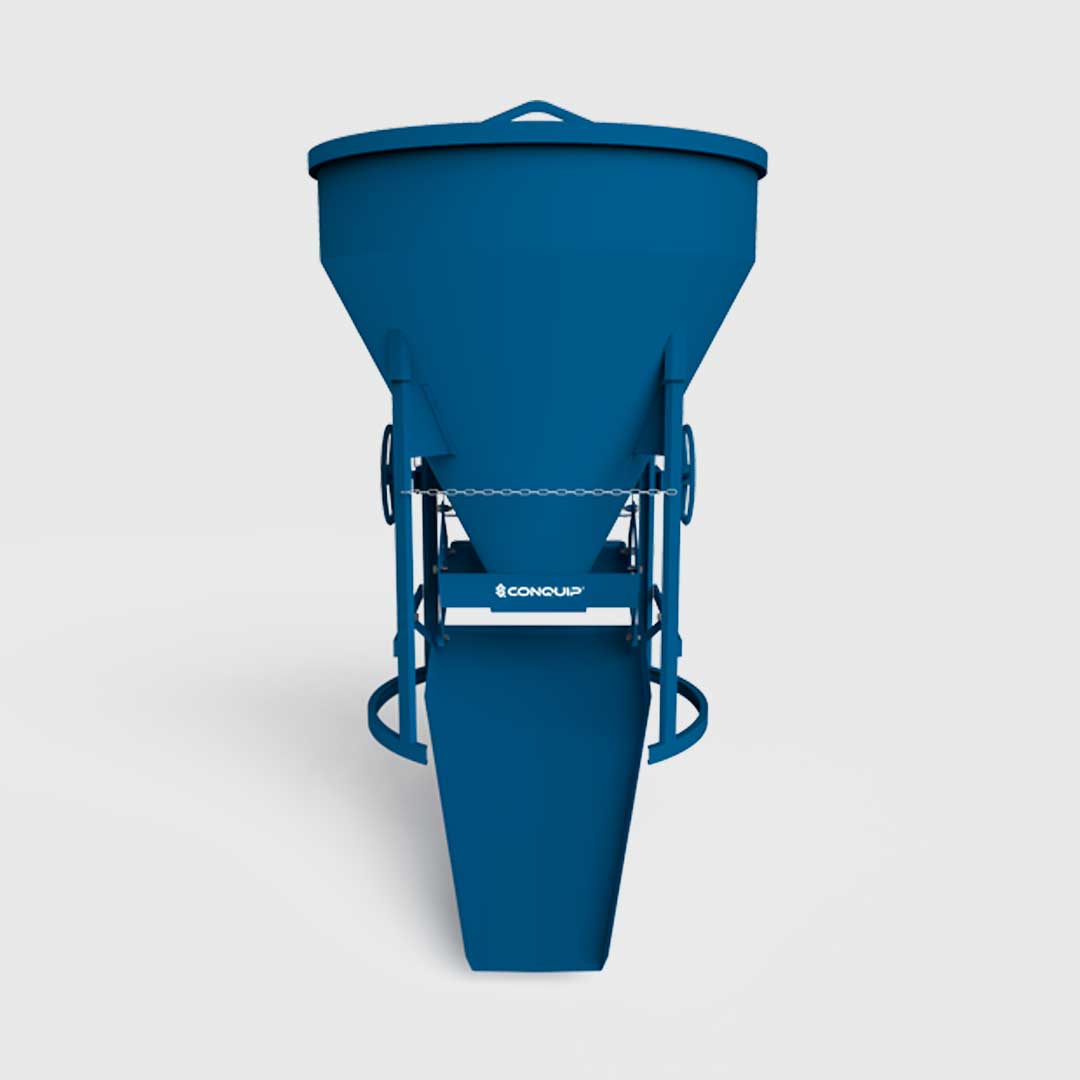

Concrete Twinflow Skip

A versatile, multi-use skip for directional pouring of concrete.

The Conquip Concrete Twinflow Skip is a general purpose skip for fast and accurate placing of concrete.

It can be used as a bottom discharge skip for mass concrete pours, or as a side discharge skip for more accurate placing of concrete in shutters it can be either geared or levered opening for easy flow.

Quantity
Download User Guide
SKU: N/A Category: Tags: , , , , , , ,

Details

  • Versatile design and easily adjustable for maximum efficiency of use.
  • Accurate placement of concrete due to funnelled chute design.
  • Frame design to allow the skip to stand upright safely when being filled.
  • Available in both a levered and geared variation for maximum choice in relation to the control of the concrete pour.

Specification

PRODUCT TYPE PRODUCT CODE HEIGHT LENGTH WIDTH WLL* WEIGHT CAPACITY
 Levered Twinflow Skip CS203-00500 1650mm  1460mm 1110mm  1500kg  140kg  500litres
 Levered Twinflow Skip CS203-00500 1460mm  1810mm 1500mm  2250kg  215kg  750litres
Levered Twinflow Skip CS203-01000 2000mm 1700mm 1510mm 3000kg  240kg  1000litres
Geared Twinflow Skip CS204-00500 1650mm 1460mm 1110mm 1500kg 205kg 500litres
Geared Twinflow Skip CS204-00750 1460mm 1810mm 1500mm 2250kg 215kg 750litres
Geared Twinflow Skip CS204-01000 2000mm 1700mm 1510mm 3000kg 220kg 1000litres

*Working Load Limit
