Concrete Column Skip Without Bale Arm

A versatile, all-purpose skip for pouring concrete.

The Conquip Concrete Column Skip, sometimes known as a Tremie Skip, is a versatile, all-purpose skip for pouring concrete.

The Column Skip can be used for more than just columns, it can be used for walls, narrow formwork and pipe laying work.

Capacity

Hire/Purchase

Clear

Quantity

Details

No bale arm design for additional safety.
Provided with a 3-metre length of reinforced rubber discharge hose and pull rope for pouring concrete, at no extra cost.
Robust design to withstand wear from use on construction sites.
Strong spring retractor ensures discharge gate automatically closes when pouring is complete.

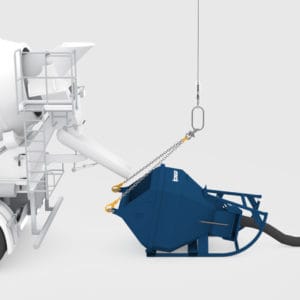

Designed to lay horizontally on the ground to assist filling from the concrete truck.
Available in capacities from 500 to 4000 litres, ensuring there is a solution for every project, regardless of the crane capacity or the amount of concrete required.
Sometimes referred to on-site as a tremie skip.

Specification

PRODUCT CODE	HEIGHT	WIDTH	LENGTH	WLL*	WEIGHT	CAPACITY
CS210AA-00500	1270mm	1130mm	1970mm	1500kg	360kg	500 litres
CS210AA-01000	1465mm	1385mm	2350mm	3000kg	490kg	1000 litres
CS210AA-01500	1660mm	1590mm	2450mm	4500kg	580kg	1500 litres
CS210AA-02000	1670mm	1590mm	2730mm	6000kg	670kg	2000 litres
CS210AA-03000	2130mm	1980mm	3500mm	9000kg	1000kg	3000 litres
CS210AA-04000	2350mm	2150mm	3830mm	12000kg	1480kg	4000 litres

*Working Load Limit
