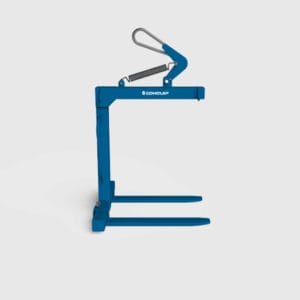

Crane Forks

These forks are self-levelling for crane lifting palletised loads.

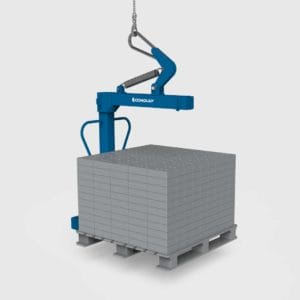

The Conquip Crane Forks are a lifting accessory to be used with a crane or other lifting machine to move palletised loads, where a forklift or telehandler cannot access or would prove inadequate.

A spring-loaded design ensures that the forks are self-leveling regardless of the weight of the load. The telescopic customisation option allows easy height adjustment of the forks, to lift a variety of loads.

Type

Clear

Quantity

Download User Guide

SKU: N/A Category: Lifting Equipment Tags: brick forks, ca102, ca103, crane attachment, crane fork tines, crane lifting equiment, goods lifting, lifting forks, lifting gear, telescopic crane forks

Details

Manufactured with a spring loaded lifting eye, which ensures a balanced lift at all times.
Fully self-levelling when placed on the ground ensuring storage of the forks is easy and safe.
Adjustable height allows flexibility with size of load lifting, particularly with the telescopic crane forks option.

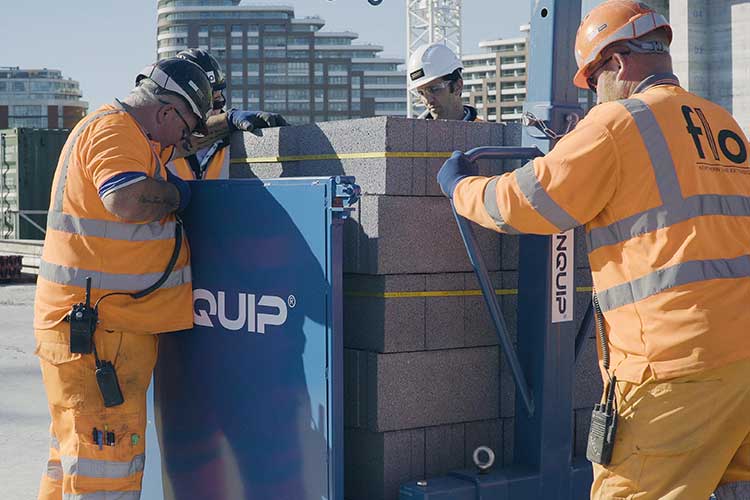

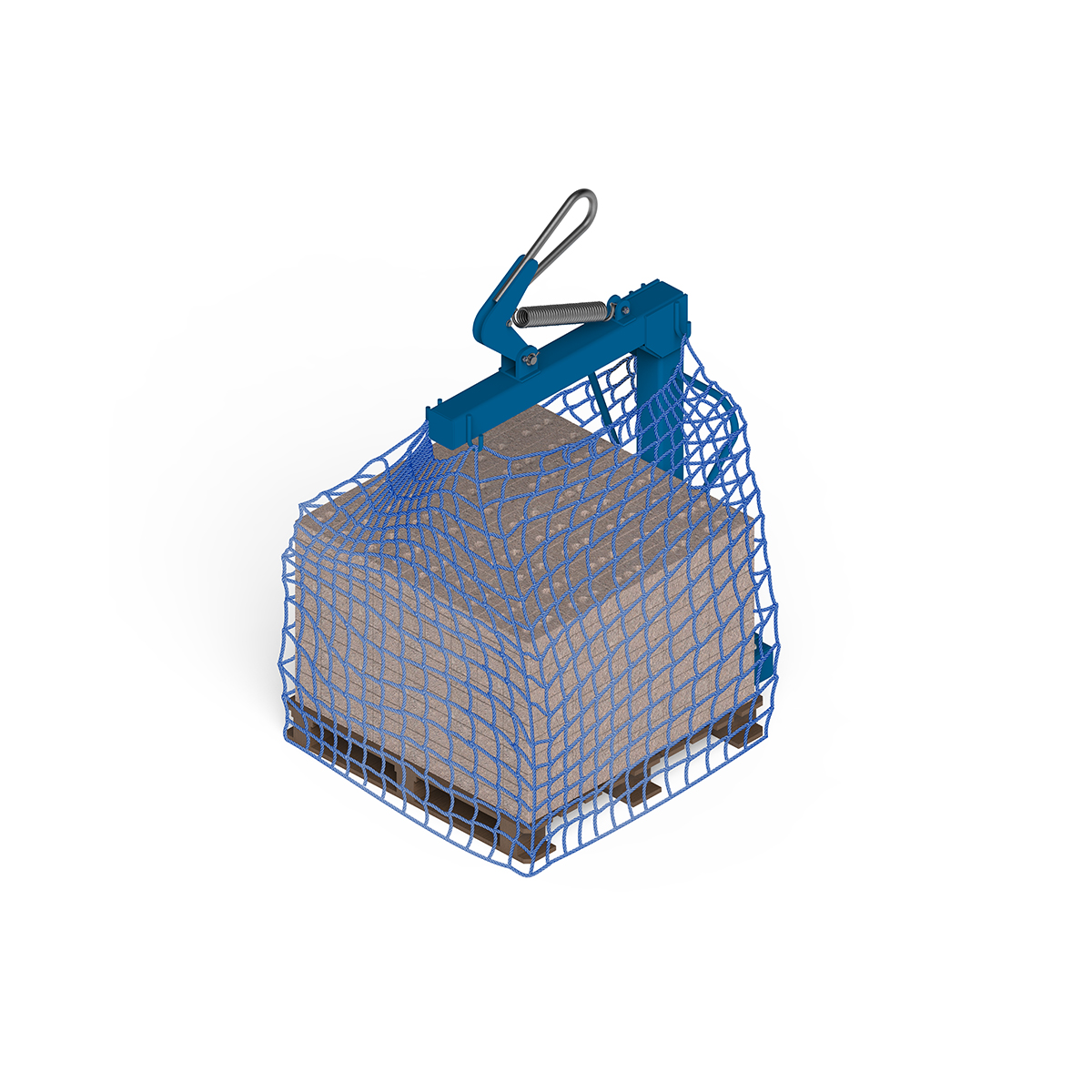

Conquip recommends use with a Crane Forks Cage – our new fail-safe lifting solution for moving and lifting blocks and bricks. Designed for use with the Crane Forks, to change current methods of using a safety restraint net.

Specification

PRODUCT CODE	PRODUCT TYPE	HEIGHT	HEIGHT (Min)	WIDTH	LENGTH	WLL*	WEIGHT
CA102-02000	Fixed Height	1960mm	N/A	940mm	1180mm	2000kg	150kg
CA103-02000	Telescopic Height	2600mm	1975mm	950mm	1200mm	2000kg	190kg
