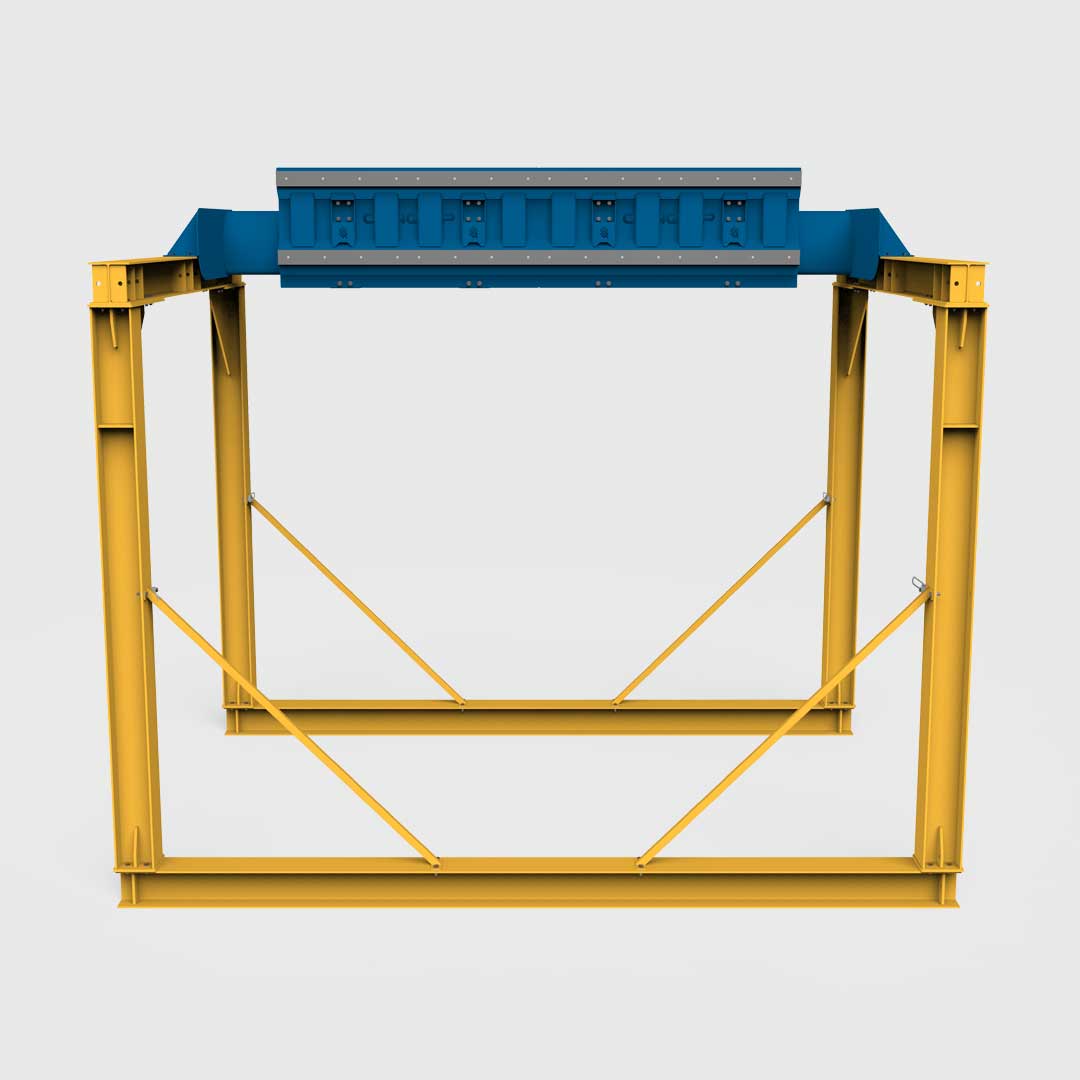

free standing gantry front view

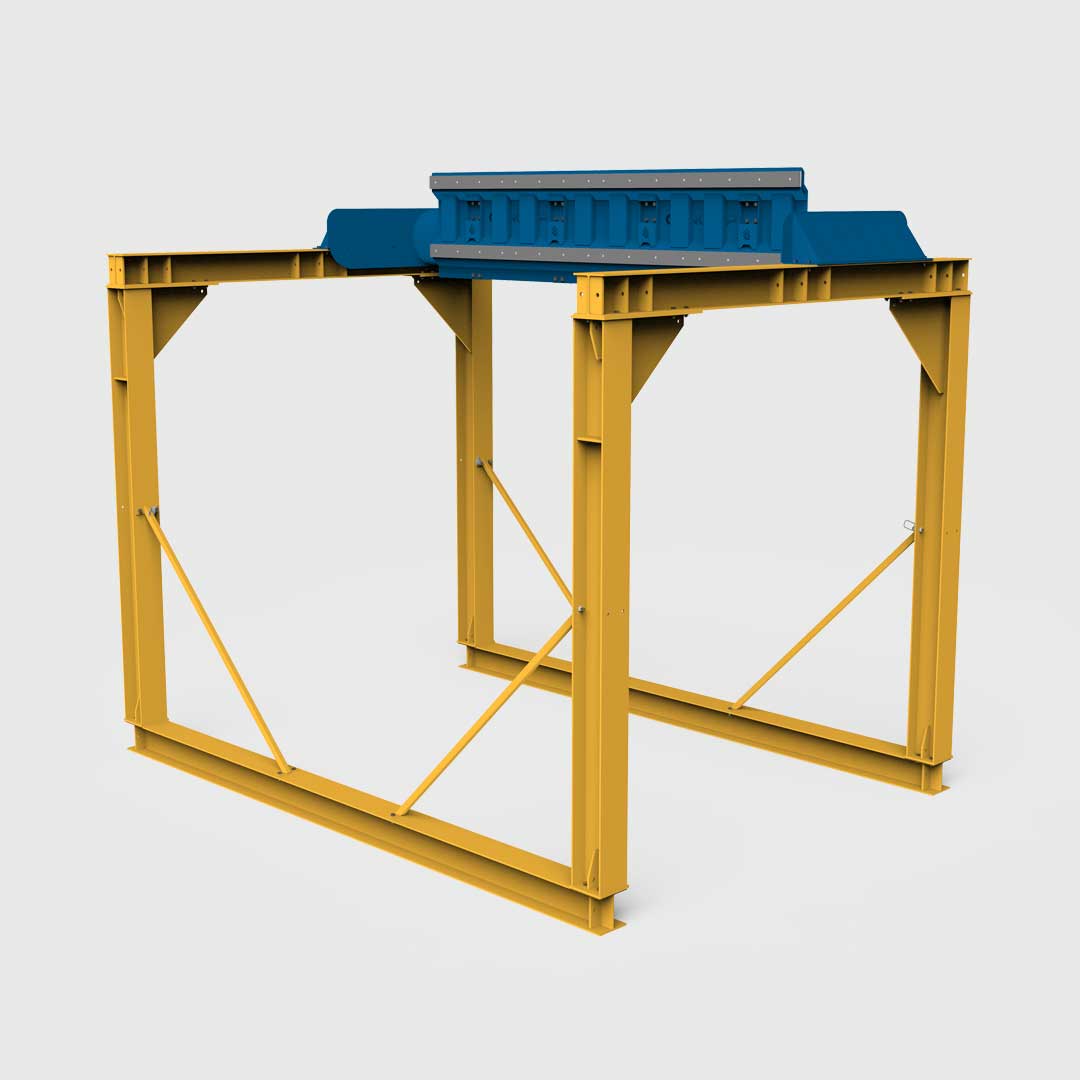

free standing gantry for bulkx left side view

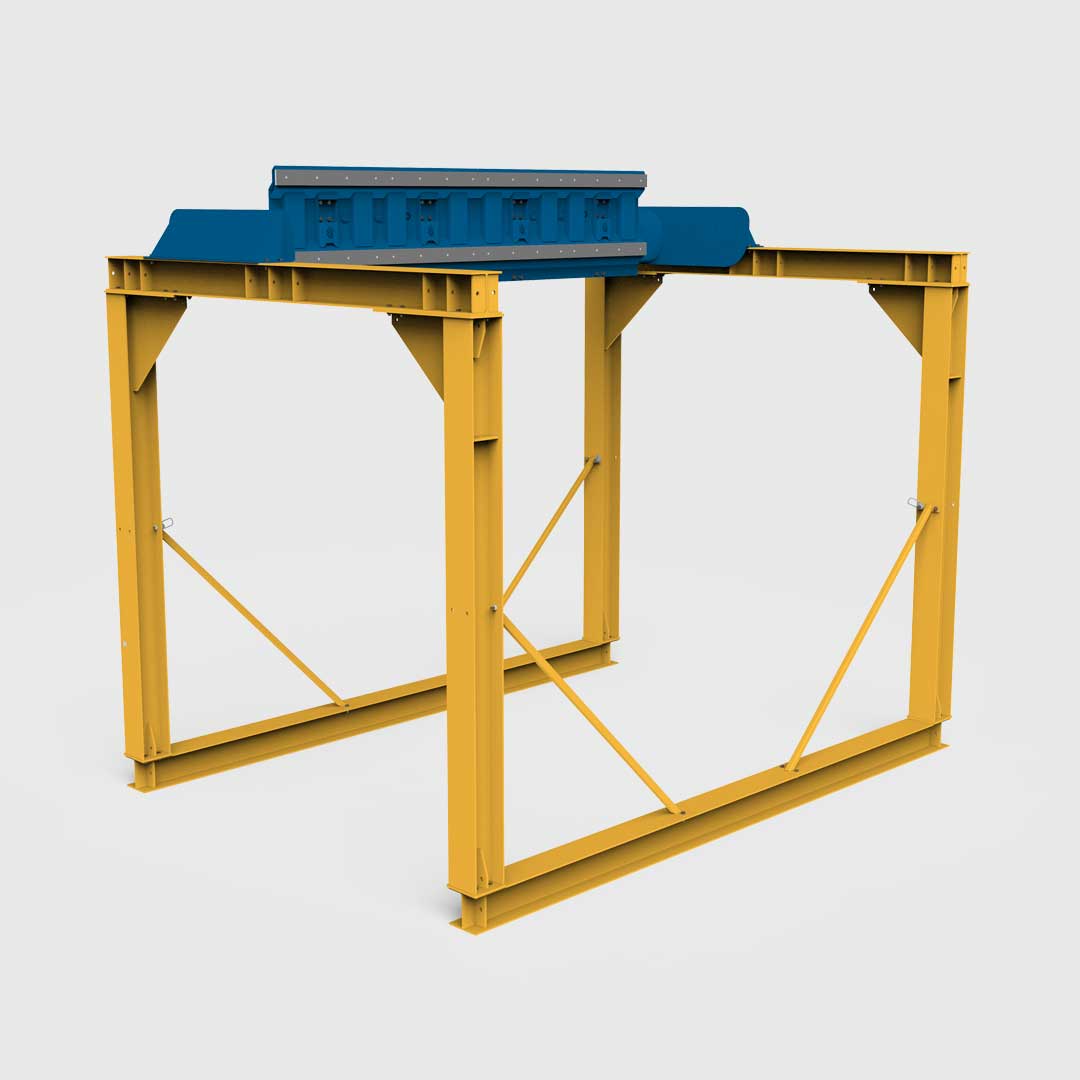

free standing gantry for bulkx right side view

Free Standing Gantry BulkX

The free standing gantry configuration allows for repositioning of the discharge area around the site.

The Free Standing Gantry BulkX system comes with a complete crane-lift framework which can be installed in the desired location for the discharge area. The truck can drive or reverse under the frame.

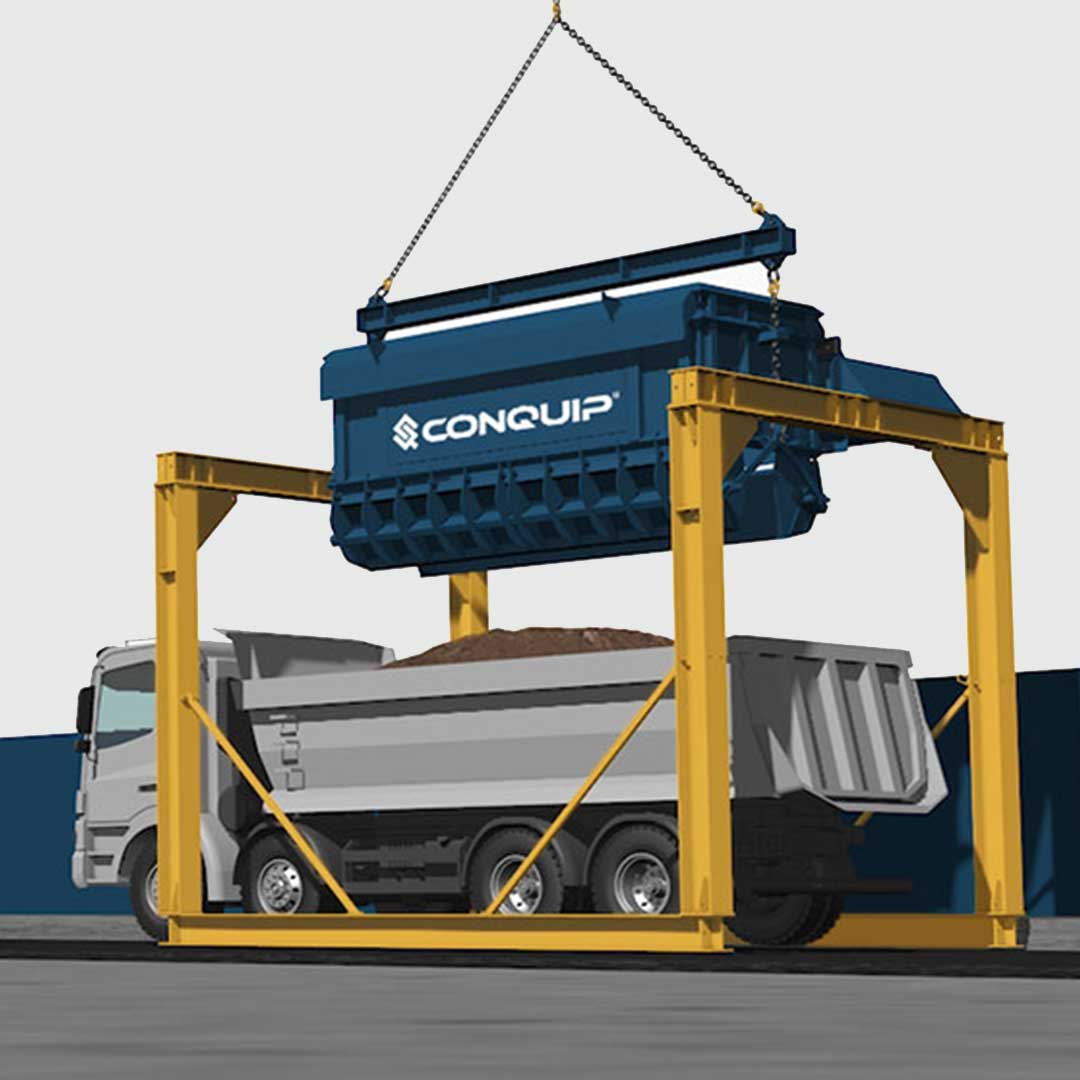

BulkX skip, once lowered into position, interlocks with the gantry. The crane operator can then lower the lifting chains which opens the skip doors discharging the waste into the back of the truck. Doors closes once the skip is crane-lifted off the gantry.

This configuration is ideal for site where the location of the discharge area needs to change throughout the project. An example of this is where a one lane road closure is permitted during certain hours in an excavation program – the Free Standing Gantry can be used in the one lane road closure throughout the day and then moved at night to allow the road to open again.

Quantity
SKU: N/A Category: Tags: , , ,

Details

  • The Free Standing Gantry BulkX is a bulk excavation solution for applications such as tunnelling, shaft sinking, demolition arisings removal and basement excavations.
  • Available for a variety of BulkX skip sizes – see the product specification.
  • Conquip can manufacture any required bespoke skip size and will collaborate with the site team to develop the ideal gantry solution for your site, or in some cases without a gantry, see our Direct-to-Truck BulkX system.
  • We can assist you with the planning of the ideal BulkX size, so you can a reduce costs and save time on your excavation and loadout of spoil trucks.

Specification

The Free Standing Gantry is compatible with all our standard BulkX skip sizes listed below. Bespoke skip sizes are also available upon request. Contact our team for more information.

Skip

PRODUCT TYPE PRODUCT CODE LENGTH WIDTH TRANPSORT HEIGHT WORKING HEIGHT WEIGHT WLL* CAPACITY
BulkX 3000 CA505-03000 2643mm 1984mm 1476mm 2230mm 1350kg 6000kg 3000 litres
BulkX 4000 CA505-04000 2634mm 2035mm 1826mm 2993mm 1550kg 8000kg 4000 litres
BulkX 6000 CA505-06000 2958mm 2027mm 2211mm 2975mm 1850kg 12000kg 6000 litres
BulkX 10000 CA505-10000 4858mm 2127mm 2211mm 2961mm 4000kg 20000kg 10000 litres
BulkX 12000 CA505-12000 5200mm 2567mm 2175mm 3089mm 4100kg 24000kg 12000 litres



Gantry

PRODUCT CODE BULKX SKIP CAPACITY LENGTH WIDTH HEIGHT WEIGHT WLL*
DG250-6000 Up to 6000 litres 3500mm 6500mm 5400mm 4800kg 12000kg
DG250-12000 Above 6000 litres 6668mm 4910mm 5841mm 7500kg 28000kg

* Working Load Limit
