small goods cage with open standard access gate

large goods cage with open standard access gate

large goods cage with open standard access gate loaded with pallets

Goods Cage

Name: Goods Cage
SKU: 3141
Availability: InStock

Lifting cage for transporting and lifting materials or equipment.

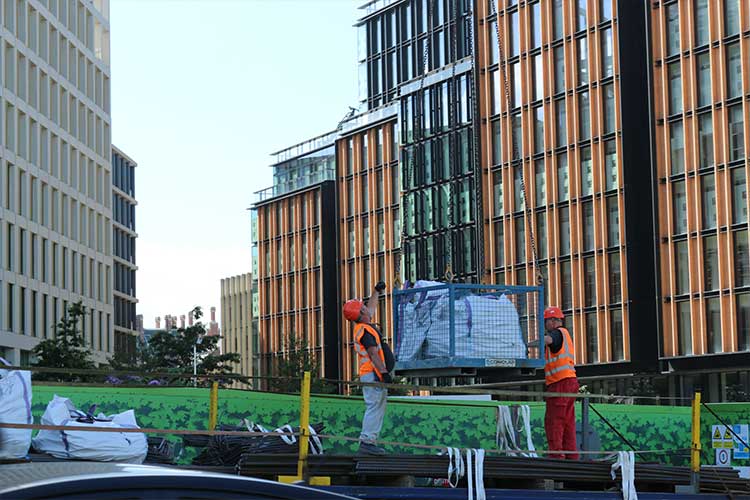

The Conquip Goods Cage is a safe, convenient method of transporting materials to and from high or low locations on site. With the increase in regulations around lifting materials safely on site and offsite construction, the Goods Cage is an asset to any project.

It is manufactured in a range of sizes and with ramped access variations. Available to crane lift or fork lift for easy manoeuvrability around site.

Best Practice Solution

Efficient

Size

Type

Clear

Quantity

SKU: N/A Category: Lifting Equipment Tags: ca118, CA118-01638, CA118-03277, ca124, CA124-01658, CA124AK, CA124AK-03277, CA124AL, CA124AL-03277, crane goods cage, crane lifting equipment, facade lifter, goods carrying cage, goods cradle, lifting cage, pod lifting cage, ramped

Specification
Details

Specification

PRODUCT CODE	SIZE	TYPE	HEIGHT	LENGTH	WIDTH	WLL*	WEIGHT
CA118-01638	Small	Gate Access	1280mm	1280mm	1280mm	3000kg	270kg
CA124-01658	Small	Ramp Access	1300mm	1360mm	1300mm	3000kg	300kg
CA118-03277	Large	Gate Access	1280mm	2560mm	1280mm	3000kg	450kg
CA124AK-03277	Large	Ramp Access (Short Side)	1300mm	2645mm	1300mm	3000kg	460kg
CA124AL-03277	Large	Ramp Access (Long Side)	1300mm	2560mm	1300mm	3000kg	500kg

Internal Dimensions

PRODUCT CODE	SIZE	TYPE	LENGTH	WIDTH	CLEAR AREA LENGTH	CLEAR AREA WIDTH
CA118-01638	Small	Gate Access	1176mm	1180mm	956mm	1055mm
CA124-01658	Small	Ramp Access	1130mm	1180mm	956mm	1055mm
CA118-03277	Large	Gate Access	2460mm	1173mm	2309mm	994mm
CA124AK-03277	Large	Ramp Access (Short Side)	2410mm	1180mm	2276mm	1055mm
CA124AL-03277	Large	Ramp Access (Long Side)	2460mm	1130mm	2309mm	994mm

*Working Load Limit

Details

The Goods Lifting Cage is available in a variety of sizes and customisation options.
Easy loading due to front gate or fold down ramp on some options, allowing ability to load the cage using pallet carts and sack barrows.

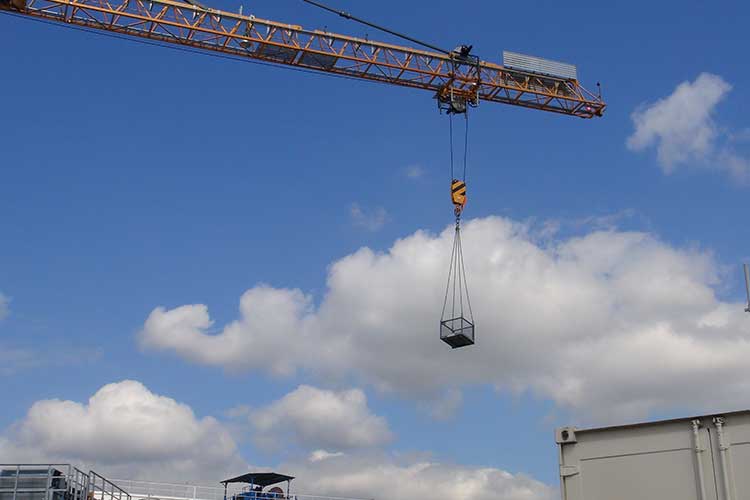

It can be fork lifted or crane lifted around site.
Safe and secure for transporting materials, such as rebar lengths, without risk of dropping into the area below.
Manufactured in the UK from British and European steel.
Customer feedback: “[Our Goods Cage] is in constant use on site and is a valuable asset; the side unloading/loading ramp is its making. Why do four crane lifts when you can do it in one?”
