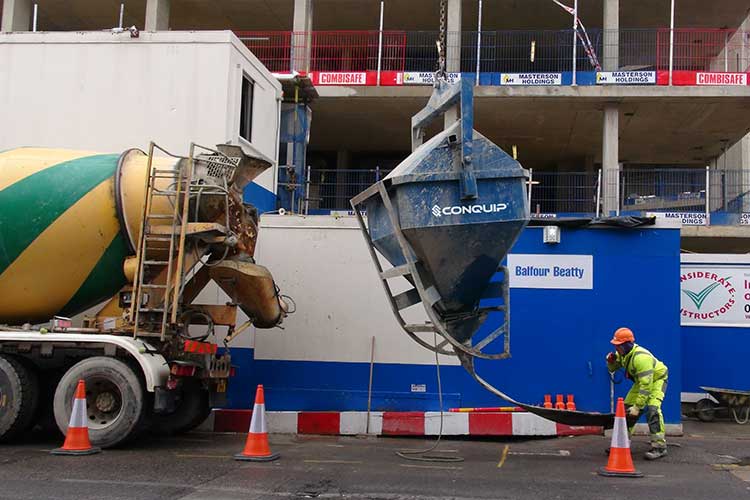

Concrete Column Skip - With Bale Arm - Concrete Truck

Concrete Kibble With Bale Arm

Name: Concrete Kibble With Bale Arm
SKU: 3043
Availability: InStock

Featuring a bale arm for enhanced lifting flexibility, the Concrete Column Kibble is a go-to choice for precise column pours. It ensures even concrete distribution into column moulds, minimising the risk of voids and ensuring structural integrity.

So why choose Conquip…

Choosing Conquip means investing in more than just equipment—it’s a partnership focused on your success. Our Concrete Kibbles are designed with meticulous attention to detail, using top-tier materials to ensure optimal performance and durability.

With a commitment to innovation and customer-centric design, we provide products that enhance safety, reduce environmental impact, and save costs on-site. Supported by a team dedicated to quality and exceptional service, Conquip stands out as the trusted choice for professionals in the construction industry.

Manufactured in the UK

Safe

Capacity

Optional Extras

Blowout Attachment

Clear

Quantity

SKU: N/A Category: Concrete Kibbles Tags: concrete bucket, concrete funnel kibble, concrete kibble, cranelift kibble, CS210, CS210-00500, CS210-00750, CS210-01000, CS210-01500, CS210-02000, kibble for pouring concrete, pouring concrete, tremmie hose, tremmie kibble, worksafe column kibble

Specification
Details

Specification

PRODUCT CODE	HEIGHT	HEIGHT WITH BALE	WIDTH	LENGTH	LENGTH WITH BALE	WLL*	WEIGHT	CAPACITY
CS210-00500	1200mm	1570mm	1370mm	1920mm	2480mm	1500kg	340kg	500 litres
CS210-00750	1340mm	1740mm	1520mm	2080mm	2670mm	2250kg	400kg	750 litres
CS210-01000	1350mm	1760mm	1520mm	2190mm	2760mm	3000kg	400kg	1000 litres
CS210-01500	1620mm	2110mm	1780mm	2440mm	3200mm	4500kg	660kg	1500 litres
CS210-02000	1670mm	2150mm	1780mm	2720mm	3500mm	6000kg	660kg	2000 litres

*Working Load Limit

Details

Features

Provided with a 3-metre length of reinforced rubber discharge hose and pull rope for pouring concrete.
Deflector plate prevents concrete splashing personnel or contaminating the ground below when the flow gate opens and closes.
Grout tray collects any excess concrete during flow gate operation.
Robust design to ensure durability on construction sites.
A strong spring retractor ensures automatic closing of the discharge gate when pouring is complete.
Safety restraint chain keeps the bale arm secure and safe when the skip is not being used.

Benefits

Reinforced heavy duty gate mechanism to reduce gate wear and jamming.
Heavy Duty box section and thick plate style bale arm for durability and prevent bending and the bale arm is quick release for ease of replacement.
Lifting points are designed to take a lifting shackle to reduce friction and wear on the bale arm.
Reinforced & enclosed roll frame to prevent bending and concrete filling up in the channels.
Easily removable gate mechanism for ease of emplacement when worn.
Multiple optional extra’s for larger and longer hoses, hose directional placement and gate upgrades.
Designed to lay horizontally on the ground to assist filling from the concrete truck.
Available in a range of sizes with capacities from 500 to 2000 litres, ensuring there is a solution for every project, regardless of the crane capacity or amount of concrete required.
Version without bale arm also available – click here to view
Now available with a range of NEW modifications to improve safety on-site:
01/ Extended Flow Gate Handle: Removes operative from underneath the kibble when operating the flow gate.
02/ Hose Guide: Allows operatives to position the hose during a pour without being stood underneath the kibble.
03/ Bauer Connection: Quick-release system for switching between different hose lengths without needing to tamper with hose clips and refit hoses.
Blowout Attachment available for clearing concrete lines into the kibble after use, minimising concrete waste and improving project sustainability.
