Trench Sheets

Standard lap trench sheets for construction work and temporary deployment.

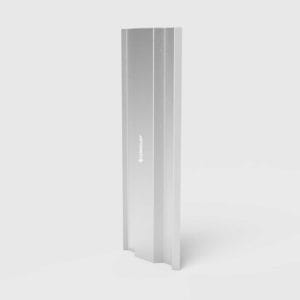

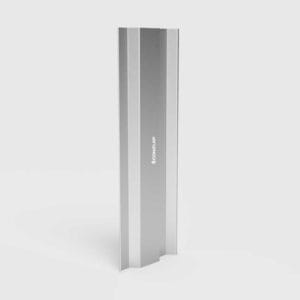

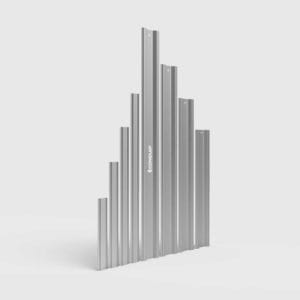

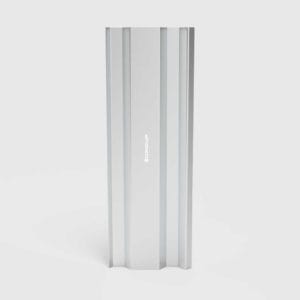

The Conquip Trench Sheets are lightweight, overlapping trench sheeting profiles, ensuring a high strength to weight ratio, which provides a safe environment for those working in trenches.

Typical applications include small trenches and excavations, including basements, sewerage, water, gas or other services. They are particularly useful for when services cross.

Quantity

Specification

PRODUCT TYPEPRODUCT CODEHEIGHTWIDTHEFFECTIVE WIDTHDEPTHSTEEL THICKNESSWEIGHTWEIGHT (Per m²)SECTION MODULUS (Per meter width)
StandardTL9000242000mm345mm330mm35mm3.4mm22kg10.8kg48.3cm³
StandardTL9000283000mm345mm330mm35mm3.4mm33kg10.8kg48.3cm³
StandardTL9000214000mm345mm330mm35mm3.4mm44kg10.8kg48.3cm³
StandardTL9000225000mm345mm330mm35mm3.4mm55kg10.8kg48.3cm³
HD2TL9000254000mm764mm742mm90mm8mm217kg54.2kg187.91cm³
HD2TL9000235000mm764mm742mm90mm8mm271kg54.2kg187.91cm³
HD2TL9000916000mm764mm742mm90mm8mm325kg54.2kg187.91cm³
HD2TL9000797000mm764mm742mm90mm8mm380kg54.2kg187.91cm³
