Edge Protection

A full safety system for trench shoring excavations.

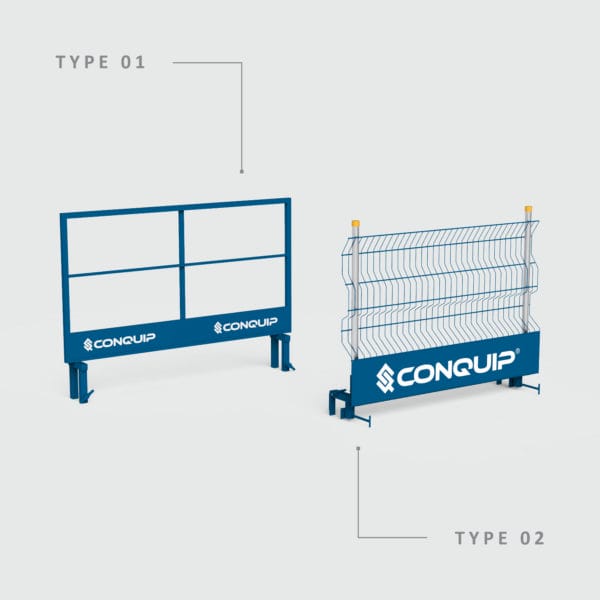

The Conquip Edge Protection is a full safety systems that can be fitted to trench shoring equipment. We offer two variations depending on customer preference:

  • Type 01 is available in 3 panel sizes to suit varying site requirements.
  • Type 02 features same-size panels with telescopic clamps and poles.

It can be provided to suit your site-specific requirements, either with a Conquip Trench Shoring system or for other areas on site. The Conquip telescopic clamp has been designed to allow you to transport a box configuration without having to remove and reinstall the clamped system every time.

Quantity
SKU: N/A Category: Tags: , , , , , , , , , , , , , , , , , ,

Details

  • Type 01 Edge Protection panels are available in 3 sizes to suit varying requirements.
  • Type 02 Edge Protection panels are available in 1.79 metre lengths.
  • Designed to suit Conquip trench shoring, including Trench Boxes and Manhole Boxes.
  • Clamps bolt design of Type 01 allows box systems to be lifted or moved without removing all of the panels.
  • Easy to install and designed to be installed at ground level.
  • The panels work in conjunction with the Trench Access Platform to provide safe gated access to the excavated trench.
  • Telescopic clamps for Type 02 are off-set to allow a box system to be lifted or moved without removing all of the panels.
  • Trench Access Ladders provide personnel access to the excavation or trench, are available in a range of lengths and sizes.

Specification

Type 01

PRODUCT TYPE PRODUCT CODE HEIGHT WIDTH LENGTH WEIGHT
Type 01 Panel - 500mm EP100AC-00001 1400mm 260mm 500mm 23kg
Type 01 Panel - 2000mm EP100AC-00002 1400mm 260mm 2000mm 35kg
Type 01 Panel - 3000mm EP100AC-00003 1400mm 260mm 3000mm 45kg



Type 02*

PRODUCT TYPE PRODUCT CODE HEIGHT WIDTH LENGTH WEIGHT
Edge Protection Panel EP100-00001 1170mm 130mm 1790mm 25kg
Edge Protection Telescopic Clamp EP100-00002 340mm 130mm 1790mm 5.6kg
Edge Protection Pole EP100-00003 340mm 75mm 470mm 5.5kg

*Type 02 Edge Protection: Our Sales Team will be in touch to specify component quantity (Panel, Pole, Clamp) upon receipt of quote.
