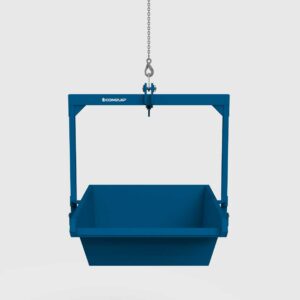

Muck Bin

Heavy-duty bin for general muck and waste removal, ideal for heavy loads.

The Conquip Muck Bin has a low loading height and drop-down bale making loading the bin very easy. It is designed with a slotted bale arm, lifting point and latch for automatic emptying of the bin by the crane operator, eliminating the need for an assistant to manually operate a release mechanism.

Quantity

Specification

PRODUCT TYPEPRODUCT CODELENGTHLENGTH (with bale arm)WIDTHHEIGHTHEIGHT (with bale arm)WEIGHTWLL*CAPACITY
SmallCA108-005001520mm1690mm1360mm530mm1410mm130kg1000kg500 litres
SmallCA108-007501595mm1780mm1710mm560mm1450mm235kg1500kg750 litres
SmallCA108-010001955mm2135mm1555mm640mm1720mm255kg2000kg1000 litres
SmallCA108-015002187mm2390mm1885mm665mm1815mm425kg3000kg1500 litres
SmallCA108-020002355mm2555mm1835mm880mm2180mm540kg4000kg2000 litres
LargeCA122-020002100mm2580mm1900mm900mm1676mm860kg4000kg2000 litres
LargeCA122-030002110mm3110mm1880mm1345mm2240mm980kg6000kg3000 litres
LargeCA122-040002550mm3450mm2265mm1310mm2250mm1360kg8000kg4000 litres
LargeCA138-060002830mm-2272mm1436mm2416mm1800kg12000kg6000 litres
