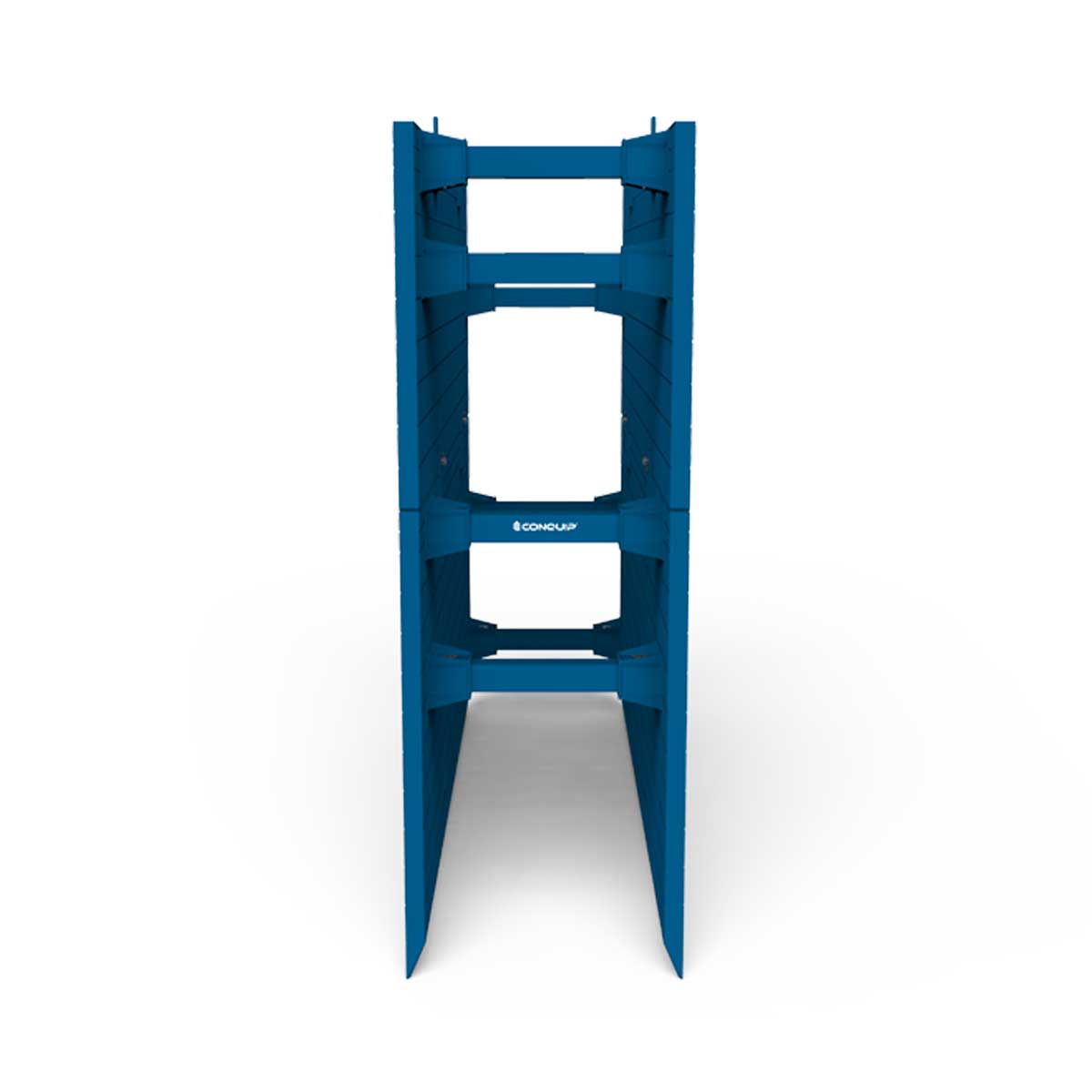

Trench Box

The Conquip Trench Box is a simple to assemble, two sided trench lining support system.

It is designed to be installed by an excavator using the ‘dig and push’ technique, or by simply carrying out the excavation and then lowering each box inside.

The Trench Box is normally selected for installing utility pipes where ground movement is not critical. The size of the system required depends on maximum trench depth requirements and the size of pipe sections. High Clearance Adaptor Brackets can be supplied for applications where larger diameter pipes are required.

Quantity
SKU: N/A Category: Tags: , , , , , , , , , , , , ,

Details

  • Available in 4 metres external length.
  • Designed for use with Conquip’s Incremental Struts.
  • Can be supplied with High Clearance Adaptor Brackets for larger diameter pipe installation.
  • High Clearance Adaptor Brackets allow for 1500mm clearance below strut.
  • Heavy-duty system rated to 60kPa.
  • Manufactured from high quality steel.
  • Can be supplied with a full range of suitable lifting and extraction chains, edge protection and trench access accessories.

Specification

ITEM PRODUCT CODE LENGTH EXTERNAL WIDTH WORKING WIDTH
(Min - Max)		 HEIGHT MAXIMUM WEIGHT*
Base Box TL101-00009 4000mm 1270-3170mm 1050-2960mm 2400mm 3200kg
Extension Box TL101-00010 4000mm 1270-3170mm  1050-2960mm 1920mm 2200kg

*Weight will be equal to or less than the weight stated depending on your strut configuration. Our team will provide more information on trench widths or working widths depending on requirements specified in your quote request.
