Free Standing Gantry BulkX
The free standing gantry configuration allows for re-positioning of the discharge area around the site.

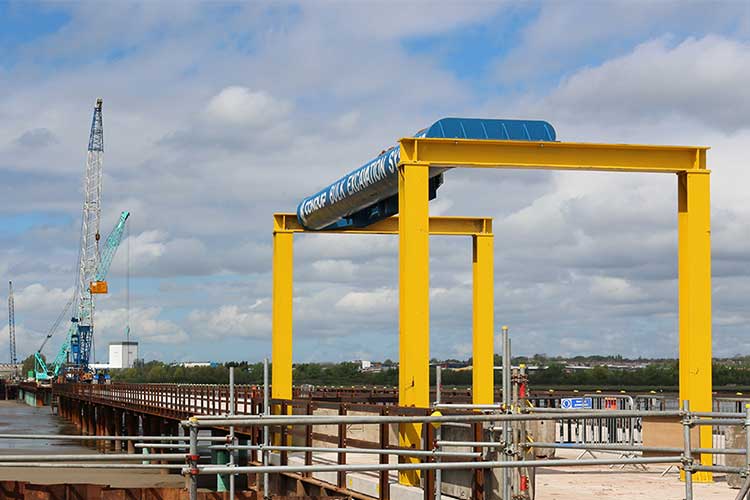

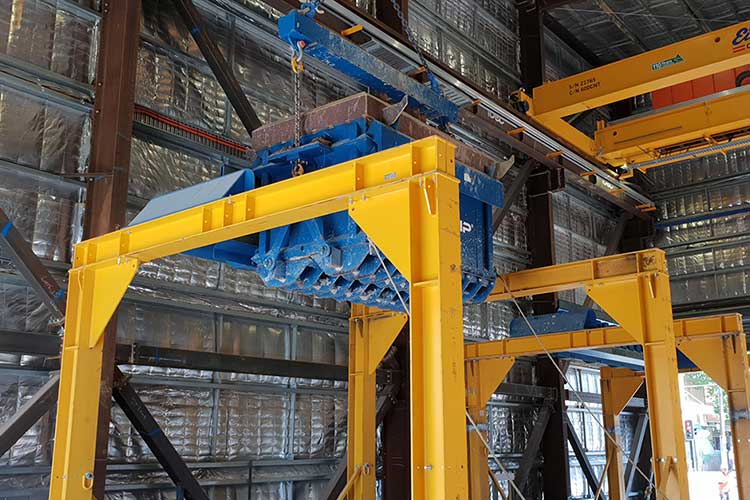

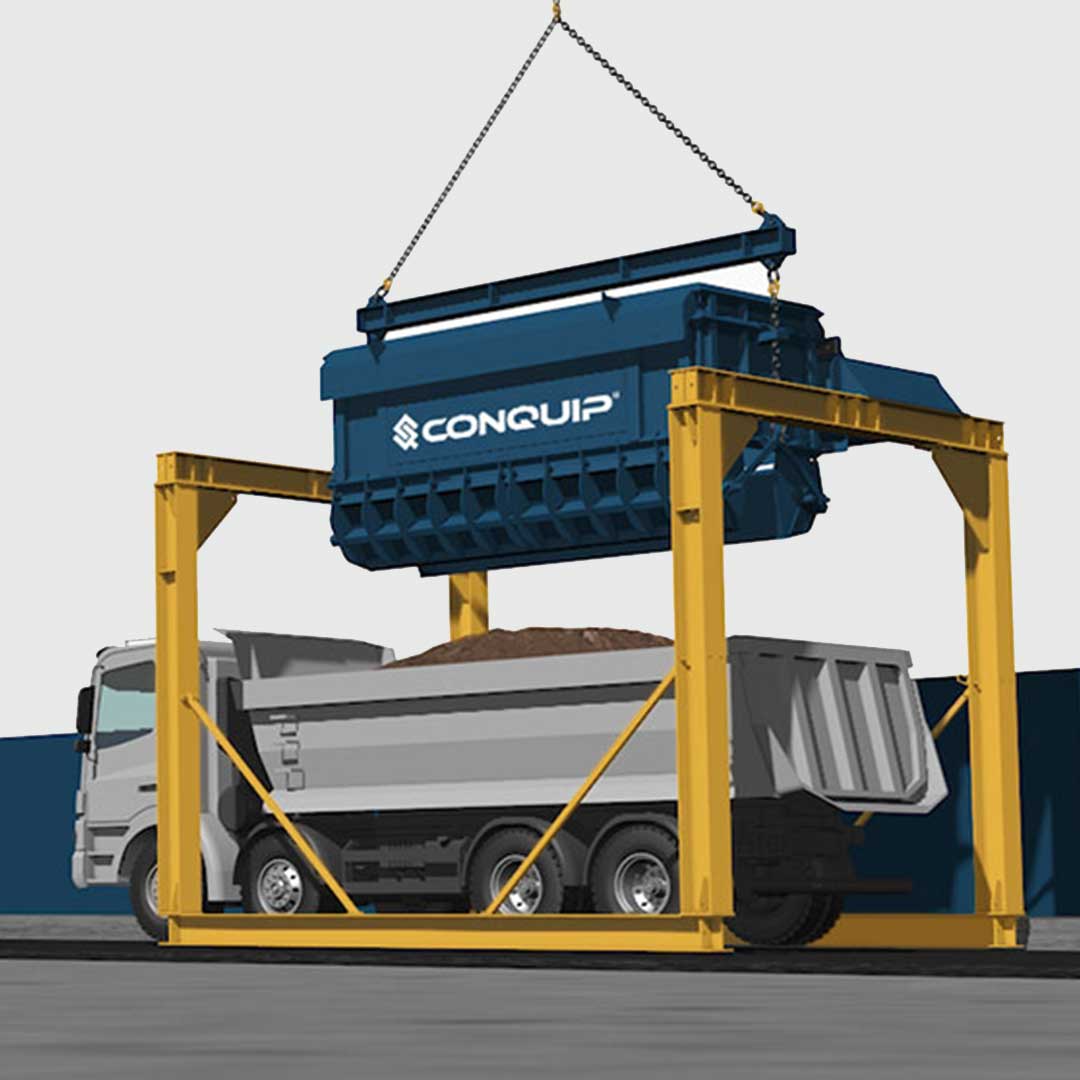

The Free Standing Gantry BulkX system comes with a complete crane lift framework which can be installed in the desired location for the discharge area. The truck can drive or reverse under the frame.

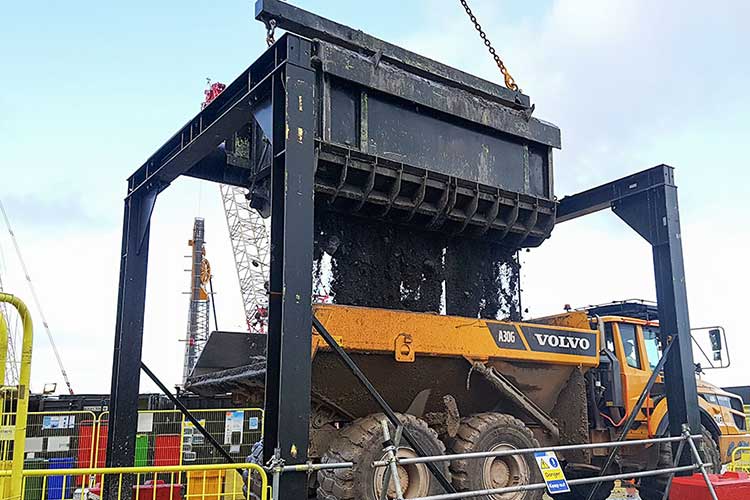

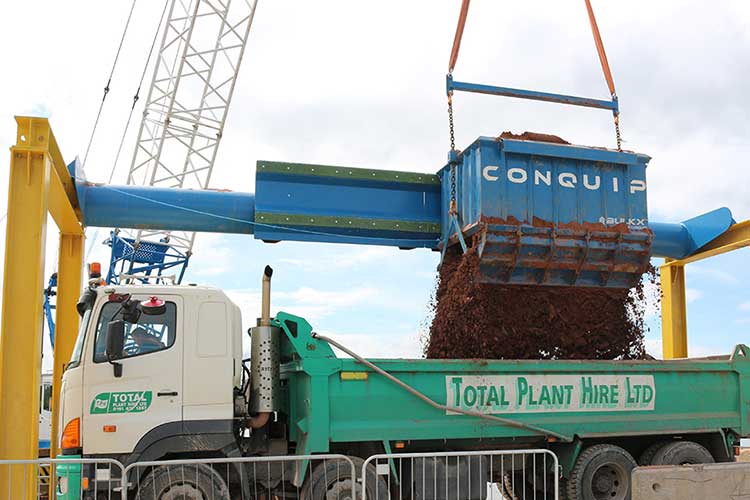

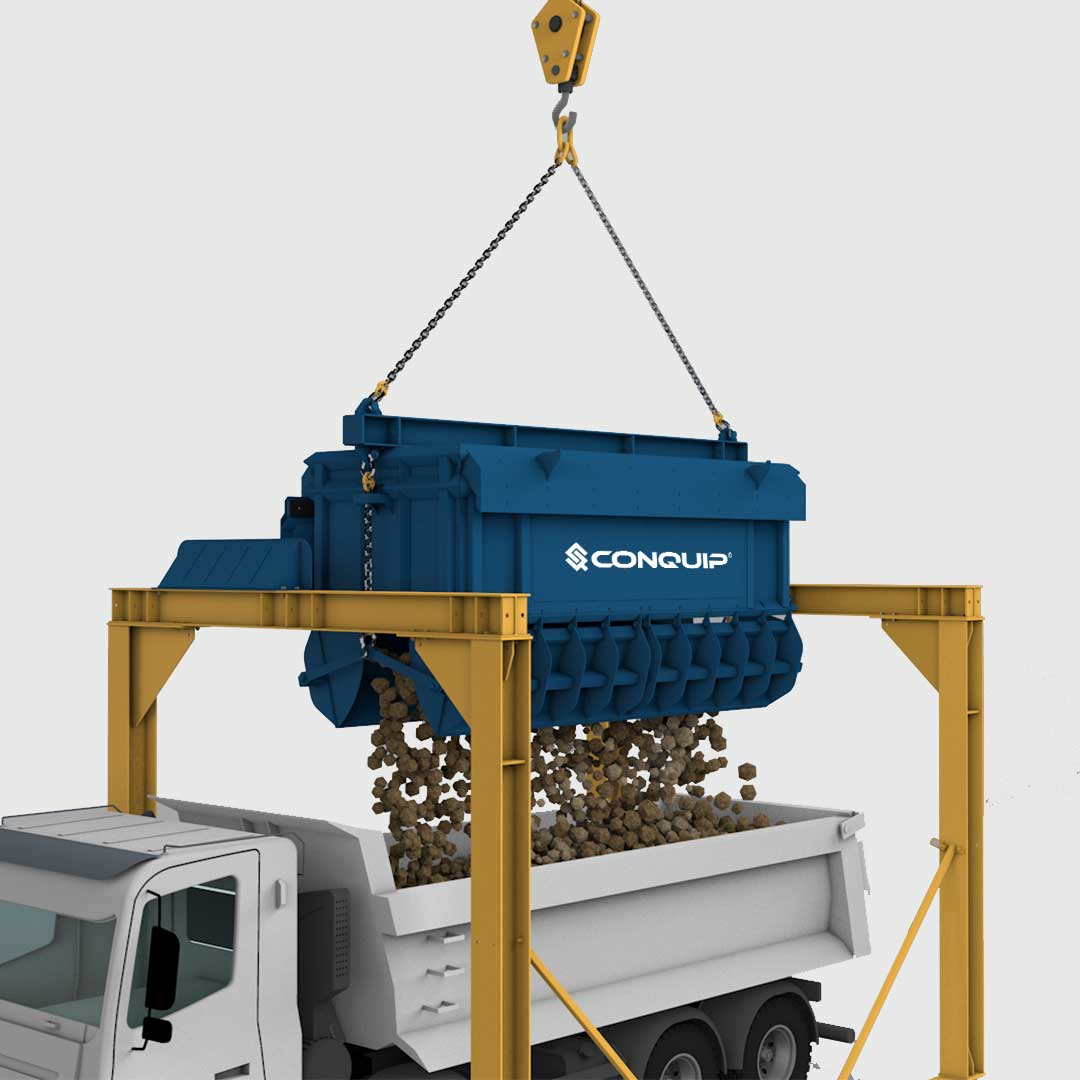

The BulkX bin, once lowered into position, interlocks with the gantry. The crane operator can then lower the lifting chains which opens the bin’s doors discharging the waste into the back of the truck. Doors closes once the bin is crane lifted off the gantry.

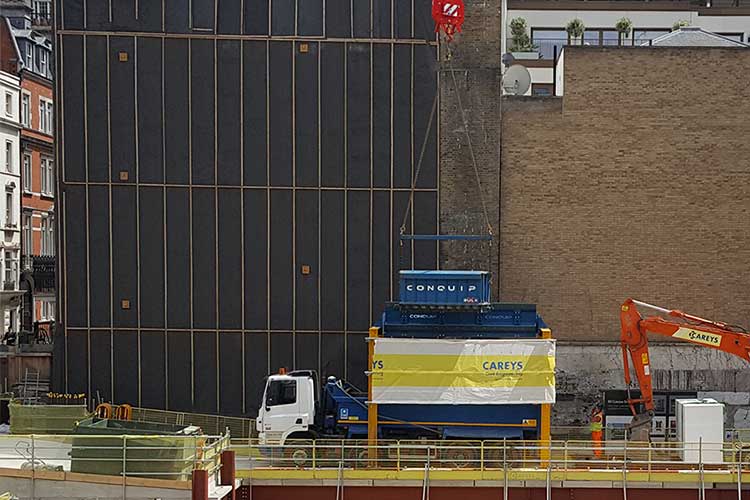

This configuration is ideal for site where the location of the discharge area needs to change throughout the project. An example of this is where a one lane road closure is permitted during certain hours in an excavation program – the Free Standing Gantry can be used in the one lane road closure throughout the day and then moved at night to allow the road to open again.
Specification
The Free Standing Gantry is compatible with all our standard BulkX bin sizes listed below. Bespoke bin sizes are also available upon request. Contact our team for more information.
Bin
| PRODUCT TYPE | PRODUCT CODE | LENGTH | WIDTH | TRANPSORT HEIGHT | WORKING HEIGHT | WEIGHT | WLL* | CAPACITY |
|---|---|---|---|---|---|---|---|---|
| BulkX 3000 | CA505-03000 | 2643mm | 1984mm | 1476mm | 2230mm | 1350kg | 6000kg | 3000 litres |
| BulkX 4000 | CA505-04000 | 2634mm | 2035mm | 1826mm | 2993mm | 1550kg | 8000kg | 4000 litres |
| BulkX 6000 | CA505-06000 | 2958mm | 2027mm | 2211mm | 2975mm | 1850kg | 12000kg | 6000 litres |
| BulkX 10000 | CA505-10000 | 4858mm | 2127mm | 2211mm | 2961mm | 4000kg | 20000kg | 10000 litres |
| BulkX 12000 | CA505-12000 | 5200mm | 2567mm | 2175mm | 3089mm | 4100kg | 24000kg | 12000 litres |

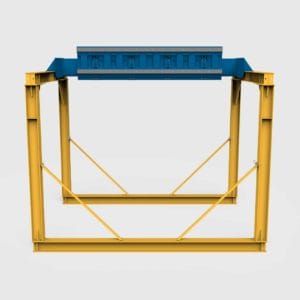

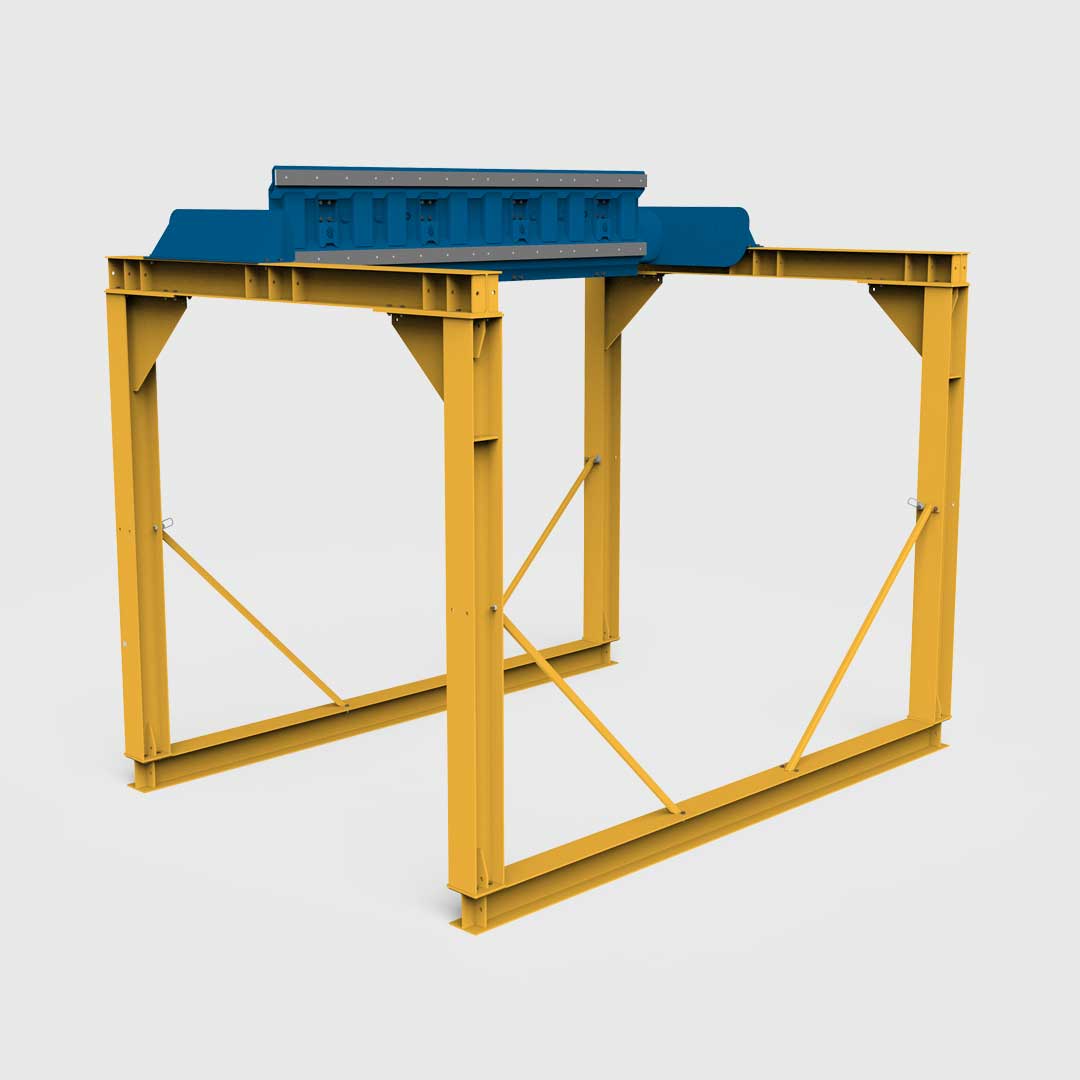

Gantry
| PRODUCT CODE | BULKX SKIP CAPACITY | LENGTH | WIDTH | HEIGHT | WEIGHT | WLL* |
|---|---|---|---|---|---|---|
| DG250-6000 | Up to 6000 litres | 3500mm | 6500mm | 5400mm | 4800kg | 12000kg |
| DG250-12000 | Above 6000 litres | 6668mm | 4910mm | 5841mm | 7500kg | 28000kg |
