Fixed Gantry BulkX
Fixed gantry BulkX configuration consists of bolt-down gantry framework and BulkX bin.
This is a very compact configuration of BulkX system, often chosen for sites with limited space and also sites where discharge of muck happens on the side of the road. Thanks to its simplicity and size, the Fixed Gantry BulkX is often used in big cities to minimise restrictions to traffic.

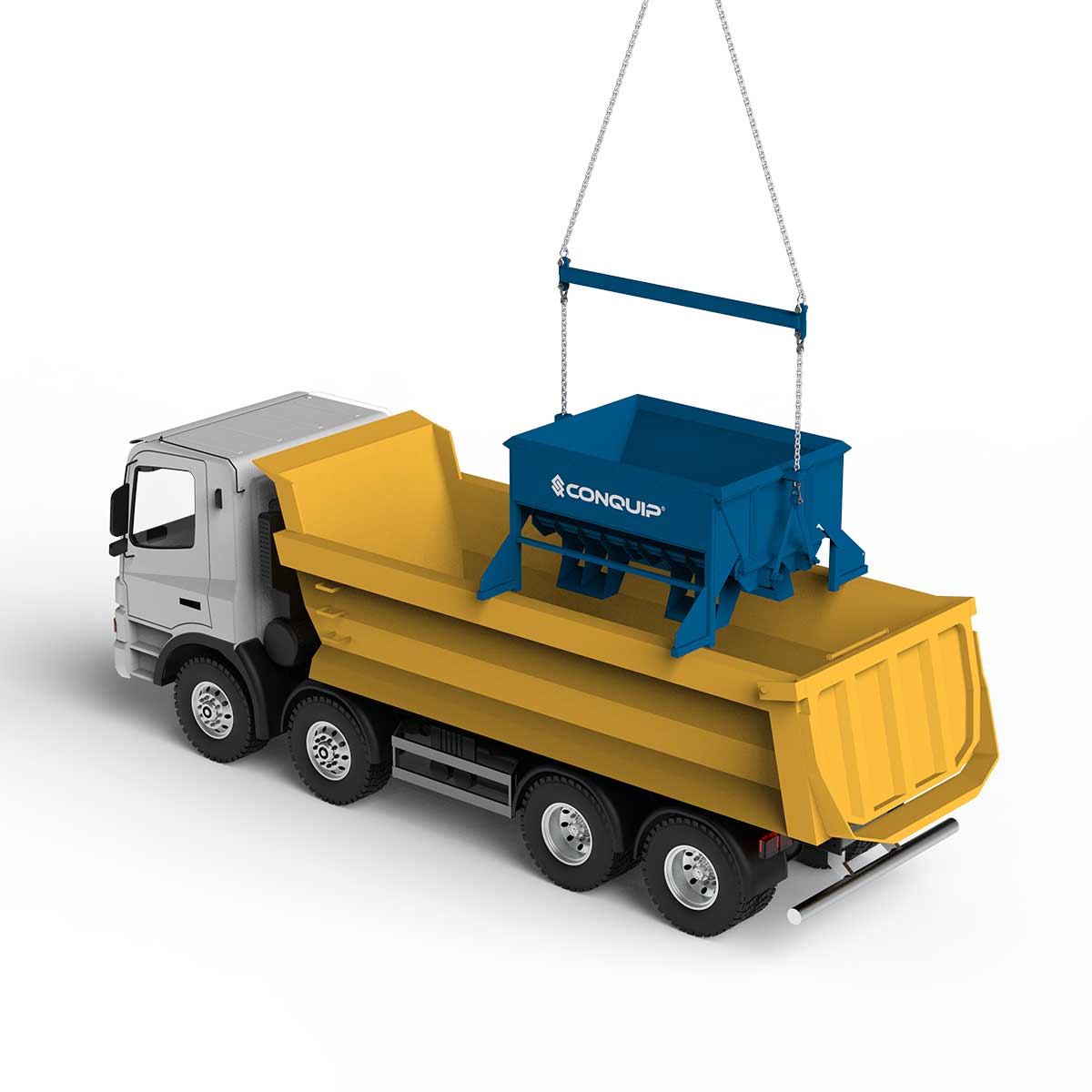

The gantry is fixed in solid ground or a structure. The BulkX bin, once lowered into position, locks with the gantry allowing the crane operator to lower the lifting chains, opening the doors of the bin and discharging the spoil directly into trucks or a muck bay.
System can be customised for specific requirements, for example gantry extending over the site hoarding to discharge into truck.
Specification
The Fixed Gantry configuration allows for all our standard BulkX bin sizes below. Bespoke bin sizes are also available upon request. Contact our team for more information regarding bespoke solutions.
Bin
| PRODUCT TYPE | PRODUCT CODE | HEIGHT | HEIGHT (WITH BALE) | WIDTH | LENGTH | WEIGHT | WLL* | CAPACITY |
| BulkX 3000 | CA505-03000 | 1255mm | 2230mm | 1985mm | 2620mm | 1350kg | 6000kg | 3000 litres |
| BulkX 4000 | CA505-04000 | 1150mm | 2940mm | 2005mm | 2630mm | 1500kg | 8000kg | 4000 litres |
| BulkX 6000 | CA505-06000 | 1876mm | 2765mm | 2930mm | 2930mm | 1800kg | 12000kg | 6000 litres |
| BulkX 10000 | CA505-10000 | 1485mm | 2127mm | 4250mm | 4250mm | 4000kg | 25000kg | 10000 litres |
| BulkX 12000 | CA505-12000 | 2175mm | 3088mm | 2568mm | 5200mm | 4100kg | 24000kg | 12000 litres |
Gantry
| PRODUCT CODE | LENGTH | WIDTH | HEIGHT | WEIGHT | WLL* |
| DG350-12000 | 4905mm | 549mm | 4934mm | 3100kg | 28,000kg |
