Glass Lifting Frame

Name: Glass Lifting Frame
SKU: 3173
Availability: InStock

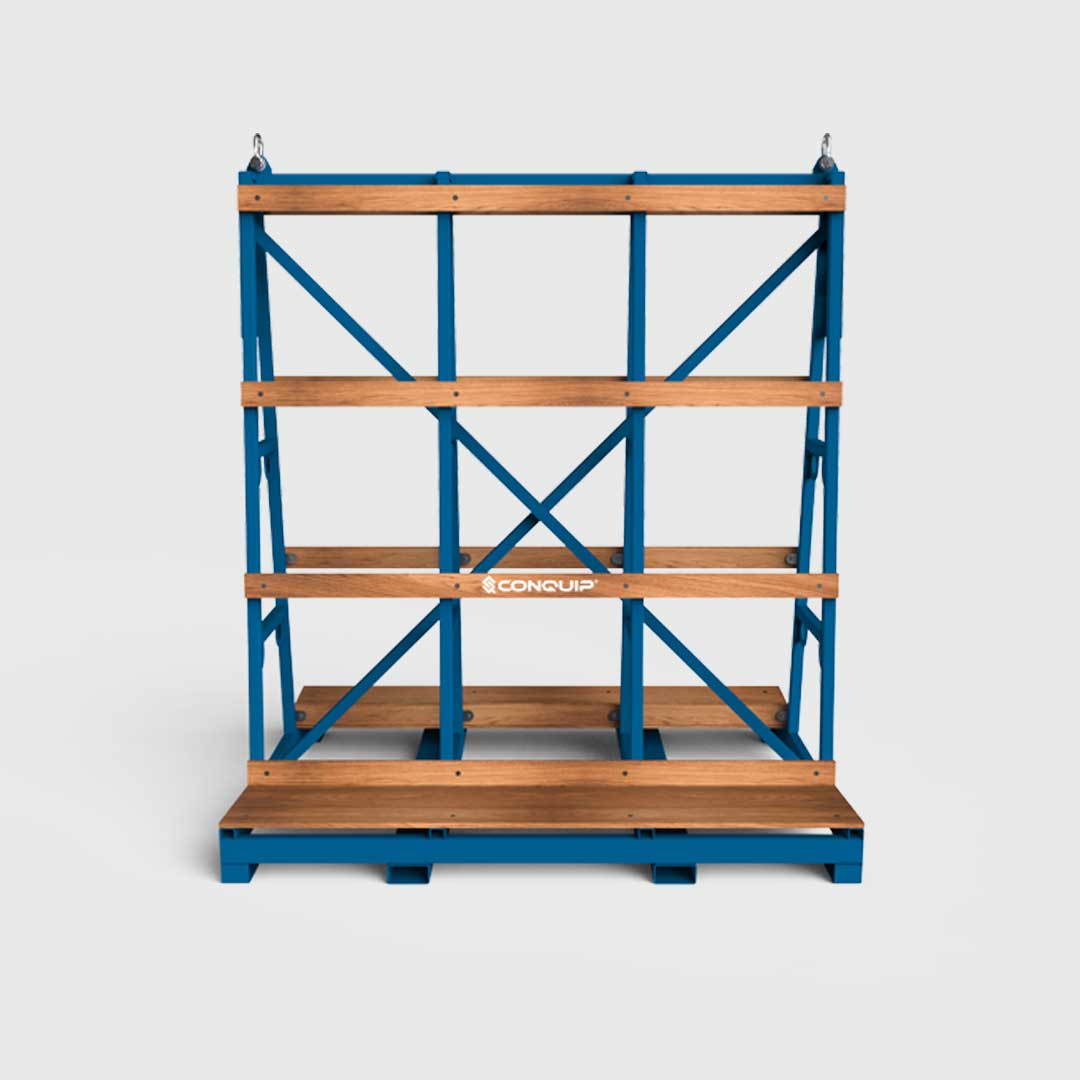

An A-Frame glass stillage for crane lifting glass and facade panels.

The Conquip Glass Lifting Frame is for crane lifting glass and façade panels safely and easily around construction sites. The ‘A-Frame’ shape ensures maximum protection for the panels while achieving maximum capacity.

Glass frames are securely strapped on to either side of the frame and then lifted, using a suitable chain sling, to the destination.

Manufactured in the UK

Safe

Size

Castor Wheels

Hire/Purchase

Clear

Quantity

SKU: N/A Category: Lifting Equipment Tags: crane attachment, crane lifting equipment, cranelifting glass, glass lifting, lifting stillage

Specification
Details

Specification

PRODUCT CODE	HEIGHT	LENGTH	WIDTH	WLL*
CA227AA-02000	1750mm	2300mm	1200mm	2000kg
CA227-02000	2750mm	2400mm	1600mm	2000kg

*Working Load Limit

Details

Inclusion of standard width fork pockets increases maneuverability, making short distance movement quick, and reduces the need for adjustment of forks.

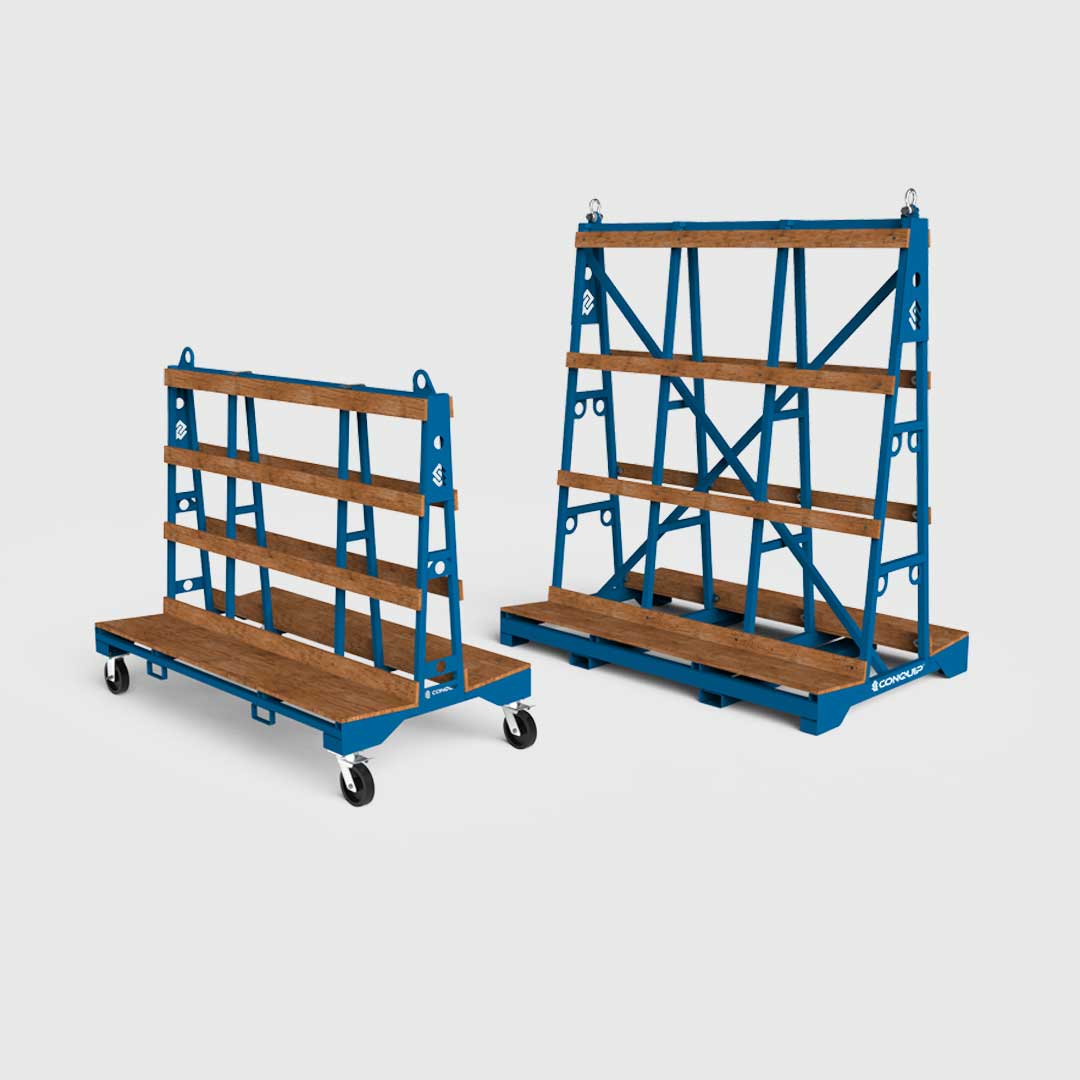

A large and a small size frame available.
A-frame stillage design to allow maximum capacity, while offering maximum protection for crane lifting glass and facade panels.
Customisation options available, including castor wheels.
Designed and manufactured within the United Kingdom from British and European steel.
