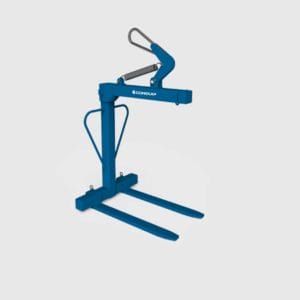

two options of self levelling crane forks

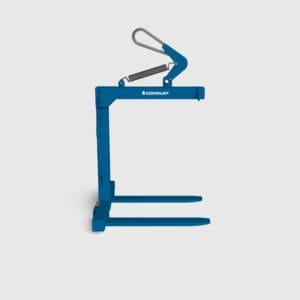

crane pallet forks attachment for lifting of pallets with a crane right side view

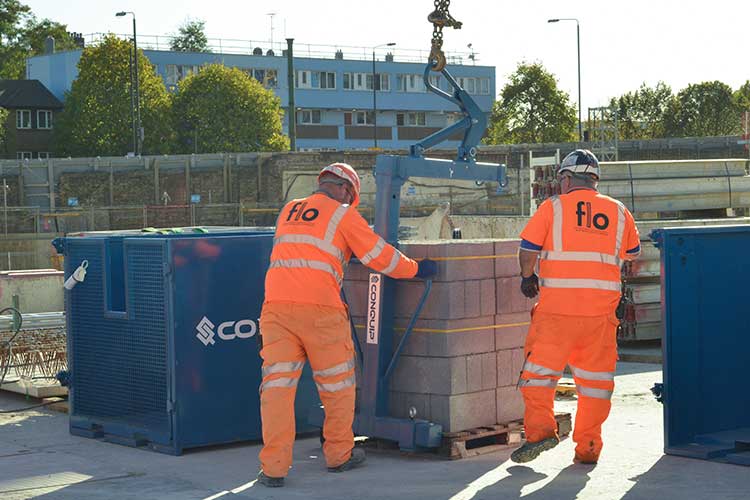

self levelling crane forks for lifting pallets and packs of bricks with a crane

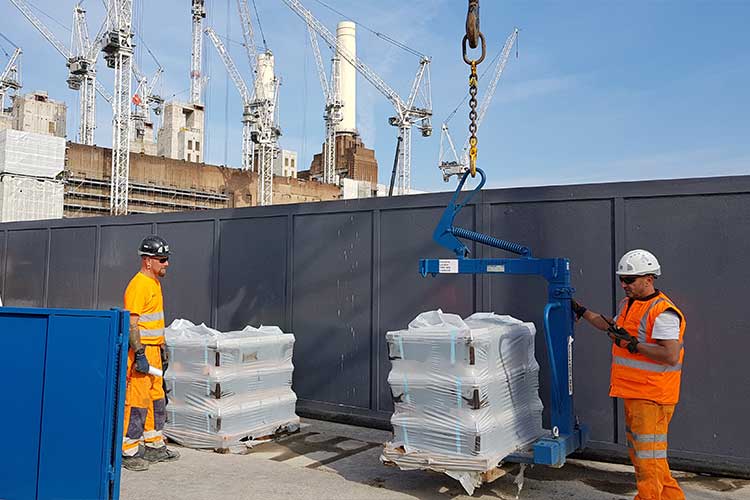

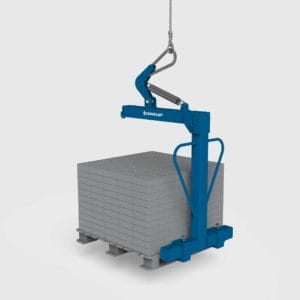

self levelling crane forks for lifting of pallets with a crane

crane forks with adjustable height option

Crane Forks

Name: Crane Forks
SKU: 3157
Availability: InStock

A self-levelling crane forks for lifting of palletised material or packs of bricks.

This is a handy crane attachment which can be used with a crane or other lifting machine to safely and efficiently lift and move loads on pallets. The forks are especially helpful for situations where forklift or telehandler can’t access or would prove inadequate.

A spring-loaded design ensures that the forks are self-levelling regardless of the weight of the load. The telescopic customisation option allows easy height adjustment of the forks, to lift a variety of loads.

Available to hire or purchase as a fixed height option or a telescopic height option.

No hidden hire charges

Quick Delivery

Type

Hire/Purchase

Clear

Quantity

SKU: N/A Category: Lifting Equipment Tags: brick forks, ca102, ca103, crane attachment, crane fork tines, crane lifting equiment, crane pallet forks, goods lifting, lifting forks, lifting gear, telescopic crane forks

Specification
Details

Specification

PRODUCT CODE	PRODUCT TYPE	HEIGHT	DEPTH	WIDTH	WLL*	WEIGHT
CA103-02000	Telescopic Height	1960mm	1180mm	940mm	2000kg	150kg
CA102-02000	Fixed Height	1975mm	1200mm	950mm	2000kg	190kg

*Working Load Limit

Details

Manufactured with a spring loaded lifting eye, which ensures a balanced lift at all times.
Fully self levelling when placed on the ground ensuring storage of the forks is easy and safe.
Adjustable height allows flexibility with size of load lifting, particularly with the telescopic crane forks option.
Conquip recommends use with a Crane Forks Cage – our new fail-safe lifting solution for moving and lifting blocks and bricks. Designed for use with the Crane Forks, to change current methods of using a safety restraint net.
For full safety instructions, please download our user guide.
